Fluid Change

NOTICE

Maximum transmission fluid volume cannot exceed 25 floz (750 ml).The fill / check method is fill to spill.Follow the Fluid Change procedure to verify the transmission is filled with fluid.

Always change the fluid at the intervals outlined in the Polaris Maintenance Schedule, see Polaris Maintenance Schedule. Polaris recommends the use of AGL Gearcase Lubricant & Transmission Fluid for this vehicle.

The fill plug 1 can be accessed on the right side of the transmission gearcase. The drain plug 3 is located on the bottom of the transmission gearcase. Access the drain plug from the bottom of the vehicle.

To change the transmission fluid, do the following:

  1. Remove the fill plug 1 and sealing washer 2.

  2. Place a drain pan under the transmission drain plug.

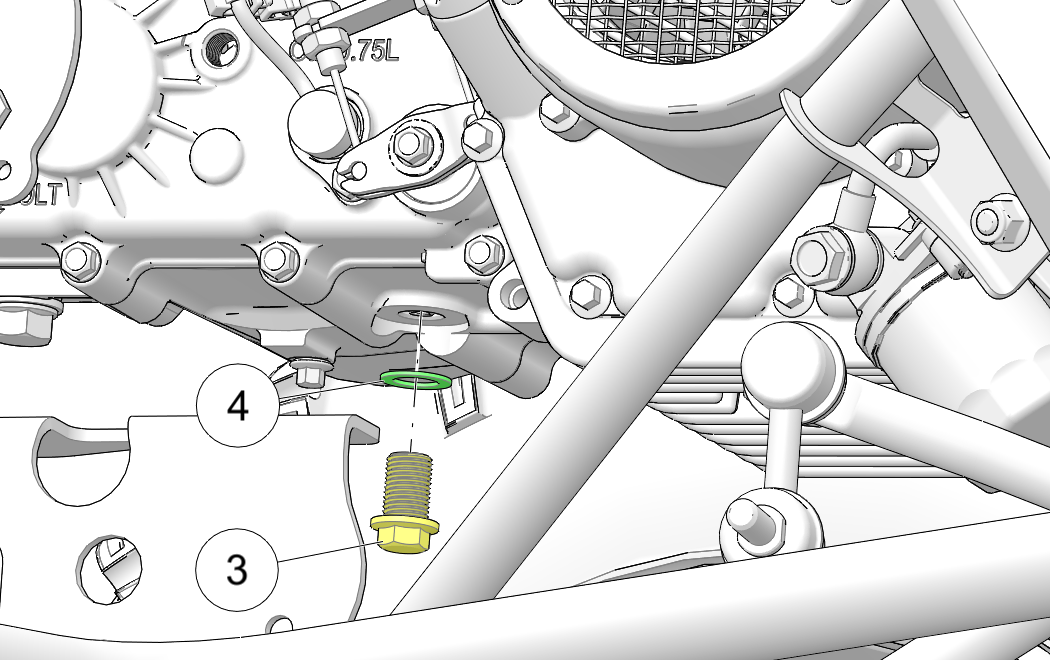

  3. Remove drain plug 3 and sealing washer 4 from the bottom of the gearcase and allow lubricant to drain completely.

  4. Clean the drain plug magnetic surface.


  1. Reinstall the drain plug and sealing washer. Torque to specification.

    TORQUE

    Transmission Drain Plug:

    18 ft-lbs (25 N·m)

  2. Add the recommended amount of fluid or fill-to-spill through the fill plug hole.

    CAPACITY

    Recommended Lubricant:

    Polaris AGL Gearcase Lubricant & Transmission Fluid

    Capacity:

    25 oz (750 ml)

  3. Reinstall the fill plug and washer. Torque to specification.

    TORQUE

    Transmission Fill Plug:

    18 ft-lbs (25 N·m)

  4. Check for leaks. Dispose of used fluid properly.
