Air Filter Removal / Installation

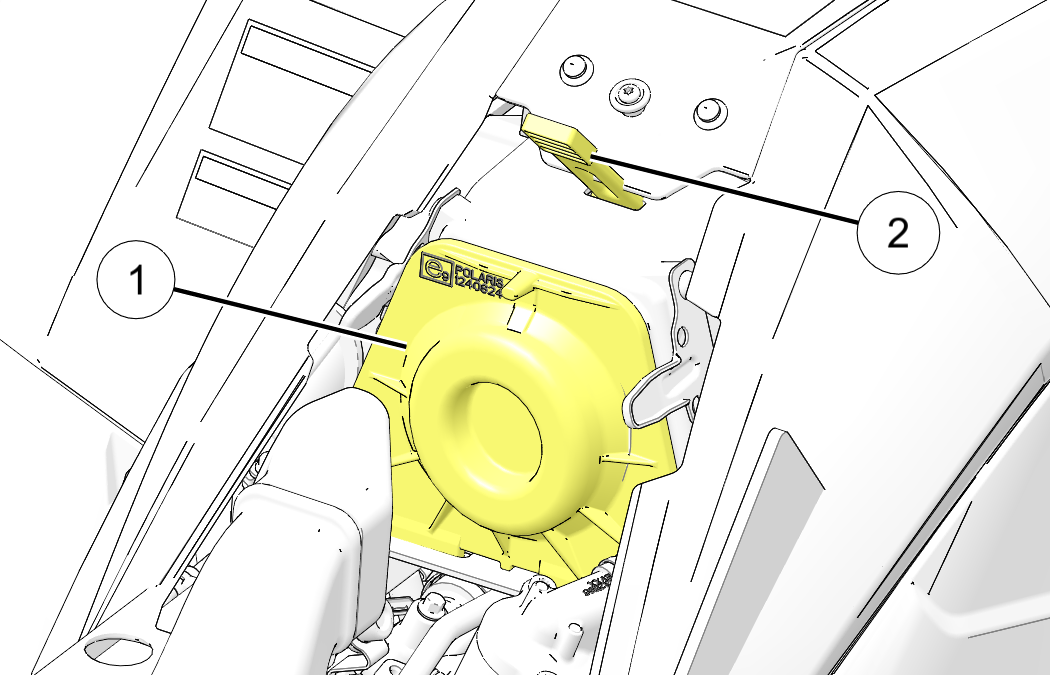

  1. Remove the seat, the air box cover strap 2, and the air box cover 1.

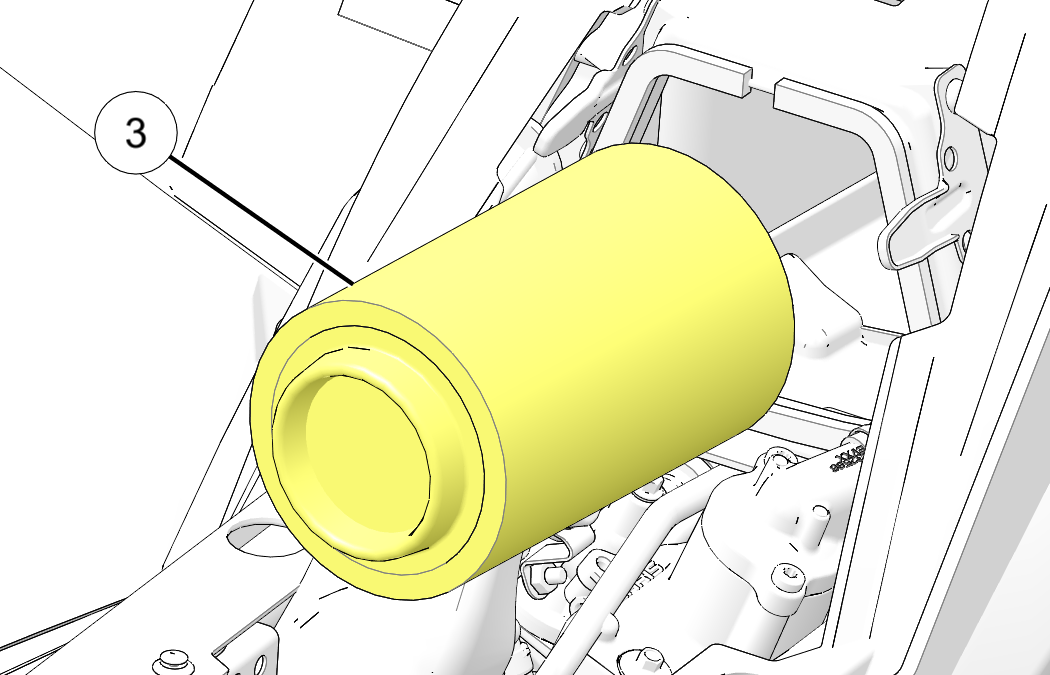

  2. Remove the filter 3.

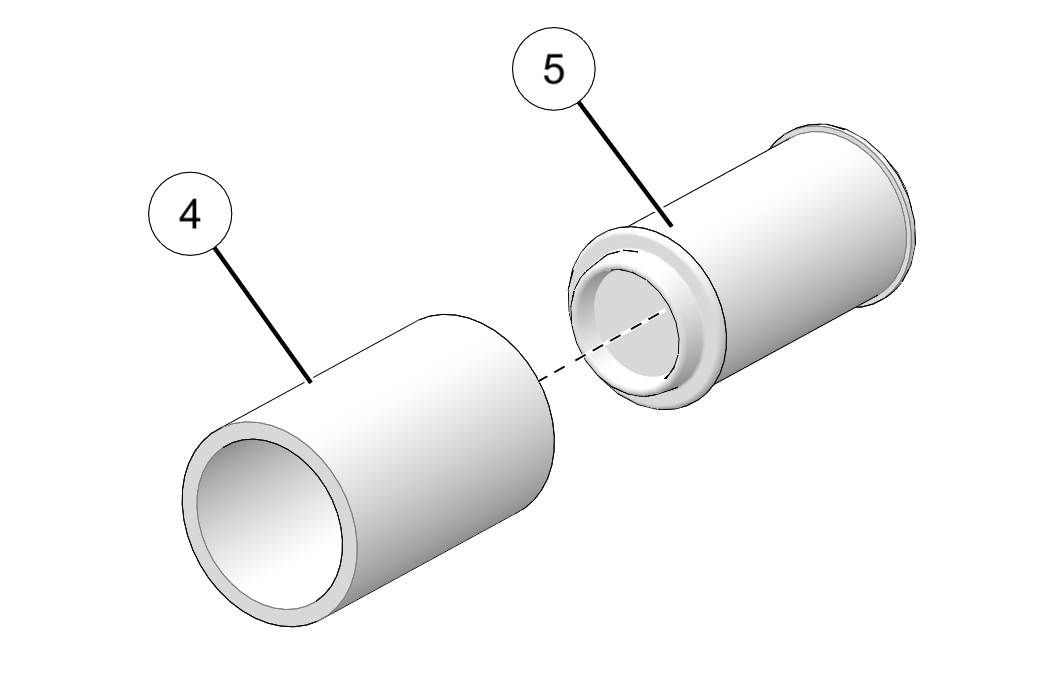

  3. Remove the fabric type pre- filter 4 from the main filter 5. Wash the pre-filter in soapy water, then rinse and let dry.

  4. Reinstall the pre-filter over the main filter. Install a new main filter if needed.

  5. Reinstall the filter into the air box.

  6. Reinstall the air box cover, the air box cover strap, and the seat.
