Preload Settings

Adjusting preload settings can alter vehicle handling.

IMPORTANT
Never exceed the MAX allowable preload when adjusting the suspension. Damage to the suspension system may occur if the MAX allowable preload is exceeded.
RZR Pro S Factory Default Preload Settings MAX allowable preload
  Measurement* Fox® Walker Evans Racing® Fox® Walker Evans Racing®
Front Shocks 1

0.350 in.

(0.89 cm)

0.563 in.

(1.4 cm)

1.350 in.

(3.4 cm)

1.563 in.

(4.0 cm)
2

2.900 in.

(7.4 cm)

2.500 in.

(6.4 cm)

2.900 in.

(7.4 cm)

2.500 in.

(6.4 cm)
Rear Shocks 1

6.335 in.

(16.1 cm)

1.685 in.

(4.3 cm)

7.335 in.

(18.6 cm)

2.685 in.

(6.8 cm)
2

3.250 in.

(8.3 cm)

3.750 in.

(9.5 cm)

3.250 in.

(8.3 cm)

3.750 in.

(9.5 cm)

*See the images in the Front / Rear Spring Preload Adjustment section to view corresponding preload measurement locations
RZR Pro S 4 Factory Default Preload Settings MAX allowable preload
  Measurement* Fox® Walker Evans Racing® Fox® Walker Evans Racing®
Front Shocks 1

3.563 in.

(9.1 cm)

1.382 in.

(3.5 cm)

4.563 in.

(11.6 cm)

2.382 in.

(6.1 cm)
2

2.875 in.

(7.3 cm)

3.000 in.

(7.6 cm)

2.875 in.

(7.3 cm)

3.000 in.

(7.6 cm)
Rear Shocks 1

6.650 in.

(16.9 cm)

1.375 in.

(3.5 cm)

7.650 in.

(19.4 cm)

2.375 in.

(6.0 cm)
2

3.625 in.

(9.2 cm)

4.375 in.

(11.1 cm)

3.625 in.

(9.2 cm)

4.375 in.

(11.1 cm)

*See the images in the Front / Rear Spring Preload Adjustment section to view corresponding preload measurement locations

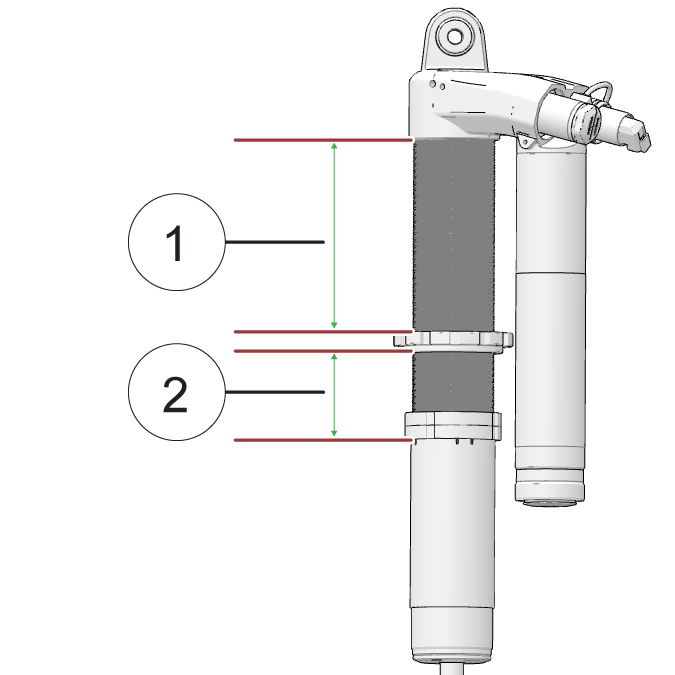

Fox® Shocks (if equipped)

Shock Location Measurement*
Front Shock
Rear Shock

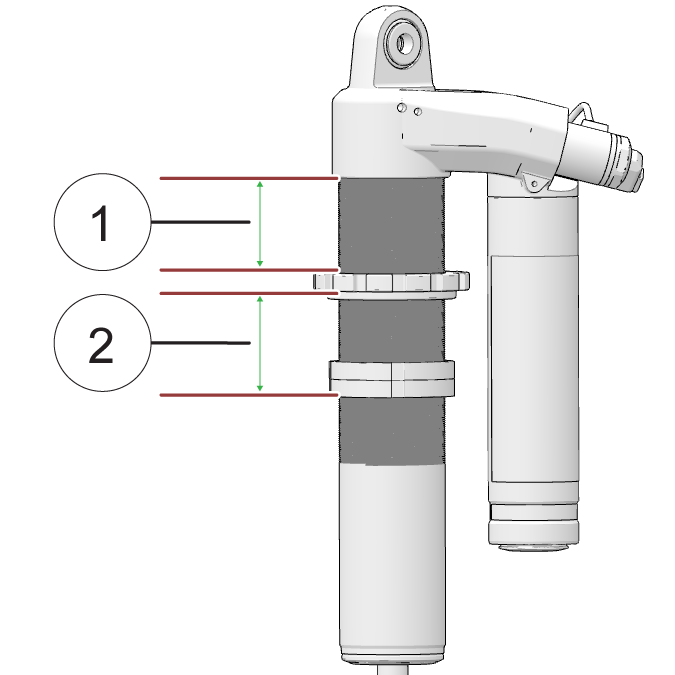

Walker Evans Racing® Shocks (if equipped)

Shock Location Measurement*
Front Shock
Rear Shock
