Driven Clutch Removal

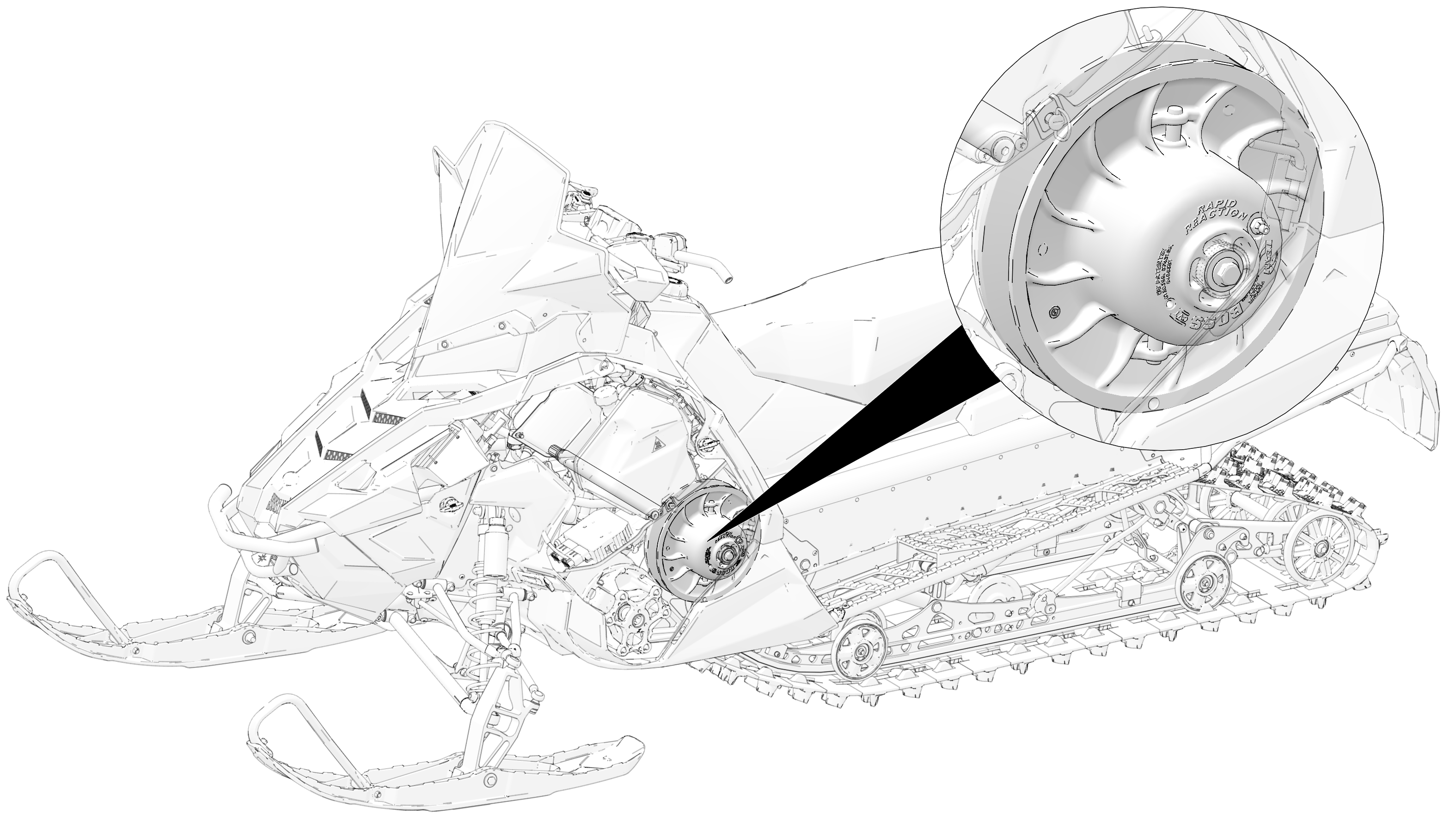

To access the Driven Clutch, remove the left side panel.

  1. Remove the drive belt. See Drive Belt Removal for drive belt removal procedure.

  2. Lock the parking brake.

    NOTICE

    If the transmission is in Neutral the driven clutch will spin with the parking brake on. The transmission must be in High, Low, or Reverse for the parking brake to stop the driven clutch from spinning.

  3. Remove the driven clutch bolt 1 and flat washer 2.

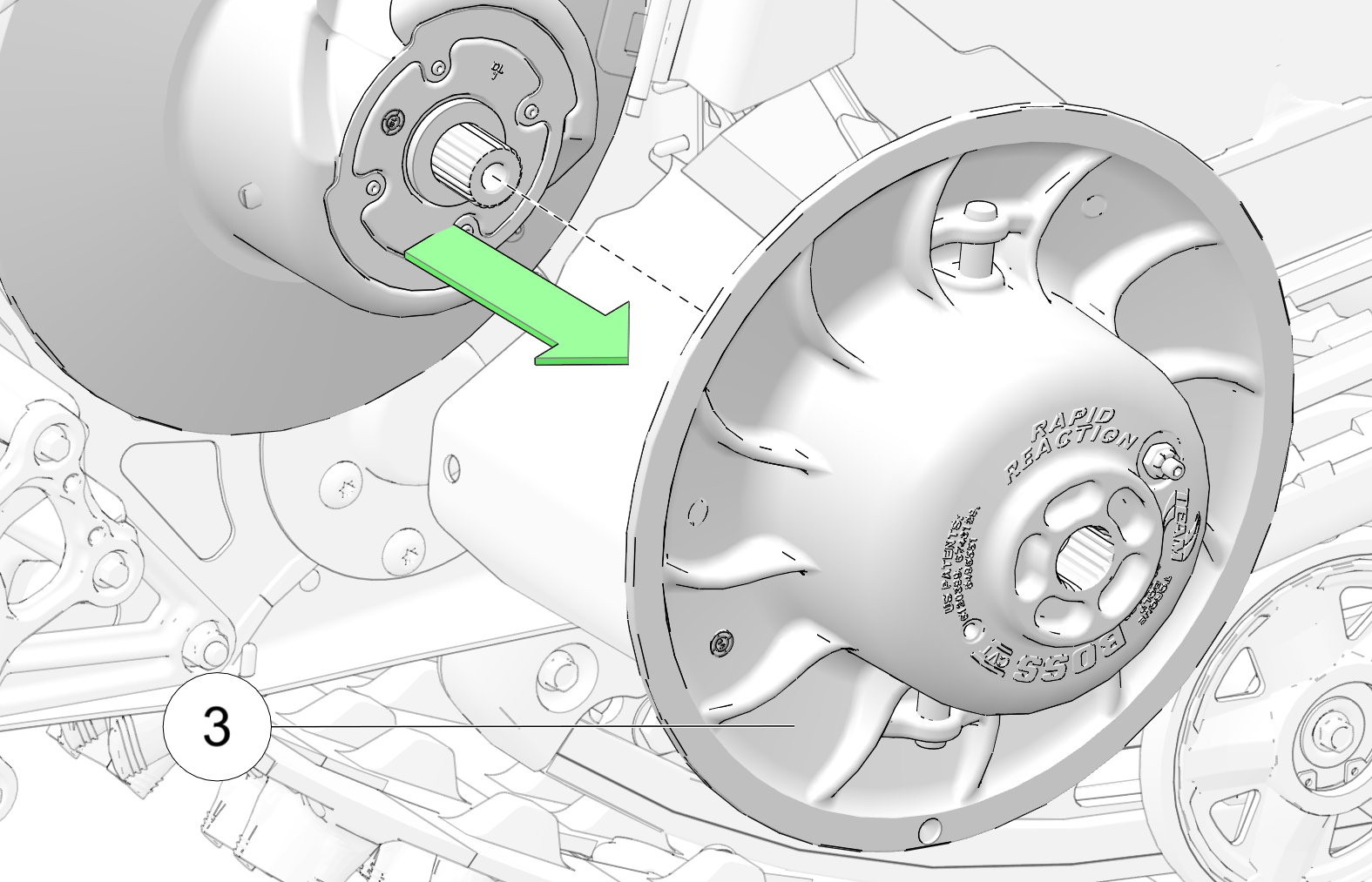

  4. Remove the stationary sheave 3 from the jackshaft by freeing the rollers from the movable sheave.

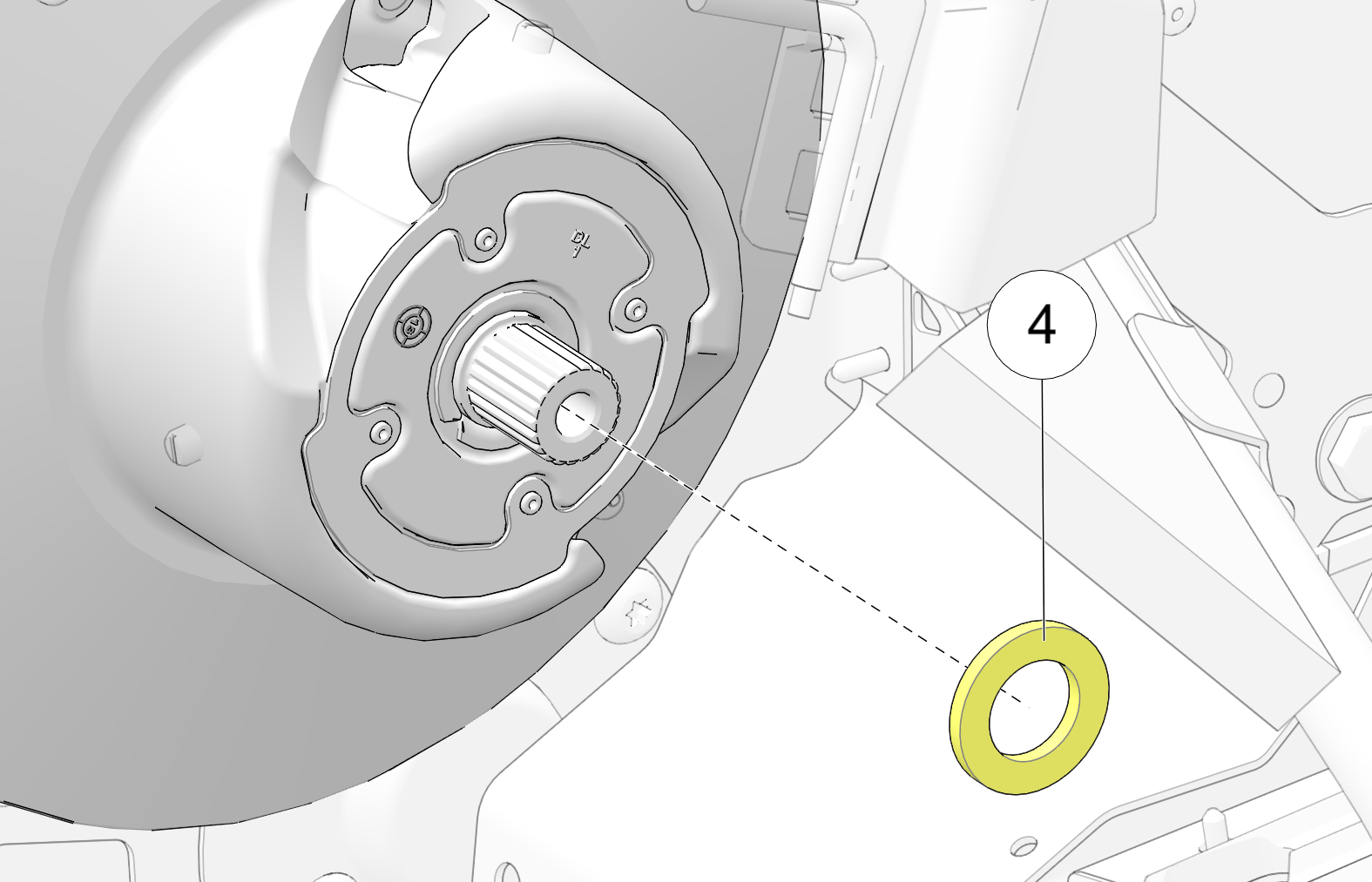

  1. Remove the shim 4 from the jackshaft.

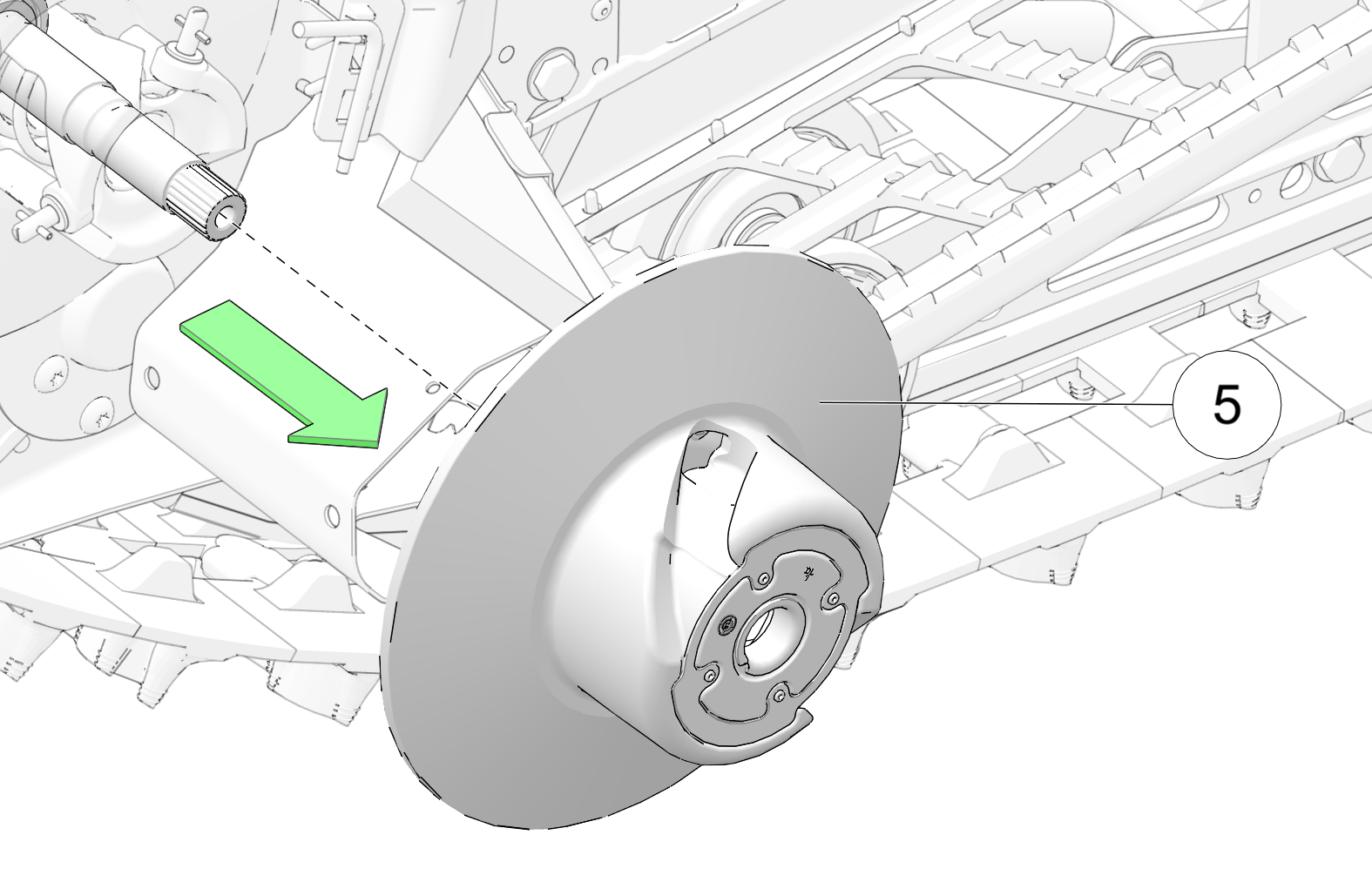

  2. Remove the movable sheave 5 from the jackshaft.

  3. Inspect the jackshaft and driven clutch splines for damage. Replace components as required.
