Hard Trunk Removal (If Equipped)

  1. If applicable, remove the left and right saddlebags and remove the trunk lock fastener 1 from each trunk latch.

  2. Disconnect the antenna harness plugs 2 and trunk harness multi-plug 3.

    NOTE
    The harness connectors are located above the metal mounting plate 4.

  3. Lift the trunk latches 5 to unlock the trunk from the mount.

  4. Lift up on the rear of the trunk 6 and slide rearward 7 to release the trunk from the motorcycle.

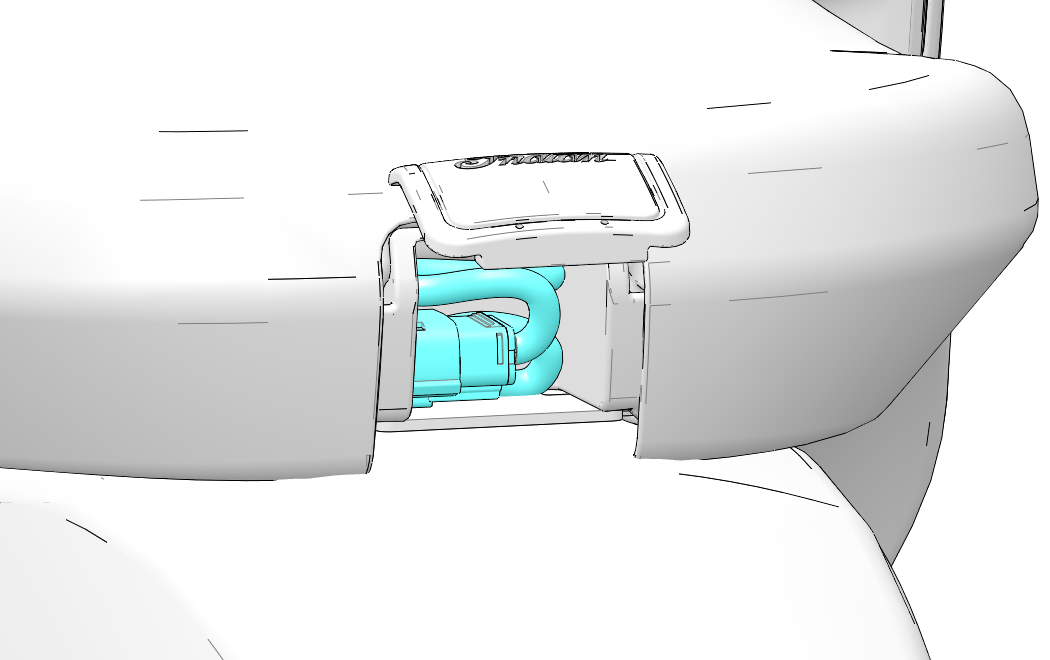

  5. Carefully gather the wiring harness and place in seat storage compartment.

  6. Place the cover over the compartment to close the compartment.
