Drive Belt Tension Adjustment

IMPORTANT
Perform this procedure to achieve proper belt tension and alignment. Belt tension should be set before performing alignment procedure.
WARNING
A rear axle not in alignment can cause drive line noise and damage the drive belt, causing possible belt failure and loss of control of motorcycle.

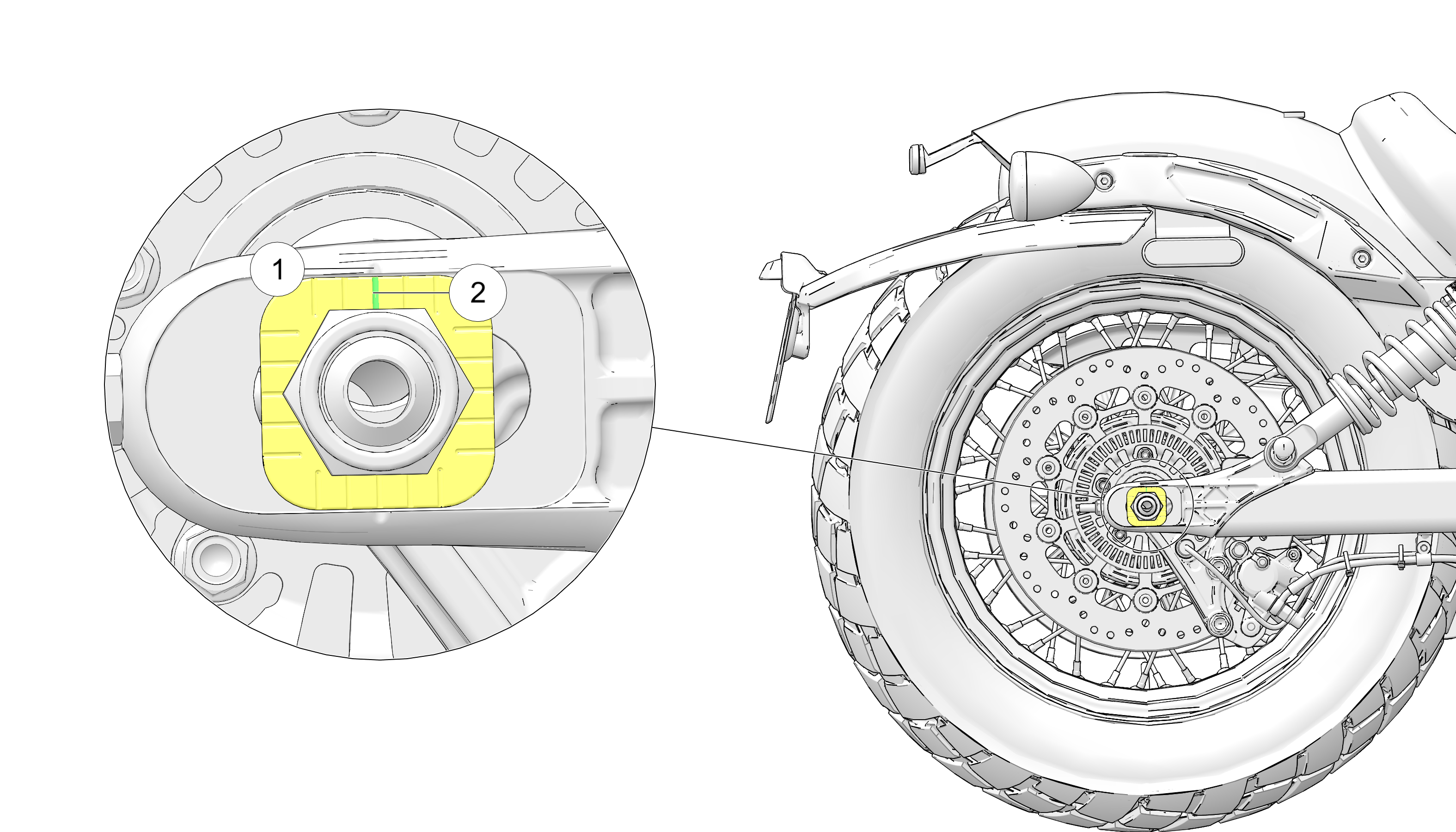

  1. Make note of adjuster locations 1 and 2.

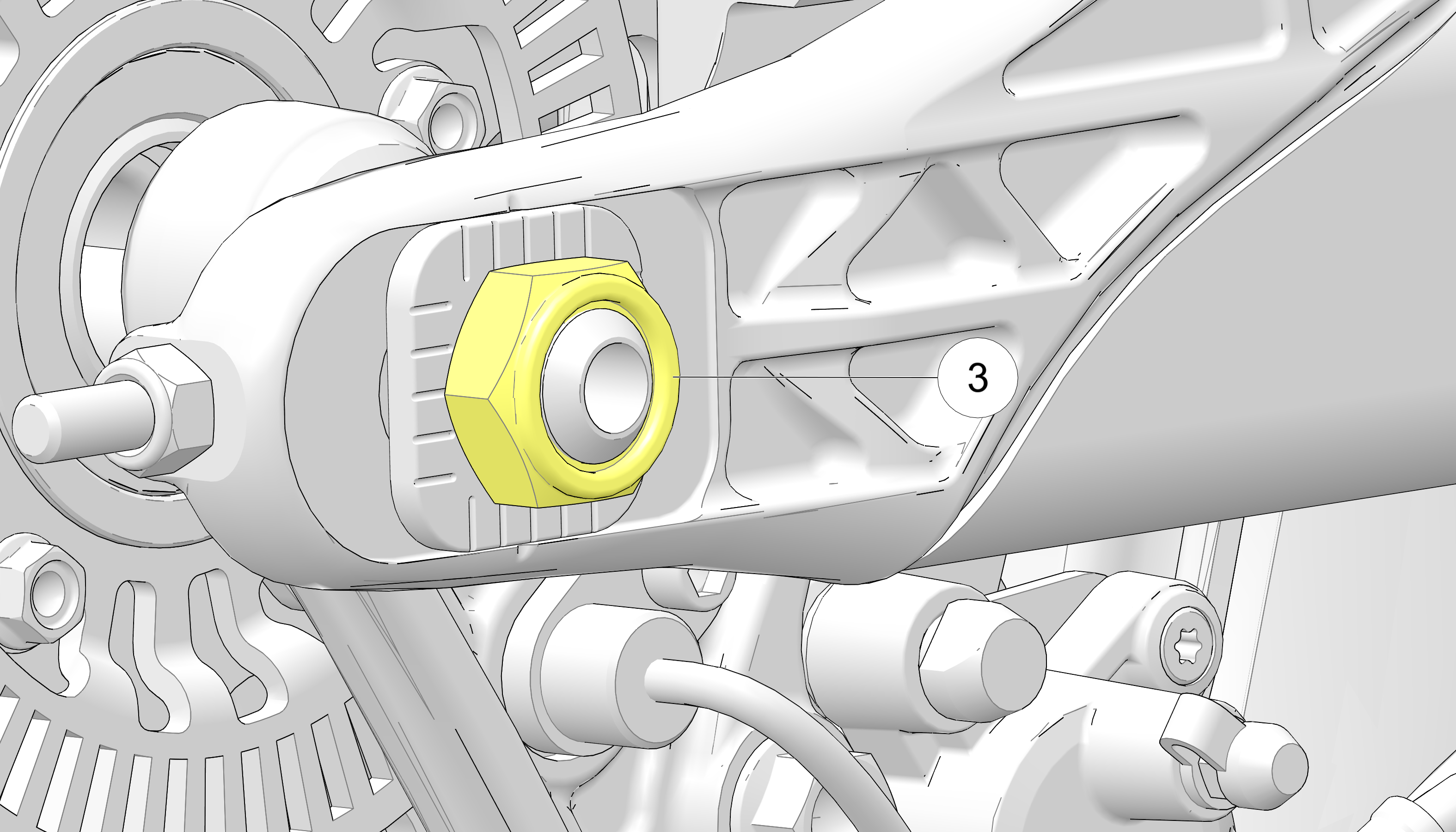

  2. On right side of motorcycle, loosen the axle nut 3. Retighten to Adjustment Specification.

    TORQUE
    Adjustment Specification: 15 ft-lbs (20 N·m)

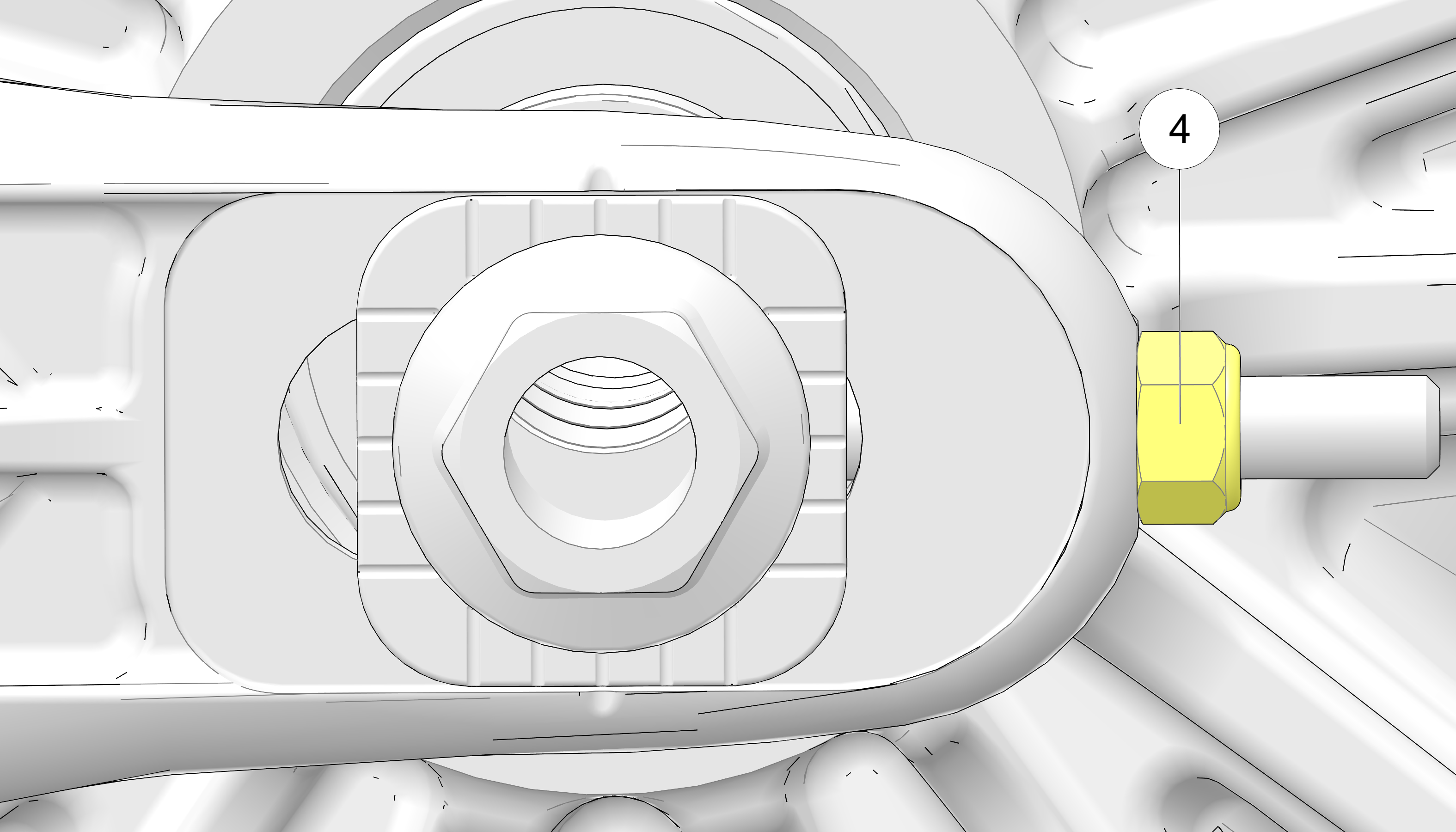

  3. Turn LEFT SIDE adjuster nut 4 to achieve proper belt tension.

  4. When belt tension is correct continue to next section and adjust final belt alignment.
