Seat Removal and Installation

To remove the seat, do the following:

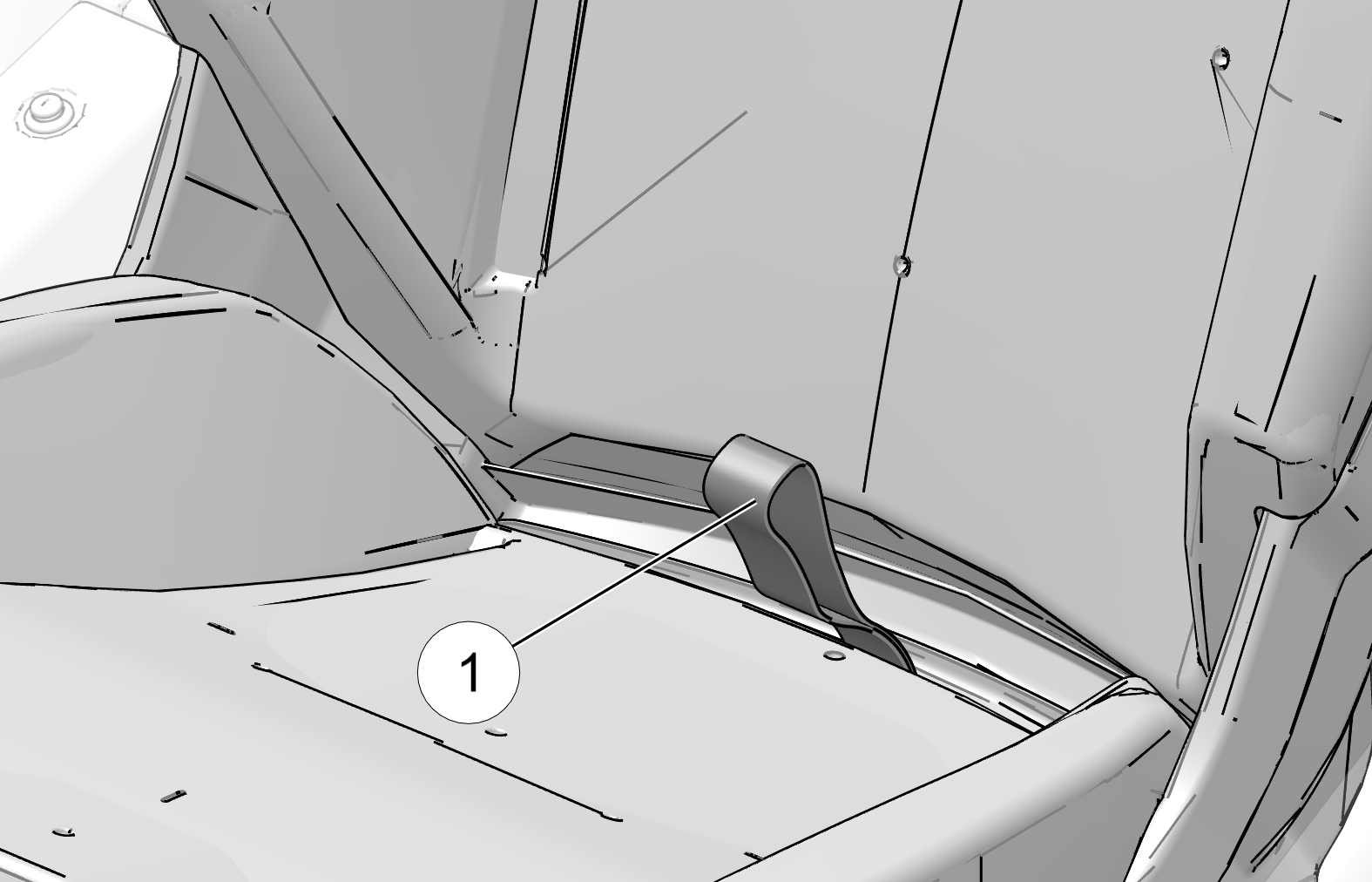

  1. Pull up on the seat latch strap 1 located at the base of the seat.

  2. Tilt the seat forward and move it rearward.

  3. Lift the seat upward to remove it from the vehicle.

  1. Align the base to reinstall the seat. Make sure the seat tabs at the front edge of the seat slide onto the seat retainer tube.

  2. Confirm the seat is secure by pulling on the seat back and lifting up on the front edge of the seat. The seat should not disengage.

  3. Press down firmly at the rear of the seat to engage the rear latches.

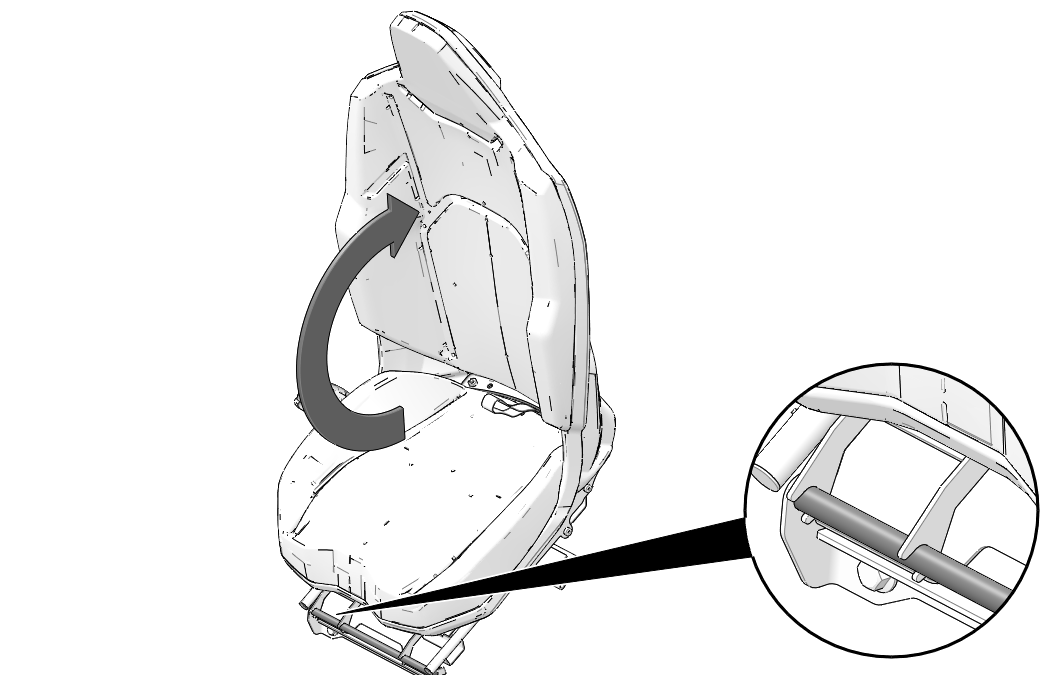

Seat installation image below.
