High / Low Speed Compression Adjustment
NOTICE
Always adjust the clicker at least one click below
full stiff (full clockwise) or shock damage will occur.

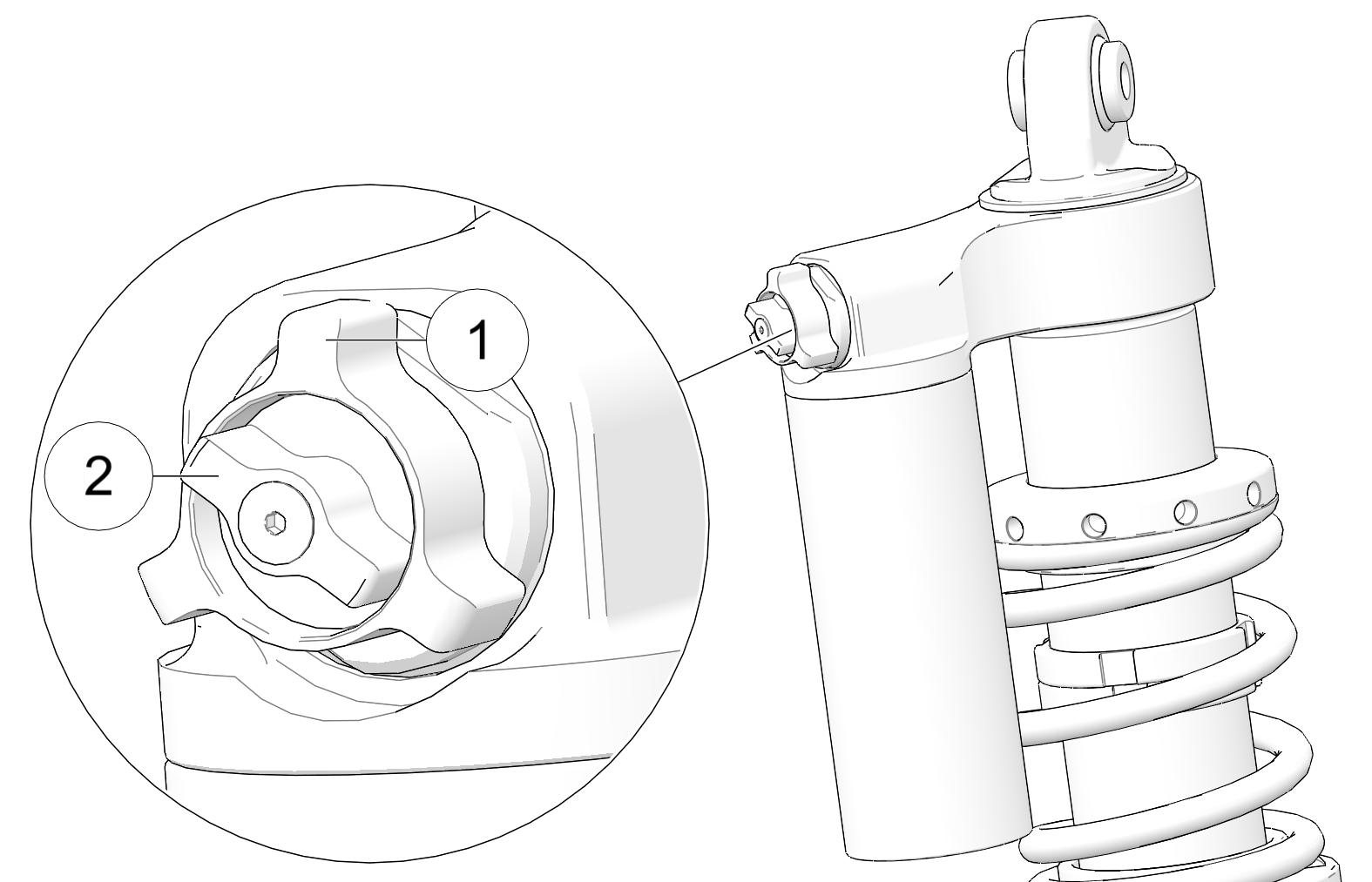

High Speed Compression (RED)
To adjust high speed compression dampening, do the following:
-
Turn the outside clicker 1 clockwise to increase compression damping.
-
To decrease high speed compression damping, turn the outside clicker counter-clockwise.
Low Speed Compression (BLACK)
To adjust high speed compression dampening, do the following:
-
Turn the inside clicker 2 clockwise to increase compression damping.
-
To decrease high speed compression damping, turn the inside clicker counter-clockwise.
| Factory Clicker Settings | |
|---|---|
|
Front / Rear High-Speed Suspension |
8 Clicks From Full Stiff |
|
Front / Rear Low-Speed Suspension |
5 Clicks From Full Stiff |
