Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for the latest news, new product introductions, upcoming events, career opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and recreational products. We believe POLARIS sets a standard of excellence for all utility and recreational vehicles manufactured in the world today. Many years of experience have gone into the engineering, design, and development of your POLARIS vehicle, making it the finest machine we’ve ever produced.
For safe and enjoyable operation of your vehicle, be sure to follow the instructions and recommendations in this owner’s manual. Your manual contains instructions for minor maintenance, but information about major repairs is outlined in the POLARIS Service Manual and can be performed by a POLARIS dealer.
Your POLARIS dealer knows your vehicle best and is interested in your total satisfaction. Your POLARIS dealership can perform all of your service needs during and after the warranty period.
For the most up-to-date owner’s manual visit
https://www.polaris.com/en-us/owners-manuals.
Failure to follow the warnings contained in this manual can result in severe injury or death.
This vehicle is not a toy and can be hazardous to operate. This vehicle handles differently than other vehicles. A collision or rollover can occur quickly, even during routine maneuvers, if you fail to take proper precautions.
Read this owner’s manual. Understand all safety warnings, precautions and operating procedures before operating the vehicle. Keep this manual with the vehicle at all times.
This vehicle is an ADULT VEHICLE ONLY. You MUST be at least 16 years of age and have a valid driver’s license to operate this vehicle.
No person under the age of 12 may ride as a passenger in this vehicle.
Never permit a guest to operate this vehicle unless the guest has read this manual and all product labels.
Always keep hands, feet, and all other body parts inside the vehicle at all times.
Always wear the proper clothing when operating or riding in this vehicle. All riders should wear substantial footwear, long pants, and a close-fitting shirt. A hard hat or helmet and approved eye protection are recommended when appropriate for riding or working conditions.
Never operate this vehicle under the influence of drugs or alcohol, as these conditions impair judgement and the operator’s ability to react.
To safely operate this vehicle, it is important to become familiar with its features, controls, and characteristics. Review all items in the Safety chapter for this vehicle that apply to you:
Operators
Riders
Owners
Trailering the Vehicle
Maintaining the Vehicle
Additionally, read the product safety labels on the vehicle and follow all rules and regulations concerning the operation of this vehicle in your area.
Polaris recommends anyone who will be operating this vehicle to take a training course. ROHVA® (Recreational Off-Highway Vehicle Association®) provides both an online safety e-course and a hands-on safety course. To access this training, visit www.rohva.org.
Other sources of safety information include the Polaris Safety Video. The Polaris Help Center also has additional information: https://www.polaris.com/en-us/help-center/.
Record your vehicle's identification numbers. Remove the spare key and store it in a safe place. Additional pre-cut keys for your vehicle may be ordered from your local POLARIS dealer.

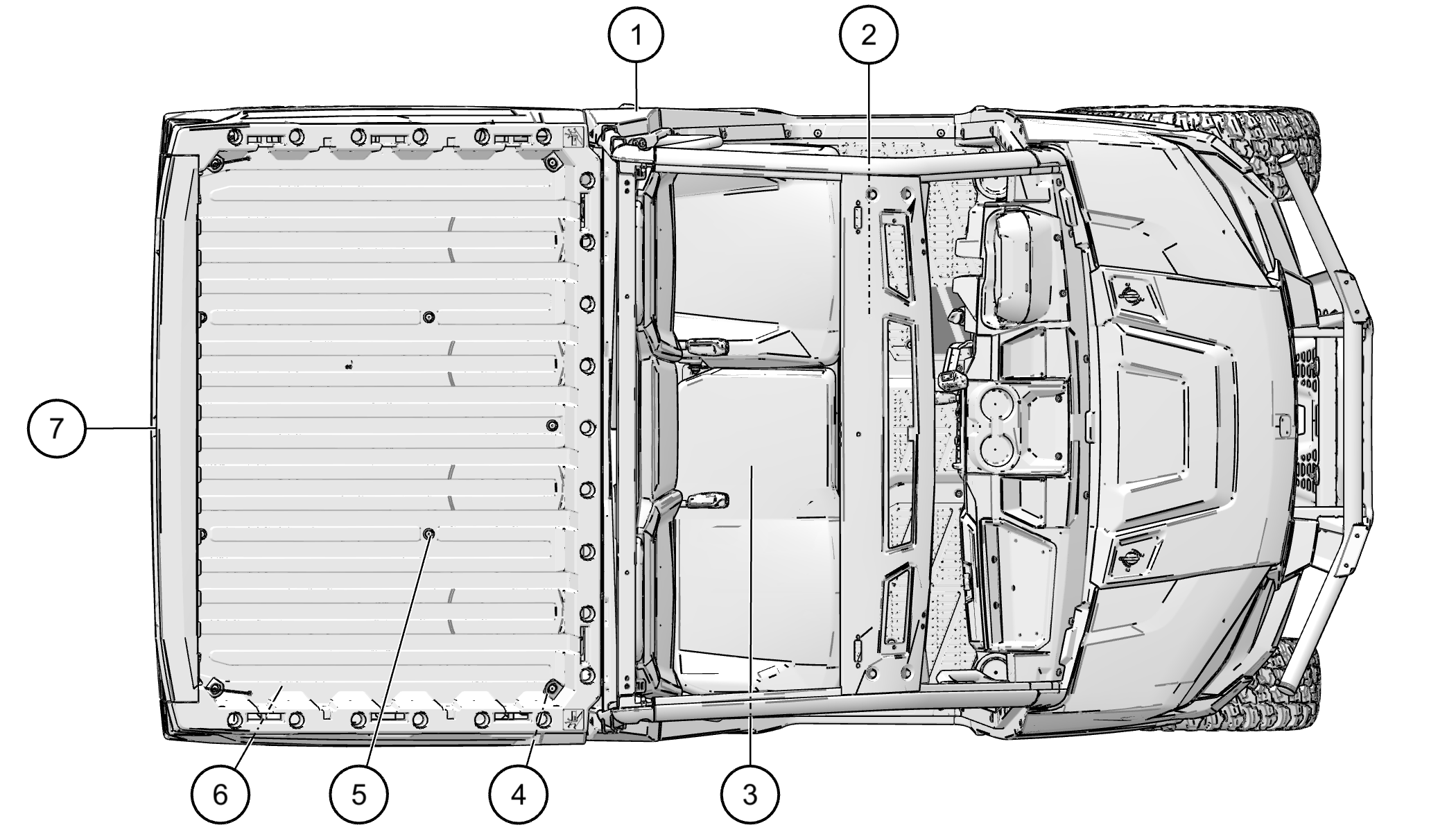

The VIN can be found stamped on a portion of the left rear frame 1, above the wheel well liner.
Vehicle Model Number: | |
Vehicle Identification Number (VIN): | |
Key Number: | 4083 |
NRMM Reference Number (if applicable): |
The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual.
DANGER indicates a hazardous situation which, if not avoided, WILL result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, COULD result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, COULD result in minor to moderate injury.
NOTICE provides key information by clarifying instructions.
IMPORTANT provides key reminders during disassembly, assembly, and inspection of components.
The Prohibition Safety Sign indicates an action NOT to take in order to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be taken to avoid a hazard.
Improper use, maintenance, or modification of this vehicle can lead to serious injury or death.
Require proper use of your vehicle. Do not allow anyone to operate your vehicle or ride as a passenger unless they are properly instructed and you are sure they are willing to ride responsibly. To prevent unauthorized use, always remove the vehicle key when the vehicle is not in use.
Any modifications or installation of non-Polaris-approved accessories could increase the risk of injury. While you may find aftermarket products similar in design and quality to Polaris accessories, recognize that some aftermarket accessories or modifications are not suitable because of potential safety hazards to you or others. It is never appropriate to install any additional seating.
Check with the manufacturer to determine any potential effect of a modification or accessory on the safe use of your vehicle. You are responsible for injuries related to modifications to the vehicle. Modifications or accessories may:
Damage machine components - especially modifications that increase speed or power.
Make the vehicle less stable at higher speeds.
Add weight, reducing the amount of cargo and total weight you can carry, and raise the vehicle’s center of gravity.
Overload the vehicle’s electrical system capacity (see Pro XD Kinetic). Blowing a fuse may cause a loss of lights or motor power.
Reduce the effectiveness of occupant protection systems, including the seatbelts and the Rollover Protective Structure (ROPS).
Void your warranty.
The vehicle ROPS, when used with the seat belts provides a structure to help protect occupants. The structure will not protect occupants in all rollovers or accidents.
Make sure operators are 16 or older with a valid driver’s license. Just because a teenager has a license does not mean that they will make good judgments about driving and avoid risk taking.
POLARIS recommends that you supervise younger drivers. Set rules and put limits on how, when, and where they are allowed to use this vehicle. For example, young drivers may need to have an adult in the vehicle with them and not be allowed to drive with their friends in the vehicle.
Make sure all riders fit the vehicle. Be sure that the driver and all passengers are able to:
sit with their backs against their seat,
adjust the seat belt to fit properly,
have both feet flat on the floor, and
have both hands on the steering wheel or on a passenger hand hold.
Do not allow children who need child safety seats or booster seats to ride in the vehicle. The vehicle is not designed to restrain automotive child safety seats.
You are responsible for your passengers. Be sure passengers are seated properly, belted, holding the passenger hand hold, and ready to brace. Unrestrained riders can fall out or be thrown around and from a moving vehicle.
Every person must be properly seated and belted in their own seat. Two people should never be belted into a single seat belt. People belted together can crash into one another in a collision and be seriously injured. Never carry passengers in the cargo bed as they could be thrown against or out of the vehicle or come into contact with moving parts.
Do not let people drive or ride after using alcohol or drugs.
Before starting off, always perform the Pre-Ride Inspection. Failure to inspect and verify that the vehicle is in safe operating condition increases the risk of an accident, which can lead to serious injury or death.
Item | Remark | Reference |
---|---|---|
Charge Status | Ensure High-Voltage Battery Pack is charged sufficiently |
Charging Your Vehicle
Charging Your Vehicle |
Brake Fluid | Ensure proper level and condition | Brakes |
Front and rear suspension | Inspect condition and adjust as necessary | Suspension Adjustment |
Steering | Ensure free operation | Steering Wheel Inspection |
Tires | Inspect condition and pressure |
Safety Labels and Locations
Tire Tread Depth |
Wheels/Lug Nuts | Inspect, ensure fastener tightness | Axle and Wheel Nut Torque Specifications |
Indicator lights/switches | Ensure proper operation |
Key Switch
Indicator Lamps |
Headlights | Check operation and adjust as needed | Lights |
Brake lights/taillights | Check operation | Lights |
Seat Belts | Check length of belt for damage, check latches for proper operation | Seat Belts |
Vehicle Debris | Remove grass, leaves, and other flammable material or debris. | – |
Lock adjustable steering wheel | Do not adjust the steering wheel while the vehicle is moving. | Steering Wheel |
Improper tire maintenance can lead to loss of control and an accident, which could result in serious injury or death. To reduce your risk of injury:
Maintain Polaris recommended tire pressure. Check pressure before operating. Even if your vehicle has only been driven a short distance, the tire pressure readings can become higher.
Make sure tire pressures match the specifications listed in the table below.
Only use the size and type of tires specified for this vehicle.
Do not operate your vehicle with worn or damaged tires. See Tire Tread Depth for details.
Always follow your tire manufacturer’s instructions for maintenance.
Measurement | Specification |
---|---|
Maximum Cargo Box Load |
1250 lbs. (567 kg) |
Maximum Cargo Load When Trailer Towing |
600 lbs. (272 kg) |
Tire Pressure in PSI (kPa) |
Front - 14 (97) Rear - 20 (138) |
Maximum Weight Capacity |
1500 lbs (680 kg) |
Help Center Video
Always wear the proper clothing when operating or riding in this vehicle. All riders should wear substantial footwear, long pants and a close-fitting shirt. A hard hat or helmet and approved eye protection are recommended when appropriate for working or riding conditions. POLARIS recommends wearing approved eye protection bearing markings such as VESC 8, V-8, Z87.1 or CE.
Never operate or ride in this vehicle while barefoot or while wearing sandals or tennis shoes. Workplace safety regulations may require the use of safety glasses, safety shoes and a hard hat or helmet. Familiarize yourself with local requirements, be prepared for operating conditions and wear the appropriate safety gear.
Department of Transportation (DOT) approved helmets are required for all riders when operating at 30 MPH or above. Approved helmets in the USA and Canada bear a U.S. Department of Transportation label.
Approved helmets in the USA and Canada bear a U.S. Department of Transportation (DOT) label. Approved helmets in Europe, Asia, and Oceania bear the ECE 22.05 label. The ECE mark consists of a circle surrounding the letter E, followed by the distinguishing number of the country which has granted approval. The approval number and serial number will also be displayed on the label.
Always stay completely inside the vehicle and hold the steering wheel or hand holds. Body parts outside of the vehicle can be struck by passing objects or crushed during a rollover. Do not put any part of your body outside of the vehicle for any reason. Do not hold onto the ROPS frame or put any part of your body on the door.
Riding in this vehicle without closed and latched cab doors increases the risk of serious injury or death in the event of an accident or rollover. Always make sure all cab doors are closed and latched while riding in this vehicle.
Be sure riders pay attention and plan ahead. If you think or feel the vehicle may tip or roll, reduce your risk of injury:
Keep a firm grip on the steering wheel or hand holds and brace yourself.
Do not put any part of your body outside of the vehicle for any reason.
Fuels such as gasoline can be extremely flammable. To reduce the risk of serious injury or death, never carry fuel or other flammable liquids on this vehicle. Rollovers, crashes, rough riding, or changes in elevation or temperature may lead to fuel spilling or vapor release from portable containers. Hot vehicle parts can cause fires, even after the vehicle is powered off.
Never exceed vehicle weight capacities. The vehicle’s maximum weight capacity (including riders, cargo, and accessories) can be found in the Specifications chapter. When more rider weight is added, cargo weight may need to be reduced to stay under the limit. Overloading the vehicle or carrying cargo improperly will cause changes in stability and handling, which could cause loss of control or an accident.
Secure cargo in the cargo box as far forward, centered and as low as possible. When cargo cannot be positioned and secured in this way, operate with extra caution. Unsecured cargo can strike and injure riders, affect vehicle handling, and result in loss of control.
The weight of riders and cargo changes vehicle braking, handling, and stability. To avoid loss of control, turn gradually, operate at slower speeds, and avoid rougher or steeper terrain.
Drive Responsibly. This vehicle has higher ground clearance and other features to handle rugged terrain. It can be overturned in situations where some other vehicles may not. Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control, rollovers, severe injury or death. To avoid loss of control and rollovers:
Avoid abrupt maneuvers, sideways sliding, skidding, or fishtailing, and never do donuts.
Slow down before entering turn.
Avoid hard acceleration when turning, even from a stop.
Do not go over jumps — going airborne can lead to serious injury or death. Going airborne can cause loss of control, rollovers, or crashing into the ground and may damage the vehicle. Even without crashing, landings can be hard enough to cause any vehicle suspension to fully compress (e.g., bottom out). Serious injuries, including spinal injuries, can occur even if riders are properly harnessed, wearing helmets and the vehicle is not damaged and remains upright.
You may encounter slopes, "jumps", or other terrain features that could send the vehicle airborne, depending on your speed. These may be defectively designed, poorly maintained, or not suitable for this vehicle. Slow down, use extra care, and avoid going airborne. Never take this vehicle over jumps.
Watching someone else go over a jump or go airborne does not mean you can safely do so. Polaris cannot determine whether any jump you may encounter is appropriate for this vehicle. Any jump, even a small one, could be poorly maintained, designed, or not suitable for this vehicle and may cause serious injury or death.
Plan for hills, rough terrain, ruts, and other changes in traction and terrain. Proceed slowly and with extra care on unfamiliar terrain. Avoid paved surfaces. Sudden changes in terrain such as holes, depressions, banks, softer or harder ground, or other irregularities may cause loss of control or rollover. Give yourself time to react to rocks, bumps, or holes that may be hard to see. Operating in deep snow or tall grass may make it harder to see obstacles.
If you cannot go around an obstacle, such as a fallen tree or a ditch, stop the vehicle in a safe place. Get out to inspect the area thoroughly. Look from both your approach side and exit side. If you are reasonably confident you can continue safely, choose the path that will allow you to go straight over the obstacle to minimize the vehicle tipping sideways. Go only fast enough to maintain your momentum, but still give yourself plenty of time to react to changes in conditions. If there is any question about your ability to maneuver safely over the obstacle, you should turn around if the ground is flat and you have the room, or back up until you find a less difficult path.
Abrupt application of the accelerator pedal can cause the tires to lose traction, reducing control of the vehicle and increasing the possibility of an accident, especially while on sloped terrain or while crossing obstacles such as rocks or logs.
Avoid Operating on Public Roads (Paved or Otherwise). This vehicle does not have highway safety features that on-road vehicles may have (air bags, anti-lock brakes, stability control, etc.). If another vehicle collides with you, the likelihood of a serious injury or death may be greater. Also, you may not be able to avoid a crash or rollover if you make sudden or abrupt maneuvers such as swerving or emergency braking.
While it may be legal locally to drive on some public roads in specific parts of the country, your vehicle was not designed or certified as an on-road motor vehicle. Polaris does not support public road use except as may be necessary to cross roads designated for connecting off highway trail segments. If you must drive on-road, drive slowly and defensively. Your vehicle may lack the features needed to comply with state or local laws that permit limited public road use. Modifications you make to your vehicle to meet these requirements may void the vehicle warranty. In addition, refer to tire manufacturer's instructions or limitations for on-road operation, including speed limits and premature tire wear.
Improperly operating on hills can cause loss of control, rollover, or accident, which can lead to serious injury or death. Use extra care when operating on hills. Plan for rough terrain, ruts, and other changes in traction and terrain.
Driving up hills
Check the terrain before
ascending a hill and make sure it is not too slippery or loose. Engage
all-wheel drive for hills. Drive straight uphill, keeping speed and
accelerator steady. Avoid steep hills which can cause the vehicle
to overturn.
Recovering from stalling on a hill
If the
vehicle loses forward speed, apply the brakes gradually and stop.
Do not attempt to turn the vehicle around. Instead, allow the vehicle
to slowly roll straight downhill. Apply light brake pressure to control
speed.
Overtopping a hill
Slow down when you reach
the crest of a hill. Never blindly go over the crest of a hill or
a drop off at high speed. An obstacle, a sharp drop, or another vehicle
or person could be on the other side of the hill.
Driving down hills
Check the terrain before
descending a hill and make sure it is not too slippery or loose. Engage
all-wheel drive and proceed slowly, applying the brakes lightly. Never
descend a hill with the transmission in neutral or if the motor is
turned off.
Avoid side hilling (riding across slopes)
If unavoidable, proceed slowly and with extra caution. Avoid obstacles
and changes in terrain that could cause the vehicle to tip or slide.
If it feels like the vehicle begins to tip or slide, immediately turn
downhill.
Riding near wooded areas or brush
Use extra
caution when operating near trees, particularly when operating on
narrow trails. Tree branches or brush can be driven into the cab striking
or stabbing occupants.
Riding in snow
Always keep the brake and
accelerator pedals free of snow and ice. Apply the brakes frequently
to prevent ice or snow accumulation on the brake pads which can reduce
brake performance.
Riding on ice
Never operate the vehicle on
a frozen body of water unless you have verified that the ice can support
the weight of the vehicle. Severe injury or death can result if the
vehicle falls through the ice.
Riding in water / Falling into water
Operating
through deep or fast-flowing water can cause loss of traction, loss
of control, overturning, or being swept away in water. You can be
seriously injured or killed from entrapment and drowning. Never operate
the vehicle in fast-flowing water or in water that exceeds the floor
level of the vehicle. Avoid sharp drop-offs and large rocks. Choose
a path that provides an entrance and exit point with gradual inclines.
Wet brakes may have reduced stopping ability. After leaving water,
test the brakes. Apply them lightly several times while driving slowly.
The friction will help dry out the pads.
Riding on sand dunes
Use extra caution when
operating on or near dunes. Be alert for changes in terrain. Never
blindly go over the crest of a hill or a drop-off at high speed. An
obstacle, a sharp drop, or another vehicle or a person could be on
the other side of the hill.
Riding in low-visibility conditions
Use extra
caution and drive slowly in conditions of reduced visibility such
as fog, rain, and darkness.
Plan ahead to avoid the need for evasive maneuvers, such as swerving. Hitting an obstacle — including wildlife — you are not ready for can be dangerous. Choosing to swerve instead can be even more dangerous because it can lead to loss of control, rollover, or collisions.
When operating in areas with possibility of wildlife appearing in your path, plan ahead to avoid swerving for animals if doing so could result in collisions or rollovers. Go slowly or avoid driving during seasons or times of day when animals such as deer are more likely to cross your path without warning.
Avoid Collisions With Other Vehicles
When
following another vehicle or operating in the same area as others,
keep a safe distance to avoid collisions. Allow extra space when sight
distances are limited by dust, snow, curves, hills, or other conditions.
Plan ahead to avoid having to swerve or leave the trail to avoid a
collision.
On trails, be prepared to make space for other vehicles to pass. If you need to stop on a trail, move your vehicle to the edge of the path to allow others to pass safely.
Correct a skid by turning the steering wheel in the direction
of the skid.
Never apply the brakes during a skid.
If the vehicle begins to slide downhill or you feel it may tip, turn downhill immediately and stop. Maneuver slowly and carefully until you can drive straight downhill.
Do not continue driving if your vehicle may be damaged or if
you were in a crash or rollover.
Operating the
vehicle while damaged or after a crash or rollover can cause loss
of control, rollover, or accident, which can lead to serious injury
or death. If you cannot safely transport the vehicle on your own,
contact a recovery and towing service.
After any crash, rollover, or other accident, have a POLARIS dealer or other qualified person inspect the vehicle for possible damage, including seat belts, ROPS, brakes, suspension, electrical components, and steering systems.
Be prepared in case your vehicle becomes damaged or disabled, especially in remote areas. Consider in advance how to get help and stay safe until it arrives whenever you ride.
There is a recovery tow point at the front and back of the vehicle
to attach a winch or strap.
Use these points at
the front1 or rear2 of the vehicle to recover this
vehicle if it is stuck, to pull it onto a tow truck, trailer, or to
use this vehicle to recover another vehicle. These points are for
emergency recovery only and are not for towing vehicles to another
location.
Improper recovery may lead to loss of control or vehicle damage. Only attach straps to specified locations. Do not attach to any other point on the vehicle. Only recover a vehicle of equal or lesser size and weight. When recovering a disabled vehicle, place the disabled vehicle’s transmission in neutral. Do not move a disabled Pro XD faster than 10 mph (16 km/h).
Vehicle rollaway can cause serious injury or death. This vehicle can roll whenever the gear selector is not in the PARK (P) position. Always shift to PARK (P) when stopping the motor or leaving the vehicle. When leaving the vehicle on an incline is unavoidable, use extra care. If leaving the vehicle unattended, block the rear wheels on the downhill side and keep children, pets, and others away from the gear selector.
Before switching to reverse, use extra care to make sure the area is clear of people or obstacles. When it’s safe to proceed, back slowly.
After operation, inspect the vehicle for damage and debris to make sure the vehicle can be safely stored and operated again. Some things to inspect include:
Debris such as mud/grass near the charge port or cooling system
Damage to the suspension, steering, or any other part of the vehicle
Tire condition, such as tread and sidewall damage
Shock absorber assembly condition
This vehicle uses an electric drive system powered by a high-voltage battery pack. There are additional safety precautions for charging, operating, and maintaining the vehicle.
Failure to follow these precautions may cause electric shock, fire, serious injury, or death.
Select an appropriate
power source
The circuit used to charge the vehicle
must:
Have GFCI protection
Be rated for at least 15 amps
Not have other electrical loads
The circuit must also be appropriate for EV charging. Make sure that it is properly grounded and compliant with all local codes and ordinances. If there is doubt as to whether the circuit is appropriate, check with a qualified electrician.
Inspect
charging equipment before each use
Make sure the
electric vehicle supply equipment (EVSE) connections at the outlet
and vehicle charge port are free from dirt and debris. Remove debris
with compressed air while wearing eye protection or by rinsing with
low pressure water. Do not use tools (e.g., screwdriver) to remove
debris.
Before charging, inspect charging components for damage:
Outlet
EVSE wall plug
EVSE cables
EVSE vehicle plug (J1772)
EVSE vehicle plug (Type 2) (if applicable)
Vehicle charge port
Properly connect the EVSE
Connect the EVSE wall plug directly into the outlet. Never use any device between this connection (e.g., extension cords, grounding adapters, multi-outlet splitters or power strips, surge protectors, timers, or smart home adapters).
Position the EVSE cable to keep it from being driven over, stepped on, tripped on, strained, or otherwise damaged.
Insert the EVSE charging plug into the charger socket until you hear an audible “click” sound.
Additional steps for charging in wet conditions
With the included portable EVSE, the vehicle can be charged in wet
conditions if the following precautions are taken:
Make sure the EVSE does not become submerged while charging. If the EVSE was submerged while not charging, let it completely dry before using to charge.
When connecting to an outdoor power source in wet conditions, only use a weather-resistant outlet (marked with "WR") with a weatherproof while-in-use cover in the closed position.
Only charge using EVSE
The 12V battery is automatically
charged by the high-voltage battery as needed and never requires external
charging (e.g., using a trickle charger). If you think there may be
a problem with the 12V battery, replace the battery or see your dealer.
To avoid serious injury or death, never attempt to “jump
start” this vehicle or connect an external power source directly
to the 12V battery. This will not add charge to the high voltage battery.
If the vehicle is unresponsive, only charge the high voltage battery
using an EVSE.
Using other EVSEs
Polaris
recommends using the EVSE provided with the vehicle or other Polaris-approved
EVSEs.
Use extra care when selecting your direction of travel
Failure to select and know your direction of travel can
result in the vehicle moving in the opposite direction of what you
intend. Each time you enter the vehicle and before you start moving,
press the Direction Selector Switch in the forward position (F) to
go forward or the reverse position (R) to go rearward. Check the position
of the Direction Selector Switch to verify your selection before pressing
the accelerator pedal.
Avoid changing the Direction Selector
Switch while in motion
If the Direction Selector
Switch is changed while the vehicle is traveling above 5 mph
(8 kph), the motor
will be de-energized. Once vehicle speed is below 5 mph
(8 kph) and the
accelerator pedal is released, the vehicle will respond to the accelerator
pedal and move in the selected direction.
Use the brake pedal
The regenerative braking in this vehicle does not
allow one-pedal driving (i.e., only using the accelerator pedal).
Like most other vehicles, driving this vehicle requires the use of
the brake pedal.
Do not store items under the storage bin
beneath the seat
Do not store items underneath
the storage bin (located under the seat) and on top of the 12V battery.
They could contact the battery terminals.
Check for damage
to high-voltage components after an accident
Crashes,
rollovers, and other impacts can damage the high-voltage battery pack
and create a risk of electric shock and fire. The vehicle will indicate
that it detects damage through warning lights in the instrument cluster.
There may also be damage that the vehicle does not detect.
After an accident, remove the service disconnect loop (see Disconnecting High Voltage Power)
and inspect the high-voltage system (e.g., battery, cables, connections,
covers). Other signs of damage may include abnormal sounds from the
vehicle.
If the high-voltage system is damaged, contact
your dealer and do not use the vehicle.
Avoid fire from damaged
vehicles
If the vehicle is damaged, shift the vehicle
to Neutral (N) and move it outside and away from anything that can
burn, if possible. If there are signs of a fire, get away from the
vehicle and contact fire emergency responders. Have first responders
use a Class D fire extinguisher on electrical components.
Immediately respond to a thermal runaway
If
the vehicle detects a thermal runaway, stop and have all occupants
move away from the vehicle immediately. Then, contact fire emergency
responders. A thermal runaway is an extremely rare event caused by
a malfunction or damage to the electronic powertrain system. A thermal
runaway occurs when the high-voltage battery rapidly increases in
temperature causing additional chemical reactions that continue to
increase temperature. This could ultimately result in fire or explosion.
The vehicle will indicate it detects a thermal runaway using the following prompts:
On the Instrument Cluster
The text will scroll
the phrase “FIRE DANGER EXIT VEHICLE NOW” and the MIL,
AWL, Over Temperature, and high-voltage Battery Pack warning lights
will flash. See Indicator Lamps for
details on Indicator Lamps.
Auditory Alarm
The vehicle will provide an auditory alarm for as long as the vehicle
detects a thermal runaway.
Loss of Motor Power
The vehicle will not respond to throttle input and there will be
no regenerative engine braking.
No Battery Charge Indicated
The high-voltage battery pack will be disconnected
from the motor. Vehicle displays will indicate a state of no charge
Do not perform maintenance
on high-voltage components
Never try to service
high-voltage components. There are no user-serviceable components
to the high-voltage system. Always have a qualified technician service
high-voltage components.
Do not touch any high-voltage components. High-voltage wiring is orange. Other high-voltage components are labeled.
Do not tamper with or attempt to open the charging equipment or high-voltage battery pack.
Do not remove or dispose of the high-voltage battery pack. Contact an authorized dealer for replacement and disposal.
Warning labels have been placed on the vehicle for your protection. Read and follow the instructions of the labels on the vehicle carefully. If any of the labels depicted in this manual differ from the labels on your vehicle, always read and follow the instructions of the labels on the vehicle.
If an informational or graphic label becomes illegible or comes off, contact your Polaris dealer to purchase a replacement. Replacement safety labels are provided by Polaris at no charge. The part number is printed on the label.
1 EVSE Charge Port Warning (inside compartment)
2 Driver Information Warning (on top ROPS bar)
3 Service Disconnect Warning (under seat)
4 Fuel Transport Warning
5 Component Diagram / Power Wash Warning (under cargo box)
6 Load/Passenger/Tire Pressure Warning
6 Maximum Payload Warning
7 Trailer Weight Maximums (on hitch receiver)
WARNING
Require Proper Use of Your Vehicle
Do your part to prevent injuries:
Do not allow careless or reckless driving.
Make sure operators are 16 or older with a valid driver’s license.
Do not let people drive or ride after using alcohol or drugs.
Do not allow operation on public roads (unless designated for off-highway vehicle access) - collisions with cars and trucks can occur.
Do not exceed seating capacity: 2 occupants.
Part Number: 7300098 (English), 7300098–F (French-Canadian)
WARNING
IMPROPER VEHICLE USE CAN RESULT IN SERIOUS INJURY OR DEATH
NEVER OPERATE:
At speeds too fast for your skills or the conditions.
After or while using Alcohol or Drugs.
Across slopes (Avoid side hilling).
On public roads. This vehicle is for off-highway use only. Driving on public roads could be a violation of law and may be hazardous.
With more passengers than described in the Operation & Maintenance Manual, with children under the age of 12, and passengers who cannot comfortably reach the floor and hand holds with back against the seat.
With unapproved accessories - they may seriously affect stability.
LOCATE AND READ OPERATION & MAINTENANCE MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.
ALWAYS:
Wear head protection - such as a hard hat or helmet - as appropriate for conditions and usage. Consult manual for more information.
Wear your seatbelt. Vehicle rollover could cause serious injury or death.
Wear eye protection and keep hands and feet in vehicle at all times.
Reduce speed and use extra caution when carrying passengers.
Avoid sharp turns or turns while applying heavy throttle.
Operate slowly in reverse - avoid sharp turns or sudden braking.
Make sure passengers read and understand all warning labels.
Watch for branches or other hazards that could enter vehicle.
Use caution while operating vehicle on private paved surfaces. Pavement can alter handling and may cause loss of control.
Be Sure Riders Pay Attention and Plan Ahead
If you think or feel the vehicle may tip or roll, reduce your risk to injury:
Keep a firm grip on the steering wheel or handholds and brace yourself.
Do not put any part of your body outside of the vehicle for any reason.
Rollovers have caused severe injuries and death, even on flat, open areas.
Part Number: 7300410 (English), 7300410–F (French-Canadian)
NOTICE
High-Voltage Service Disconnect Located
Under Seat Bin
EMERGENCY ONLY
Remove seat bin. Locate service
disconnect. Cut wire loop where indicated.
SERVICE
Remove seat bin. Locate service disconnect.
Remove by grabbing plastic housing. Do not pull wire loop.
WARNING
Before servicing
your vehicle’s electrical system, ALWAYS activate the service
disconnect.
Part Number: 7300723 (English), 7300723–F (French-Canadian)
Warning
Keep charge
port covers closed unless charging. Do not use tools to clean terminals.
Remove debris with a cloth or low pressure water.
Part Number: 7300724 (English), 7300724–F (French-Canadian)
WARNING
Do not pressure wash electrical
components. Reference your owner’s manual for cleaning guidelines.
Part Number: 7300721 (English), 7300721–F (French-Canadian)
WARNING
The Maximum Payload Warning label is located on the cargo box.
Model | Never Exceed | If Total Payload Exceeds |
---|---|---|
Pro XD Kinetic | 25 mph (40 kph) | 550 lbs (249 kg) |
NOTICE
To avoid transmission damage, only shift gears when vehicle is stationary. When the vehicle is stopped, place shifter in PARK position.
Part Number: 7301117 (English), 7301117–F (French Canadian)
TRAILER MAX. WEIGHT | 2500 lbs. (1134 kg) |
HITCH MAX. VERTICAL WEIGHT | 250 lbs. (114 kg) |
Part Number: 7187265 (English), 7187265–F (French-Canadian)
WARNING
NEVER carry fuel or other flammable liquids on this vehicle. Failure to follow this instruction could lead to serious burn injuries or death. Part Number: 7186122 (English) and 7186122–F (French Canadian) |
|
WARNING
FALLING OFF CARGO BOX CAN CAUSE SERIOUS INJURY OR DEATH
Never carry riders in cargo box
WARNING
OVERLOADING OR IMPROPER TIRE PRESSURE CAN CAUSE TIPPING OR LOSS OF CONTROL RESULTING IN SERIOUS INJURY OR DEATH
Never exceed load capacities.
Reduce speed and allow greater distance for braking when carrying cargo.
Carrying tall, off-center, or unsecured loads will increase your risk of losing control. Center and secure loads as low as possible in box.
Reduce speed and cargo on rough or hilly terrain.
Check for proper tire pressures.
MODEL NAME | Pro XD Kinetic |
MAXIMUM CARGO BOX LOAD | 1250 lbs (566 Kg) |
TIRE PRESSURE IN PSI (KPa) | FRONT 14 (97) REAR 20 (138) |
VEHICLE RATED CAPACITY
INCLUDES WEIGHT OF OPERATOR, PASSENGER, CARGO AND ACCESSORIES |
1500 lbs (680 Kg) |
GVWR | 3600 lbs (1633 Kg) |
Read Operation and Maintenance Manual for more detailed loading information. |
Part Number: 7301118 (English), 7301118–F (French-Canadian)
Your Polaris electric vehicle (EV) is equipped with an all-electric motor powered by a high-voltage battery pack that can be charged for re-use without the need for fossil fuels or other fluids, filters, and ignition devices associated with internal combustion engines.
The advantages and limitations of EVs should be considered before operating this vehicle. Read the following sections for information on best practices:
Charging Best Practices (See Good Charging Habits)
Weather Best Practices (See Charging in Extreme Ambient Temperatures)
Vehicle Range (See Factors that Influence Vehicle Range)
Long-term Storage (See Ideal Conditions for Storage)
Leave the vehicle plugged in between frequent uses
The vehicle operates best when charged regularly. You do not need
to run your battery pack low before charging again as there is
no benefit in letting batteries run low. Instead of waiting until
the State of Charge (SoC) is near empty to recharge the battery pack,
take every opportunity to recharge during downtime.
Charge in moderate temperatures
Charging
in extreme temperatures may limit the rate of charge the battery pack
receives. See Charging in Extreme Ambient Temperatures for details.
Charge during “off-peak” hours
Peak hours are when electricity demand is the highest amount per
kWh. Charging the vehicle during off-peak hours will keep charging
costs low. Commonly, off-peak hours are at night when electricity
consumption is low. Check with your electric companies as some
may offer discounts during off-peak hours.
Follow the procedure below to charge your vehicle.
Stop the vehicle on a flat surface.
Set the gear selector to PARK (P).
Turn the key switch to OFF.
Open the charge compartment door 1.
Open the charge port cover 2.
Insert the EVSE charging plug into the charger socket until you hear an audible “click” sound. Once the vehicle begins charging:
The vehicle display will switch to the charging screen.
The vehicle will charge continuously until fully charged.
The vehicle will not be driveable while EVSE charging plug is connected.
Charge performance may vary as a result of ambient temperatures affecting internal battery temperature. See Charging in Extreme Ambient Temperatures for details.
Once ready to resume operation, remove the EVSE charging plug.
Reattach the charge port cover and close the charge compartment door.
Electric Vehicle Supply Equipment (EVSE) is required for charging electric vehicles. The EVSE supplied with your vehicle is a J1772 style port that is Level 1 (120V) and Level 2 (240V) compatible.
Onboard Chargers (OBCs) convert AC power to DC voltage that charges the high-voltage battery pack on your vehicle. Electric vehicles can be equipped with different onboard chargers with varying charge rates. For example, a 6 kW onboard charger will charge up to twice as fast as a 3 kW onboard charger when connected to an EVSE with kilowatt output at or above the charger rating.
The high-voltage battery pack carries the energy necessary to operate your vehicle. If you believe there is an issue with the high-voltage battery pack, do not attempt to service. Bring directly to your POLARIS dealer or other qualified person.
Your vehicle’s high-voltage battery pack is equipped with a Battery Management System (BMS) that monitors the condition of the battery and optimizes charging. Under certain conditions, the BMS will act to prevent damage to the battery, including stopping or slowing the flow of charge.
Help Center Video
Instrument Cluster
When charging the vehicle, the State of Charge (SoC) will be displayed on the instrument cluster. Status indicators include:
1 State of Charge (%)
2 Battery icon
3 Rate of charge (in kW)
4 Time until SoC reaches 100%
Your Polaris Electric Vehicle (EV) can receive a charge from multiple kinds of power sources, including:
120V home wall outlet
240V home wall outlet
J1772 Level 1 (120V) public charging stations
J1772 Level 2 (240V) public charging stations
Type I electrical outlet (Australia and New Zealand)
Not all power sources are equal with regard to charge time. For example, a wall circuit with 120V, 15 amperage service will have a longer charge time than 240V, 40 amperage service.
See the table below for charge time reference. Be sure to understand the voltage service options in your home when charging from home. Consult the Polaris website or your dealer for onboard charger accessory options to reduce charge time.
Model | Pro XD Kinetic | |
---|---|---|
Battery Pack | 14.9 kWh | |
Power Source | 120V Outlet | 240V Outlet |
3kW Onboard Charger | 10 Hours* of Charging (0-100%) |
5 Hours* of Charging (0-100%) |
*All charge times shown are approximate |
Power Outlet Types
The EVSE charger supplied with your vehicle includes two attachments
for compatibility with 120V and 240V outlets.
1 NEMA 5-15 (120V)
2 NEMA 14-50 (240V)
Power Outlet Types
(Australia and New Zealand)
The EVSE charger
supplied with your vehicle is compatible with Type I electrical outlets.
Leave the vehicle plugged in between frequent uses
The vehicle operates best when charged regularly. You do not need
to run your battery pack low before charging again as there is
no benefit in letting batteries run low. Instead of waiting until
the State of Charge (SoC) is near empty to recharge the battery pack,
take every opportunity to recharge during downtime.
Charge in moderate temperatures
Charging
in extreme temperatures may limit the rate of charge the battery pack
receives. See Charging in Extreme Ambient Temperatures for details.
Charge during “off-peak” hours
Peak hours are when electricity demand is the highest amount per
kWh. Charging the vehicle during off-peak hours will keep charging
costs low. Commonly, off-peak hours are at night when electricity
consumption is low. Check with your electric companies as some
may offer discounts during off-peak hours.
Follow the procedure below to charge your vehicle.
Stop the vehicle on a flat surface.
Set the gear selector to PARK (P).
Turn the key switch to OFF.
Open the charge compartment door 1.
Open the charge port cover 2.
Insert the EVSE charging plug fully into the charger socket. Once the vehicle begins charging:
The vehicle display will switch to the charging screen.
The vehicle will charge continuously until fully charged.
If the vehicle key is turned on, the vehicle will stop charging until the key is returned back to the off position.
The vehicle will not be driveable while EVSE charging plug is connected.
Charge performance may vary as a result of ambient temperatures affecting internal battery temperature. See Battery Pack Heaters for details.
Once ready to resume operation, remove the EVSE charging plug.
Reattach the charge port cover and close the charge compartment door.
Electric Vehicle Supply Equipment (EVSE) is required for charging electric vehicles. The EVSE supplied with your vehicle is a Type 2 style port that is (240V) compatible.
Onboard Chargers (OBCs) convert AC power to DC voltage that charges the high-voltage battery pack on your vehicle. Electric vehicles can be equipped with different onboard chargers with varying charge rates. For example, a 6 kW onboard charger will charge up to twice as fast as a 3 kW onboard charger when connected to an EVSE with kilowatt output at or above the charger rating.
The high-voltage battery pack carries the energy necessary to operate your vehicle. If you believe there is an issue with the high-voltage battery pack, do not attempt to service. Bring directly to your dealer or other qualified person.
Your vehicle’s high-voltage battery pack is equipped with a Battery Management System (BMS) that monitors the condition of the battery and optimizes charging. Under certain conditions, the BMS will act to prevent damage to the battery, including stopping or slowing the flow of charge.
Instrument Cluster
When charging the vehicle, the State of Charge (SoC) will be displayed on the instrument cluster. Status indicators include:
1 State of Charge (%)
2 Battery icon
3 Rate of charge (in kW)
4 Time until SoC reaches 100%
Your Polaris Electric Vehicle (EV) can receive a charge from multiple kinds of power sources, including:
240V home wall outlet
Type CEE 7/7 electrical outlet (EMEA)
Type I electrical outlet (Australia and New Zealand)
Type II (230V) Public charging station
See the table below for charge time reference. Be sure to understand the voltage service options in your home when charging from home. Consult the Polaris website or your dealer for onboard charger accessory options to reduce charge time.
Model | Pro XD Kinetic | |
---|---|---|
Battery Pack | 14.9 kWh | |
Power Source | 120V Outlet | 240V Outlet |
3kW Onboard Charger | N/A | 5 Hours* of Charging (0-100%) |
*All charge times shown are approximate |
Power Outlet Types
(Australia and New Zealand)
The EVSE charger
supplied with your vehicle is compatible with Type I electrical outlets.
EU Outlet Type
The EVSE charger supplied with your vehicle is compatible with Type
CEE7/7 electrical outlets.
Your EV is designed to withstand wet conditions such as rainfall, puddles, snow, or muddy terrain. However, submersion in water past the floor level or the use of high-pressure hoses on inner components will void the warranty and may cause faults or make the vehicle temporarily inoperable. If this happens, have a dealer inspect the vehicle and allow the vehicle components time to dry until the vehicle is operable again.
The high-voltage battery pack on your vehicle is equipped with automatic heaters that sense when the battery’s internal temperature is below 50°F (10°C). This allows your vehicle to operate normally in below-freezing conditions.
If the battery temperature falls below 50°F (10°C), the battery heaters activate when:
the vehicle is charging, or
the key switch is in the ON position
When the battery pack heaters are active, a snowflake icon will be displayed on the instrument cluster. The snowflake icon and any associated performance limitation messages on the RIDE COMMAND screen (if equipped) should not be confused with “limp Mode”. Always allow several minutes for the battery pack heaters to warm up before operating the vehicle. This helps prevent sluggish performance, reduced speed, longer charge times, and shorter vehicle range. Vehicle charging and driving performance will not become limited unless the internal battery temperature is below -4°F/-20°C. or colder.
When the vehicle’s high-voltage battery pack has an internal temperature outside of the ideal range, the Battery Management System (BMS) will either slow the rate of charge or stop charging altogether until the battery pack temperature has returned to the ideal range. A warning will appear on the instrument cluster when this occurs.
Battery Pack Internal Temperature | Charge Performance |
---|---|
Above 122° F (50° C) | No Charge |
104° to 122° F (40° to 50° C) |
Reduced |
50° to 104° F (10° to 40° C) |
Normal |
-4° to 50° F (-20° to 10° C) |
Reduced* |
-39° F to -4° F (-40° C to -20° C) |
No Charge* |
At or Below -40° F (-40° C) | No Charge |
*This will be temporary. Allow several minutes for the battery pack heaters to warm up to the point where normal charge performance resumes. |
The high-voltage battery pack internal temperature and State of Charge (SoC) can affect performance. A vehicle may experience reduced performance or become inoperable if levels fall outside of a certain range.
The chart below details conditions that may cause reduced performance or vehicle shutdown when the vehicle is not connected to an EVSE charger and power supply.
Battery Pack Internal Temperature | State of Charge (SoC) | ||
---|---|---|---|
Less than 5% | Less than 15% | Greater than 15% | |
Below -22° F (-30° C) |
Vehicle will not operate.** | Vehicle will not operate.** | Vehicle will not operate.** |
Greater
than -22° F (-30° C) |
Battery heaters inactive. Reduced performance. | Battery heaters* only active if battery temperature is below -4° F (-20° C). Reduced performance. | Allow several minutes for battery heaters* to warm up. Normal performance. |
Greater
than 50° F (10° C) |
Reduced performance. | Reduced performance likely. | Normal performance. |
Greater
than 131° F (55° C) |
Reduced performance. | Reduced performance. | Reduced performance. |
Greater
than 140° F (60° C) |
Vehicle will not operate. | Vehicle will not operate. | Vehicle will not operate. |
*Battery pack heaters will
not activate unless the key switch is in the ON position when vehicle
is not connected to an EVSE charger and power supply. **Under –22°F (30°c), vehicle must be connected to an EVSE for battery pack warmers to activate. |
When estimating the distance your Polaris Electric Vehicle (EV) can travel in a single charge, be sure to take into account the following factors:
Terrain
Hill climbs, mud, and sand put more
demand on your vehicle.
Style of Driving
Sporty driving requires
more power than conservative driving.
Weather
Strong headwinds, slippery conditions,
or extreme ambient temperature can decrease driving range and performance.
Payload
Passengers, cargo, or towing places
more demand on your vehicle.
Tire Pressure
Low tire pressure causes increased
drag and demand on your vehicle.
Differential Used
2x4, 4x4, or high/low require
different levels of motor output and energy consumption.
Frequency of Starts and Stops
More energy
is used to accelerate to cruising speed than maintaining cruising
speed.
Accessories
Larger tires, cab heater, lighting,
and audio can increase energy draw from the high-voltage battery pack.
With low loads, smooth terrain, and a conservative driving style, vehicle range will approximate to the following:
Model | Range (on flat ground)* |
---|---|
PRO XD FULL-SIZE KINETIC | Up to 45 mi. (72 km) |
*Range estimates based on manufacturer data on typical customer driving usage and conditions. Actual range varies based on conditions such as external environment, weather, speed, cargo loads, rates of acceleration, vehicle maintenance, and vehicle usage. |
When the vehicle is powered on and not charging, the estimated remaining range (in miles or kilometers) can be found on the instrument cluster. See Mode Information Displays for details on instrument cluster navigation.
Your vehicle’s displayed range estimate is a calculation based on current State of Charge (SoC) and power consumption data gathered from previous rides. Calculations are made in real-time to provide adaptable estimates for varying driving styles.
Factors from previous rides that affect estimated driving range include:
Accelerator pedal inputs
Speeds
Terrain conditions
All batteries will degrade over time because of their chemical makeup. However, the Lithium-Ion batteries in Pro XD Kinetic vehicles are designed to provide an extremely long, useful life. It could take up to 10 years or 10,000 miles to see a noticeable reduction in battery capacity and resulting range, expected to be about 5-10% at most.
Whenever your vehicle is moving and accelerator pedal is released or the brake is applied, the regenerative braking system recaptures surplus kinetic energy for the battery. The vehicle’s regenerative braking level is displayed on the instrument cluster. See Instrument Cluster for details.
For planned long-term storage of more than 30 days, follow the recommendations below to create the ideal storage conditions for your Polaris Electric Vehicle (EV) and maintain the lifespan of the high-voltage battery pack.
Store in Cool, Dry Areas
Recommended Storage Temperature Range | 32° F to 113° F (0° C to 45° C) |
Store With an Electric Vehicle Supply Equipment (EVSE) Cable
Connected
POLARIS recommends keeping your vehicle
connected to an Electric Vehicle Supply Equipment (EVSE) charge cable
during extended storage periods. This will maintain the optimal State
of Charge (SOC) and health of the high voltage battery pack(s). The
vehicle SOC will float between 90 percent and 100 percent —
this is normal vehicle behavior.
If you cannot keep your vehicle connected to an EVSE charge cable during storage, charge the battery to 100 percent and check the SOC monthly. If the SOC falls below 30 percent, charge the vehicle back to 100 percent.
1 ROPS Frame
2 Hip Bar
3 Seat Belt
4 Cargo Box
5 Charge Compartment Door
6 Front Bumper/Brush Guard
7 Headlight
8 Taillight
9 Tailgate Latch
10 Receiver Hitch
11 Cargo Box Release Lever
Help Center Video
1 Instrument Cluster
2 F/R Switch and Gear Selector
3 AWD Switch
4 Horn Switch
5 Storage Compartment
6 Parking Brake
7 12V Accessory Outlet
8 Ignition Switch
9 Steering Wheel Adjustment Lever
10 Headlight Switch
The vehicle is equipped with a 12V–10A accessory outlet on the dash. Use the outlet to power an auxiliary light or other optional accessories or lights. For service, the dash outlet connection is under the dash.
Turn the key to the ON position to activate the electrical circuits. Turn the key to the OFF position to disable all electrical circuits. The key can be removed from the switch when it is in the OFF position.
The ignition switch key must be in the ON position to operate the headlights.
Press the top of the rocker switch to place the headlights on HIGH BEAM.
Move the rocker switch to the center position to place the headlights on LOW BEAM.
Press the bottom of the rocker switch to turn OFF the headlights.
The direction selector switch 1 is located on the gear selector. Pressing the accelerator pedal while the vehicle is in HIGH (H) or LOW (L) gear will move the vehicle in the direction indicated by the direction selector switch.
Press FORWARD (F) to drive the vehicle forward.
Press REVERSE (R) to drive the vehicle in reverse.
The AWD switch has three positions: All Wheel Drive (AWD), Differential Lock/Two Wheel Drive (2WD) and Off (1WD / Turf Mode).
Press the top of the switch to engage All Wheel Drive (AWD).
Move the switch to the center position to lock the differential and operate in two wheel drive (2WD).
Press the bottom of the switch to unlock the differential and allow the rear drive wheels to operate independently (1WD / Turf Mode). This mode of operation is well suited to turf driving or when active traction is not needed.
To change gears, stop the vehicle and move the lever 1 to the desired gear. Do not attempt to shift gears while the vehicle is moving.
H: High Gear
L: Low Gear
N: Neutral
P: Park
The steering wheel can be tilted upward or downward for rider preference.
Lift and hold the steering wheel adjustment lever 1 while moving the steering wheel upward or downward. Release the lever when the steering wheel is at the desired position.
Always make sure the steering wheel position does not impede proper operation of the brake pedal, accelerator pedal, and all other controls.
Depress the brake pedal 1 to slow or stop the vehicle. Regenerative braking will be active whenever the brake pedal is used while vehicle is in motion. See Regenerative Braking for details.
When the brake pedal is depressed, the brake light comes on. Check the brake light before each ride.
Turn the key switch to the ON position.
Apply the brakes. The rear brake lights should come on after a small amount of pedal travel.
Push the accelerator pedal 2 down to accelerate the vehicle. Spring pressure returns the pedal to the rest position when released. Always check that the accelerator pedal returns normally before starting the motor.
This vehicle is equipped with three-point lap and diagonal seat belts for the operator and any passengers. Always make sure the seat belts are secured for all riders before operating. The driver’s seat belt is equipped with a seat belt interlock. Vehicle speed will be limited to 15 MPH (24 km/h) if the seat belt is not secured.
To wear the seat belt properly, follow this procedure:
For 3-point belts, pull the seat belt latch 1 downward and across your chest toward the buckle at the inner edge of the seat. The belt should fit snugly across your hips and diagonally across your chest. Make sure the belt is not twisted.
Push the latch plate 1 into the buckle 2 until it clicks.
Release the strap, it will self tighten.
To release the seat belt, press the square red button in the buckle’s center.
Inspect all seat belts for proper operation before each use of the vehicle.
Push the latch plate into the buckle until it clicks. The latch plate must slide smoothly into the buckle. A click indicates that it's securely latched.
Push the red release latch in the middle of the buckle to make sure it releases freely.
Pull each seat belt completely out and inspect the full length for any damage, including cuts, wear, fraying or stiffness. If any damage is found, or if the seat belt does not operate properly, have the seat belt system checked and/or replaced by an authorized dealer.
To clean dirt or debris from the seat belts, sponge the straps with mild soap and water. Do not use bleach, dye or household detergents. Rinse the entire length of the belt webbing. Use a garden hose to flush out the retractor and latch housings regularly.
The electrical compartment is located under the center rear-most seat. Never use this area for storage. Storage compartments are located under all other seats. Remove the storage bin under the center rear-most seat to access the battery and electrical compartment.
Always make sure all seats are properly installed before operating.
To access the storage area under the driver’s seat, reach behind the driver’s seat and pull up on the latch. Roll the bottom of the seat forward toward steering wheel.
To access the storage area under the passenger seat, lift up on the front of the passenger seat and raise it to the upright position.
The Occupant Protection Structure (OPS) on this vehicle meets ANSI®/OPEI B71.9 standards. Always have your authorized dealer thoroughly inspect the OPS if it ever becomes damaged in any way.
No device can assure occupant protection in the event of a rollover. Always follow all safe operating practices outlined in this manual to avoid vehicle rollover.
This vehicle is equipped with a receiver hitch bracket for a trailer hitch. Trailer towing equipment is not supplied with this vehicle.
To avoid injury and property damage, always heed the warnings and towing capacities.
1 Speedometer
2 Accelerator/Brake Regen Power Level (%)
3 Indicator Lamps
4 MODE Button
5 Toggle Buttons
6 Rider Info Center
The speedometer displays vehicle speed in either miles per hour (MPH) or kilometers per hour (km/h).
The POWER% level displays the percentage (%) of motor power applied as a result of pushing down on the accelerator pedal.
The REGEN level displays the percentage (%) of available regenerative braking torque applied. See Regenerative Braking for details.
Press and hold the MODE button to enter or exit the settings menu. Press and release the MODE button to cycle through Area 1 modes and to select an item. See Mode Information Displays for details.
Press and release either toggle button to cycle through the options menu or Area 2 modes. Press and hold either toggle button to reset an item.
Indicator | Icon | Function |
---|---|---|
Vehicle Speed |
![]() |
When standard mode is selected, speed displays in miles per hour. |
![]() |
When metric mode is selected, speed displays in kilometers per hour. | |
High-Voltage Battery Pack |
![]() |
This indicator illuminates when a failure or fault has occurred in the vehicle’s high-voltage battery pack. |
Check 12V Battery |
![]() |
This indicator illuminates when the 12V battery is exhibiting low voltage. |
Over Temperature |
![]() |
This indicator illuminates when components of the electronic powertrain (such as the motor or high-voltage battery) are overheating. Continued operation may result in reduced performance to allow powertrain component temperatures to recover. |
EPS Warning |
![]() |
This indicator illuminates briefly when the key is turned to the ON position. If the light remains on, the EPS system is inoperative. See your dealer or other qualified person as soon as possible for repair. Continued operation could result in permanent damage to the EPS unit and increased steering effort. |
Amber Warning Light (AWL) |
![]() |
This indicator illuminates when an error condition or minor
fault has been detected by the vehicle’s computer. Consult Diagnostic Trouble Codes and Diagnostic Trouble Codes to identify the condition/fault detected. See your dealer or other qualified person if the condition/fault persists. |
Malfunction Indicator Light (MIL) |
![]() |
This indicator illuminates when an error condition or serious
fault has been detected by the vehicle’s computer. Consult Diagnostic Trouble Codes and Diagnostic Trouble Codes to identify the condition/fault detected. See your dealer or other qualified person if the condition/fault persists. |
Helmet/Seat Belt |
![]() |
This indicator illuminates as a reminder to the operator to ensure all riders are wearing helmets or hard hats and seat belts before operating. The driver’s seat belt is equipped with a seat belt interlock. Vehicle speed will be limited to 15 MPH (24 km/h) if the seat belt is not secured. |
High Beam |
![]() |
This indicator illuminates when the headlamp switch is set to high beam. |
Park Brake (if equipped) |
![]() |
This indicator illuminates when the Park Brake is applied (if equipped). |
Speed Limitation Indicator |
![]() |
This indicator illuminates when the Speed Limitation function is active. |
Active Status Indicator |
![]() |
This indicator illuminates when the vehicle accelerator pedal is active. Pressing on the accelerator pedal when this light appears will result in movement in the direction selected (forward or reverse). |
Charging Indicator |
![]() |
This indicator illuminates to confirm the vehicle is connected to a charger. It does not confirm the flow of charge to the vehicle, which is only confirmed by text on the Rider Information Center. If this light flashes, an error has occurred and the vehicle will not charge. |
Overspeed Indicator |
![]() |
This indicator illuminates when the vehicle’s Speed Limitation function is active and the vehicle travels at speeds in excess of the set limitation (such as when moving downward on a hill). |
Cold Temperature Indicator |
![]() |
This indicator illuminates when vehicle components are below their ideal operating temperature; 32° F (0° C). The vehicle may experience reduced performance when this light is active. Allow the battery heaters several minutes to warm up before operating. See Charging in Extreme Ambient Temperatures for details on extreme weather operation. |
1 | Gear Indicator | This indicator displays gear shifter position. H = High Gear L = Low Gear N = Neutral R= Reverse P = Park -- = Gear Signal Error (or shifter between gears) |
2 | Speed Limitation | This vehicle may be equipped with a maximum speed limitation function. This would be displayed on the screen as “LIM” followed by the speed. “LIM 15” for example. |
3 | Service Indicator | A flashing wrench symbol alerts the operator that the preset service interval has been reached. Your Polaris dealer, or other qualified person, can provide scheduled maintenance. See Programmable Service Interval for resetting instructions. |
4 | Remaining Charge Gauge | The segments of the charge gauge show the level of charge held by the high-voltage battery pack(s). When the last segment clears, a low charge warning is activated. The outline of the charge display will flash. Recharge the vehicle. |
The rider information center is located in the instrument cluster. All segments will light up for one second at start-up.
The information center is set to display standard units of measurement and a 12-hour clock at the factory. To change to metric and/or a 24-hour clock hold the mode button and cycle to the clock menu. Use the directional arrows to change the clock settings.
If the instrument cluster fails to illuminate, a battery over-voltage may have occurred and the instrument cluster may have shut off to protect the electronic speedometer. If this occurs, your Polaris dealer, or other qualified person, can provide proper diagnosis.
The rider information center contains three areas that display mode information.
1 Area 1 Modes | Description |
Battery Pack State of Charge (SoC) | Remaining battery pack charge (%) |
Vehicle Speed | Speed of vehicle (MPH/KPH) |
Motor Power Level | Motor power applied as a result of pushing down on the accelerator pedal (%) |
2 Area 2 Modes | Description |
Odometer | The odometer records and displays the distance traveled by the vehicle. |
Trip Meters (T1/T2) | A trip meter records the distance traveled by the vehicle if reset before each trip. To reset, see Trip Meter. |
Ambient Temperature | Displays the ambient temperature sensed by the vehicle. See Display Units (Standard/Metric) to set desired units. |
Efficiency (Watt-hours per mile/km) |
Displays average battery pack output per mile/km traveled. |
Range | Estimated remaining range (miles/km). See Estimated Remaining Range for details on how estimated remaining range is calculated. |
Service Interval | A flashing wrench symbol indicates that the preset service interval has been reached. To reset, see Programmable Service Interval. |
3 Area 3 Modes | Description |
Clock | The clock displays time in a 12-hour or 24-hour format. To reset, see Clock. |
Press and release the MODE button to cycle through the Area 1 modes until the desired default mode displays. See the Mode Information Displays section for details.
Press and hold the MODE button to enter the settings menu.
The OPTIONS screen will display for a few seconds.
Press and release either toggle button to cycle to the desired option.
Press MODE to select the option.
Press either toggle button to cycle to the desired setting.
Press MODE to save and exit to the settings menu.
Press and hold the MODE button to exit the settings menu.
Electric vehicle (EV) component details can be viewed using the EV INFO option.
Press and hold the MODE button to enter the settings menu.
Press either toggle button to cycle to the “EV INFO” option. Press MODE to select.
Press either toggle button to cycle to the desired electric component status.
Motor Temperature
Motor Control Unit (MCU) Temperature
Vehicle Dynamics Control (VDC)
Battery Pack Life Efficiency (Wh per mile/km)
Battery Pack Temperature
Press MODE to return to the settings menu.
The information center backlight can be set to either blue or red.
Press and hold the MODE button to enter the settings menu.
Press either toggle button to cycle to the “BL COLOR” option. Press MODE to select.
Press either toggle button to cycle to the desired setting.
Press MODE to save and exit to the settings menu,
The information center backlight can be adjusted to desired brightness.
Press and hold the MODE button to enter the settings menu.
Press either toggle button to cycle to the “BL LEVEL” option. Press MODE to select.
Press “UP” button to increase brightness. Press “DOWN” button to decrease brightness.
Press MODE to select and exit to the settings menu.
The clock must be reset any time the battery has been disconnected or discharged.
Press and hold the MODE button to enter the settings menu.
Press either toggle button to cycle to the “CLOCK” option. Press MODE to select.
Press either toggle button to cycle to the desired setting (12H or 24H). Press MODE to select.
Press either toggle button to change each segment of the clock. Press MODE to accept a change and advance to the next segment.
Press and hold the MODE button to enter the Options menu.
Toggle the Up/Down buttons to find the SPD LMT option. Press the MODE button to enter the menu.
Enter PIN. If you don’t have a PIN set, review the PIN Activated Security System (P.A.S.S) topic.
Toggle the Up/Down buttons to turn speed limiting to ON.
Press the mode button again to return back to the options screen.
Press the MODE button to enter the SET SPEED setting.
Re-enter the vehicle PIN. Max vehicle speed will then be displayed.
Press the MODE button again, then toggle the Up/Down buttons to increase/decrease Max Speed.
When the desired Max Speed displays, press the MODE button to set the Max Speed.
Select Exit Menu function from the Options menu.
Hold MODE button and exit out of the Options menu.
Refrain from pressing any button for 10 seconds, which will exit out of the Options menu
Press and hold the MODE button to enter the Options menu.
Toggle the Up/Down buttons to find the SPD LMT option. Press the MODE button to enter the menu.
Enter PIN. If you don’t have a PIN set, review the PIN Activated Security System (P.A.S.S) topic.
Press the mode button again to return back to the options screen.
Toggle the Up/Down buttons to turn speed limiting to OFF.
Press the mode button again to return back to the options screen.
Select Exit Menu function from the Options menu.
Hold MODE button and exit out of the Options menu.
Refrain from pressing any button for 10 seconds, which will exit out of the Options menu
Speed limiting applies to both forward and reverse.
Press and hold the MODE button to enter the settings menu.
Press either toggle button to cycle to the desired “UNITS” option (distance, temperature or volume). Press MODE to select.
Press either toggle button to cycle to the desired setting.
Press MODE to save and exit to the settings menu.
Use a trip meter to track the distance traveled during a specific trip or period of time. Reset the meter to zero before traveling.
Press either toggle button to cycle to the desired trip meter option (T1 or T2).
Press and hold either toggle button until the meter resets to zero.
Use a trip time meter to track the travel time during a specific trip. Reset the meter to zero before traveling.
Press either toggle button to cycle to the trip time option (TT).
Press and hold either toggle button until the meter resets to zero.
The service interval counter is programmed to 25 miles at the factory. As vehicle operation increases, the counter decreases. The wrench icon will flash for about 10 seconds when the counter reaches zero (0), and each time the key is turned on thereafter, until the counter is reset.
When this feature is enabled, it provides a convenient reminder to perform routine maintenance. Refer to the Periodic Maintenance Chart for recommended service intervals.
Use the following procedure to reset or change the service interval.
Press and hold the MODE button to enter the settings menu.
Press either toggle button to cycle to the “SERVICE” option. Press MODE to select.
Press MODE to reset the existing value and exit, or press either toggle button to change the value. Press MODE to save and exit to the settings menu.
The optional PIN Activated Security System (P.A.S.S.) is to prevent unauthorized use. When enabled, the vehicle cannot be operated until a valid passcode has been entered using the Instrument Cluster.
To enable/disable P.A.S.S. using the Instrument Cluster, follow the procedures below.
After activating P.A.S.S. for the first time you must power down the vehicle and allow the electronic control module (ECM) to fully shutdown before restarting. This may take up to three minutes.
Once a new passcode has been enabled, it cannot be changed unless you first disable the system. Then you can re-follow the steps outlined in the ENABLE P.A.S.S. section to enter a new passcode.
Press and hold the MODE button to enter the “OPTIONS” menu.
Use the UP/DOWN toggle buttons to cycle through options until “REQUIRE PIN TO START” appears. Press the MODE button to select.
If required, “ENTER NEW PIN” will appear. Use the UP/DOWN toggle buttons to cycle to your desired first digit. Press the MODE button to select the digit.
Continue until all four digits of your desired passcode have been selected. Once finished, “NEW PIN SET” will flash momentarily and then revert back to the “REQUIRE PIN TO START” screen.
Please record your passcode.
To enable your new passcode, use the UP/DOWN toggle buttons to change the flashing “OFF” at bottom of screen to “ON”. If this step is skipped, P.A.S.S. will not be enabled.
Press the MODE button to re-enter the “OPTIONS” menu. The vehicle will now require passcode entry before next startup.
You can exit the “OPTIONS” menu three different ways.
Toggle to “EXIT” and press the MODE button.
Hold the MODE button for a few seconds.
Do nothing, allowing the system to automatically revert back to the main screen.
Press and hold the MODE button to enter the “OPTIONS” menu.
Use the UP/DOWN toggle buttons to cycle through options until “REQUIRE PIN TO START” appears. Press the MODE button to select.
Enter current passcode.
Use the UP/DOWN toggle buttons to change the flashing “ON” at bottom of screen to “OFF”.
Press the MODE button to re-enter the “OPTIONS” menu. P.A.S.S. is now disabled.
You can exit the “OPTIONS” menu three different ways.
Toggle to “EXIT” and press the MODE button.
Hold the MODE button for a few seconds.
Do nothing, allowing the system to automatically revert back to the main screen.
The error screen displays only when the Advanced Warning Light (AWL) indicator is on or when it goes on and off during one startup cycle. Error codes are not stored. When the key switch is in the OFF position, the code and message is lost but will reappear if the fault reoccurs after restarting the vehicle.
Code definitions can be referenced on Diagnostic Trouble Codes.
If the Malfunction Indicator Light (MIL) or the EPS lamp illuminates, retrieve the active error codes from the display.
Press and hold the MODE button to enter the settings menu.
Press either toggle button to cycle to the “DIAGCODE” option. Press MODE to select.
More than one diagnostic code may be present. Press the toggle UP button to see if more codes are present. Press MODE to select a code.
Record the three (3) numbers displayed.
Press MODE to exit to the settings menu.
Apply only moderate braking force for the first 50 stops. Aggressive or overly forceful braking when the brake system is new could damage brake pads and rotors.
It is recommended that a burnishing procedure be performed on new vehicles or after installation of new brake pads or rotors. This helps to conform the pads to the rotor surface and achieve optimum braking performance.
Test drive the machine and gradually accelerate to more than 20 mph. Apply light to moderate pressure to the brake pedal to slow the vehicle to roughly 5 mph. Repeat this process 10–30 times, allowing 30 seconds between brake applications for the system to cool down.
Do not stop aggressively and do not slow
to a complete stop during the burnishing process.
After brake burnishing is complete, drive the vehicle to
cool the brake pads and rotors.
The burnishing process may cause there to be brake dust on the wheels and calipers. This is normal. When the system has cooled, use a rag and soapy water (no harsh chemicals) to clean off the dust.
Sit in the driver's seat and fasten the seat belt. Always make sure all cab doors (if equipped) are closed and latched when riding in this vehicle. Do not press the accelerator pedal while starting the vehicle.
Shift the gear selector to PARK (P) position.
Insert the key and turn the key switch to the ON position.
Press the Direction Selector Switch in the FORWARD (F) position to go forward or the REVERSE (R) position to go rearward. Always check the position of the Direction Selector Switch (F/R) before pressing the accelerator pedal.
Shift the gear selector to either HIGH (H) or LOW (L) gear.
Press the accelerator pedal to move the vehicle.
Release the accelerator pedal completely.
Press on the brake pedal evenly and firmly.
Practice starting and stopping (using the brakes) until you're familiar with the controls.
Before switching to reverse, use extra care to make sure the area is clear of people or obstacles. When it’s safe to proceed, back slowly.
Follow these precautions when operating in reverse:
Always check for obstacles or people behind the vehicle.
Apply pressure to the accelerator pedal lightly. Do not press the accelerator pedal suddenly.
Back slowly.
Apply the brakes lightly for stopping.
Avoid making sharp turns.
To park the vehicle:
Stop the vehicle on a level surface.
Place the transmission in PARK (P). This vehicle can roll whenever the transmission is not in the PARK (P) position.
Stop the motor by turning the Key Switch from the ON position to the OFF position..
Engage the park brake (if equipped).
Remove the key to prevent unauthorized use.
When the high-voltage battery pack reaches 20-25% remaining charge, the vehicle will display LOW CHARGE on the instrument cluster. As the battery pack discharges to a lower remaining charge (e.g. 5%), vehicle performance may gradually decrease in order to conserve power. There will be less available power and torque while operating with low charge.
Move vehicle to a firm level surface.
Shift to PARK (P).
Turn the ignition switch to the OFF position. Remove the keys from the ignition switch.
Prevent the vehicle from moving by chocking the wheels. A chock is a wedge or wheel stop that is designed to keep the vehicle from moving forward or backward and falling off the jack. If jacking the FRONT of the vehicle, then chock front and rear sides of both REAR tires. If jacking the REAR of the vehicle, then chock front and rear sides of both FRONT tires.
Keep bystanders away and make sure no occupants or cargo are still in the vehicle.
Use a jack designed for a high ground clearance off-road vehicle (such as the POLARIS Off-Road Utility Jack).
Follow the jack manufacturer's instructions.
Do not place any object above or under a jack.
After lifting vehicle with a jack, never place any part of your body under the vehicle without first properly blocking vehicle using designated support points.
Any qualified repair shop or person may maintain systems on your vehicle. An authorized Polaris dealer can perform any service that may be necessary for your vehicle.
Owners are responsible for performing the scheduled maintenance identified in this owner’s manual.
Careful periodic maintenance will help keep your vehicle in the safest, most reliable condition. Inspection, adjustment and lubrication of important components are explained in the periodic maintenance chart.
Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, genuine Polaris parts are available from your Polaris dealer.
Service and adjustments are important for proper vehicle operation. If you’re not familiar with safe service and adjustment procedures, a qualified dealer can perform these operations.
Vehicles subjected to heavy or severe use patterns must be inspected and serviced more frequently.
Frequent exposure to mud, water, or sand
Racing or race-style high RPM use
Prolonged low speed, heavy load operation
Short trip cold weather operation
The intervals shown in this table are based on vehicles operated
under normal conditions. Each interval is given in miles (kilometers)
or time intervals. Items should be serviced at whichever interval
comes first. Continue to reference the following maintenance schedules
at the given intervals as miles (kilometers) or time in use increases
on the vehicle.
Vehicles subjected
to severe use must be serviced at 50% of the stated interval. Examples
of Severe Use: Frequent exposure to mud, water, or sand, prolonged
low-speed heavy load operation, and short trip cold weather operation.
Every 1000 Miles (1600 km) | |
---|---|
Vehicle Body | Clean throughout the vehicle using mild soap and water (such as from a garden hose) to remove dirt and/or debris. Caked-on debris like mud should be removed by hand. Do not use high-pressure water. Allow vehicle to dry before operating. |
12V Battery | Check terminals; terminals should be tight and free of corrosion. Clean, test, and replace as necessary. |
High-voltage Cables | Visually inspect high-voltage cabling (orange color) for damage to insulation, proper routing, and proper retention. If damage is suspected, have vehicle brought immediately to an authorized dealer. |
Front Gearcase Fluid | Change fluid. |
Brake System | Inspect for fluid leaks; add lubricant if needed. Inspect brake pad wear. |
Wiring | Inspect for wear, routing, and retention. |
General Lubrication | Locate all applicable fittings and grease. |
Suspension / Steering Components* | Inspect tie rods, wheel bearings, suspension bushings, and ball joints for loose or worn components; replace as needed. Inspect shock absorbers for leaks or damage. Lubricate (if applicable). |
Cooling System | Fluid level inspection; inspect for fluid leaks; add coolant if needed. Inspect coolant strength seasonally. |
Transmission Fluid | Change fluid. |
Parking Brake (if applicable) | Inspect and adjust as needed. |
* It is recommended to have an authorized dealer perform these services. |
Vehicles subjected to severe use must be serviced at 50% of the stated interval. Examples of Severe Use: Frequent exposure to mud, water, or sand, constant high RPM use, prolonged low-speed heavy load operation, extended idle, and short trip cold weather operation.
Additional Maintenance Intervals | ||
---|---|---|
Monthly |
Brake Pad Wear | Inspect and replace as needed. |
12V Battery | Check terminals; Test; Clean / Replace as needed. | |
Every 2000 miles (3200 km) or 24 months |
Brake Fluid | Change fluid (DOT 4). |
Motor Drive Belt* | Inspect drive belt frequency and adjust as necessary.. | |
Every 2000 miles (3200 km) |
Shock Absorbers* | Replace. |
Every 5 years |
Cooling System | Replace fluid. |
* It is recommended to have an authorized dealer perform these services. |
Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart section, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should be lubricated at the general lubrication interval.
Item | Lube | Method |
---|---|---|
Brake Fluid | DOT 4 Brake Fluid | Maintain level between fill lines. See Brakes. |
Transmission Gearcase Oil | AGL Gearcase Lubricant | See Transmission Oil Check. |
Front Gearcase Oil | Demand Drive Fluid | See Demand Drive Oil Check. |
Prop Shaft | U-Joint Grease | Locate fitting and grease. |
Front and Rear Stabilizer Bar Bushings | All Season Grease or grease conforming to NLGI No. 2 | Grease one fitting on each side of the vehicle. |
Lubrication Points
1 Prop Shaft
2 Front Stabilizer Bar (both sides)
3 Rear Stabilizer Bar (both sides)
Gearcase | Lubricant | Capacity | Fill Plug Torque | Drain Plug/ Level Check Plug Torque |
---|---|---|---|---|
Transmission (Main Gearcase) | AGL Gearcase Lubricant & Transmission Fluid | 52 oz. (1550 ml) |
10-14 ft. lbs. (14-19 Nm) |
10-14 ft. lbs. (14-19 Nm) |
Demand Drive Unit (Front Gearcase) | Demand Drive Fluid | 6.8 oz. (200 ml) |
8-10 ft. lbs. (11-13.6 Nm) |
11 ft. lbs. (15 Nm) |
Always check and change the transmission oil at the intervals outlined in the Periodic Maintenance Chart. Maintain the oil level even with the bottom thread of the fill plug hole.
The fill plug is located on the rear of the gearcase. Maintain the fluid level at the bottom of the fill plug hole.
To check the transmission fluid, do the following:
Position the vehicle on a level surface.
Remove the fill plug 1.
Check the fluid level.
Add the recommended fluid to the bottom of the fill plug hole. Do not overfill.
Reinstall the fill plug. Torque to specification. See the Gearcase Specification Chart section.
The drain plug is located on the bottom of the gearcase. Access
the drain plug through the hole in the skid plate.
Remove the fill plug.
Place a drain pan under the drain plug 2.
Remove the drain plug. Allow the fluid to drain completely.
Clean and reinstall the drain plug. Torque to specification. See the Gearcase Specification Chart section.
Add the recommended fluid to the bottom of the fill plug hole. Do not overfill.
Reinstall the fill plug. Torque to specification. See the Gearcase Specification Chart section.
Check for leaks. Discard used fluid properly.
Help Center Video
Always check and change the demand drive fluid at the intervals outlined in the Periodic Maintenance Chart. Maintain the oil level even with the bottom thread of the fill plug hole. Refer to the Gearcase Specifications Chart for recommended lubricants, capacities and torque specifications.
The front gearcase fill plug 1 is located on the right side of the front gearcase.
Position the vehicle on a level surface.
Remove the fill plug 1. Check the oil level.
Add the recommended oil as needed.
Reinstall the fill plug. Torque to specification.
Support the vehicle securely with a jackstand.
Remove the front tire on the passenger's side for ease of access (optional).
Remove the fill plug.
Place a drain pan under the drain plug 2 on the bottom right-hand side.
Remove the drain plug. Drain the oil.
Clean and reinstall the drain plug. Torque to specification.
Add the recommended fluid to the bottom of the fill plug hole. Do not overfill.
Reinstall the fill plug. Torque to specification.
Check for leaks.
Discard used oil properly.
Help Center Video
The coolant access is located under the cargo box. Check for leaks
periodically and add coolant as needed.
Lift the cargo box.
Slowly remove the radiator cap 1.
View the coolant level through the opening.
Use a funnel and slowly add coolant as needed.
Reinstall the pressure cap.
The front and rear brakes are hydraulic disc type brakes. Press down on the brake pedal to engage the brakes.
Inspect the brake system routinely. Inspect the level of the brake fluid before each operation.
Change the brake fluid every two years and any time the fluid becomes contaminated, the fluid level is below the minimum, or if the type and brand of the fluid in the reservoir are unknown.
Position the vehicle on a level surface and turn off the motor.
View the brake fluid level at the reservoir in the driver’s side wheel well. The level should be between the upper (MAX) and lower (MIN) level lines.
If the fluid level is lower than the upper level line, open the hood and add brake fluid to the upper (MAX) line.
Apply the brake forcefully for a few seconds and check for fluid leakage around the fittings.
Do not apply WD-40® or any petroleum product to brake discs. These types of products are flammable and may also reduce the friction between the brake pad and caliper.
Check the brake system for fluid leaks.
Check the brake pedal for excessive travel or a spongy feel.
Check the friction pads for wear, damage and looseness.
Check brake discs for signs of cracks, excessive corrosion, warping or other damage. Clean any grease using an approved brake cleaner or alcohol.
Inspect the brake disc spline and pad wear surface 1 for excessive wear. Change pads when worn to 0.030 in (0.762 mm).
Help Center Video
Check the steering wheel for specified freeplay and smooth operation at the intervals outlined in the Periodic Maintenance Chart section.
Position the vehicle on level ground.
Lightly turn the steering wheel left and right.
There should be 0.8-1.0 in (20-25 mm) of freeplay.
If there is excessive freeplay or strange noises, or the steering feels rough or “catchy,” have the steering system inspected by an authorized dealer.
Adjust the front and rear shock absorber springs by rotating the adjustment cam either clockwise or counter-clockwise to increase or decrease spring tension.
1 Stiffest Setting
2 Softest Setting
Always heed the following rules if you make adjustments to this suspension.
Always return the suspension to the lowest (softest) setting after the load is removed from the vehicle. The increased suspension height will negatively impact vehicle stability when operating without a load.
Always apply the same adjustment setting to both rear wheels.
Operating your vehicle with worn tires will increase the possibility of skidding, loss of control and an accident, which could result in serious injury or death. Always replace tires when the tread depth measures 1/8 in (3 mm) or less.
Improper tire inflation or the use of non-standard size or type of tires may adversely affect vehicle handling, which could result in vehicle damage or personal injury. Always maintain proper tire pressure. Always use POLARIS approved size and type of tires for this vehicle when replacing tires.
Always replace tires when tread depth is worn to 3 mm (1/8”) or less.
Inspect the following items occasionally for tightness, and if they've been loosened for maintenance service. Do not lubricate the stud or the lug nut.
Lug Nut (Steel Wheel) | Front and Rear | 60 ft-lbs (81 Nm) | |
Spindle Nut | Front | 180 ft. lbs. (245 N⋅m) | |
Hub Retaining Nut | Rear | 180 ft. lbs. (245 N⋅m) |
Position the vehicle on a level surface.
Apply the brakes. Set the park brake. Turn the key off.
Loosen the wheel nuts slightly.
Elevate the side of the vehicle by placing a suitable stand under the frame.
Remove the wheel nuts. Remove the wheel.
Place the transmission in PARK.
Place the wheel on the hub with the valve stem toward the outside and rotation arrows on the tire pointing toward forward rotation.
Attach the wheel nuts and finger-tighten.
Carefully lower the vehicle to the ground.
Torque the wheel nuts to specification.
Help Center Video
The high-voltage service disconnect 1 is located under
the passenger-side seat. Lift the seat up and remove the storage bin
to access the harness.
Slide the lock tab 2 up, pinch the secondary lock, and then pull the plastic housing from the harness. Reattach the housing to the harness and push the lock tab down when you have finished servicing the 12V battery to resume driving.
Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can result from contact with skin, eyes or clothing.
Antidote:
External: Flush with water.
Internal: Drink large quantities of water or milk. Follow with milk of magnesia, beaten egg, or vegetable oil. Call physician immediately.
Eyes: Flush with water for 15 minutes and get prompt medical attention.
Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away. Ventilate when charging or using in an enclosed space. Always shield eyes when working near batteries. KEEP OUT OF REACH OF CHILDREN.
Before servicing your vehicle’s 12V battery, ALWAYS power off the vehicle and remove the key from the key switch. Then, ensure that high-voltage power is turned off by unclasping the high-voltage service disconnect.
Your vehicle has a low-maintenance flooded battery. It does not require refilling.
Always keep battery terminals and connections free of corrosion. If cleaning is necessary, remove the corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda and one cup water. Rinse well with tap water and dry off with clean shop towels. Coat the terminals with dielectric grease or petroleum jelly. Be careful not to allow cleaning solution or tap water into a conventional battery.
The sealed battery is already filled with electrolyte and has been sealed and fully charged at the factory. Never pry the sealing strip off or add any other fluid to this battery.
Your electric vehicle will maintain the charge of the 12V battery whenever the High-Voltage Battery Pack has an adequate State of Charge (SoC). See the storing your vehicle section for details on long-term vehicle storage.
To remove the battery, do the following:
Power off the vehicle and remove the key from the key switch.
Lift up the passenger-side seat and remove the storage bin.
Remove the high-voltage service disconnect loop. See Disconnecting High Voltage Power for details.
Disconnect the black (-) battery cable first. Disconnect the red (+) battery cable last.
Remove the battery hold-down strap.
Lift the battery out of the vehicle.
Ensure that the battery is fully charged.
Place the battery in the battery holder.
Coat the terminals with dielectric grease or petroleum jelly.
Connect and tighten the red (positive) cable first.
Connect and tighten the black (negative) cable last.
Install the battery hold-down strap and tighten the screws.
Verify that cables are properly routed.
Reconnect the high-voltage service disconnect loop. See the service disconnect section for details.
Reinstall the seat and storage bin.
Help Center Video
If the motor stops or will not start, or if you experience other
electrical failures, a fuse may need replacement. Locate and correct
any short circuits that may have caused the blown fuse, then replace
the fuse. To access the fuse box, lift the passenger-side seat up
and remove the storage bin under the seat. Spare fuses are provided
in the fuse box. If you suspect that a fuse or relay may not be working
properly, your dealer can assist.
Fuse Size | Feature Supported |
---|---|
40A | Rear Pulse Bar |
40A | ECU |
50A | DCDC Converter (#1) |
50A | DCDC Converter (#2) |
15A | Box Power |
10A | 12V Accessory |
15A | Headlight |
30A | EPS |
10A | Winch |
20A | Audio |
20A | Accessory |
10A | Fan Circuit Breaker |
10A | UNSW 12V |
Poor lighting can result in reduced visibility when driving. Headlight and taillight lenses become dirty during normal operation. Clean lights frequently and replace failed (or failing) lights promptly. Do not operate this vehicle at night or in low light conditions until the headlight is replaced. Always make sure lights are adjusted properly for best visibility.
The vehicle is equipped with integrated LED lights. In the event of a failure, the entire assembly1 must be replaced.
1 25 ft. (7.6 M)
2 8 in. (20 cm)
To adjust the headlight beam, do the following:
Ensure the tire pressure of all tires is at recommended levels.
Place the vehicle on a level surface with the headlight approximately 25 ft. (7.6 m) from a dark wall.
Measure the distance from the floor to the center of the headlight and make a mark on the wall at the same height.
Apply the brakes. Turn the key switch to ON position. Turn on the low-beam headlights.
Observe the headlight aim. The most intense part of the headlight beam should be aimed 8" (20 cm) below the mark placed on the wall. Include the weight of a rider on the seat while performing this step.
If a headlight needs adjustment, locate the three adjustment screws at the back of each headlight (one on top, two on the bottom).
Rotate the adjustment screw to adjust the headlight as needed.
When the brake pedal is depressed, the brake light comes on. Check the brake light before each ride.
To check the brake lights, do the following:
Turn the key to the ON position.
Depress the brake pedal. The brake light should come on after about 0.4 in (10 mm) of pedal travel. If the light doesn't come on, check the bulb.
Apply the service brakes, and pull the park brake lever.
While engaging the park brake lever, verify the following:
The ratchet teeth should be heard and felt as the locking pawl clicks into place.
After a few clicks, the park brake indicator lamp on the instrument cluster should illuminate.
The rear wheel of the vehicle should not rotate when turning by hand.
Ensure that plenty of resistance is felt in the lever’s throw before fully extended to the hard stop.
When the park brake is fully engaged, the vehicle should not roll while parked.
If park brake fails inspection, contact your dealer or other qualified person for adjustments or repairs.
Keeping your POLARIS vehicle clean will not only improve its appearance but it can also extend the life of various components.
The best and safest way to clean your POLARIS vehicle is with a garden hose and a pail of mild soap and water.
Use a professional-type washing cloth, cleaning the upper body first and the lower parts last.
Rinse with clean water frequently.
Dry surfaces with a chamois to prevent water spots.
Avoid the use of harsh cleaners, which can scratch the finish.
Do not use medium to heavy duty compounds on the finish.
Always use clean cloths and pads for cleaning and polishing. Old or reused cloths and pads may contain dirt particles that will scratch the finish.
Grease all zerk fittings immediately after washing.
If a high pressure water system is used for cleaning, exercise extreme caution. The maximum pressure should not exceed 4000 PSI, 2.5 GPM with a 40° pressure washer nozzle. Make sure to keep the pressure washer nozzle 23.6 in (60 cm) from the vehicle. The water may damage components and could remove paint and labels. Avoid directing the water stream at the following items:
EVSE charge port
High-voltage battery pack
DC-DC converter
Motor
Motor control unit
Onboard charger
High Voltage Cables/ Battery
Wheel Bearings
Main gearcase seals
Brakes
Labels and decals
Switches and controls
Electrical components and wiring
Cab and body panels
If an informational or graphic label becomes illegible or comes off, contact your authorized POLARIS dealer, or other qualified person, to obtain a replacement. Replacement safety labels are provided by POLARIS at no charge.
POLARIS recommends the use of common household aerosol furniture polish for polishing the finish on your POLARIS vehicle. Follow the instructions on the container.
Avoid the use of automotive products, some of which can scratch the finish of your vehicle.
Always use clean cloths and pads for cleaning and polishing. Old or reused cloths and pads may contain dirt particles that will scratch the finish.
Any time the vehicle will be parked for more than a few days, follow the recommended storage procedures:
Make any necessary repairs and clean the vehicle.
Store the vehicle out of the sun in a cool, dry place.
Be sure the storage area is well ventilated.
Turn the key off.
DO NOT set the park brake.
Verify that tire pressure is at specification.
Block the wheels to prevent rolling.
Store With an Electric Vehicle Supply Equipment (EVSE) Cable Connected. See Ideal Conditions for Storage
Make any necessary repairs and clean the vehicle as recommended.
Inspect the fluid levels. Add or change fluids as recommended in the Periodic Maintenance Chart.
Demand drive fluid (front gearcase)
Rear gearcase fluid (if equipped)
Brake fluid (change every two years and any time the fluid looks dark or contaminated)
Be sure the storage area is well ventilated. Cover the vehicle with a genuine Polaris cover. Do not use plastic or coated materials. They do not allow enough ventilation to prevent condensation, and may promote corrosion and oxidation.
Inspect the vehicle interior periodically to remove accumulated pest or rodent debris, such as nests. Check vehicle wiring for damage caused by chewing.
Verify that the high-voltage battery pack is fully charged after the 24-hour charging period. See the ideal conditions for storage section for details.
Verify that tire pressure is at specification.
Perform the pre-ride inspection.
Inspect and verify the tightness of the bolts, nuts and other fasteners.
Lubricate at the intervals outlined in the Periodic Maintenance Chart.
Check for rodent damage or nests in flat spaces between components.
Cargo and other loose vehicle parts may fly off while transporting this vehicle. Secure or remove all cargo, and inspect the unit for loose parts prior to transport.
If transporting the vehicle in a non-enclosed trailer, then the vehicle must FACE FORWARD, or roof must be removed.
Failure to comply may allow airflow, vibration, or other factors to separate the roof from the vehicle and cause an accident, resulting in serious personal injury or death.
Follow these procedures when transporting the vehicle.
Apply the brakes.
Place the transmission in PARK. Turn the key switch from the ON position to the OFF position.
Slowly release the brake pedal and make sure the transmission is in PARK before exiting the vehicle.
Remove the key to prevent loss during transporting.
Secure the seat. Ensure that the seat is attached correctly and is not loose.
Using suitable straps or rope, always secure the vehicle to the trailer using the designated tie down points (front and rear).
Front Tie-Down Location
1 Front
tie-down points
Rear Tie-Down Locations
2 Rear tie-down
points
Dimensions | |
---|---|
Maximum Weight Capacity (includes weight of operator, passenger, cargo, accessories) | 1500 lb (680 kg) |
Curb Weight | 1751 lb (794 kg) |
Test GVW - Rollover Protective Structure (ROPS) | 3600 lb (1633 kg) per OSHA® 29 CFR 1928.53 |
Ground Clearance | 14 in (36 cm) |
Length | 120 in (305 cm) |
Width | 62.5 in (158 cm) |
Height | 78 in (198 cm) |
Wheelbase | 81 in (206 cm) |
Turning Radius | 156 in (396 cm) |
Load Capacity | |
---|---|
Cargo Box Dimensions (Inside) | 36.75 x 54.25 x 12.5 in (93 x 138 x 32 cm) |
Maximum Cargo Box Capacity | 1250 lb (567 kg) |
Maximum Cargo Box Capacity When Trailer Towing | 600 lb (272 kg) |
Payload Capacity | 1500 lb (680 kg) |
Hitch Towing Capacity | 2500 lb (1134 kg) |
Hitch Vertical Weight Capacity | 250 lb (114 kg) |
Hitch Type | Standard 2 in (5 cm) receiver |
Seating | 2 |
Skid Plate | Plastic |
Cargo System | Lock and Ride |
Performance | |
---|---|
Motor Configuration | AC Permanent Magnet (synchronous), 100V |
Motor Performance | Peak Torque: 190 N⋅m Peak Power: 82 kW @ 5000 RPM 40 kW @ 5000 RPM (30 min. continuous power rating) |
Controller | 900A |
Battery Pack | Traction Battery 100V 14.9 kWh Lithium-Ion |
DC-DC Power | 900W (at peak) |
Maximum Speed | High (H): 40 MPH (64 kph) Low (L): 26 MPH (42 kph) |
Range (on flat ground)) | Up to 45 mi. (72 km) (will vary with driving conditions) |
Horsepower | 110 HP |
Torque | 140 ft-lbs (16 N·m) |
Accelerator | Redundant, non-contact, inductive-sensing pedal |
On-board Charger | 3 kW |
Charge Time | See Power Sources for details |
Cooling | Active air and liquid |
Driveline | |
---|---|
Primary | Gates synchronous belt drive H/L/N/P (electronic forward/reverse), shaft, 24mm wide, X9N 11mm HTD |
Gearcase | 2-speed non-synchronous with locking differential (Turf), Neutral, and Park |
Drive System Type | High performance on-demand true AWD/2WD/VersaTrac Turf Mode |
Brake System | |
---|---|
Brakes | Foot Activated, 4 wheel hydraulic disc with dual-bore front calipers |
Engine Braking System (EBS) | Regenerative braking |
Suspension | |
---|---|
Front suspension | Dual A-Arm 10 in (25 cm) Travel |
Rear suspension | Dual A-Arm, IRS 10 in (25 cm) Travel |
Tires - Front | 27 x 10–14; Wanda OBOR TERRAREX |
Tires - Rear | 27 x 10–14; Wanda OBOR TERRAREX |
Tire pressure | Front: 14 PSI (97 kPa) Rear: 20 PSI (138 kPa) |
Tire Ply Rating | 8 Ply Rated |
Wheels | 14 in (36 cm) Steel |
Features | |
---|---|
Instrumentation | Instrument Cluster |
Auxiliary power | 12V accessory outlet (on dash) |
Lights | Dual LED Headlamps, 1250 lm low beam, 2300 lm high beam, Dual LED Taillamps |
Charging Kit | J1772, Combined Level 1 / Level 2 Mobile Australia/ New Zealand: Type 2 charger |
Product | Size (quantity) | Part Number |
---|---|---|
AGL | 1 qt (12) | 2878068 |
1 gal (4) | 2878069 | |
Pump for Gallon Jug | 3.8 l | 2870465 |
Demand Drive | 1 qt (12) | 2877922 |
2.5 gal (2) | 2877923 | |
Antifreeze / Coolant | 1 qt (12) | 2880514 |
1 gal (6) | 2880513 | |
Grease Gun Kit, Premium All Season | — | 2871312 |
All Season Grease | Four 3 oz packs (6) | 2871322 |
14 oz cartridge | 2871423 | |
U-Joint Grease | 3 oz tube (24) | 2871515 |
14 oz cartridge | 2871551 | |
DOT 4 Brake Fluid | — | 2872189 |
Possible Cause | Solution |
---|---|
High-voltage battery pack not charged | Charge the vehicle. See the charging your vehicle section for details. |
Key not properly engaged | Ensure the key is fully inserted into the key switch and turned to the ON position |
Low 12V battery voltage | Recharge the battery pack. If problem persists, a replacement 12V battery may be necessary. |
Loose 12V battery connections | Check all connections and tighten |
Required torque exceeds motor capability | Apply the brakes and select low gear |
High-voltage service disconnect removed | Verify high-voltage service disconnect installed correctly. See Disconnecting High Voltage Power for details. |
Vehicle in Charging Mode | Verify EVSE charger is disconnected |
Invalid gear position | Shift vehicle to Park (P) and cycle Key Switch |
PASS security system enabled | Input correct security code. See PIN Activated Security System (P.A.S.S.) (if equipped) — Instrument Cluster for details. |
Broken drive belt | Contact your dealer for service. |
Fault condition detected |
|
Possible Cause | Solution |
---|---|
High-voltage battery pack not charged | Charge the vehicle. See the charging your vehicle section for details. |
Fault condition detected |
|
Extreme high ambient temperatures | Have the vehicle moved to an area with cooler ambient temperatures (such as indoors) or wait until ambient temperatures have decreased. See Vehicle Performance in Extreme Ambient Temperatures for details on vehicle operability in extreme temperatures. |
Extreme low ambient temperatures | The vehicle may cease operating or experience decreased performance when cold ambient temperature is combined with low state of charge. See Vehicle Performance in Extreme Ambient Temperatures for details on vehicle operability in extreme temperatures. |
Possible Cause | Solution |
---|---|
Power source malfunction | Verify the EVSE is connected to an active and appropriate power source. If powering from home, check the main breaker box for tripped fuses. See the power sources section for details on appropriate power sources. |
High-voltage service disconnect removed | Verify high-voltage service disconnect is installed correctly. See Disconnecting High Voltage Power for details. |
Fault condition detected |
|
Extreme high ambient temperatures | Have the vehicle moved to an area with cooler ambient temperatures (such as indoors) or wait until ambient temperatures have decreased before charging. See the extreme ambient temperature section for details on vehicle charging in extreme temperatures. |
Extreme low ambient temperatures |
|
Possible Cause | Solution |
---|---|
Motor Drive Belt out of adjustment (squeaking) | Inspect or adjust motor drive belt. See your local POLARIS dealer or other qualified person for assistance |
Fault Code | SPN | FMI | Description |
---|---|---|---|
B102A |
520669 |
6 |
Headlight Relay / Rear Running Lights Output Short Circuit to Ground |
C0256 |
516247 |
3 |
Winch Out Driver Circuit Voltage High |
C0257 |
516247 |
1 |
Winch Out Driver Open Circuit |
C0258 |
516247 |
4 |
Winch Out Driver Short to Ground |
C0259 |
516249 |
16 |
Plowing in High Range |
C025A |
516248 |
3 |
Autostop Winch Out Signal Fault |
C025B |
516248 |
4 |
Autostop Winch In Signal Fault |
C025C |
168 |
1 |
Battery too Low for Plow Mode Operation |
C025D |
516246 |
3 |
Winch In Driver Circuit Voltage High |
C025E |
516246 |
1 |
Winch In Driver Open Circuit |
C025F |
516246 |
4 |
Winch In Driver Short to Ground |
C1051 |
520222 |
6 |
EPS Current Above Normal |
C1052 |
520223 |
31 |
EPS Torque Sensor Partial Failure |
C1053 |
520224 |
31 |
EPS Torque Sensor Full Failure |
C1054 |
520225 |
16 |
EPS Inverter Temperature Above Normal |
C1055 |
520225 |
0 |
EPS Inverter Temperature Critical |
C1063 |
168 |
3 |
EPS Detected System Voltage High |
C1064 |
168 |
4 |
EPS Detected System Voltage Low |
C1069 |
84 |
19 |
EPS Detected Vehicle Speed Data Error |
C106A |
520228 |
12 |
EPS Encoder Communications Error |
C106B |
520228 |
31 |
EPS Encoder Variance Error |
C106F |
520229 |
31 |
EPS Boot Count Error |
C1070 |
520229 |
12 |
EPS Steering Software Error |
C1073 |
628 |
12 |
EPS EEPROM Failure |
C1074 |
630 |
13 |
EPS Internal Checksum Error |
C108E |
516126 |
18 |
12V Voltage Input Low |
C109B |
520229 |
13 |
EPS Software Error - MFX Calibration |
C10BF |
516868 |
31 |
4x4 Switch Input Fault |
C10C6 |
516870 |
4 |
Front Accent Light Output Short Circuit to Ground |
C10C7 |
516870 |
6 |
Front Accent Light Output Overload |
C10C8 |
516969 |
6 |
Chassis Relay Output Short Circuit to Ground |
C10CA |
516977 |
6 |
Instrumentation Output Short Circuit to Ground |
C10CE |
516975 |
6 |
DC/DC Relay Output Short Circuit to Ground |
C10D0 |
516987 |
6 |
Driveline VCM Output Short Circuit to Ground |
C10D2 |
520500 |
31 |
12V Input Polarity Reversed |
C10D3 |
520500 |
18 |
12V Voltage Input Low |
C10D4 |
520500 |
1 |
12V Voltage Input Critically Low |
C10EE |
516987 |
31 |
International VCM Output Short Circuit to Ground |
C1126 |
520504 |
4 |
Cooling Fan Relay Output Short Circuit to Ground |
C11DB |
520448 |
12 |
EPS Bridge Fault |
C11E3 |
520448 |
14 |
MOSFET Bridge Error 3 |
C11E5 |
520192 |
31 |
Corrupt Configuration Parameters No Sub Type Information |
C11E6 |
520448 |
31 |
MOSFET Bridge Error |
C11E7 |
520228 |
13 |
Motor encoder error bits set Internal Electronic Failure |
C1601 |
628 |
13 |
EPS Checksum Error |
C2300 |
516199 |
31 |
Configurable Address Claim Conflict Fault |
C230D |
516201 |
31 |
VCM Failure to Set CAN Address |
C2326 |
520504 |
6 |
Cooling Fan Relay Output Overload |
P0071 |
171 |
2 |
Ambient Air Temperature Signal Incorrect |
P0914 |
523 |
2 |
Gear Sensor Signal Circuit Fault |
P0916 |
523 |
4 |
Gear Sensor Signal Low |
P0917 |
523 |
3 |
Gear Sensor Signal High |
P0ABA |
523920 |
11 |
Traction Battery Current Sensor Fault |
P1007 |
1800 |
16 |
Traction Battery High Temp Shutdown |
P1008 |
517535 |
6 |
Dash Switch Backlight Shorted to Ground |
P1026 |
520207 |
6 |
AWD Output Overload |
P1027 |
746 |
6 |
Turf Solenoid Output Overload |
P1029 |
8096 |
31 |
Traction Battery Isolation Fault |
P102A |
9059 |
16 |
Traction Motor High Temp Warning |
P102B |
9059 |
0 |
Traction Motor High Temp Shutdown |
P102C |
10216 |
0 |
Motor Controller High Temp Warning |
P102D |
10216 |
16 |
Motor Controller High Temp Shutdown |
P102E |
8098 |
5 |
HVIL Open Circuit |
P102F |
1800 |
15 |
Traction Battery High Temp Warning |
P1031 |
1800 |
18 |
Traction Battery Low Temp Warning |
P1032 |
4990 |
31 |
Battery Charger Not Detected |
P1033 |
4990 |
12 |
Battery Charger Error |
P1034 |
7895 |
18 |
Battery Low SOC |
P1035 |
8414 |
31 |
Traction Battery Awaiting Connection |
P1036 |
8414 |
12 |
Traction Battery Disabled |
P1037 |
8414 |
14 |
Traction Battery Fail to Connect |
P1038 |
8091 |
31 |
Traction Battery Contactor Open |
P1039 |
8091 |
12 |
Traction Battery Contactor Fault |
P103A |
5922 |
0 |
Traction Battery Cell high-voltage - Charge Disabled |
P103B |
5923 |
1 |
Traction Battery Cell Low Voltage - Charge Disabled |
P103C |
8101 |
31 |
Cell Balance Status Timeout |
P103D |
5919 |
18 |
Traction Battery 0% SOC |
P103E |
5919 |
1 |
Traction Battery Voltage Critically Low |
P103F |
91 |
15 |
Throttle Applied when Ineligible |
P1040 |
91 |
16 |
Throttle Applied when Ineligible |
P1041 |
91 |
2 |
Accelerator Position Inconsistent Or Incorrect |
P1042 |
516967 |
31 |
Motor Controller Stopping Fault |
P1045 |
520517 |
6 |
Motor Controller Enable Output Short Circuit to Ground |
P1047 |
516982 |
6 |
Power Distribution Overcurrent |
P1048 |
516829 |
1 |
Traction Battery Fault - Charge Disabled |
P1049 |
516829 |
12 |
Charging Fault |
P104A |
516461 |
12 |
Vehicle Battery Discharge Fault |
P104B |
12931 |
2 |
Charge Port Pilot Signal Invalid |
P104C |
8094 |
31 |
Traction Battery Pre-Charge Failure |
P104D |
1800 |
2 |
Traction Battery Temperature Sensor Fault |
P104E |
523920 |
31 |
Traction Battery Internal Logic Fault |
P104F |
8414 |
11 |
Traction Battery State Fault |
P1050 |
8414 |
2 |
Traction Battery Minor Logic Fault |
Polaris Industries Inc., 2100 Highway 55, Medina, MN 55340 (Polaris) gives a TWO YEAR LIMITED WARRANTY on all components of your vehicle against defects in material or workmanship. Laws and regulations in your jurisdiction may give extra protection. This TWO YEAR LIMITED WARRANTY covers parts and labor charges for repair or replacement of defective parts and begins on the date of purchase by the original retail purchaser. This warranty is transferable to another owner during the warranty period through an authorized dealer, but any such transfer will not extend the original term of the warranty. The duration of this warranty may vary by international region based upon local laws and regulations.
POLARIS Industries Inc. gives a FIVE YEAR LIMITED parts and labor warranty on the battery pack against defects in material or workmanship on your POLARIS vehicle. The FIVE YEAR term begins on the purchase date, is fully transferable and has no deductible.
At the time of sale, the Warranty Registration Form must be completed by your dealer and submitted to POLARIS within ten days of purchase. Upon receipt of this registration, POLARIS will record the registration for warranty. No verification of registration will be sent to the purchaser as the copy of the Warranty Registration Form will be your proof of warranty coverage. If you have not signed the original registration and received the customer copy, please contact your dealer immediately. NO WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR VEHICLE IS REGISTERED WITH POLARIS. Initial dealer preparation and set-up of your vehicle is very important in ensuring trouble-free operation. Purchasing a machine in the crate or without proper dealer set-up will void your warranty coverage.
This Polaris limited warranty excludes any failures that are not caused by a defect in material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental damage, normal wear and tear, abuse or improper handling. This warranty also does not cover any vehicle, component, or part that has been altered structurally or electrically, modified, neglected, improperly maintained or used for racing, competition or purposes other than for which it was designed.
This warranty excludes damages or failures resulting from improper lubrication; surface imperfections caused by external stress, heat, cold or contamination; operator error or abuse; improper component alignment, tension, adjustment; snow, water, dirt or other foreign substance ingestion/contamination; improper maintenance; modified components; use of aftermarket or unapproved components, accessories, or attachments; use of unapproved software or calibration; unauthorized repairs; or repairs made after the warranty period expires or by an unauthorized repair center.
All batteries experience some reduction in capacity/ range over time. A capacity/ range reduction of 20% or less during the battery warranty period does not constitute a defect. Any capacity/ range reduction-based claim must be confirmed by an authorized dealer and approved by POLARIS to be eligible for coverage. In addition to the WARRANTY COVERAGE EXCLUSIONS listed below, the battery warranty also excludes failure, damage or capacity loss to the batteries caused by neglect, lack of charging or not following the recommended maintenance schedule outlined in the Owner’s Manual.
This warranty excludes non-recoverable high-voltage battery packs. It is the owner’s responsibility to ensure the state of charge (SoC) of the high-voltage battery is maintained properly and never fully depleted. If the high-voltage battery charge becomes fully depleted, the high-voltage battery can cease operating permanently (also known as non-recoverable).
This warranty excludes damages or failures caused by abuse, accident, fire, or any other cause other than a defect in materials or workmanship and provides no coverage for consumable components, general wear items, or any parts exposed to friction surfaces, stresses, environmental conditions and/or contamination for which they were not designed or not intended, including but not limited to the following items:
Wheels and tires
Suspension components
Brake components
Seat components
Steering components
12-Volt Battery
Light bulbs/Sealed beam lamps
Lubricants
Finished and unfinished surfaces
Bushings
Hydraulic components and fluids
Circuit breakers/Fuses
Electronic components
Sealants
Coolants
Bearings
Damage or failure resulting from the use of non-recommended lubricants or fluids is not covered by this warranty.
This warranty provides no coverage for personal loss or expense, including mileage, transportation costs, hotels, meals, shipping or handling fees, product pick-up or delivery, replacement rentals, loss of product use, loss of profits, or loss of vacation or personal time.
THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE, AT Polaris' OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. Polaris SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL PURPOSE.
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE ABOVE SIX MONTH WARRANTY PERIOD. Polaris DISCLAIMS ALL EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME STATES DO NOT PERMIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU IF INCONSISTENT WITH CONTROLLING STATE LAW.
If your vehicle requires warranty service, you must take it to a POLARIS Servicing Dealer. When requesting warranty service you must present your copy of the Warranty Registration Form to the dealer. (THE COST OF TRANSPORTATION TO AND FROM THE DEALER IS YOUR RESPONSIBILITY.) POLARIS suggests that you use your original selling dealer; however, you may use any POLARIS Servicing Dealer to perform warranty service.
Warranty or Service Bulletin repairs must be done by an authorized POLARIS dealer, or other qualified person. If you move or are traveling within the country where your product was purchased, Warranty and Service Bulletin repairs may be requested from any authorized POLARIS dealer, or other qualified person, that sells the same line as your product.
If you are traveling temporarily outside the country where your product was purchased, you should take your product to an authorized POLARIS dealer, or other qualified person. You must show the dealer photo identification from the country of the selling dealer's authorized location as proof of residence. Upon residence verification, the servicing dealer will be authorized to perform the warranty repair.
If you move to another country, be sure to contact POLARIS Customer Assistance and the customs department of the destination country before you move. Product importation rules vary considerably from country to country. You may be required to present documentation of your move to POLARIS in order to continue your warranty coverage. You may also be required to obtain documentation from POLARIS in order to register your product in your new country. You should warranty register your product at a local POLARIS dealer in your new country immediately after you move to continue your warranty coverage and to ensure that you receive information and notices regarding your product.
If you purchase a POLARIS product from a private party, to be kept and used outside of the country in which the product was originally purchased, all warranty coverage will be denied. You must nonetheless register your product under your name and address with a local POLARIS dealer in your country to ensure that you receive safety information and notices regarding your product.
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER'S AUTHORIZED LOCATION. This policy does not apply to products that have received authorization for export from POLARIS. Dealers may not give authorization for export. You should consult an authorized dealer to determine this product's warranty or service coverage if you have any questions. This policy does not apply to products registered to government officials or military personnel on assignment outside the country of the selling dealer's authorized location. This policy does not apply to Safety Bulletins.
If your product is registered outside of the country where it was purchased and you have not followed the procedure set above, your product will no longer be eligible for warranty or service bulletin coverage of any kind, other than safety recalls. Products registered to government officials or military personnel on assignment outside of the country where the product was purchased will continue to be covered by the Limited Warranty.
Please work with your dealer to resolve any warranty issues. Dealership contacts can be found via this website, if needed:
www.polaris.com/en-us/contact
Should your dealer require any additional assistance, they will contact the appropriate person at POLARIS.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or in different countries. If any of the above terms are void because of federal, state, local law, all other warranty terms will remain in effect.
For questions call POLARIS Owner Connections:
United States & Canada: 1-800-POLARIS (1-800-765-2747)
French: 1-800-268-6334
To report a safety defect to Transport Canada, you may either fill
out an online defect complaint form at their website:
English: http://www.tc.gc.ca/recalls
French: http://www.tc.gc.ca/rappels
Or contact their Defect Investigations and Recalls Division by calling toll-free 1-800-333-0510 (Canada) or 819-994-3328 (Ottawa-Gatineau area / International).
Use the following chart to record periodic maintenance.
DATE | MILES (KM) | TECHNICIAN | SERVICE PERFORMED / COMMENTS |
---|---|---|---|
Was this helpful?
