Seat Removal

  1. Slide the seat completely forward to access the fasteners.

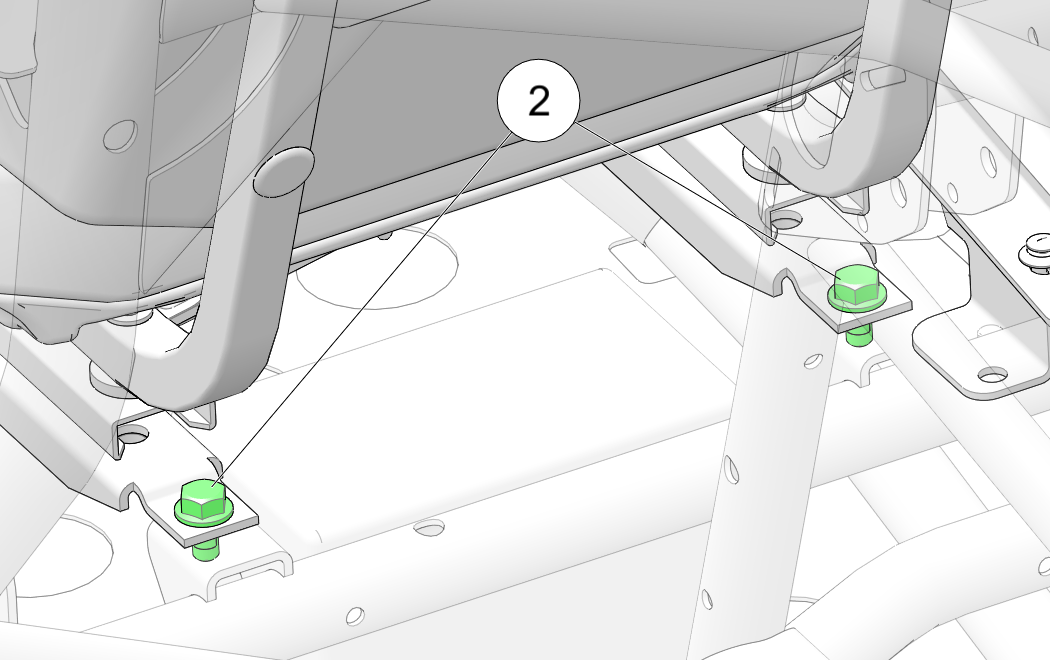

  2. Remove the two fasteners 2 securing the seat slides to the frame.

  3. Remove the seat from the vehicle.

  4. Reverse this procedure to reinstall the seat. Torque fasteners to specification.



TORQUE

Seat Rail Mount to Chassis Fasteners:

30 ft-lbs (41 N·m)

Parent topic: Seats
