Fuse Replacement

Primary Fuse Box

There are two fuse boxes located under the hood.

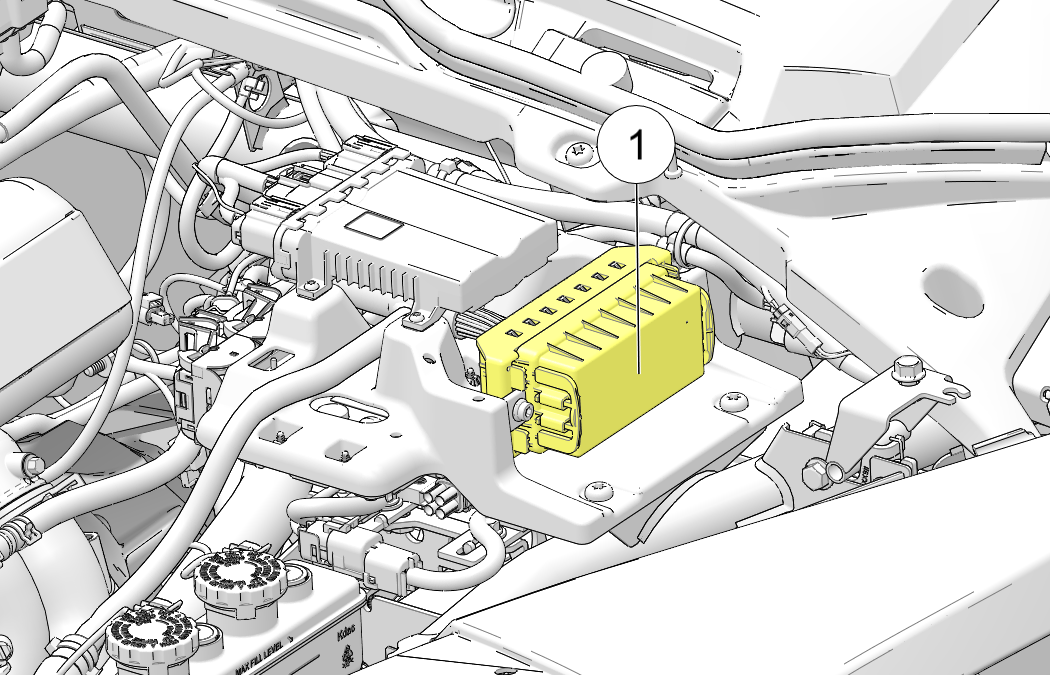

The primary fuse box 1 is located near the brake fluid reservoir.

COIL 1,4
7.5A

COIL 2,3
7.5A

TCM
15A

RELAY ACCESSORY

ACCESSORY
15A
RELAY IGNITION

IGNITION
20A

 RELAY STARTER

GAUGES
5A

ABS
25A

02 HEATER
7.5A

 RELAY FAN

TRANS PUMP
30A

COOLING FAN
20A BRK
RELAY POWER TRN

FUEL PUMP
10A

 RELAY HEATED SEATS

POWER TRN
20A

RADIO
25A



HEATED SEAT
20A

  1. Open the hood.

  2. Pull the yellow locking tabs out, then squeeze the fuse box cover tabs inward and remove the cover.

  3. Remove the spent fuse.

    NOTICE
    Always use the recommended fuse to prevent electrical system damage. Refer to the label on the fuse box cover.

  4. Install the new fuse.

  5. Reinstall the fuse box cover.

  6. Re-seat the yellow lock retainer on side of the fuse box cover by pushing in on all 4 corners of the fuse box cover.

Secondary Fuse Box

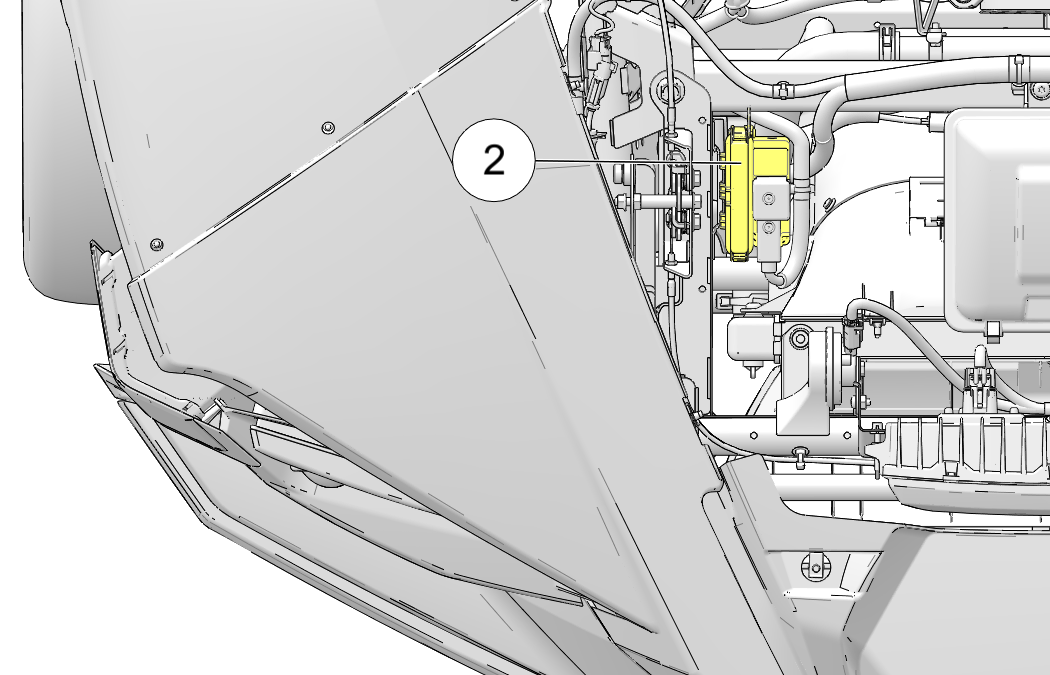

The secondary fuse box 2 is located closer to the front. The seven main system fuses are located above the battery.

  1. Open the hood.

  2. Unlatch the two yellow locking tabs by pushing them away from the fuse box cover. When both latches are unlatched, remove the fuse box cover.

  3. Remove the spent fuse.

    NOTICE
    Always use the recommended fuse to prevent electrical system damage. Refer to the label on the fuse box cover.

  4. Install the new fuse.

  5. Reinstall the fuse box cover.

CHASSIS-1 FUSE

ABS
50A

ENGINE
40A

PEPS
40A

VCM
20A

CHASSIS-2
40A

CND HL
30A

Headlight Fuse Box—Canada

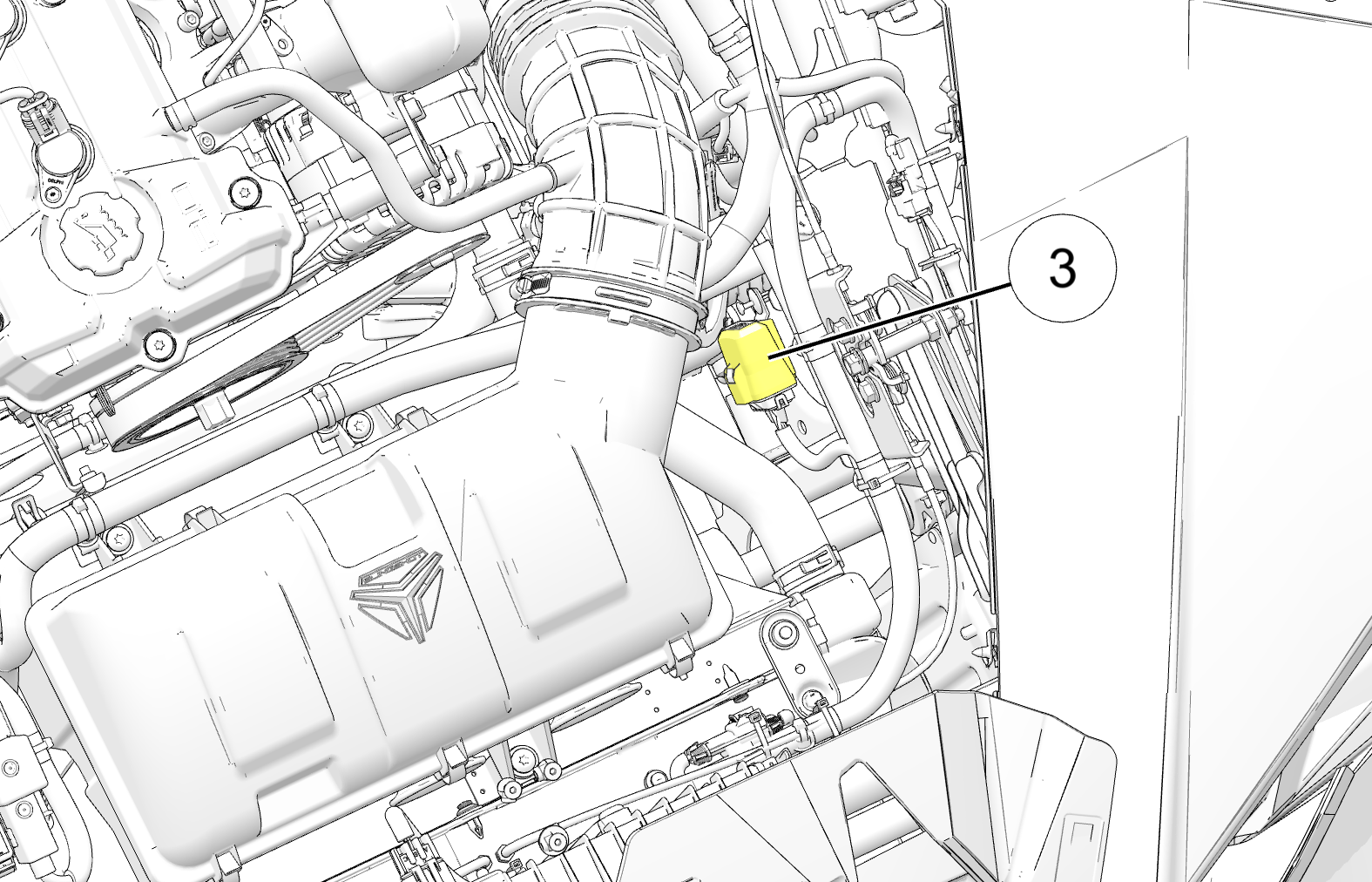

The headlight fuse box 3 is located closer to the front near the air filter.

HIGH BEAM
20A

RELAY
LOW BEAM

RELAY
HIGH BEAM

LOW BEAM
20A

  1. Open the hood.

  2. Unlatch the locking tab by pushing it away from the fuse box cover. Remove the fuse box cover.

  3. Remove the spent fuse.

    NOTICE
    Always use the recommended fuse to prevent electrical system damage. Refer to the label on the fuse box cover.

  4. Install the new fuse.

  5. Reinstall the fuse box cover.
