Fuse Replacement

If the engine stops or will not start, or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse.

Spare fuses are included in your vehicle’s toolkit.

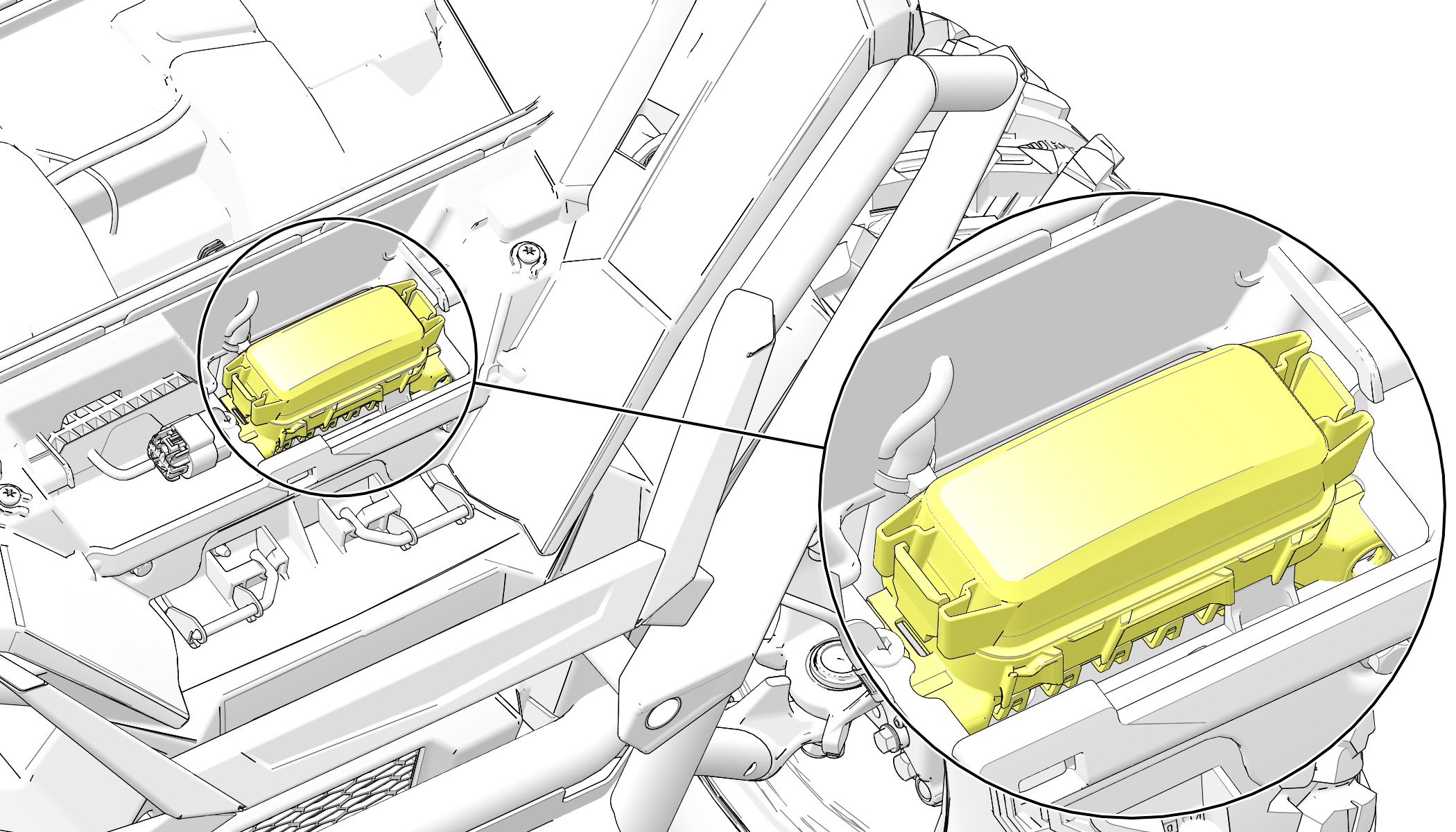

SPORTSMAN XP 1000 S MODELS

  1. Access the fuses under the front rack.

  2. Remove the fuse box cover.

  3. Remove the suspect fuse from the fuse panel. If the fuse is blown, install a new fuse with the same amperage rating.

  4. Reinstall the fuse box cover.

  5. Close and secure the front rack.

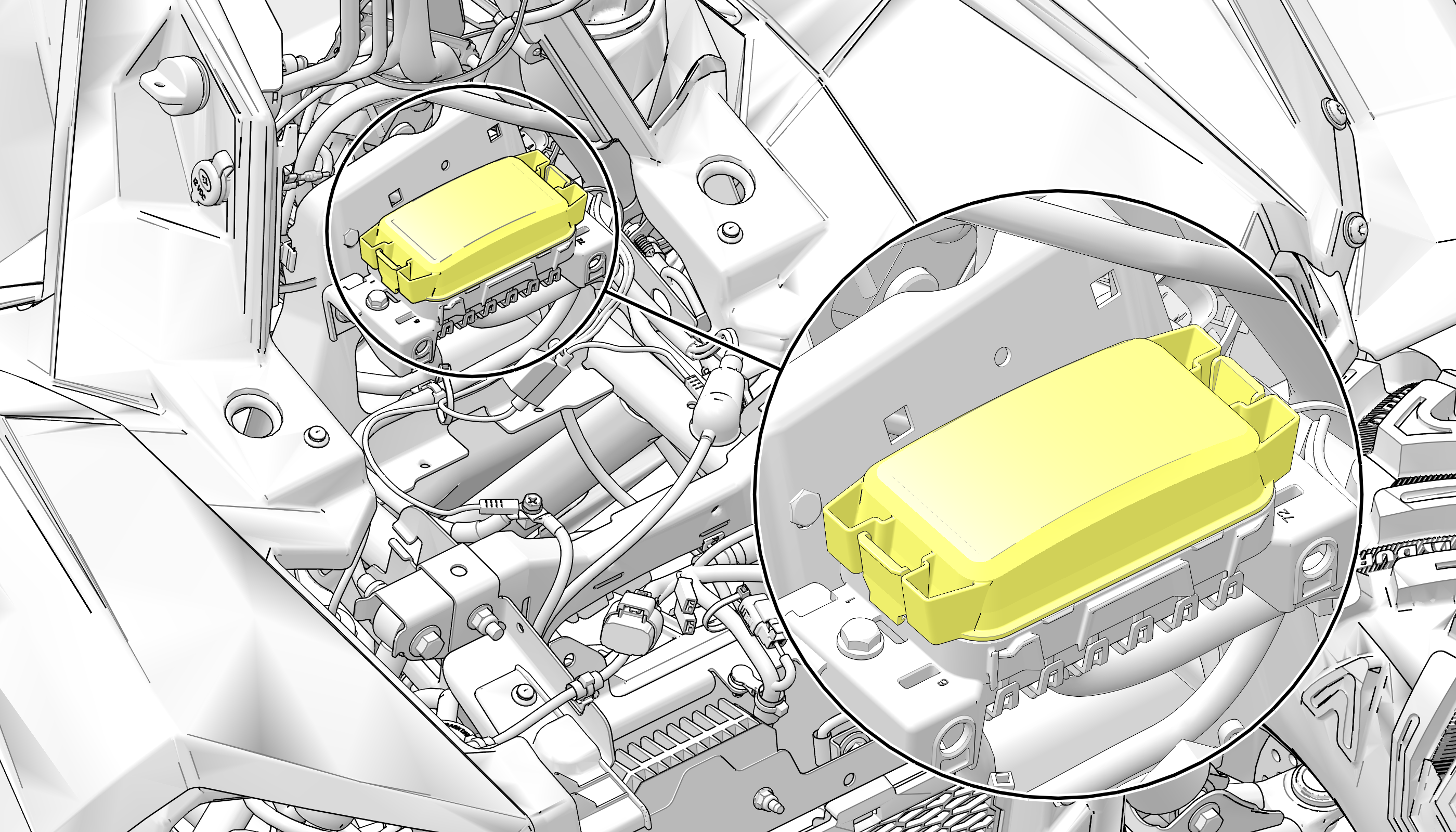

SCRAMBLER XP 1000 S MODELS

  1. Access the fuses under the front rack.

  2. Remove the fuse box cover.

  3. Remove the suspect fuse from the fuse panel. If the fuse is blown, install a new fuse with the same amperage rating.

  4. Reinstall the fuse box cover.

  5. Install and secure the front rack.
