IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Options Menu

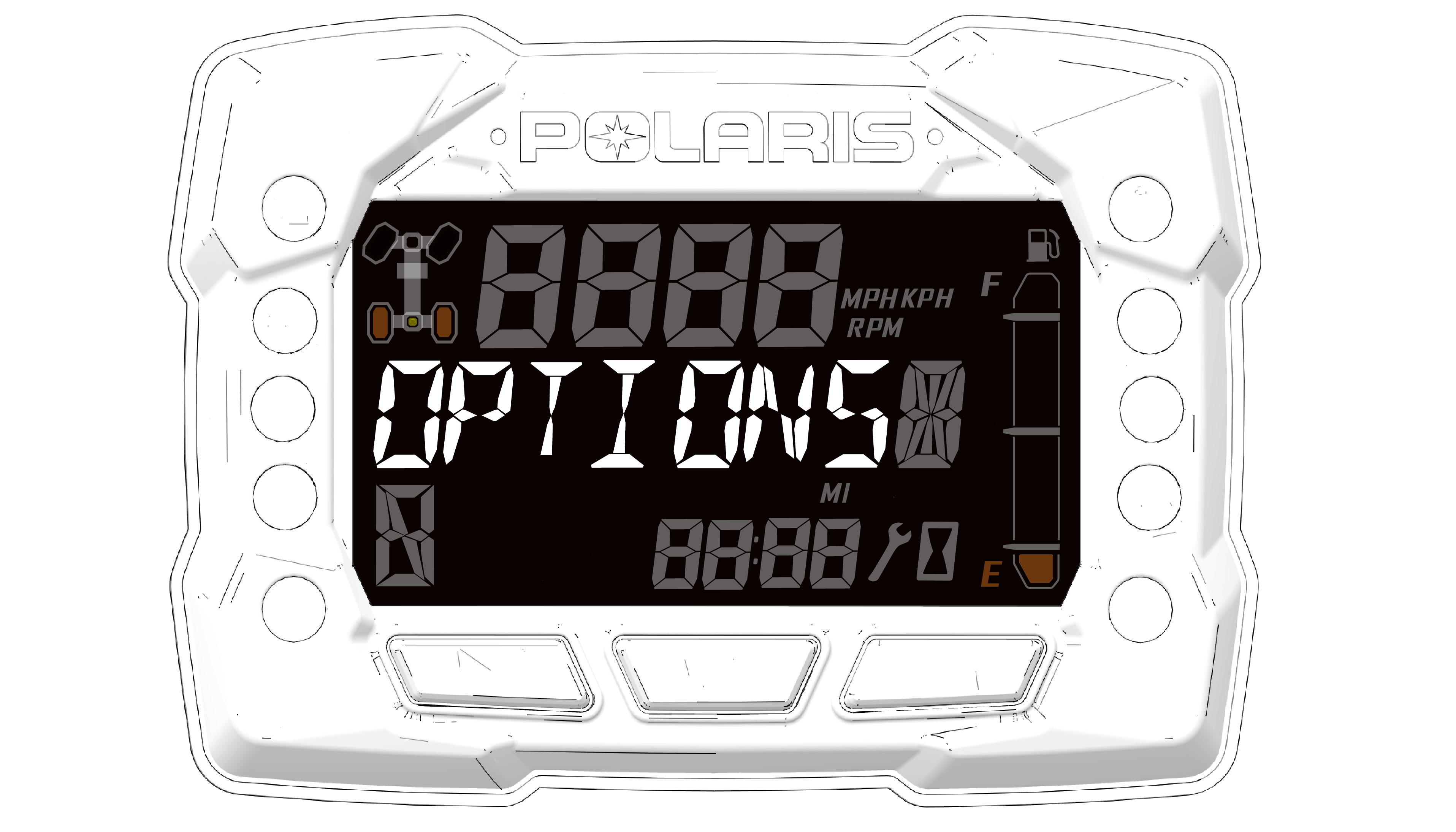

Press and hold the MODE button to enter the Options Menu.

Options Menu Notes

Diagnostic Codes

Only displays if fault codes are present or stored.

Units - Distance

Select MPH or KPH.

Units - Temp

Select between °F and °C.

Clock

Select between 12H or 24H and set time.

Backlight Level

Set backlight brightness level.

Service Hours

View / set service hours.

Speed Limiting (if equipped)

Set max speed.

PIN Activated Security System
(P.A.S.S.) (if equipped)

Enable / disable optional security PIN to lock vehicle.

Exit Menu

Exit.

In this section:

  1. Unit Selection Distance
  2. Unit Selection Temperature
  3. Clock
  4. Back Light Level
  5. Service Hours
  6. Adjustable Speed Limiting
  7. PIN Activated Security System (P.A.S.S.) (if equipped) — Instrument Cluster
  8. Diagnostic Code
Parent topic: Instrument Cluster
