Fluid Change

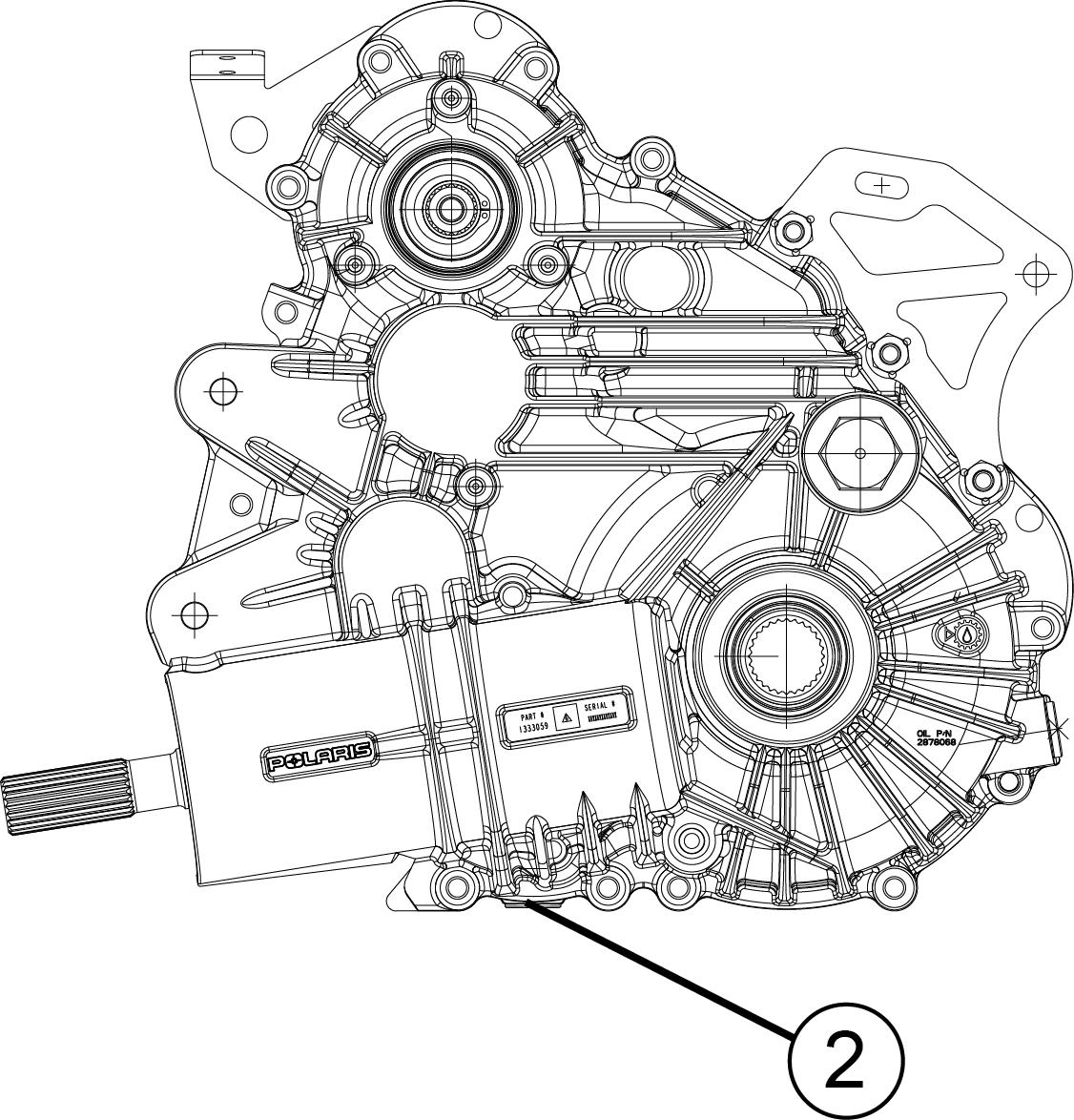

The drain plug is located on the bottom of the gearcase. Access the drain plug through the hole in the skid plate. Torque specification can be found in the Gearcase Specification Chart.
-
Remove the fill plug.
-
Place a drain pan under the drain plug 2.
-
Remove the drain plug. Allow the fluid to drain completely.
-
Clean and reinstall the drain plug. Torque to specification.
-
Add the recommended fluid to the bottom of the fill plug hole. Do not overfill. Torque specification can be found in the Gearcase Specification Chart.
-
Reinstall the fill plug. Torque to specification.
-
Check for leaks. Discard used fluid properly.
