Front Rack / Storage Compartment

Your model is equipped with a front storage compartment. Unlock the front rack latches 1 and open the front rack.

Rotate the two quarter-turn fasteners and then tip the rear of the storage compartment upward and pull it toward the rear of the machine to disengage the tabs holding it in place.

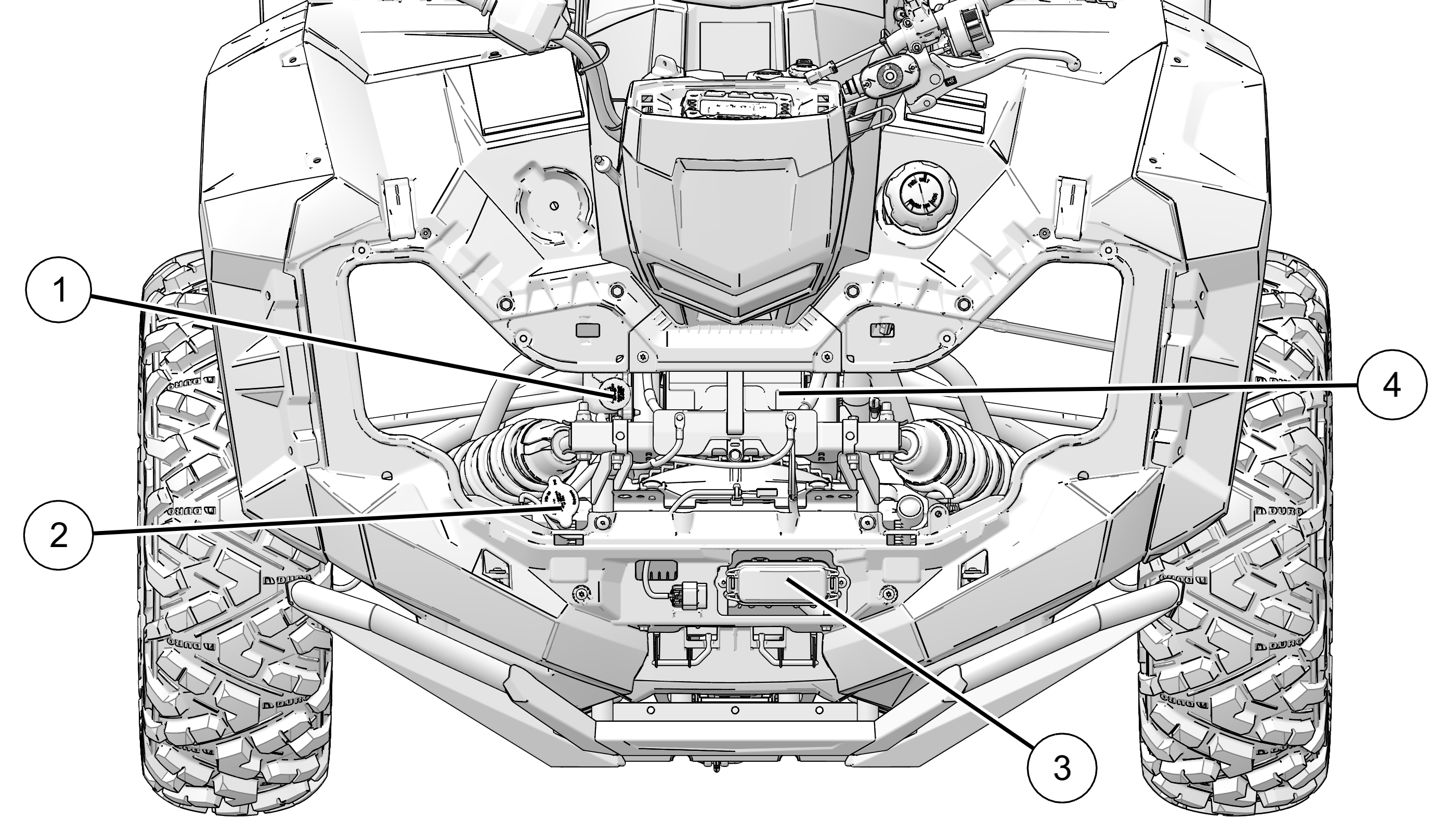

The following components will then be visible.

  • 1 Coolant Bottle Cap

  • 2 Radiator Cap

  • 3 Electrical / Fuse / Relay

  • 4 Battery
