Front Rack / Compartment

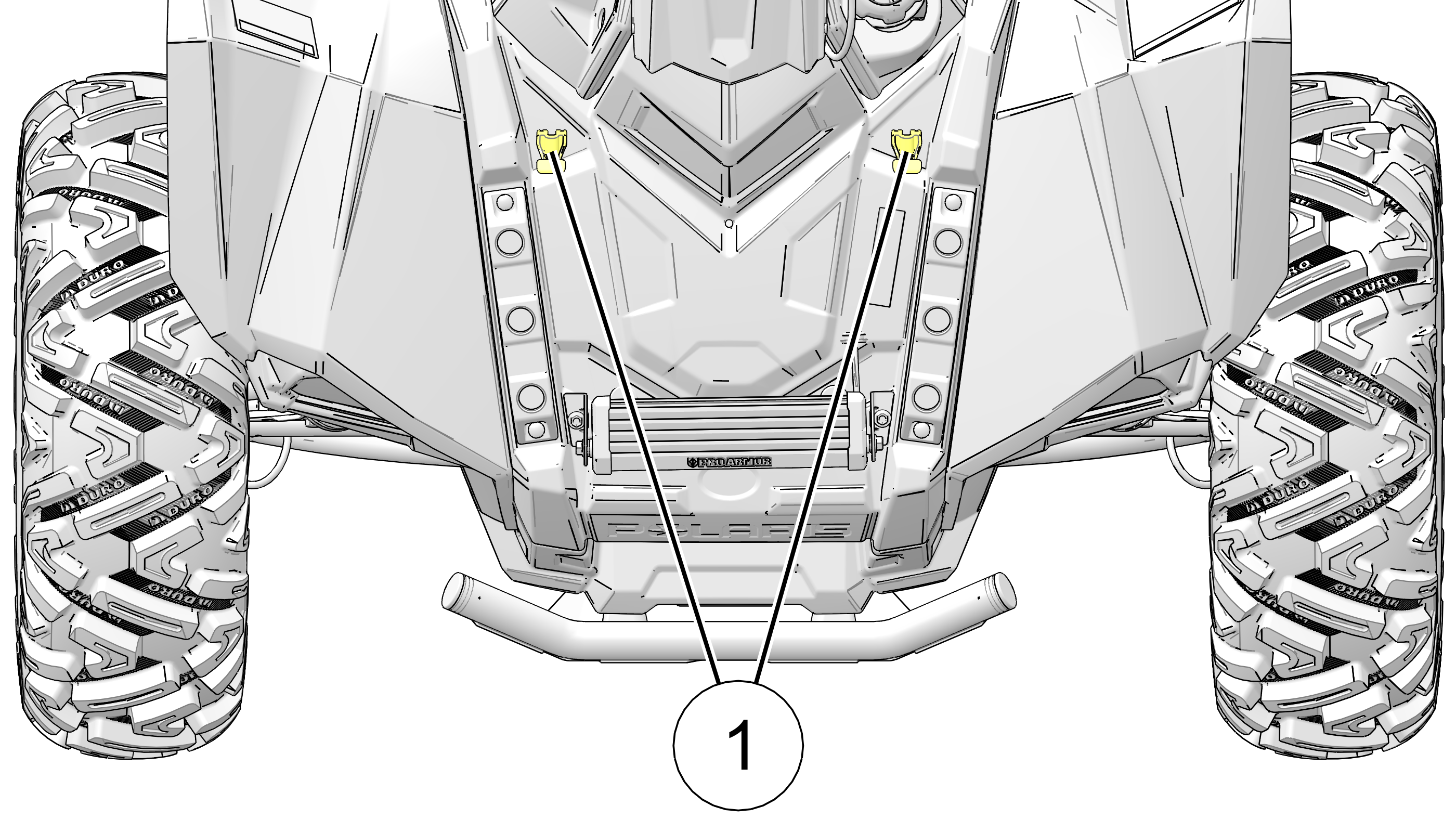

Unlock the latches 1 on each side of the front rack and remove it to gain access to the front compartment. To install the front rack, position the front edge in the tabs, then push the rack downward and secure the latches.

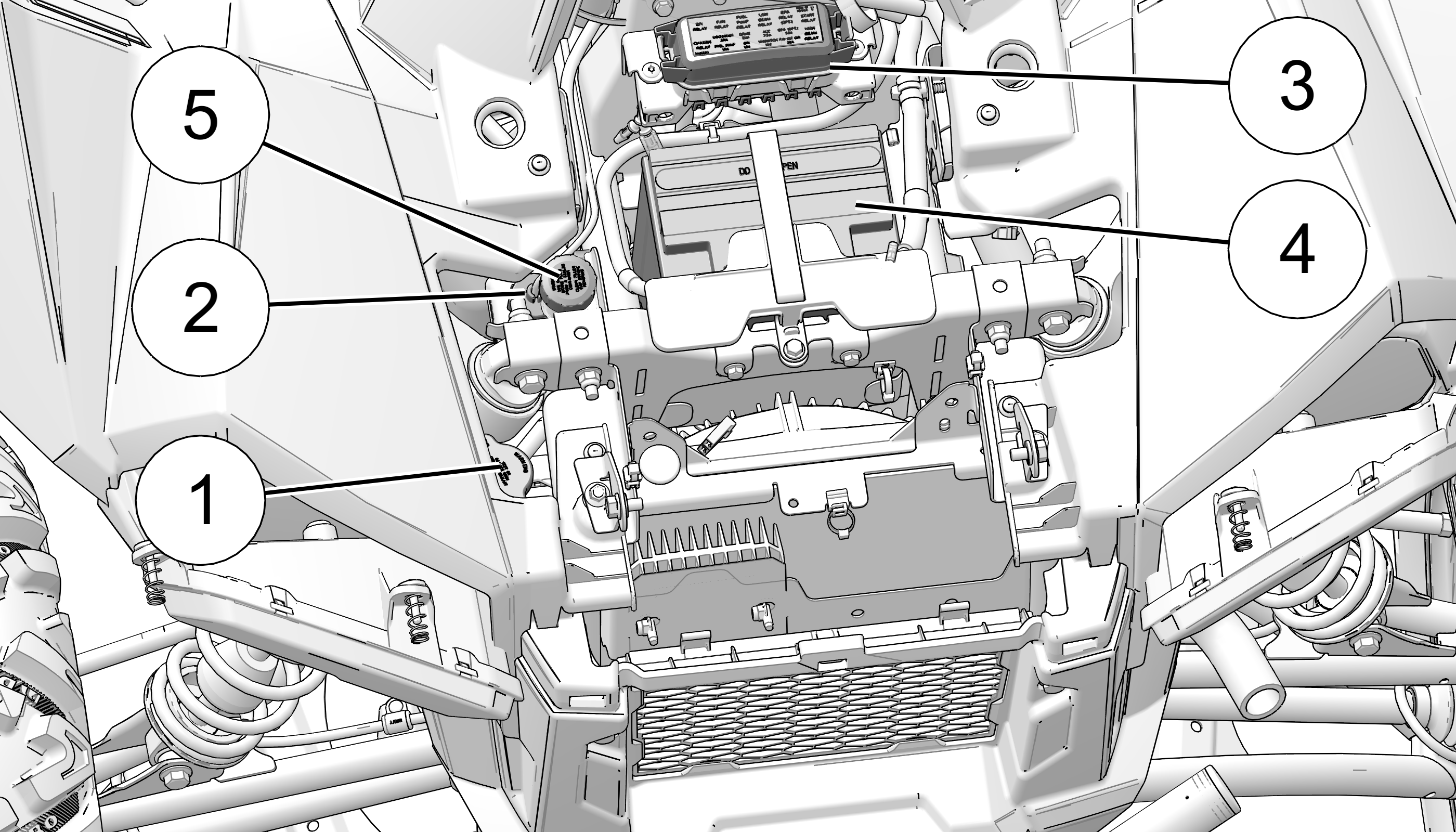

  • 1 Radiator Cap

  • 2 Coolant Bottle Cap

  • 3 Electrical / Fuse / Relay

  • 4 Battery

  • 5 Brake Fluid Reservoir
