2027 POLARIS XPEDITION XP/XP5

To safely operate this vehicle, it is important to become familiar with its features, controls, and characteristics. Review the Safety Briefings for this vehicle that apply to you:

• Operators

• Riders

• Owners

• Trailering the Vehicle

• Maintaining the Vehicle

Additionally, read the product safety labels on the vehicle and follow all rules and regulations concerning the operation of this vehicle in your area.

POLARIS recommends anyone who will be operating this vehicle to take a training course. ROHVA® (Recreational Off-Highway Vehicle Association) provides both an online safety e-course and a hands-on safety course. To access this training, visit www.rohva.org.

Other sources of safety information include the POLARIS Safety Video. The POLARIS Help Center also has additional information: https://polaris.com/en-us/self-help

Record your vehicle’s identification number 1 and engine serial number 2 in the spaces provided. Remove the spare key and store it in a safe place. The ignition switch must be replaced if all keys are lost.

Improper use, maintenance, or modification of this vehicle can lead to serious injury or death.

Require proper use of your vehicle. Do not allow anyone to operate your vehicle or ride as a passenger unless they are properly instructed and you are sure they are willing to ride responsibly. To prevent unauthorized use, always remove the ignition key when the vehicle is not in use.

Any modifications or installation of non-POLARIS-approved accessories could increase the risk of injury. While you may find aftermarket products similar in design and quality to POLARIS accessories, recognize that some aftermarket accessories or modifications are not suitable because of potential safety hazards to you or others. It is never appropriate to install any additional seating.

Check with the manufacturer to determine any potential effect of a modification or accessory on the safe use of your vehicle. You are responsible for injuries related to modifications to the vehicle. Modifications or accessories may:

• Damage machine components - especially modifications that increase speed or power.

• Make the vehicle less stable at higher speeds.

• Add weight, reducing the amount of cargo and total weight you can carry, and raise the vehicle’s center of gravity.

• Overload the vehicle’s electrical system capacity. Blowing a fuse may cause a loss of lights or engine power.

• Reduce the effectiveness of occupant protection systems, including the seatbelts and the Rollover Protective Structure (ROPS).

• Make it illegal to own or operate your vehicle. POLARIS-authorized spark arresters, mufflers, and emissions control components are mandatory for ownership or operation in many areas.

• Void your warranty.

The vehicle ROPS, when used with the seat belts and doors, provides a structure to help protect occupants. The structure will not protect occupants in all rollovers or accidents.

For more information about safety, contact an authorized dealer or visit the Polaris website at www.polaris.com.

Make sure operators are 16 or older with a valid driver’s license. Just because a teenager has a license does not mean that they will make good judgments about driving and avoid risk taking. This vehicle is not a toy and can be hazardous to operate.

POLARIS recommends that you supervise younger drivers. Set rules and put limits on how, when, and where they are allowed to use this vehicle. For example, young drivers may need to have an adult in the vehicle with them and not be allowed to drive with their friends in the vehicle.

Make sure all riders fit the vehicle. Be sure that the driver and all passengers are able to:

• sit with their backs against their seat,

• adjust the seat belt to fit properly,

• have both feet flat on the floor, and

• have both hands on the steering wheel or on a passenger hand hold.

Do not allow children who need child safety seats or booster seats to ride in the vehicle. The vehicle is not designed to restrain automotive child safety seats.

You are responsible for your passengers. Be sure passengers are seated properly, belted, holding the passenger hand hold, and ready to brace. Unrestrained riders can fall out or be thrown around and from a moving vehicle.

Every person must be properly seated and belted in their own seat. Two people should never be belted into a single seat belt. People belted together can crash into one another in a collision and be seriously injured. Never carry passengers in the cargo bed as they could be thrown against or out of the vehicle or come into contact with moving parts.

Do not let people drive or ride after using alcohol or drugs.

Before starting off, always perform the Pre-Ride Inspection. Failure to inspect and verify that the vehicle is in safe operating condition increases the risk of an accident, which can lead to serious injury or death.

Improper tire maintenance can lead to loss of control and an accident, which could result in serious injury or death. To reduce your risk of injury:

• Maintain POLARIS recommended tire pressure. Check pressure before operating. Even if your vehicle has only been driven a short distance, the tire pressure readings can become higher.

• Make sure tire pressures match the specifications listed in the table below.

• Only use the size and type of tires specified for this vehicle.

• Do not operate your vehicle with worn or damaged tires.

• Always follow your tire manufacturer’s instructions for maintenance.

Wear an approved helmet. Riding in this vehicle without wearing an approved helmet increases the risk of serious injury. For example, a helmet reduces your risk of injury from head strikes with the vehicle or other objects even if there is no crash.

Approved helmets in the USA and Canada bear a U.S. Department of Transportation (DOT) label. Approved helmets in Europe, Asia, and Oceania bear the ECE 22.05 label. The ECE mark consists of a circle surrounding the letter E, followed by the distinguishing number of the country which has granted approval. The approval number and serial number will also be displayed on the label.

Use shatterproof goggles or a shatterproof helmet face shield. Such protective eyewear may reduce the risk of foreign material getting in your eyes and help prevent loss of vision.

POLARIS recommends wearing approved Personal Protective Equipment (PPE) that have markings indicating they are designed to standards such as:

• VESC 8

• V-8

• Z87.1

• CE

Additional protective clothing and gear that may be appropriate for your riding conditions includes:

• Always wear shoes when operating. Consider wearing sturdy over-the-ankle boots suitable for the terrain you will be riding in.

• Full-finger gloves can protect against wind, sun, cold, and objects. Choose gloves that fit snugly and allow fingers to move freely and grip on the steering wheel or hand holds.

• Consider long sleeves and long pants to help protect arms and legs.

• Long-term exposure to wind and engine noise can cause permanent hearing loss. Properly worn hearing protective devices such as earplugs can help prevent hearing loss. Check local laws or the rules of the riding area you are in before wearing hearing protection to make sure its use is permitted.

Always stay completely inside the vehicle and hold the steering wheel or hand holds. Body parts outside of the vehicle can be struck by passing objects or crushed during a rollover. Do not put any part of your body outside of the vehicle for any reason. Do not hold onto the ROPS frame or put any part of your body on the door.

When transporting vehicle in non-enclosed trailer, vehicle must FACE FORWARD. Windshield and all windows, doors, and rear liftgate must be FULLY CLOSED and LATCHED. Failure to comply may allow airflow, vibration, or other factors to separate the windshield, doors, or rear liftgate from vehicle and cause an accident, resulting in serious injury or death.

Be sure riders pay attention and plan ahead. If you think or feel the vehicle may tip or roll, reduce your risk of injury:

• Keep a firm grip on the steering wheel or hand holds and brace yourself.

• Do not put any part of your body outside of the vehicle for any reason.

This vehicle is not designed to carry unrestrained pets. An unrestrained pet can be thrown about and injure riders, even during normal operation. When transporting pets, use a pet crate suitable for off-road use that is secured to the vehicle.

This vehicle is designed to use a POLARIS-approved Portable Fuel Container and Mount. Fuels such as gasoline can be extremely flammable. Rollovers, crashes, rough riding, or changes in elevation or temperature may lead to fuel spilling or vapor release from portable containers. Hot vehicle parts can cause fires, even after the engine has been turned off.

Improperly carrying fuel can lead to serious burn injuries or death. To reduce these risks, only carry fuel using a POLARIS-approved Portable Fuel Container and Mount, and follow the instructions that come with the container and mount.

Never exceed vehicle weight capacities. The vehicle’s maximum weight capacity (including riders, cargo, and accessories) is 1000 lb. (454 kg) (two passenger) / 1100 lb. (499 kg) (five passenger) total. The cargo box can support up to 600 bs. (272 kg) of that total. When more rider weight is added, cargo weight may need to be eliminated to stay under the 1030 lb. (467 kg) (two passenger) / 1160 lb. (526 kg) (5 passenger) limit. Overloading the vehicle or carrying cargo improperly will cause changes in stability and handling, which could cause loss of control or an accident.

Secure cargo in the cargo box as far forward, centered and as low as possible. When cargo cannot be positioned and secured in this way, operate with extra caution. Unsecured cargo can strike and injure riders, affect vehicle handling, and result in loss of control.

Cargo on the roof will raise the center of gravity.The weight of cargo changes vehicle braking, handling, and stability. To avoid loss of control, turn gradualy, operate at slower speeds, and avoid rougher or steeper terrain.

The weight of riders and cargo changes vehicle braking, handling, and stability. To avoid loss of control, turn gradually, operate at slower speeds, and avoid rougher or steeper terrain.

Drive Responsibly. This vehicle has higher ground clearance and other features to handle rugged terrain. It can be overturned in situations where some other vehicles may not. Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control, rollovers, severe injury or death. To avoid loss of control and rollovers:

• Avoid abrupt maneuvers, sideways sliding, skidding, or fishtailing, and never do donuts.

• Slow down before entering turn.

• Avoid hard acceleration when turning, even from a stop.

High speed off-road operation
Driving off-road vehicles to test the limits of your skills or abilities can be very dangerous to you, passengers, and bystanders. Basic skills for driving a car, ATV, or other off-road vehicles do not equip drivers to safely attempt high speed off-road operation. Develop your skill gradually through training, practice, and experience with the various driving modes of this vehicle and the terrain in which you are operating. Always do a low speed reconnaissance run (prerun) to become aware of anything you may encounter.

High speed off-road operation can lead to loss of control, crashes, or hard landings that can seriously injure occupants (even without rolling the vehicle or damaging it).

If you plan on using the vehicle for high speed, off-road competition, additional safety equipment may be necessary. Check the rules that apply to your competition.

Do not go over jumps — going airborne can lead to serious injury or death. Going airborne can cause loss of control, rollovers, or crashing into the ground and may damage the vehicle. Even without crashing, landings can be hard enough to cause any vehicle suspension to fully compress (e.g., bottom out). Serious injuries, including spinal injuries, can occur even if riders are properly harnessed, wearing helmets and the vehicle is not damaged and remains upright.

You may encounter slopes, "jumps", or other terrain features that could send the vehicle airborne, depending on your speed. These may be defectively designed, poorly maintained, or not suitable for this vehicle. Slow down, use extra care, and avoid going airborne. Never take this vehicle over jumps.

Watching someone else go over a jump or go airborne does not mean you can safely do so. Polaris cannot determine whether any jump you may encounter is appropriate for this vehicle. Any jump, even a small one, could be poorly maintained, designed, or not suitable for this vehicle and may cause serious injury or death.

Plan for hills, rough terrain, ruts, and other changes in traction and terrain. Proceed slowly and with extra care on unfamiliar terrain. Avoid paved surfaces. Sudden changes in terrain such as holes, depressions, banks, softer or harder ground, or other irregularities may cause loss of control or rollover. Give yourself time to react to rocks, bumps, or holes that may be hard to see. Operating in deep snow or tall grass may make it harder to see obstacles.

If you cannot go around an obstacle, such as a fallen tree or a ditch, stop the vehicle in a safe place. Get out to inspect the area thoroughly. Look from both your approach side and exit side. If you are reasonably confident you can continue safely, choose the path that will allow you to go straight over the obstacle to minimize the vehicle tipping sideways. Go only fast enough to maintain your momentum, but still give yourself plenty of time to react to changes in conditions. If there is any question about your ability to maneuver safely over the obstacle, you should turn around if the ground is flat and you have the room, or back up until you find a less difficult path.

Abrupt application of the accelerator pedal can cause the tires to lose traction, reducing control of the vehicle and increasing the possibility of an accident, especially while on sloped terrain or while crossing obstacles such as rocks or logs.

Operating on public roads (Paved or otherwise)
This manual addresses vehicles that may be equipped and certified differently. Depending on how your vehicle is equipped and certified, use on public roads may be permitted by certain jurisdictions. It is the operator’s responsibility to know and comply with all applicable laws and regulations when operating on a public road.
When operating on public roads, drive defensively, use extra caution, and consider the following hazards:

Collisions with Other Vehicles
This vehicle does not have highway safety features that other vehicles may have (air bags, stability control, etc.). If another vehicle collides with you, the likelihood of a serious injury or death may be greater. Also, you may not be able to avoid a crash or rollover if you make sudden or abrupt maneuvers such as swerving or emergency braking.

Interacting with Other Vehicles
If your vehicle is not equipped with turn signals (direction indicators), be aware that other drivers may not know where you are going. If your vehicle is not equipped with rear-view mirrors, be aware of traffic that may be approaching from behind you to overtake you.

Visibility in Rain and Snow
Weather, such as rain and snow, can reduce your visibility. Your vehicle may not come equipped with powered wipers, windshield, or other enclosure accessories.

Driving at Night
At night, forward visibility is reduced. Vehicles that are not equipped with ECE-certified headlights may not provide sufficient illumination for on-road use at night, especially at higher speeds. To find your vehicle’s headlight specifications, check the markings on the headlight. Be aware that aftermarket forward lights may be too bright for on-road vehicle traffic and using them on-road may be illegal. Weather and nighttime operation can also make it difficult for other vehicle traffic to see your off-road vehicle. Before entering a roadway after off-road operation, make sure your lights are cleaned off.

Tire Wear and Handling
On-road operation may impact handling and tire wear, particularly in rainy or snowy conditions. Refer to tire manufacturer’s instructions or limitations for on-road operation, including speed limits and premature tire wear.

Roadway Debris and Gravel
Roadway debris and gravel (especially on unpaved roads) can be kicked up by other traffic (including other ORVs) on public roads and strike occupants.

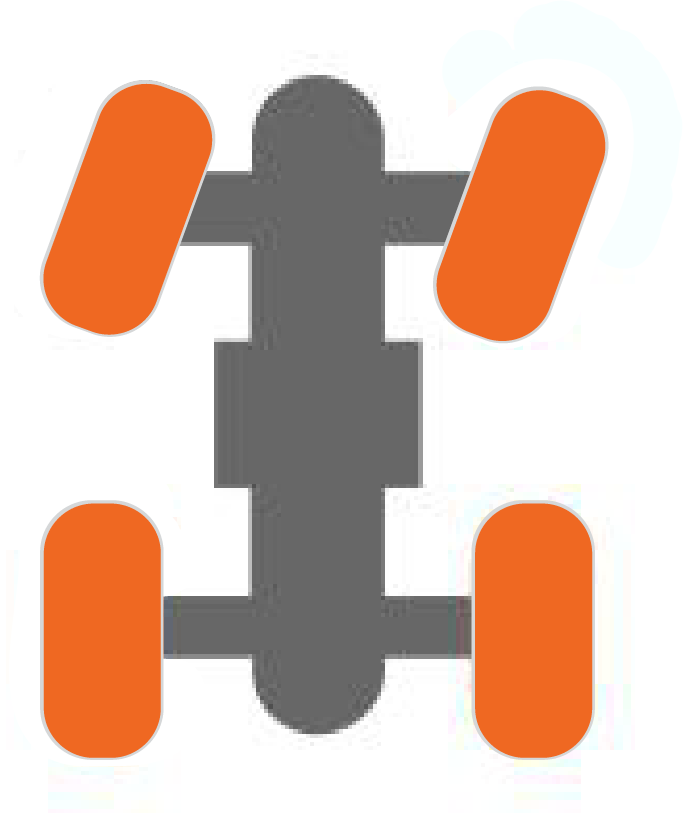

Driveline Mode

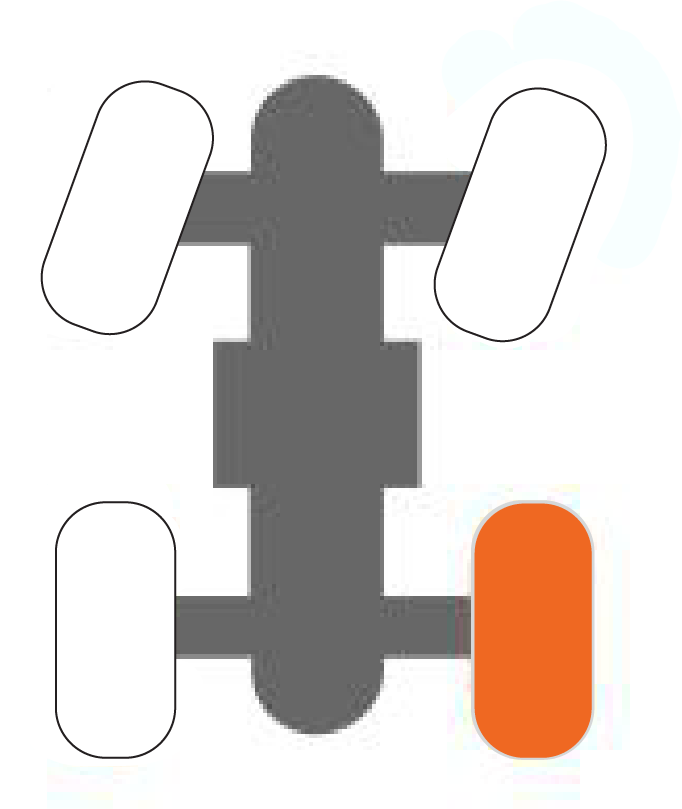

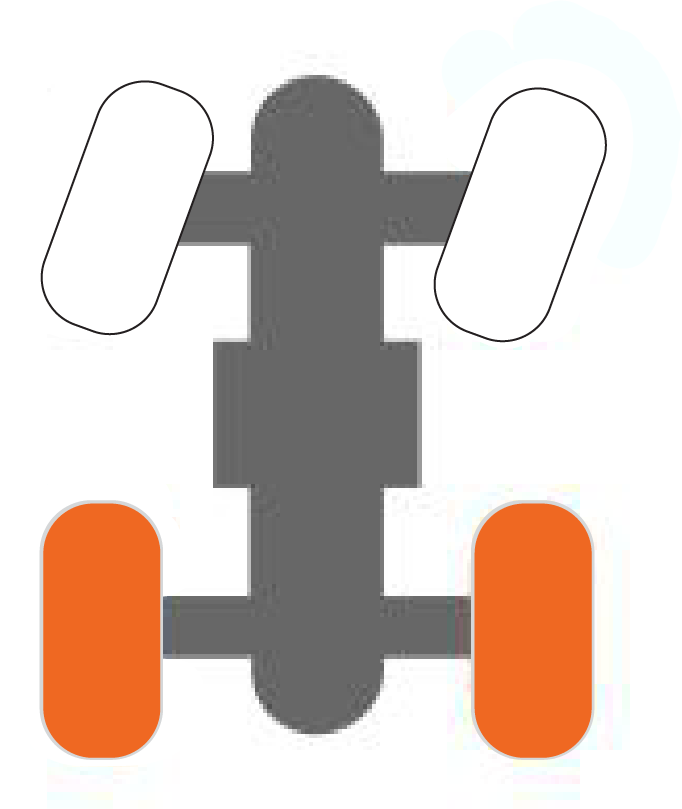

Your vehicle may be equipped with a driveline mode switch. The selection of different driveline modes may affect vehicle handling on paved surfaces. Locking differentials and AWD are intended for off-road conditions. If equipped, operate with differentials unlocked and do not use AWD mode unless additional traction is needed due to low traction conditions. Refer to the Driveline Mode Switch section for further information.

Improperly operating on hills can cause loss of control, rollover, or accident, which can lead to serious injury or death. Use extra care when operating on hills. Plan for rough terrain, ruts, and other changes in traction and terrain.

Driving up hills
Check the terrain before ascending a hill and make sure it is not too slippery or loose. Engage all-wheel drive for hills. Drive straight uphill, keeping speed and throttle steady. Avoid steep hills which can cause the vehicle to overturn.

Recovering from stalling on a hill
If the vehicle loses forward speed, apply the brakes gradually and stop. Do not attempt to turn the vehicle around. Instead, shift to reverse and allow the vehicle to slowly roll straight downhill. Apply light brake pressure to control speed.

Overtopping a hill
Slow down when you reach the crest of a hill. Never blindly go over the crest of a hill or a drop off at high speed. An obstacle, a sharp drop, or another vehicle or person could be on the other side of the hill.

Driving down hills
Check the terrain before descending a hill and make sure it is not too slippery or loose. Engage all-wheel drive and proceed slowly, applying the brakes lightly. Never descend a hill with the transmission in neutral or if the engine is turned off.

Avoid side hilling (riding across slopes)
If unavoidable, proceed slowly and with extra caution. Avoid obstacles and changes in terrain that could cause the vehicle to tip or slide. If it feels like the vehicle begins to tip or slide, immediately turn downhill.

Riding near wooded areas or brush
Use extra caution when operating near trees, particularly when operating on narrow trails. Tree branches or brush can be driven into the cab striking or stabbing occupants.

Correct a skid by turning the steering wheel in the direction of the skid.
Never apply the brakes during a skid.

If the vehicle begins to slide downhill or you feel it may tip, turn downhill immediately and stop. Maneuver slowly and carefully until you can drive straight downhill.

Do not continue driving if your vehicle may be damaged or if you were in a crash or rollover.
Operating the vehicle while damaged or after a crash or rollover can cause loss of control, rollover, or accident, which can lead to serious injury or death. If you cannot safely transport the vehicle on your own, contact a recovery and towing service.

After any crash, rollover, or other accident, have a POLARIS dealer inspect the vehicle for possible damage, including seat belts, ROPS, brakes, suspension, and steering systems.

Be prepared in case your vehicle becomes damaged or disabled, especially in remote areas. Consider in advance how to get help and stay safe until it arrives whenever you ride.

There is a recovery tow loop 1 at the front and back of the vehicle to attach a winch or strap.
Use these loops to recover this vehicle if it is stuck, to pull it onto a tow truck, trailer, or to use this vehicle to recover another vehicle. These loops are for emergency recovery only and are not for towing vehicles to another location.

Improper recovery may lead to loss of control or vehicle damage. Only attach straps to specified locations. Do not attach to any other point on the vehicle. Only recover a vehicle of equal or lesser size and weight. When recovering a disabled vehicle, place the disabled vehicle’s transmission in neutral. Do not move a disabled POLARIS XPEDITION faster than 10 mph (16 km/h).

Operating, Idling, Or Parking Near Combustible Materials
Engine, exhaust, and other vehicle components can be very hot during and after use. Do not idle or park the vehicle over anything that could contact the exhaust system and catch on fire, such as tall grass, weeds, brush, leaves, debris, or other tall ground cover. Do not let mud, grass, or other debris accumulate on the engine or exhaust system. Inspect and remove as needed.

Vehicle rollaway can cause serious injury or death. This vehicle can roll whenever the gear selector is not in the PARK (P) position. Always shift to PARK (P) when stopping the engine or leaving the vehicle. When leaving the vehicle on an incline is unavoidable, use extra care. If leaving the vehicle unattended, block the rear wheels on the downhill side and keep children, pets, and others away from the gear selector.

Before shifting into reverse, use extra care to make sure the area is clear of people or obstacles. When it’s safe to proceed, back slowly.

After operation, inspect the vehicle for damage and debris to make sure the vehicle can be safely stored and operated again. Some things to inspect include:

• Debris that could catch fire, such as mud/grass near the engine or exhaust system

• Damage to the suspension, steering, or any other part of the vehicle

• Tire condition, such as tread and sidewall damage

• Shock absorber assembly condition

Be sure to have any issues checked and problems fixed before operating again.

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion, and eventually death. Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you do not see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly, and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly ventilated areas. If you experience any symptoms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MEDICAL TREATMENT.

• Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rapidly reach dangerous levels.

• Do not run engine in poorly ventilated or partially enclosed areas such as barns, garages, or carports. If you start a vehicle in one of these, drive it out and close the door as soon as possible. If you drive it into one of these, turn it off as soon as possible.

• Do not run engine outdoors where engine exhaust can be drawn into a building through openings such as windows and doors.

• 1 Console

• 2 Auxiliary Port

• 3 Front Bumper/ Brush Guard

• 4 Shock/ Spring

• 5 Radiator

• 6 Headlight

• 7 ROPS Cab Frame

• 8 Fuel Cap

• 9 Cargo Box Dump Lever

• 10 Taillights

• 11 Cargo Box

• 12 Fresh Air Inlet

• 13 Onboard Air (Under Panel)

• 14 Door Handle

• 1 Console

• 2 Auxiliary Port

• 3 Front Bumper/ Brush Guard

• 4 Shock/ Spring

• 5 Radiator

• 6 Headlight

• 7 ROPS Cab Frame

• 8 Fuel Cap

• 9 Cargo Box Dump Lever

• 10 Taillights

• 11 Cargo Box

• 12 Fresh Air Inlet

• 13 Onboard Air (Under Panel)

Telescopic Steering Wheel

On models equipped with a telescopic steering wheel, the steering wheel can be adjusted by pressing the release lever downward.

Once released, the steering wheel can be tilted up/down and telescoped in/out freely. When desired position is found, hold the steering wheel in place with one hand and pull the release lever back up with the other. The release lever will catch into place when it is locked.

Low gear is the primary driving range for your vehicle. High gear is intended for use on hard-packed surfaces with light loads. Using high gear for heavy loads, hilly terrain or in wet, muddy conditions will increase the chance of drive belt damage.

• To shift gears, brake to a complete stop. When the engine is idling, move the lever 1 to the desired gear.

• P: Park
  R: Reverse
  N: Neutral
  L: Low Gear
  H: High Gear


Using Low Range

Always shift into low gear for any of the following conditions.

• Operating in rough terrain or over obstacles

• Loading the vehicle onto a trailer

• Towing loads

• Driving frequently at low RPM or at ground speeds below 7 MPH (11 km/h)

The vehicle is equipped with 12–volt accessory outlet in the center console storage bin. An additional outlet is located on the rear side of the center console on 5 passenger models. Use the outlets to power an auxiliary light or other optional accessories or lights.

The vehicle is equipped with a dual USB outlet in the center console. The outlet consists of two USB terminals.

The vehicle is equipped with a dedicated Auxiliary Battery Charge Port for trickle-charging the battery during periods of extended inactivity.

If you do not drive the vehicle for more than TWO WEEKS, Polaris recommends using a BatteryMINDer® 2012 AGM - 2 AMP charger (PN 2830438), which can be ordered through your dealer.
Polaris provides a charging accessory with your vehicle that allows easy connection to the battery through the Battery Trickle-Charging Outlet, located on the front of the vehicle. While charging, place the charger outside of the vehicle and protect it from moisture.

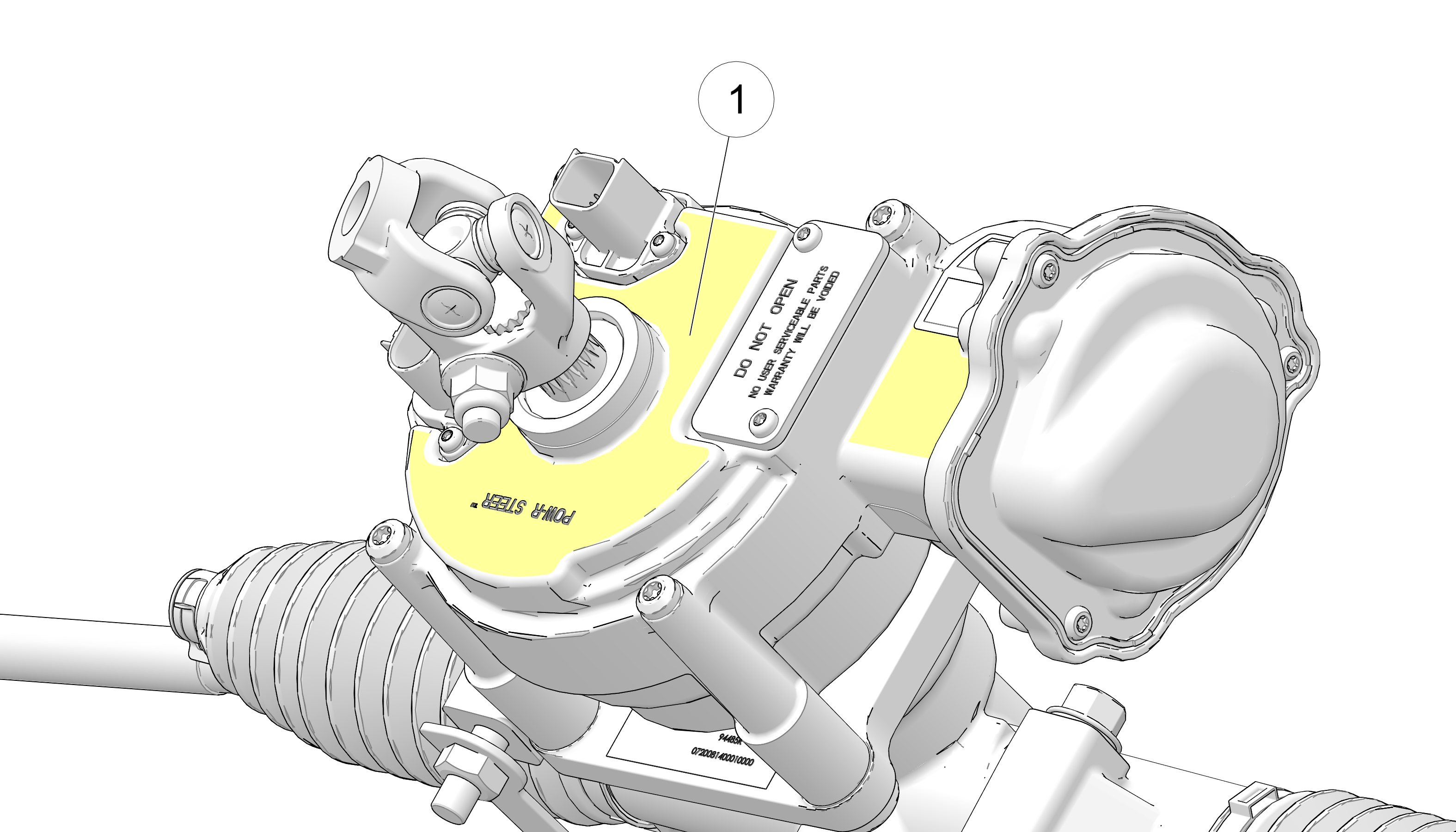

Electronic power steering (EPS) engages when the ignition key is turned to the ON position. EPS remains engaged whether the vehicle is moving or idle. To conserve battery power, the EPS will shut down 5 minutes after the engine is stopped if the key remains in the ON position. The EPS warning indicator will illuminate to indicate the EPS has shut down. Turn the key off and on to reset the unit. If the light remains on after starting the engine, the EPS system is inoperative. See your POLARIS dealer, or other qualified person, as soon as possible for repair. Continued operation could result in permanent damage to the EPS unit and increased steering effort.

On 2P models, the ROPS decal is located on the rear roof crossbar, behind the drivers seat. On 5P models, the ROPS decal is located on the rear roof crossbar, behind the drivers side passenger seat.

Always have your authorized dealer thoroughly inspect the ROPS if it ever becomes damaged in any way. No device can assure occupant protection in the event of a rollover. Always follow all safe operating practices outlined in this manual to avoid vehicle rollover.

This vehicle is equipped with a receiver hitch bracket for a trailer hitch. A hitch capacity label is located on the hitch.

To avoid injury and property damage, always heed the warnings and towing capacities outlined on Hauling Cargo.

This vehicle is equipped with cab doors. Riding in this vehicle without closed and latched cab doors increases the risk of serious injury or death in the event of an accident or rollover. Always make sure all cab doors are closed and latched when riding in this vehicle.

Always inspect doors and latches for wear and damage before each use of the vehicle. Promptly replace any worn or damaged parts with new parts available from your authorized POLARIS dealer, or other qualified person.

This vehicle is equipped with side steps 1 to help with vehicle loading of passengers and equipment. The front and the rear side steps have a maximum loading capacity of 300 lb (136 kg).

The fuel tank filler cap 1 is located on the right side of the vehicle near the passenger seat.

See Fuel Recommendation for information on fuel types, quality, and seasonality.

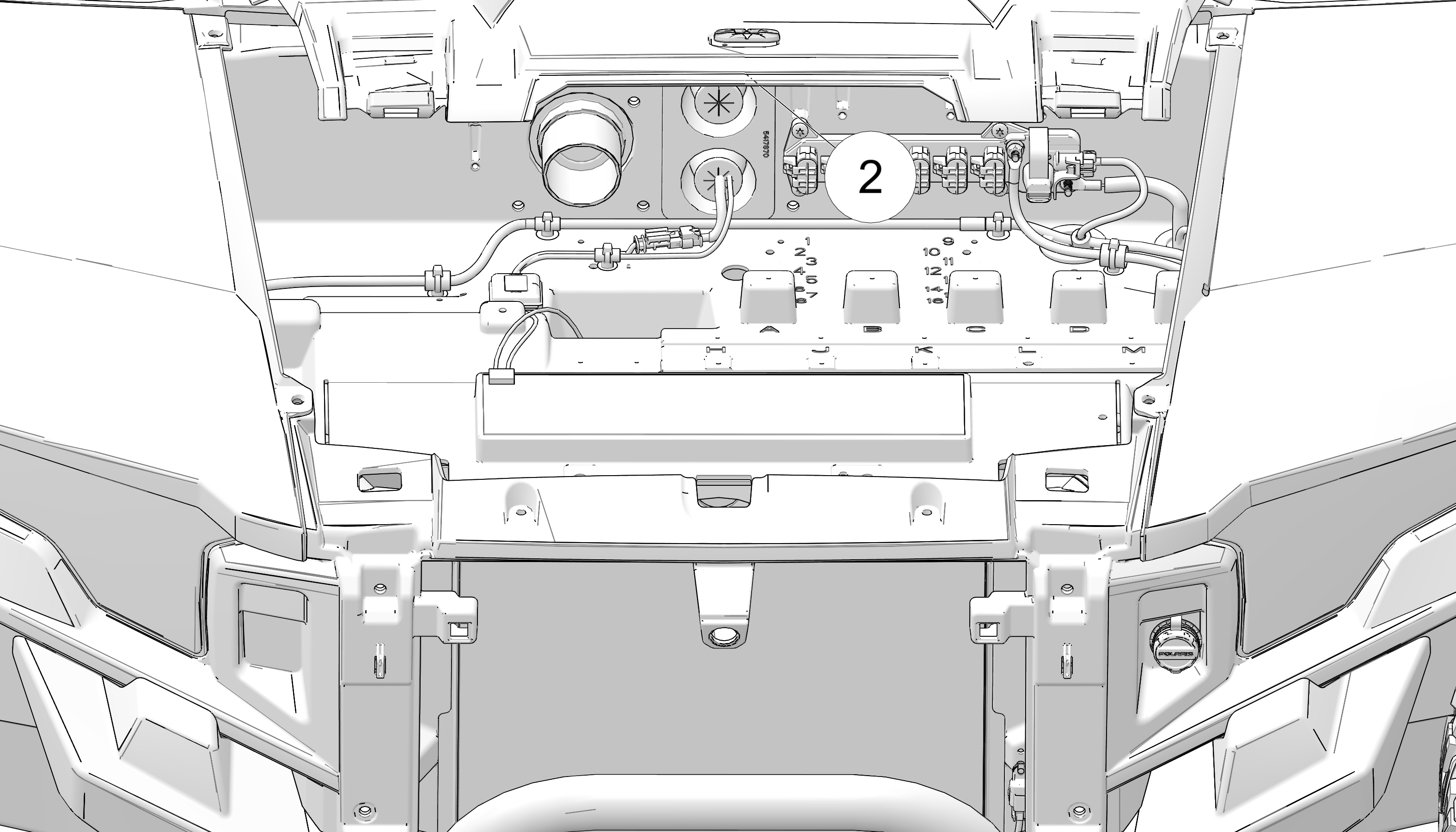

To remove the hood, do the following:

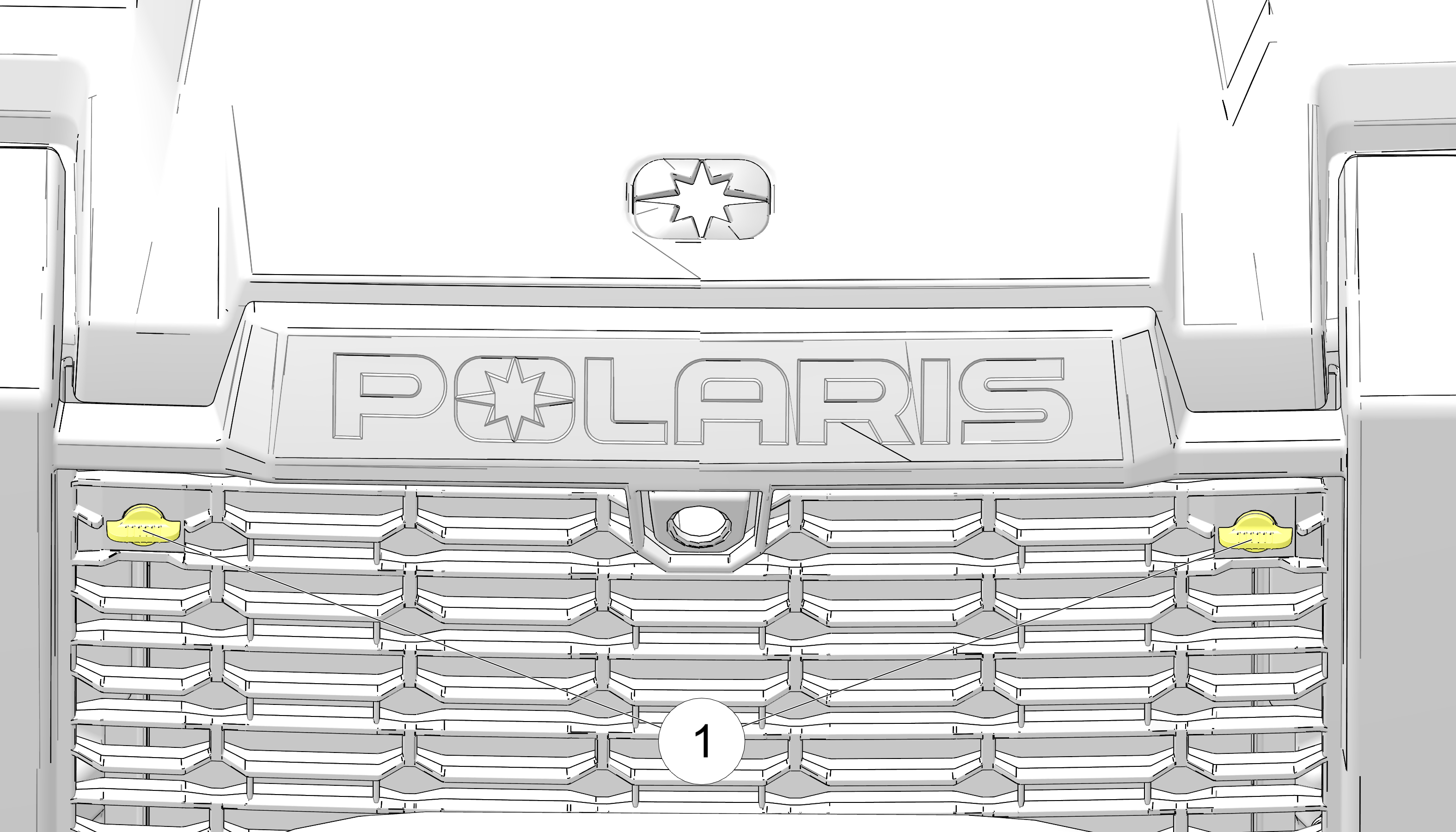

1. Turn the grille fasteners 1 1/4 turn.



2. Pull the front grille up and away from the hood. Set the grille aside

3. Release the two rubber straps securing the hood to the vehicle.

4. Grasp the front hood edge and pull upward.

5. Pivot the hood 2 forward and lift upward to disengage the lower hood hooks.



6. Lift the hood away from the vehicle.

Operating through deep or fast-flowing water can cause loss of traction, loss of control, overturning, or being swept away in water. You can be seriously injured or killed from entrapment and drowning. Never operate the vehicle in fast-flowing water or in water that exceeds the specification below. Avoid sharp drop-offs and large rocks. Choose a path that provides an entrance and exit point with gradual inclines. Wet brakes may have reduced stopping ability. After leaving water, test the brakes. Apply them lightly several times while driving slowly. The friction will help dry out the pads.

NorthStar Models - Water Fording Height - 17.8in (45.2 cm) or the top of the rocker panel.

• 1 Speedometer

• 2 Tachometer

• 3 Indicator Lamps

• 4 Mode Button

• 5 Toggle Buttons

• 6 Rider Information Center

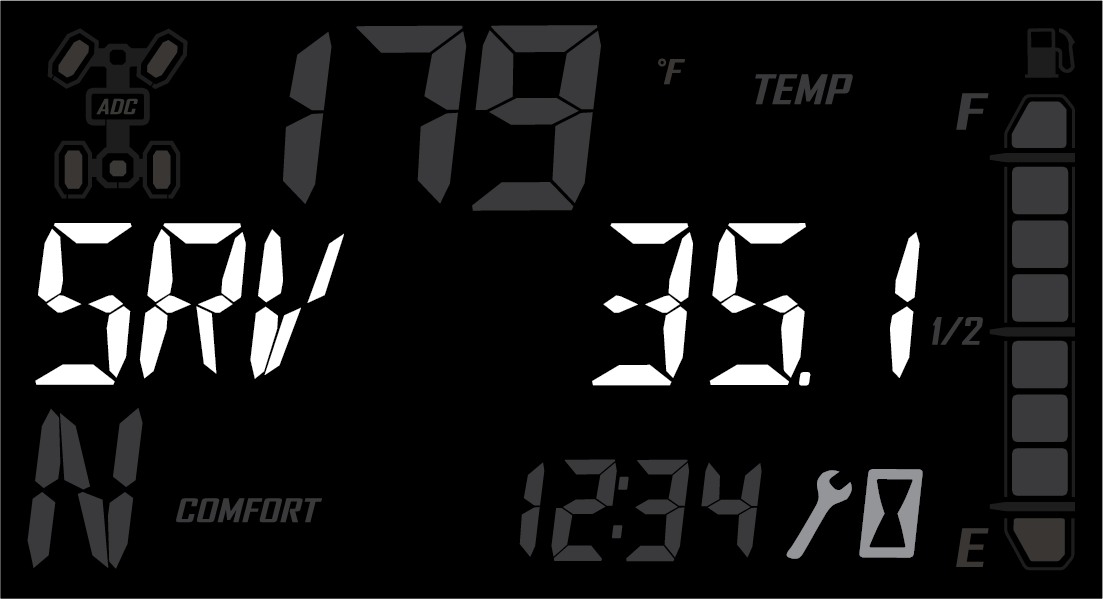

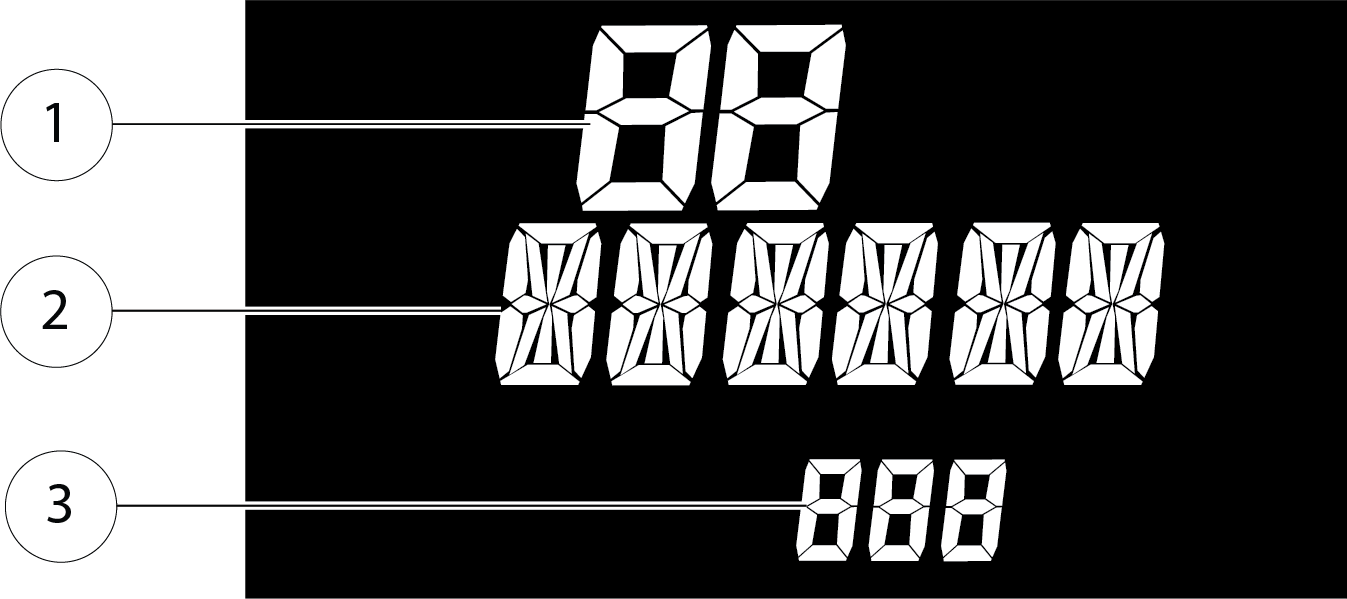

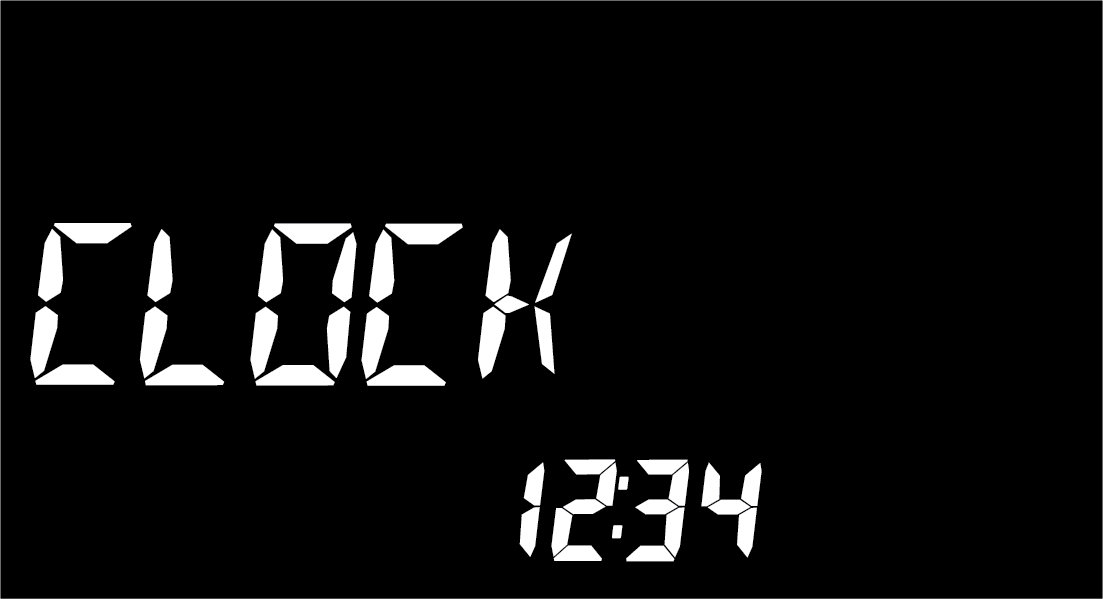

• The rider information center is located in the instrument cluster. All segments will light up for one second at start-up.

• If the instrument cluster fails to illuminate, a battery over-voltage may have occurred and the instrument cluster may have shut off to protect the electronic speedometer. If this occurs, your POLARIS dealer, or other qualified person, can provide proper diagnosis.

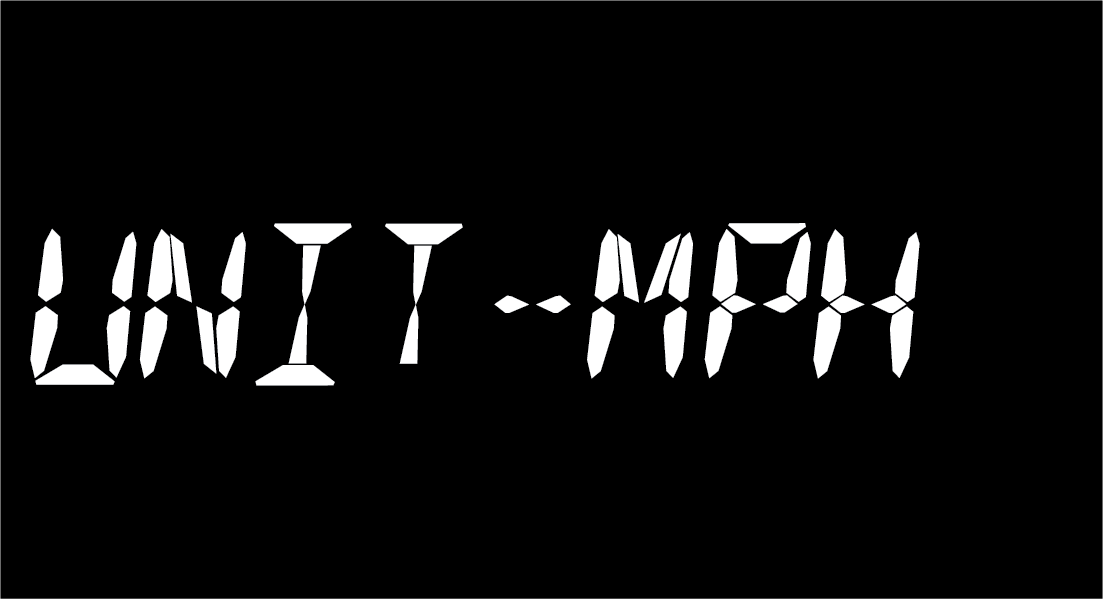

• The information center is set to display standard units of measurement and a 12-hour clock at the factory. To change to metric and/or a 24-hour clock hold the mode button and cycle to the clock menu. Use the directional arrows to change the clock settings.

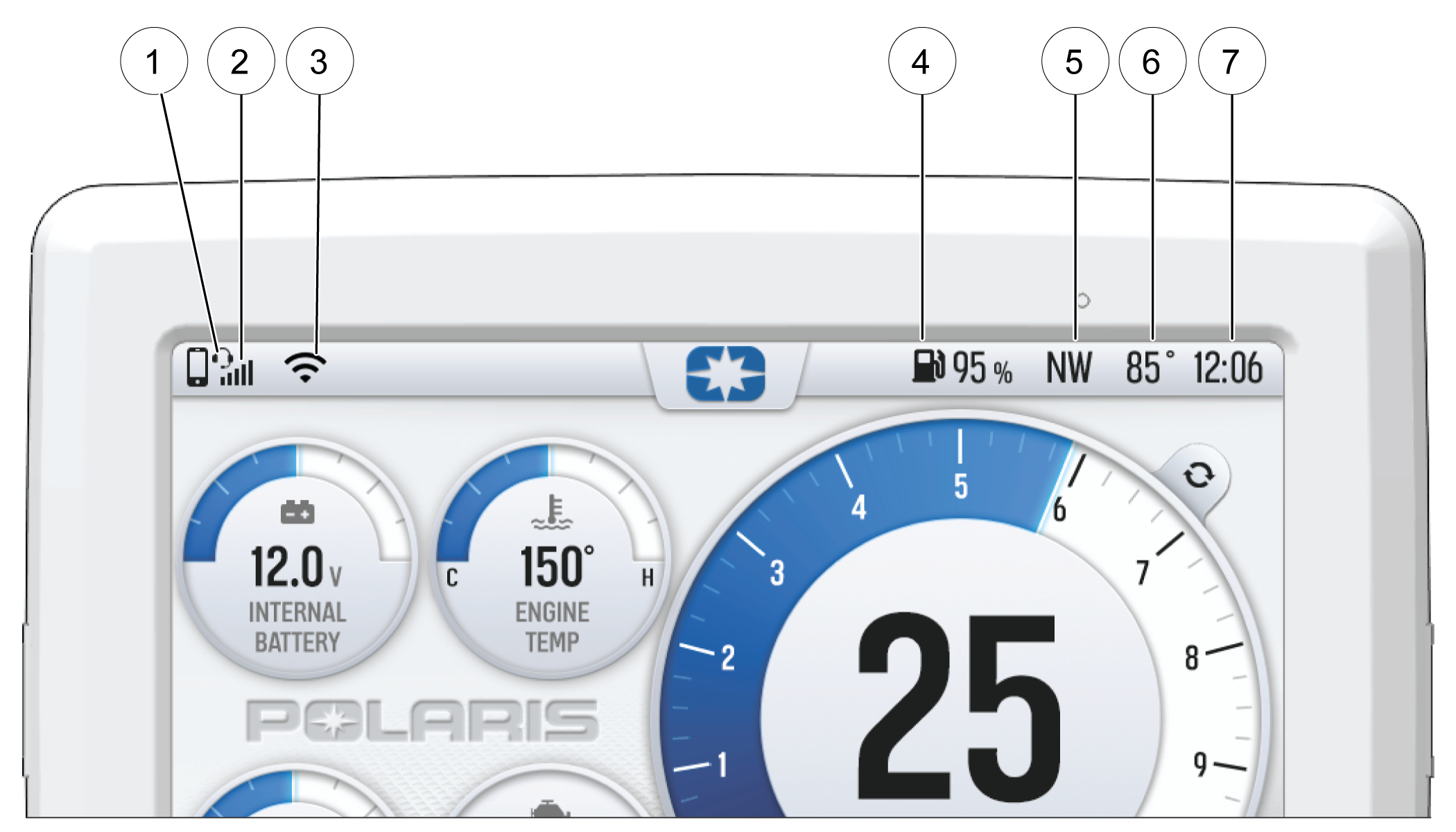

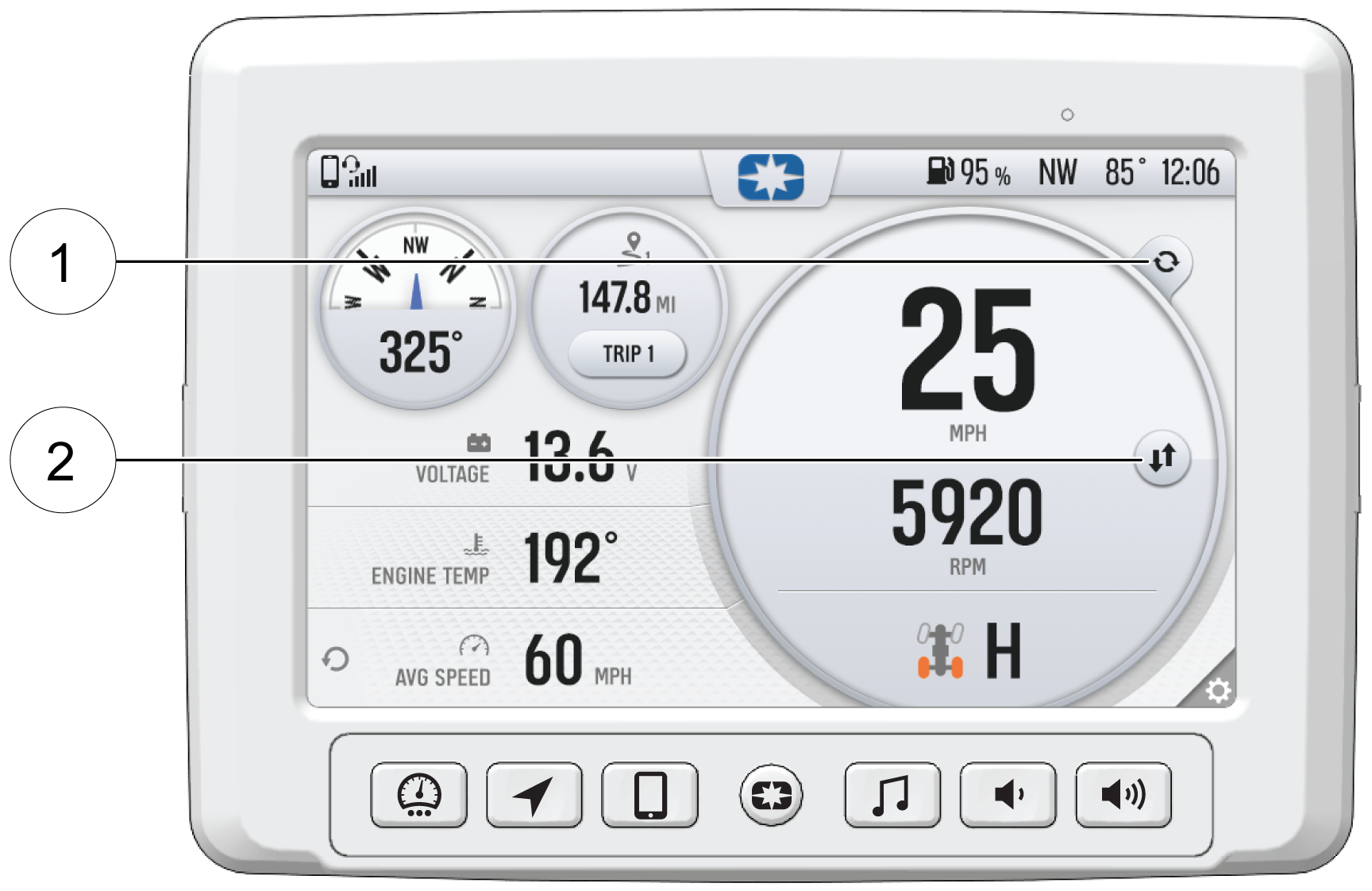

Before riding with your new display, do the following:

• Download the Polaris RIDE COMMAND App from the Apple®/Google Play® store and create your personalized account.

• Check your display to ensure you have the appropriate maps and trails visible for your area. To change or update maps/trails see Update Maps.

• Trails change often, and the trail data file is only considered valid for 90 days after the release date. Please keep your trail data up to date. Download the latest trails at http://ridecommand.polaris.com.

Phone functionality is dependent on the capabilities of your cell phone.

USA Radio Compliance

Some vehicles may contain the following radio equipment or components:

COMPONENT	COMPONENT ID	MANUFACTURER
9200 Series RC-7 Display	PN 4081663/ 4081664	Polaris Industries Inc.
V2V Antenna	PN 4019300	Amphenol
Connected Dongle	PN 4080566	Harman®

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Canada Radio Compliance

Some vehicles may contain the following radio equipment or components:

COMPONENT	COMPONENT ID	MANUFACTURER
9200 Series RC-7 Display	PN 4081663/ 4081664	Polaris Industries Inc.
JBL® AM/FM/WB Radio with Bluetooth®	PN 2415723	Harman®
V2V Antenna	PN 4019300	Amphenol
Connected Dongle	PN 4080566	Harman®

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT

For applications that use vehicle-to-vehicle (V2V) communication, radio transmitter IC 5966A-P001 has been approved by Innovation, Science and Economic Development Canada (ISED) to operate with Polaris antenna (part number 4019300) with gain of 1dBi. Any antenna that has a gain greater than 3 dBi is prohibited for use with this device.

CAUTION

This equipment complies with part 15 of the Federal Communication Commission (FCC) rules.
These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different for that to which the receiver is connected.

• Consul the dealer or an experienced radio/TV technician for help.

Change or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

European Union (EU) Radio Compliance

Some vehicles may contain the following radio equipment or components:

Component	9200 Series RC-7 Display
Component ID	PN 4081663 / 4081664
Manufacturer	Polaris Industries Inc.
*Transmitting Frequency	Wi – Fi: 2402 - 2480 MHz **V2V Transceiver: 909 – 928 MHz
Max RF Transmitting PWR	+20 dBm
*Other transmitting radio frequencies may exist outside of EU markets.
**Where applicable

Component	Connected Dongle
Component ID	PN 4080566
Manufacturer	Harman®
*Transmitting Frequency	**LTE: 704 – 2562 MHz Wi-Fi: 2412 – 2462 MHz
Max RF Transmitting PWR	+20 dBm
*Other transmitting radio frequencies may exist outside of EU markets.
**Where applicable

Hereby, Polaris Industries Inc. declares that the above radio equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.polaris.com/en-us/radio-conformity/

• 1 Ride Command Buttons

• 2 Driveline Mode

• 3 Widgets

• 4 Settings

• 5 Icon Bar

• 6 Gauge View Mode

• 7 Speedometer/Tachometer

• 8 Gear Status

The optional PIN Activated Security System (P.A.S.S.) is to prevent unauthorized use. When enabled, the vehicle cannot be operated until a valid passcode has been entered using the Ride Command display screen.

Enable P.A.S.S.

NOTICE

After activating P.A.S.S. for the first time you must power down the vehicle and allow the electronic control module (ECM) to fully shutdown before restarting. This may take up to three minutes.

1. Go the settings menu by pressing the Menu button.

2. Select Vehicle Settings from the left toolbar.

3. Select Engine Start Lockout.

4. If this your first time activating P.A.S.S. you will be prompted to enter a new passcode. Enter and verify new passcode.

   Please record your passcode.

5. Turn Engine Start Lockout from No to Yes.

6. Turn off the vehicle using the key ignition switch.

NOTICE

If the battery becomes low while the P.A.S.S. system is enabled, the gauge may show “New Vehicle Detected” after the battery has been recharged/replaced.Leave the key in the ON position to allow system reconfirmation.

Disable P.A.S.S.

1. Go the settings menu by pressing the Menu button.

2. Select Vehicle Settings from the left toolbar.

3. Select Engine Start Lockout.

4. Enter passcode to disable P.A.S.S.

5. Turn Engine Start Lockout from Yes to No.

Press the Gauge Screen button to toggle between gauge screens. The display comes loaded with two different gauge screens. Additional gauge screens can be added or deleted.

Each gauge screen is customizable and can be set up in the following configurations:

• Four round widgets

• Two round widgets and a list of three data values

• A list of five data values

To customize your gauge screens, press the gear icon located in the lower right corner of the display.

From the Setting menu you can view vehicle information, manage Bluetooth® devices, update display software, and more.

To access the Setting menu, press the Menu button 1 or the POLARIS logo at the top of the display screen 2.

This will open the Badge Panel. From the Badge Panel, press the All Settings button located in the lower right corner of the display screen.

Press 1 to toggle between the two available gauge view modes, Analog and Digital.

While in the digital gauge view mode, press 2 to invert the MPH and RPM units.

From the Control tab, select the display mode from the available options.

The display mode can be set to Day, Night, or AUTO mode.

Day Mode

Night Mode

To update the software, do the following:

Download Software onto your Personal Computer

1. Go to ridecommand.polaris.com/display . Select the display that matches what is on your vehicle.

2. Click the Update Software button.

3. Save the file to a removable USB drive. It is recommended you use a USB drive with 32GB in exFAT® format.

Upload Software on your Vehicle

1. Plug the USB drive into your vehicle’s USB cable and turn on the display. Note: ensure the USB is fully inserted into the port.

2. Turn on your vehicle.

3. On the display, press the Polaris icon button.

4. In the right-hand corner, select All Settings.

5. Select General.

6. Select System Information.

7. Select the file you want to install. "Newest" will be automaticallydisplayed next to the newest version detected on the USB drive.

8. The display will reboot and install the software.

Error Messages and Troubleshooting

If an error occurs while updating your software, perform one or all of the following actions to resolve the issue:

• Remove and reconnect the USB flash drive securely.

• Make sure the display files are not inside a folder on the flash drive.

• Make sure only display files are on the flash drive. Remove any other files if necessary.

• Try using a different USB flash drive.

• Ensure the capacity of data on the USB drive is larger than 1GB and smaller than 64GB.

• Re-format the flash drive to the correct format (FAT32 or exFAT®). Re-download the update(s) from the RIDE COMMAND website. Drag and drop the file(s) into the flash drive folder.

To update the maps on your display, do the following:

1. Go to ridecommand.polaris.com/display and download the map update to a USB flash drive.

2. Insert USB flash drive into the USB port on your vehicle.

3. Press the Update maps in the General Settings.

4. Select the file you want to install by pressing the corresponding down arrow icon.

5. This will update the display’s map which will automatically restart the display once the update is complete. Do not remove the USB flash drive until the display has fully restarted.

Software Updates

For software update, POLARIS recommends using a SanDisk® or similar USB flash drive with a minimum of 4GB in available memory, formatted using the FAT32 or exFAT® file systems. For best results remove all files from the flash drive before starting the update process.

Map Updates

For Map updates, a 32GB USB drive is required (USB 3.0 drive is highly recommended) USB drive must be formatted to exFAT® before copying the map file onto it.

Trail Updates

For Trail updates, a 4GB drive formatted to FAT32 can be used.

Your vehicle may come equipped with RIDE COMMAND+ technology, which gives you access to your vehicle’s custom information including Vehicle Health, Vehicle Locator and Issue Diagnostics along with a variety of features via the Polaris mobile app. You will need a cellular connection to view these features.

To learn more about RIDE COMMAND+, including equipped or compatible vehicles, specific features, and to access the RIDE COMMAND+ User Guide, visit ridecommand.polaris.com/ridecommand+ or scan the QR code below:

Disclaimer: RIDE COMMAND+ only available in North America.

Do not modify the engine, intake or exhaust components, as doing so may affect compliance with U.S.A. EPA noise control requirements (40 CFR 205) and local noise level requirements.

Your vehicle has a spark arrester that was tested and qualified to be in accordance with the USFS standard 5100-1D. Federal law requires that this spark arrester be installed and functional when the vehicle is operated on public lands.

Operation of off-road vehicles on public lands in the U.S.A. is regulated by 43 CFR 420. Violations are subject to monetary penalties. Federal regulations can be viewed online at https://ecfr.federalregister.gov/current/title-43/subtitle-B/chapter-I/part-420.

This engine is equipped with a closed crankcase system. Blow-by gases are forced back to the combustion chamber by the intake system. All exhaust gases exit through the exhaust system.

Exhaust emissions are controlled by engine design. An electronic fuel injection (EFI) system controls fuel delivery. The engine and EFI components are set at the factory for optimal performance and are not adjustable.

The emissions label is located on the inside of the lower left frame tube (below driver’s foot area).

This spark ignition system complies with Canadian ICES-002.

This vehicle complies with the EMC requirements of UN ECE Regulation 10.

Non-ionizing Radiation: This vehicle emits some electromagnetic energy. People with active or non-active implantable medical devices (such as heart monitoring or controlling devices) should review the limitations of their device and the applicable electromagnetic standards and directives that apply to this vehicle.

Any qualified repair shop or person may maintain, replace or repair the emission control devices or systems on your vehicle. An authorized POLARIS dealer can perform any service that may be necessary for your vehicle. POLARIS also recommends POLARIS parts for emissions-related service, however equivalent parts can be used.

It is a potential violation of the US / EU law if a part supplied by an aftermarket parts manufacturer reduces the effectiveness of the vehicle’s emission controls. Tampering with emission controls is prohibited by law.

Owners are responsible for performing the scheduled maintenance identified in this owner’s manual. Careful periodic maintenance will help keep your vehicle in safe, reliable condition. Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the need for replacement parts, genuine POLARIS parts are available from your POLARIS dealer. Equivalent parts may be used for emissions-related service.

Record maintenance and service in the Maintenance Log beginning on Maintenance Log. Service and adjustments are important for proper vehicle operation. If you're not familiar with safe service and adjustment procedures, a qualified dealer can perform these operations. Maintenance intervals in the following chart are based upon average riding conditions and an average vehicle speed of approximately 10 miles per hour. Vehicles subjected to severe use must be inspected and serviced more frequently.

The intervals shown are based on vehicles operated under normal conditions.

Each interval is given in hours and miles (kilometers). Items should be serviced at whichever interval comes first following the Initial Break-In Service.

Continue to reference the following maintenance schedules at the given intervals as hours and miles (kilometers) increase on the vehicle.

Vehicles subjected to severe use must be serviced at 50% of the stated interval. Examples of Severe Use: Frequent immersion in mud, water, or sand, constant high RPM use, prolonged low-speed heavy load operation, extended idle, and short trip cold weather operation.

Initial Break-In Service First 25 Hours / 500 Miles (800 km) / 1 Month
Engine Oil and Filter	Change the engine oil and filter.

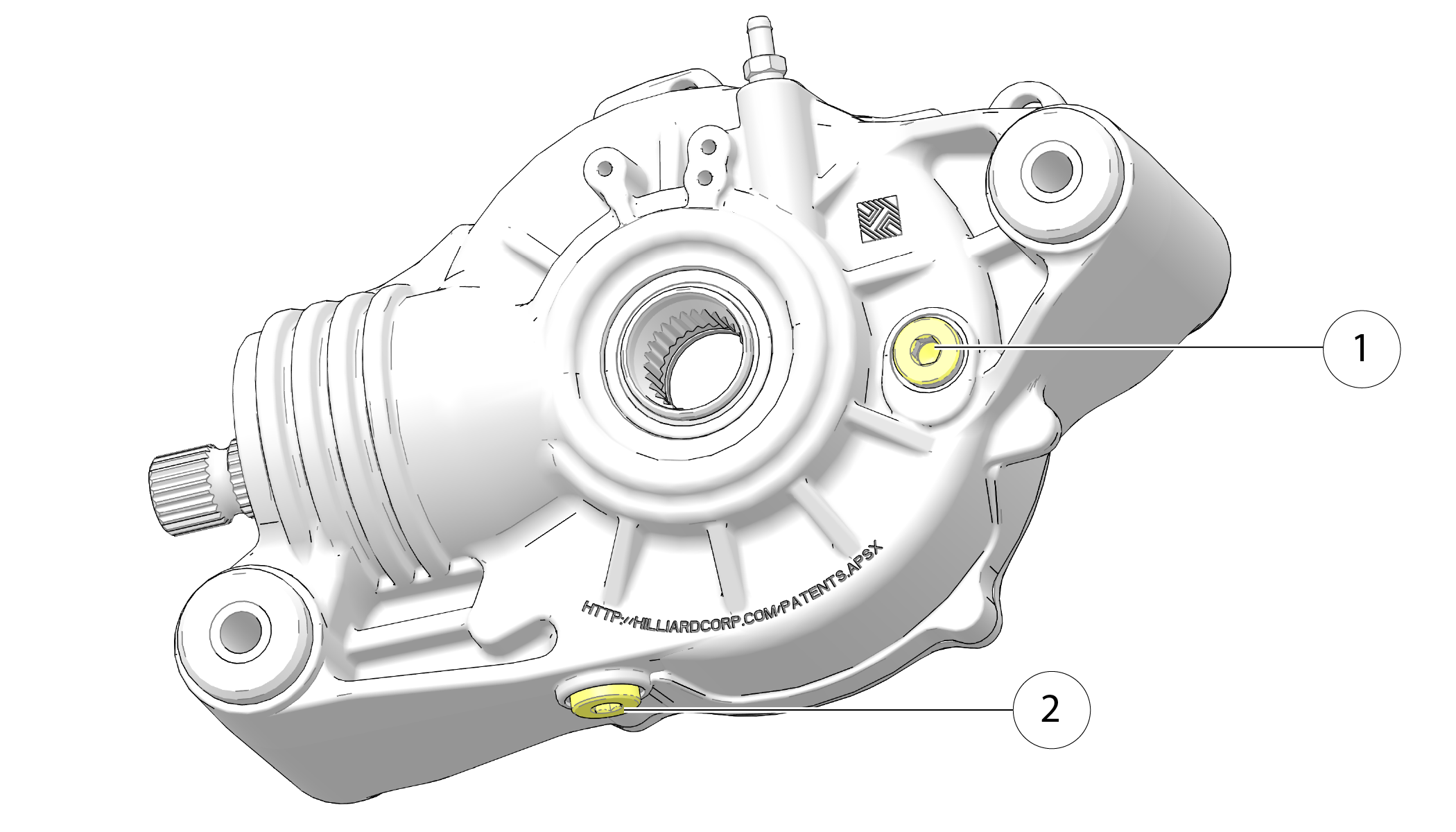

Front Gearcase Fluid	Change fluid.
Transmission Fluid	Change fluid.
Clutches*	Inspect bushings, rollers, wearable parts; clean; replace worn parts.
Drive Belt	Inspect; replace as needed.
The break-in period consists of the first 25 hours of operation. Careful treatment of a new engine and drive components will result in more efficient performance and longer life for these components. The items outlined in this service interval only need to be performed at the first 25 hours of operation. They do not need to be performed every 25 hours.
* It is recommended to have an authorized Polaris dealer perform these services.

Vehicles subjected to severe use must be serviced at 50% of the stated interval. Examples of Severe Use: Frequent immersion in mud, water, or sand, constant high RPM use, prolonged low-speed heavy load operation, extended idle, and short trip cold weather operation.

IMPORTANT

The following maintenance items will be performed for the first time when the vehicle has 75 hours / 1500 miles (2400 km) unless already performed.

Every 50 Hours / 1000 Miles (1600 km) or Yearly following Initial Break-In Service
Engine Air Filter/ NUMATIX Controlled CVT Filter	Inspect engine air filer; replace as needed. Replace NUMATIX Controlled CVT filter. Ensure proper installation of filter and airbox cover. Inspect ducts and screens; clean as necessary.

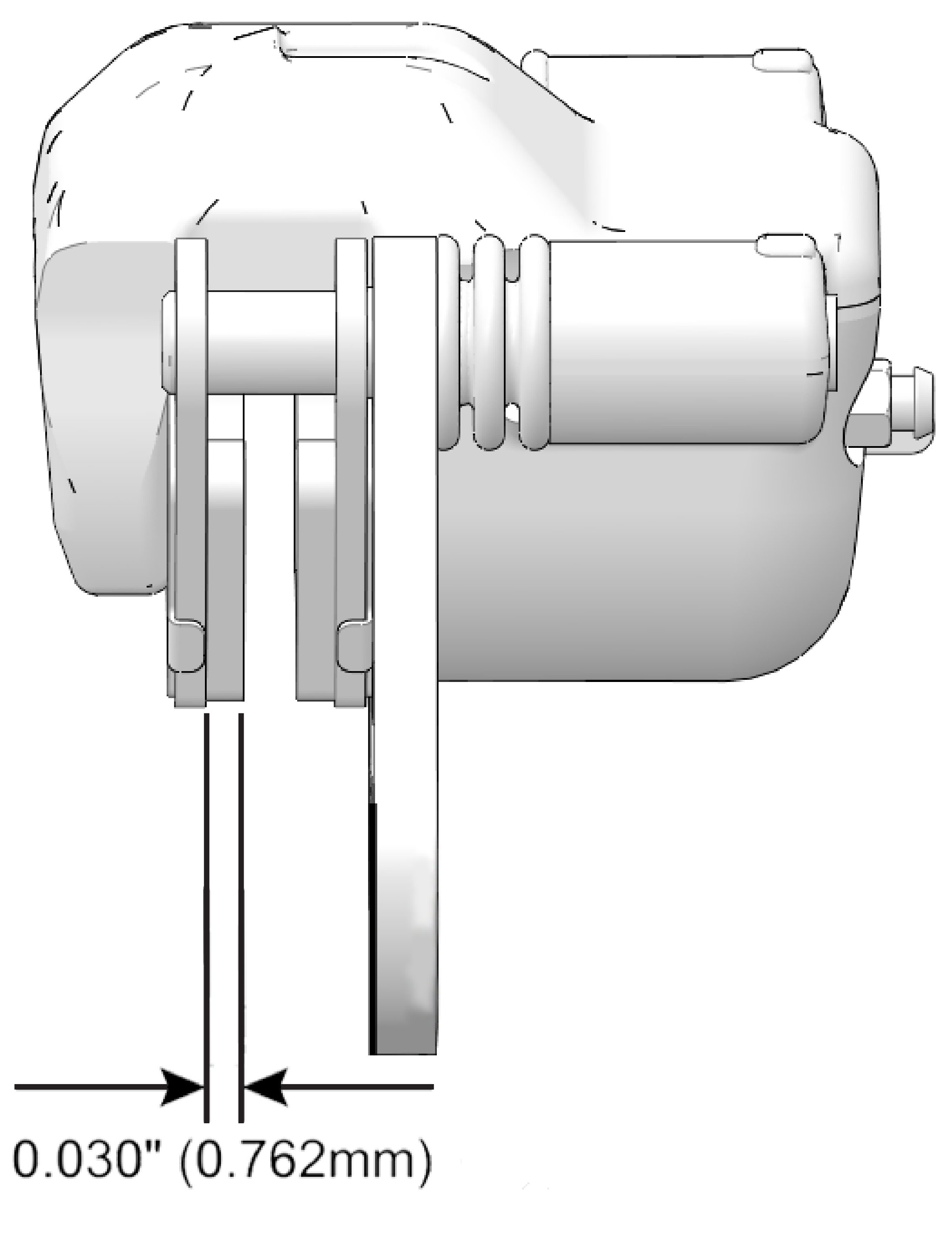

Brake Pads, Brake Lines/ Hoses	Inspect; replace as needed.
Brake System	Fluid level inspection; inspect for fluid leaks; add fluid if needed. Inspect brake pad wear.
Battery	Check terminals; terminals should be tight and free of corrosion. Clean, test, and replace as necessary.

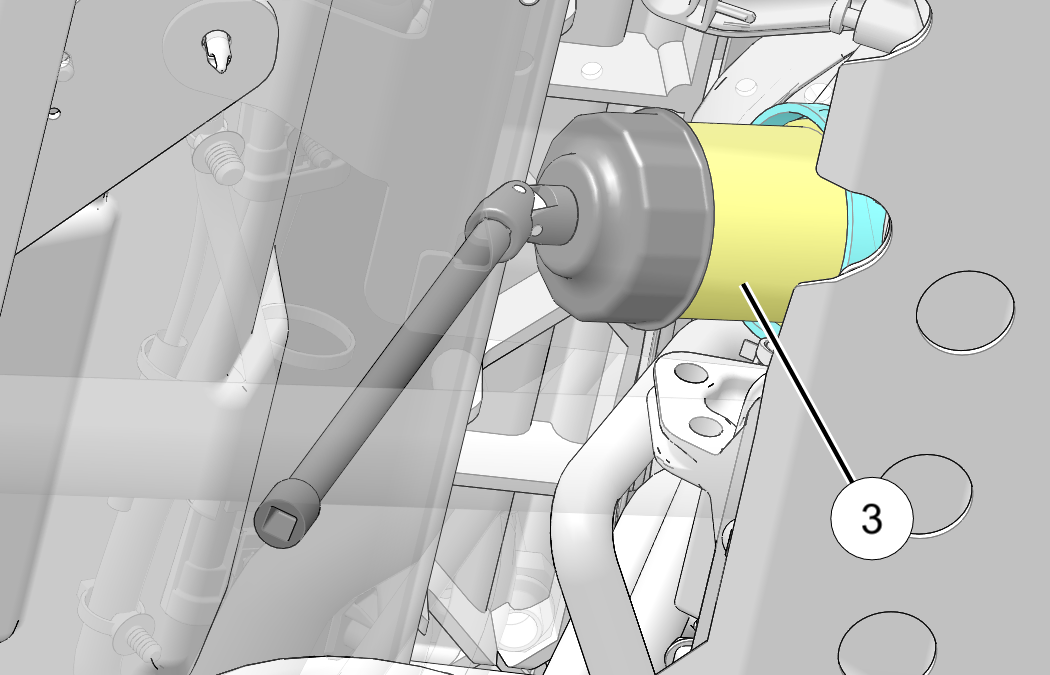

Engine Oil and Filter	Change the engine oil and filter.
Exhaust / Silencer Pipe	Inspect.
Fuel System*	Cycle key to pressurize fuel pump; check for leaks at fuel system connections, check for leaks at fill cap.
General Lubrication	Lubricate all applicable fittings.
Spark Plugs	Inspect; replace as needed.
Wiring Harness / Connections	Inspect; Adjust / Clean as needed.
Drive Belt	Inspect; replace as needed.
Clutches*	Inspect bushings, rollers, wearable parts; clean; replace worn parts.
Wheel Bearings	Inspect; replace as needed
Throttle Body / Intake Ducts / Flanges	Inspect ducts for proper sealing / air leaks
Steering Components	Inspect; replace as needed.
Suspension Components / Alignment*	Inspect front and rear suspension bushings, and ball joints for loose or worn components; replace as needed. Inspect shock absorbers for leaks or damage. Adjust suspension where applicable.
Tires	Inspect; Adjust pressure level as needed; Inspect wear and replace as needed.
* Have an authorized Polaris dealer or other qualified person perform these services.

Vehicles subjected to severe use must be serviced at 50% of the stated interval. Examples of Severe Use: Frequent immersion in mud, water, or sand, constant high RPM use, prolonged low-speed heavy load operation, extended idle, and short trip cold weather operation.

Additional Maintenance Intervals
Every 2000 miles (3200 km) / 12 months / 1 year following Initial Break-In Service	Front Gearcase Fluid**	Change fluid.
	Transmission Fluid**	Change fluid.
Every 2000 miles (3200 km)	Shock Absorbers*	Inspect; replace or rebuild (if applicable).
Every 3000 miles/ 30 months/ 150 hours	Spark Arrester	Inspect; Clean as needed. Replace as needed.
Every 10000 miles (16000 km)	Valve Clearance*	Inspect; adjust as needed.
Every 24 months	Brake Fluid	Change fluid.
Every 60 months	Coolant	Change fluid.
* Have an authorized Polaris dealer or other qualified person perform these services. **This service will be completed first at 500 miles (800 km) during the break-in service, next at 2500 miles (4000 km), and every 2000 miles (3200 km) following.

Check and lubricate all components at the intervals outlined in the Maintenance section, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should be lubricated at the general lubrication interval.

Always check and change the oil at the intervals outlined in the Polaris Maintenance Schedule. Always use the recommended engine oil. Always change the oil filter whenever changing oil.

Pay special attention to the oil level. A rise in oil level during cold weather can indicate contaminants collecting in the oil sump or crankcase. Change oil immediately if the oil level begins to rise. Monitor the oil level, and if it continues to rise, discontinue use and determine the cause. Your dealer can assist.

The engine coolant level is maintained by a remote pressurized tank system. The remote pressurized tank is connected to the radiator and provides a single pressure cap and fill point for the vehicle.

The pressure tank is designed to contain a volume of air above the coolant level. As coolant operating temperature increases the coolant level in the pressure tank will rise and push out air past the pressure cap. As the engine coolant temperature decreases the coolant level in the pressure tank will lower and draw air back into the tank through the pressure cap.

HVAC Intake Filter Cleaning

The HVAC Intake filter is located below the hood.

1. Loosen the worm gear clamp that secures the filter. Remove the filter from the vehicle.

2. Clean the filter with low air pressure. Check for damage, replace if damaged.

HVAC Recirculation Filter Cleaning

The HVAC Recirculation filter is located beneath the dash in the HVAC airbox.

1. Remove the two pushclips 1 that retain the filter cover. Remove the cover



2. Unclip both sides of the filter to remove it from the housing. Pull the filter downwards, then away from the filter housing.

3. Clean the filter with low air pressure. If the filter is damaged, replace the filter.

Condenser Cleaning

NOTICE

Washing the vehicle with a high-pressure hose could damage the radiator fins and impair the radiator's effectiveness. Using a high-pressure system is not recommended.

The condenser should be cleaned at the correct service interval as outlined in the Polaris Maintenance Schedule. The condenser is located at the front of the vehicle, behind the front grille.

To clean the condenser, do the following:

1. Stop the machine on a flat level surface. Place the gear selector in PARK. Stop the engine and exit the vehicle.

2. Remove the hood. See Hood.

3. Use low pressure air or water to clean the condenser.

4. Reinstall the front grille and ensure it is snapped into place.

If it's impossible to take your POLARIS vehicle to a dealer before starting it, follow the steps outlined below:

1. Move the vehicle to dry land, or at the very least, to water below the floorboard.

2. Dry any water present in the air box. Filter replacement is required if water is present.

3. Dry any water present in the intake manifold.

4. Remove the spark plugs. Turn the engine over several times using the electric start.

5. Dry the spark plugs and reinstall, or replace with new plugs.

6. Attempt to start the engine. If necessary, repeat the drying procedure.

7. Take the vehicle in for service as soon as possible, whether you succeed in starting it or not. Your POLARIS dealer, or other qualified person, can provide the required service.

8. If water has been ingested into the PVT follow the PVT Drying procedure.

Check the steering wheel for specified freeplay and smooth operation at the intervals outlined in the Polaris Maintenance Schedule.

1. Position the vehicle on level ground.

2. Place a piece of tape or similar marking device on the steering wheel to mark the steering wheel position.

3. Lightly turn the steering wheel left and right.

4. Measure the distance that the tape or marking device moves WITHOUT moving the tires.

5. There should be 0.8-1.0 in (20-25 mm) of freeplay.

6. If there is excessive freeplay or strange noises, or the steering feels rough or “catchy,” have the steering system inspected by an authorized dealer.

Frequently clean the areas around and on the power steering unit to allow proper cooling. Clean these areas 1 thoroughly.

Periodically clean the spark arrester to remove accumulated carbon.

1. Place the transmission in PARK.

2. Remove the arrester retaining bolt.

3. Remove the arrester from the end of the muffler.

4. Use a non-synthetic brush to clean the arrester screen. A synthetic brush may melt if components are warm. If necessary, blow debris from the screen with compressed air.

5. Inspect the screen for wear and damage. Replace a worn or damaged screen.

6. Reinstall the arrester.

7. Torque the bolt to 7.3-8.9 ft. lbs. (10–12 Nm).

The front and rear brakes are hydraulic disc type brakes activated by the brake pedal.

If the engine stops or will not start, or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse. Raise the center console lid and remove the storage bin to access the fuse center. Spare fuses can be found in the tool kit.

If you suspect that a fuse or relay may not be working properly, please see your dealer, or other qualified person.

Poor lighting can result in reduced visibility when driving. Headlight and taillight lenses become dirty during normal operation. Clean lights frequently and replace burned out lamps promptly. Do not operate this vehicle at night or in low light conditions until the headlight is replaced. Always make sure lights are adjusted properly for best visibility.

Your vehicle has a low-maintenance battery. Always keep battery terminals and connections free of corrosion. If cleaning is necessary, remove the corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda and one cup water. Rinse well with tap water and dry off with clean shop towels. Coat the terminals with dielectric grease or petroleum jelly.

Compressor Overheating

NUMATIX Controlled CVT System is Not Reducing Engine Speed When In Standard or Comfort Modes.

Polaris Industries Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a TWELVE MONTH LIMITED WARRANTY on all components of your Polaris vehicle against defects in material or workmanship. Laws and regulations in your jurisdiction may give extra protection. Polaris further warrants that the spark arrestor in this product will meet the efficiency requirements of USFS standard 5100-1d for at least 1000 hours when subjected to normal use and when maintenance and installation are in accordance with Polaris recommendations.

This warranty covers parts and labor charges for repair or replacement of defective parts and begins on the date of purchase by the original retail purchaser. The duration of this warranty may vary by international region based upon local laws and regulations.

At the time of sale, the Warranty Registration Form must be completed by your dealer and submitted to POLARIS within ten days of purchase. Upon receipt of this registration, POLARIS will record the registration for warranty. No verification of registration will be sent to the purchaser as the copy of the Warranty Registration Form will be your proof of warranty coverage. If you have not signed the original registration and received the customer copy, please contact your dealer immediately. Initial dealer preparation and set-up of your vehicle is very important in ensuring trouble-free operation.

If your vehicle requires warranty service, you must take it to a Polaris Servicing Dealer. When requesting warranty service you must present your copy of the Warranty Registration Form to the dealer. (THE COST OF TRANSPORTATION TO AND FROM THE DEALER IS YOUR RESPONSIBILITY.) Polaris suggests that you use your original selling dealer; however, you may use any Polaris Servicing Dealer to perform warranty service.

EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER'S

AUTHORIZED LOCATION. This policy does not apply to products that have received authorization for export from POLARIS. Dealers may not give authorization for export. You should consult an authorized dealer to determine this product's warranty or service coverage if you have any questions. This policy does not apply to products registered to government officials or military personnel on assignment outside the country of the selling dealer's authorized location. This policy does not apply to Safety Bulletins

If your product is registered outside of the country where it was purchased and you have not followed the procedure set above, your product will no longer be eligible for warranty or service bulletin coverage of any kind, other than safety recalls. Products registered to government officials or military personnel on assignment outside of the country where the product was purchased will continue to be covered by the Limited Warranty.

Please work with your dealer to resolve any warranty issues. Dealership contacts can be found via this website, if needed:

www.polaris.com/en-us/contact

Should your dealer require any additional assistance, they will contact the appropriate person at POLARIS.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or in different countries. If any of the above terms are void because of federal, state, local law, all other warranty terms will remain in effect.

For questions call POLARIS Owner Connections:

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

To report a safety defect to Transport Canada, you may either fill out an online defect complaint form at their website:
English: http://www.tc.gc.ca/recalls
French: http://www.tc.gc.ca/rappels

Or contact their Defect Investigations and Recalls Division by calling toll-free 1-800-333-0510 (Canada) or 819-420–4300 (Ottawa-Gatineau area / International).

This emissions limited warranty is in addition to the POLARIS standard limited warranty for your vehicle. POLARIS Industries Inc. warrants that at the time it is first purchased, this emissions-certified vehicle is designed, built and equipped so it conforms with applicable U.S. Environmental Protection Agency emission regulations. POLARIS warrants that the vehicle is free from defects in materials and workmanship that would cause it to fail to meet these regulations.

The warranty period for off road vehicles 100cc or greater emissions-certified vehicles starts on the date of purchase by original retail purchaser and continues for a period of 500 hours of engine operation, 5000 kilometers (3100 miles) of vehicle travel, or 30 calendar months from the date of purchase, whichever comes first. The warranty period for ATVs less than 100cc emissions-certified vehicles starts on the date of purchase by original retail purchaser and continues for a period of 250 hours of engine operation, 2500 kilometers (1550 miles) of vehicle travel, or 30 calendar months from the date of purchase, whichever comes first. This EPA emissions warranty period is extended for at least as long as the standard factory warranty that Polaris provides on the vehicle as a whole. The EPA emissions warranty period does not further extend if you purchase additional warranty coverage in the form of a service contract or other paid warranty extension, but emission-related parts may be covered subject to the terms of any such paid service contract or paid warranty extension

This emissions limited warranty covers components whose failure increases the vehicle's regulated emissions, and it covers components of systems whose only purpose is to control emissions. Repairing or replacing other components not covered by this warranty is the responsibility of the vehicle owner. This emissions limited warranty does not cover components whose failure does not increase the vehicle's regulated emissions.

For exhaust emissions, emission-related components include any engine parts related to the following systems:

• Air-induction system

• Fuel system

• Ignition system

• Exhaust gas recirculation systems

The following parts are also considered emission-related components for exhaust emissions:

• Aftertreatment devices

• Crankcase ventilation valves

• Sensors

• Electronic control units

The following parts are considered emission-related components for evaporative emissions:

• Fuel Tank

• Fuel Cap

• Fuel Line

• Fuel Line Fittings

• Clamps*

• Pressure Relief Valves*

• Control Valves*

• Control Solenoids*

• Electronic Controls*

• Vacuum Control Diaphragms*

• Control Cables*

• Control Linkages*

• Purge Valves

• Vapor Hoses

• Liquid/Vapor Separator

• Carbon Canister

• Canister Mounting Brackets

• EFI Purge Port Connector

*As related to the evaporative emission control system.

Emission-related components also include any other part whose only purpose is to reduce emissions or whose failure will increase emissions without significantly degrading engine/equipment performance. The exclusive remedy for breach of this limited warranty shall be, at the exclusive option of POLARIS, repair or replacement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL PURPOSE.

ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO THE WARRANTY PERIOD DESCRIBED HEREIN. POLARIS DISCLAIMS ALL EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply if it is inconsistent with the controlling state law.

This limited warranty excludes failures not caused by a defect in material or workmanship. This limited warranty does not cover damage due to accidents, abuse or improper handling, maintenance or use. This limited warranty also does not cover damage to any engine as a result of being structurally altered, or when the vehicle has been used in racing competition. This limited warranty also does not cover physical damage, corrosion or defects caused by fire, explosions or other similar causes beyond the control of POLARIS.

Owners are responsible for performing the scheduled maintenance identified in the owner's manual. POLARIS may deny warranty claims for failures that have been caused by the owner's or operator's improper maintenance or use, by accidents for which POLARIS has no responsibility, or by acts of God.

Any qualified repair shop or person may maintain, replace, or repair the emission control devices or systems on your vehicle. An authorized POLARIS dealer, or other qualified person, can perform any service that may be necessary for your vehicle. POLARIS also recommends POLARIS parts, however equivalent parts may be used for such service. It is a potential violation of the Clean Air Act if a part supplied by an aftermarket parts manufacturer reduces the effectiveness of the vehicle's emission controls. Tampering with emission controls is prohibited by federal law.

Certain POLARIS Off-Road Vehicles are available in 49-state and 50-state versions. Only the 50-state models are certified for sale in California. The 50-state models available for sale in California are identified by the letter “B” in the ninth position of the model number (e.g., R16RTE87B). The POLARIS 50-state models are designed and built with features such as a reduced cargo box capacity. Any modifications to these features may be a violation of the applicable California regulations and may void this limited emissions warranty offered by the manufacturer.

POLARIS Industries Inc. warrants that at the time it is purchased, this vehicle is:

1. Designed, built, and equipped so as to conform, at the time of sale, with all applicable California evaporative emissions regulations.

2. Free from defects in materials and workmanship that may cause the failure of a warranted part as defined in California evaporative emissions regulations. All replacement parts must be identical in all material respects to that part as described in the OHRV manufacturer’s Executive Order of Certification application.

The California evaporative emissions control system limited warranty statement below applies to your Off Highway Recreational Vehicle in California if the vehicle is equipped with an evaporative emission control system and is labeled with a Vehicle Evaporative Emissions Control Information label indicating that the vehicle conforms to California evaporative emissions regulations applicable to new off-road sport vehicles, all-terrain vehicles, or off-road utility vehicles. These vehicles are referred to as “OHRV-EVAP” below.

The California Air Resources Board and Polaris Industries Inc. are pleased to explain the emission control system warranty on your model year 2018 and newer Off Highway Recreational Vehicle. In California, new off-highway recreational vehicles must be designed, built and equipped to meet the State's stringent anti-smog standards. Polaris must warrant the emission control system on your OHRV-EVAP for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your OHRV-EVAP.

Your emission control system may include parts such as the carburetor or fuel injection system, fuel tank, fuel hoses, carbon canister, engine computer and Evaporative Emissions Control System parts listed in the U.S.A. EPA Emissions Limited Warranty. Also included may be hoses, belts, connectors and other emission-related assemblies. Where a warrantable condition exists, Polaris will repair your OHRV-EVAP at no cost to you including diagnosis, parts and labor.

MANUFACTURER’S WARRANTY COVERAGE:

For model year 2018 and newer OHRV-EVAP models.

For 30 months, or 2500 mi (4023 km), or 250 hours, whichever comes first, except for evaporative components over the OHRV high-priced warranty value, which is covered for 60 months, or 5000 mi (8047 km), or 500 hours, whichever comes first.

If any emission-related part on your OHRV-EVAP is defective, the part will be repaired or replaced by Polaris.

OWNER'S WARRANTY RESPONSIBILITIES:

As the OHRV-EVAP owner, you are responsible for the performance of the required maintenance listed in your owner's manual. Polaris recommends that you retain all receipts covering maintenance on your OHRV-EVAP, but Polaris cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of a scheduled maintenance.

As an owner you are responsible for presenting your OHRV-EVAP to a Polaris dealer as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

As an OHRV-EVAP owner, you should also be aware that Polaris may deny you warranty coverage if your OHRV-EVAP or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

ADD-ON OR MODIFIED PARTS

An add-on or modified part must be compliant with applicable CARB emission control standards. A violation of this requirement is punishable by civil and/or criminal punishment.

If you have any questions regarding your warranty rights and responsibilities, you should contact Polaris Customer Assistance at 1-800-POLARIS (1-800-765-2747) or the California Air Resources Board at 4001 Iowa Ave, Riverside, CA 92507.

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

How the California Emissions Warranty on Evaporative Emission Parts Must Function as Prescribed in 13 CCR § 2419.1

(1) Any warranted part which is not scheduled for replacement as part of maintenance in the Owner’s Manual must be warranted for the warranty period. If any such part fails during the warranty period, it must be repaired or replaced by POLARIS according to subdivision (4) below. Any such part repaired or replaced under warranty must be fully warranted.

(2) Any warranted part which is scheduled only for regular inspection in the Owner’s Manual must be warranted for the warranty period. A statement in such written instructions to the effect of “repair or replace as necessary” must not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty period.

(3) Any warranted part which is scheduled for replacement as part of maintenance in the Owner’s Manual must be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails before the first scheduled replacement point, the part must be repaired or replaced by POLARIS according to subdivision (4). Any such part repaired or replaced under warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

(4) Repair or replacement of any warranted part under the warranty provisions of this Article must be performed at no charge to the OHRV owner, at a warranty station, except in the case of a temporary repair when a warranted part or a warranty station is not reasonably available to the OHRV owner. In the event a temporary repair is permitted according to subdivision (8) below, repairs may be performed at any available service establishment, or by the owner, using any replacement part. POLARIS must reimburse the owner for his or her expenses including diagnostic charges for such temporary repair or replacement, not to exceed POLARIS' suggested retail price for all warranted parts replaced and labor charges based on the POLARIS recommended time allowance for the warranty repair and the geographically appropriate hourly labor rate.

(5) Notwithstanding the provisions of subdivision (4) above, warranty services or repairs must be provided at all POLARIS dealerships that are owned by POLARIS or franchised to service the subject OHRVs.

(6) The OHRV owner must not be charged for diagnostic labor which leads to the determination that a warranted part is, in fact, defective, provided that such diagnostic work is performed at a warranty station.

(7) POLARIS is liable for damages to other vehicle components proximately caused by a failure, under warranty, of any warranted part.

(8) Throughout the OHRV's evaporative emissions warranty period, POLARIS must maintain a supply of warranted parts sufficient to meet the expected demand for such parts. The lack of availability of such parts or the incompleteness of repairs within a reasonable time period, not to exceed 30 days from the time the OHRV is initially presented to the warranty station for repair, will qualify the need for a temporary repair for purposes of subdivision (4).

(9) Any replacement part designated by POLARIS may be used in warranty repairs provided without charge to the OHRV owner.Such use will not reduce the warranty obligations of POLARIS, except that POLARIS will not be liable under the provisions of this Article for repair or replacement of any replacement part which is not a warranted part (except as provided under subdivision (d)(7)).

(10) Any add-on or modified part exempted by the Air Resources Board from the prohibitions of section 27156 of the California Vehicle Code may be used on an OHRV. Such use, in and of itself, will not be grounds for disallowing a warranty claim made under the provisions of this Article. POLARIS is not liable under the provisions of this Article to warrant failures of warranted parts caused by the use of an add-on or modified part(s) unless such part(s) are also warranted.

(11) Upon a request of the Executive Officer, POLARIS must provide any documents that describe the manufacturer's warranty procedures or policies.

(12) Any replacement part must not reduce the effectiveness of the OHRV emission control system. POLARIS must demonstrate that the applicable emission standards are being met when the replacement part(s) are installed on the OHRV. The demonstration of equivalence to applicable emission standards can be achieved through replacing the part(s) with the evaporative emissions control components the OHRV evaporative family was certified with; or, if unavailable, alternative parts may be installed if POLARIS can provide test data to verify the evaporative control system meets, at least, the OHRV EFEL.

Exclusion

Notwithstanding the provisions of subdivisions (1) - (12) above, the repair or replacement of any warranted part otherwise eligible for the California Warranty on Evaporative Emission Parts, is excluded from such warranty coverage if POLARIS can provide evidence to the California Air Resources Board Executive Officer, to the Executive Officer's satisfaction, that the OHRV has been abused, neglected, improperly maintained, or had unapproved modifications and that such abuse, neglect, improper maintenance, or unapproved modification, was the direct cause of the need for the repair or replacement of the part.

Use the following chart to record periodic maintenance.
