Load / Passenger / Tire Pressure Warning

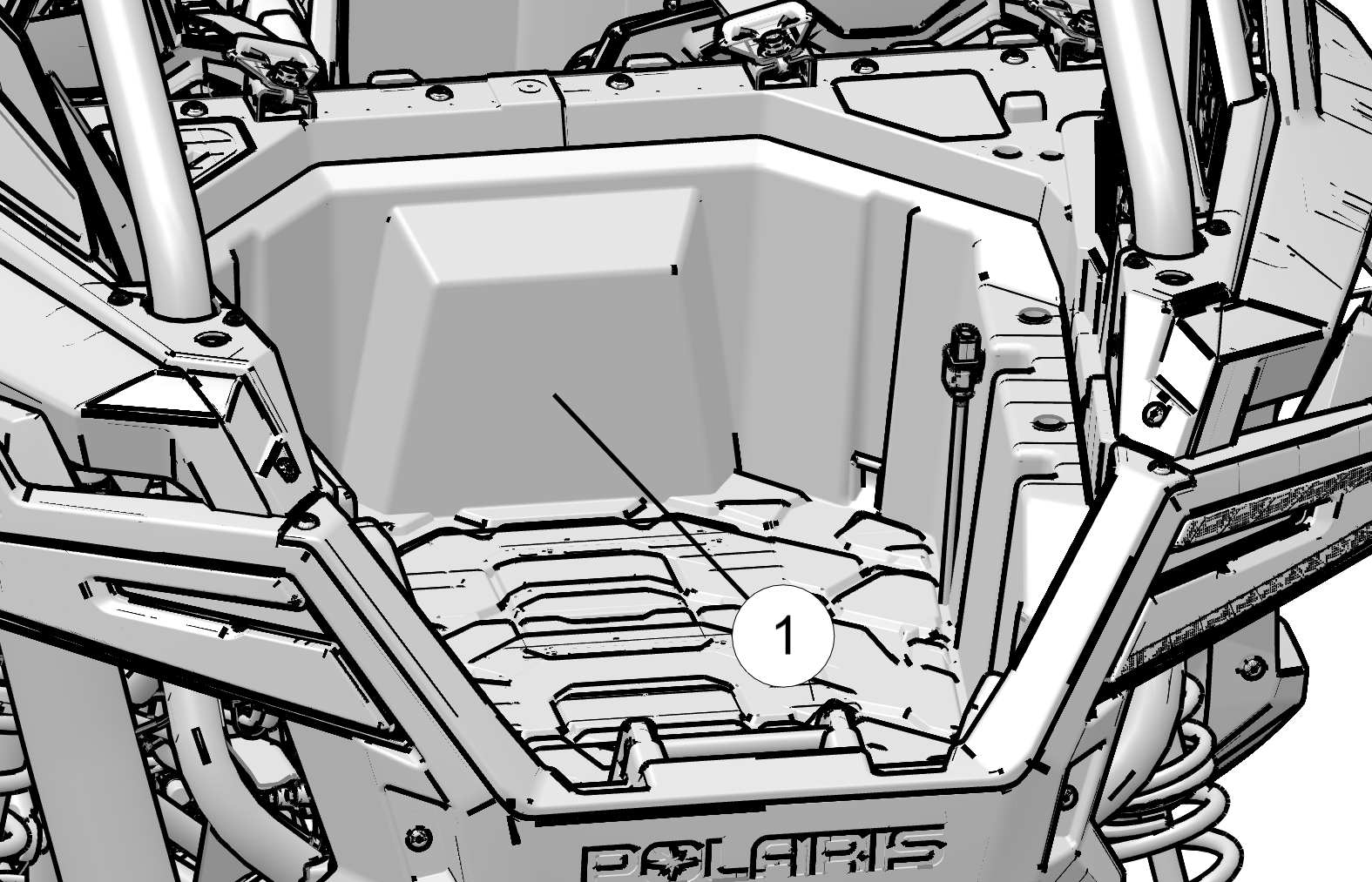

The Load / Passenger / Tire Pressure Warning 1 is located at the rear of the vehicle in the cargo box.
-
Never carry passengers in cargo box.
-
Passengers can be thrown off. This can cause serious injury or death.
IMPROPER TIRE PRESSURE OR OVERLOADING CAN CAUSE LOSS OF CONTROL RESULTING IN SERIOUS INJURY OR DEATH.
-
Reduce speed and allow greater distance for braking when carrying cargo.
-
Overloading or carrying tall, off-center, or unsecured loads will increase your risk of losing control. Loads should be centered and carried as low as possible in box.
-
For stability on rough or hilly terrain, reduce speed and cargo.
| Pro S | Pro S 4 | |
| MAXIMUM CARGO BOX LOAD | 300 lb (136 kg) | |
| TIRE PRESSURE IN PSI (KPa) | FRONT 15 psi (103 kpa) REAR 15 psi (103 kpa) |
FRONT 18 psi (124 kpa) REAR 18 psi (124 kpa) |
| MAXIMUM WEIGHT CAPACITY INCLUDES WEIGHT OF OPERATOR, PASSENGERS, CARGO AND ACCESSORIES |
730 lb (331 kg) | 1160 lb (526 kg) |
| Read Operation and Maintenance Manual for more detailed loading information. | ||
Part Number: 7301019 (English) and 7301019–F (French Canadian)
