Airborne Event Control

The DYNAMIX DV system is constantly and automatically detecting for when the vehicle is airborne and when the vehicle has landed. The DYNAMIX system updates damping while airborne and post landing to optimize the vehicle response immediately after the airborne event.

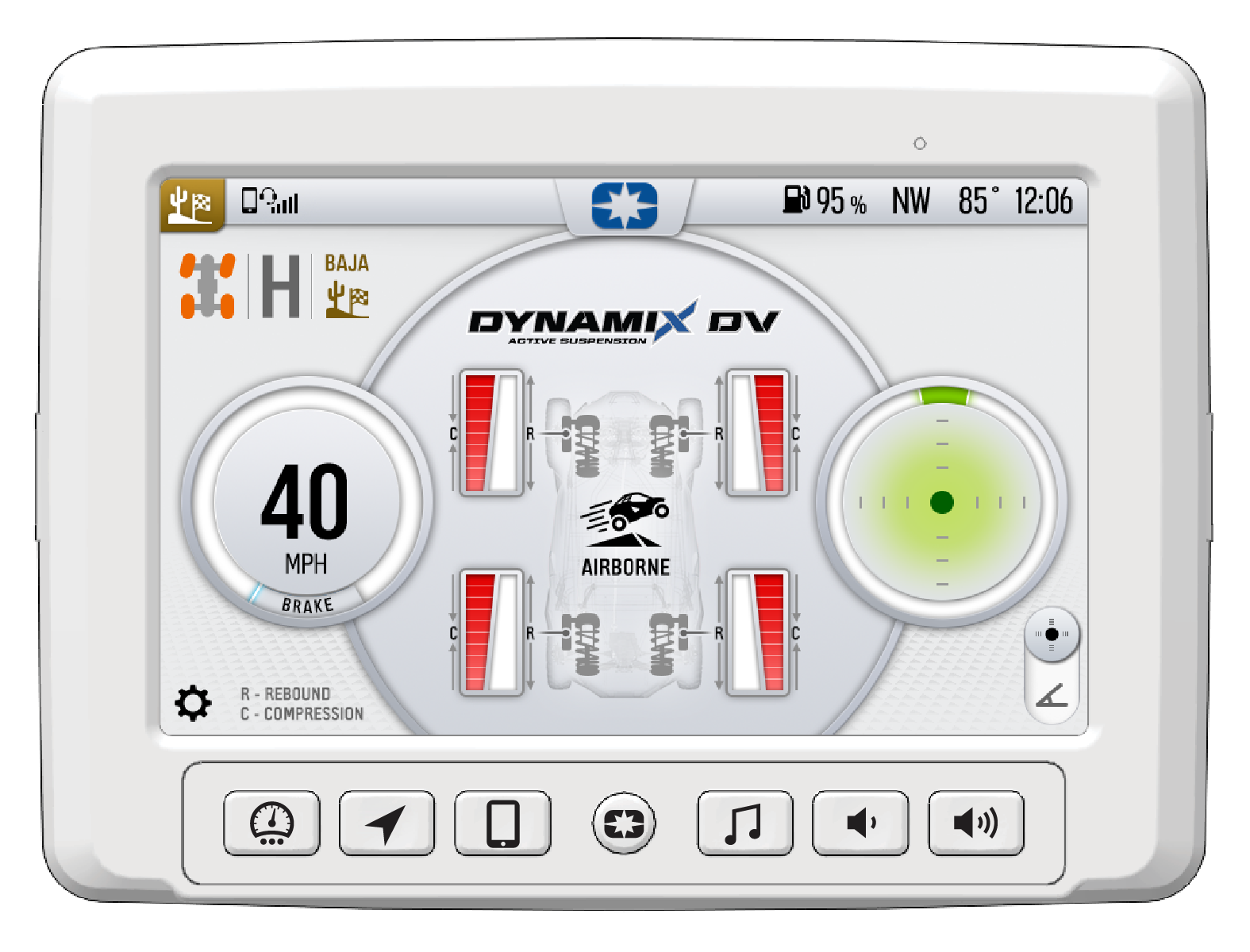

  • While Airborne: Rebound damping is reduced to promote shock extension while compression is increased to 100%.

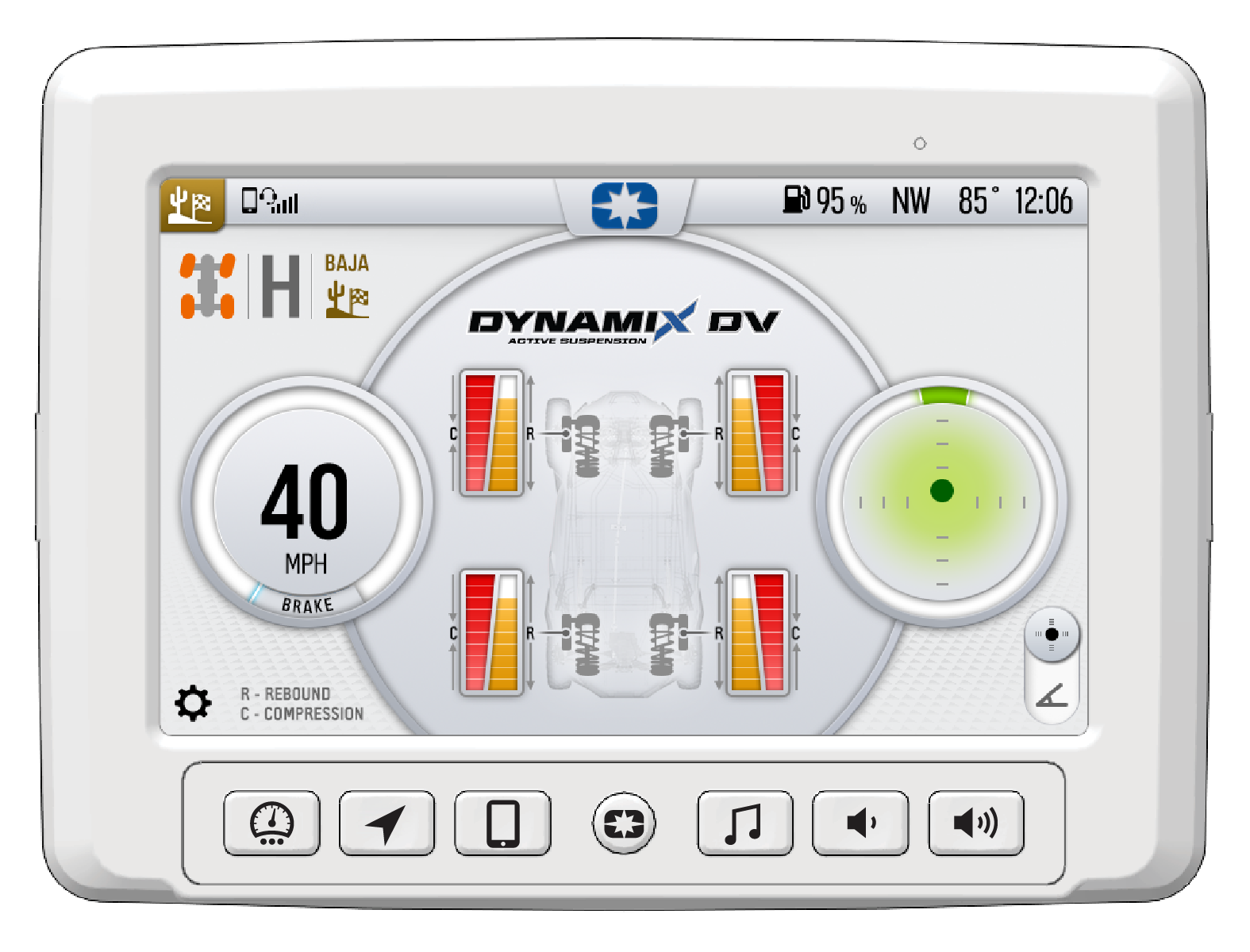

  • After Landing: Rebound damping is increased to stabilize the landing and prevent loss of wheel traction or hopping of the vehicle.

The damping application is biased based on airborne duration so the vehicle has optimized performance. As the vehicle is airborne, the compression damping will gradually increase to maximize the bottom out performance when landing.

WARNING
Refer to the Safety section of the Owner’s Manual for warnings and instructions about going over jumps. Do not go over jumps – going airborne can lead to serious injury or death.

Parent topic: DYNAMIX DV System Features
