IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Oil Check

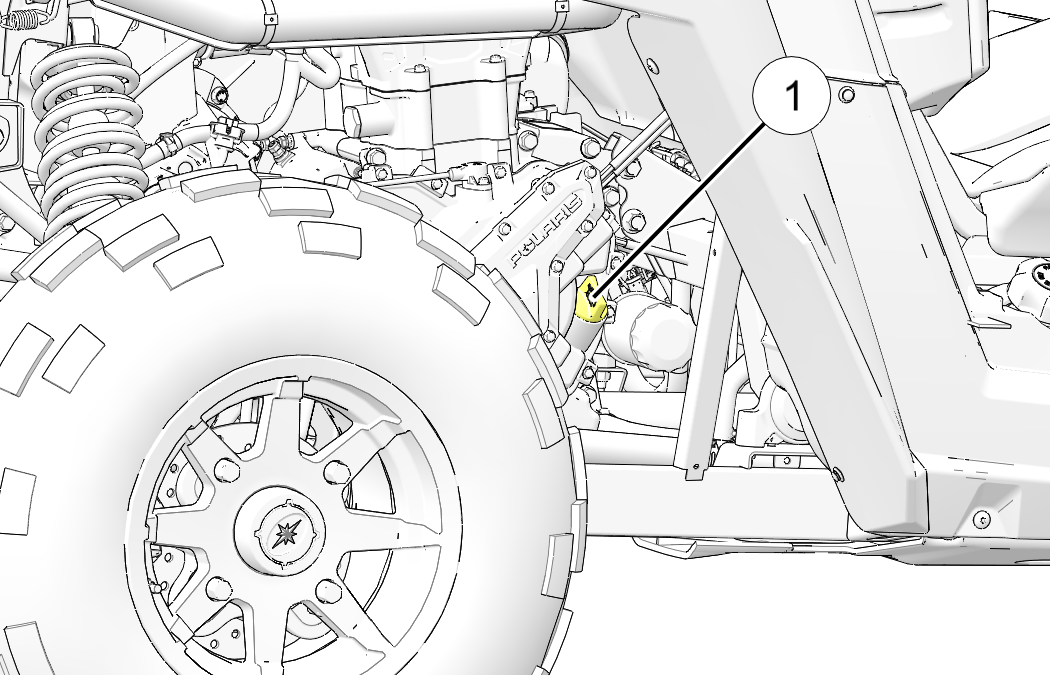

The oil dipstick and fill tube is located on the engine, behind the passenger seat. Access the dipstick 1 through the right rear wheel well.

  1. Position the vehicle on a level surface.

  2. Place the transmission in PARK.

  3. Always clean away all dirt and debris from the dipstick area before removing the dipstick. Remove the dipstick. Wipe it dry with a clean cloth.

  4. Reinstall and tighten the dipstick.

  5. Remove the dipstick and check the oil level.

  6. Add the recommended fluid as needed. Maintain the oil level in the safe range between the FULL and ADD marks. Do not overfill.

  7. Reinstall and tighten the dipstick.

Parent topic: Engine Oil
