Load/Passenger/Tire Pressure Alert
-
Never carry passengers in cargo box. Passengers can be thrown off. This can cause serious injury or death. Read owner's manual. NEVER carry fuel or other flammable liquids on this vehicle. Failure to follow this instruction could lead to serious burn injuries or death.
-

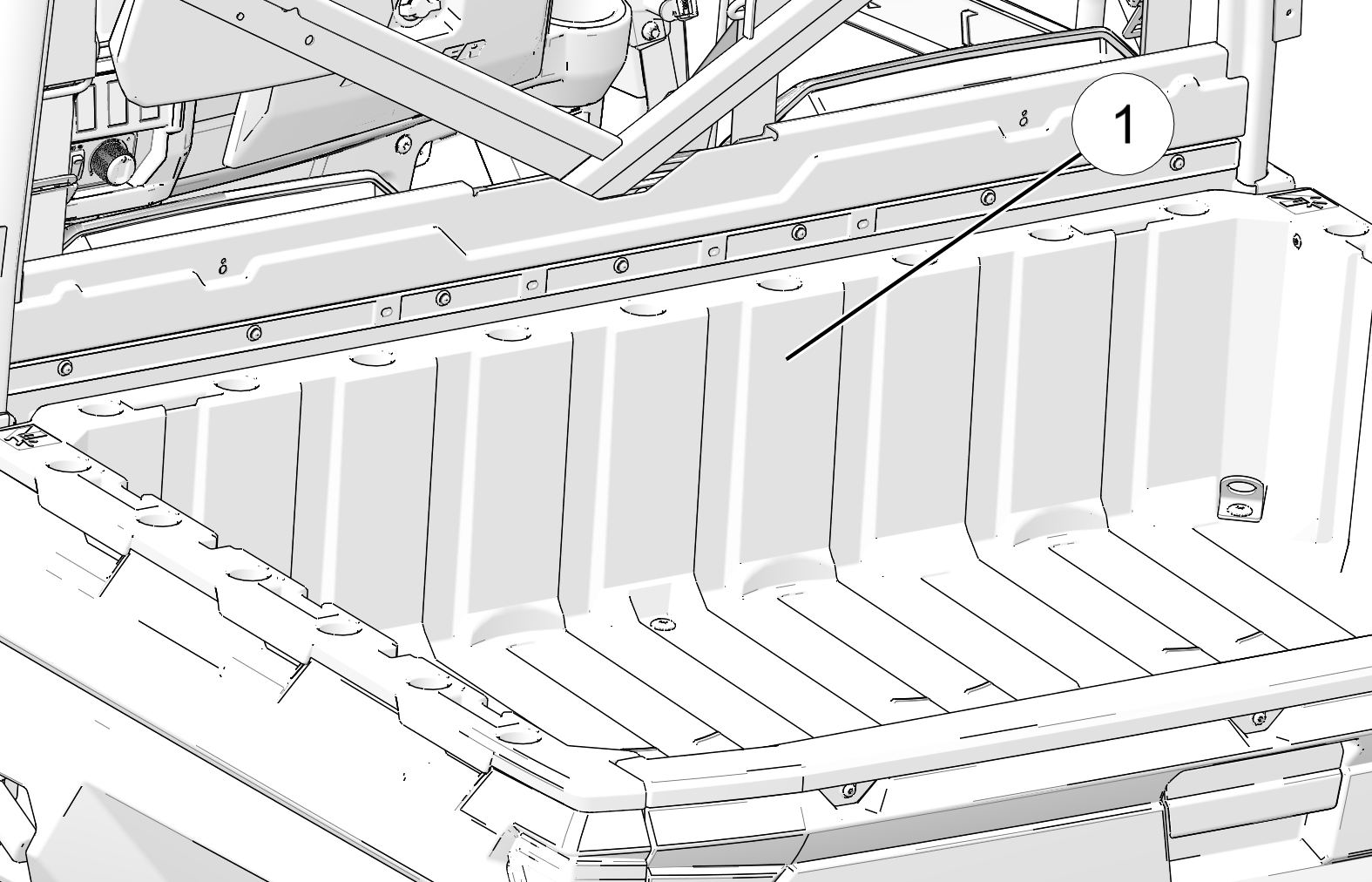

1 Label Location
-
| RANGER MD / ZUG | |
| MAXIMUM CARGO BOX LOAD |
412 kg |
| TIRE PRESSURE IN kPa (bar) |
FRONT 69 kPa (0,69 bar) REAR 97 kPa (0,97 bar) |
|
TIRE PRESSURE WITH FULL LOAD (MAX CARGO + PASSENGER) IN kPa (bar) |
FRONT 69 kPa (0,69 bar) REAR 210 kPa (2,1 bar) |
|
MAXIMUM WEIGHT CAPACITY INCLUDES WEIGHT OF OPERATOR, PASSENGER, CARGO AND ACCESSORIES |
696 kg |
|
Read Operation and Maintenance Manual for more detailed loading information. |
|
