Air Filter Replacement

Inspect the air filter at the intervals outlined in the POLARIS Maintenance Schedule. In extremely dusty conditions, air filter replacement will be required more often.

  1. Tilt the rear cargo box to access the airbox.

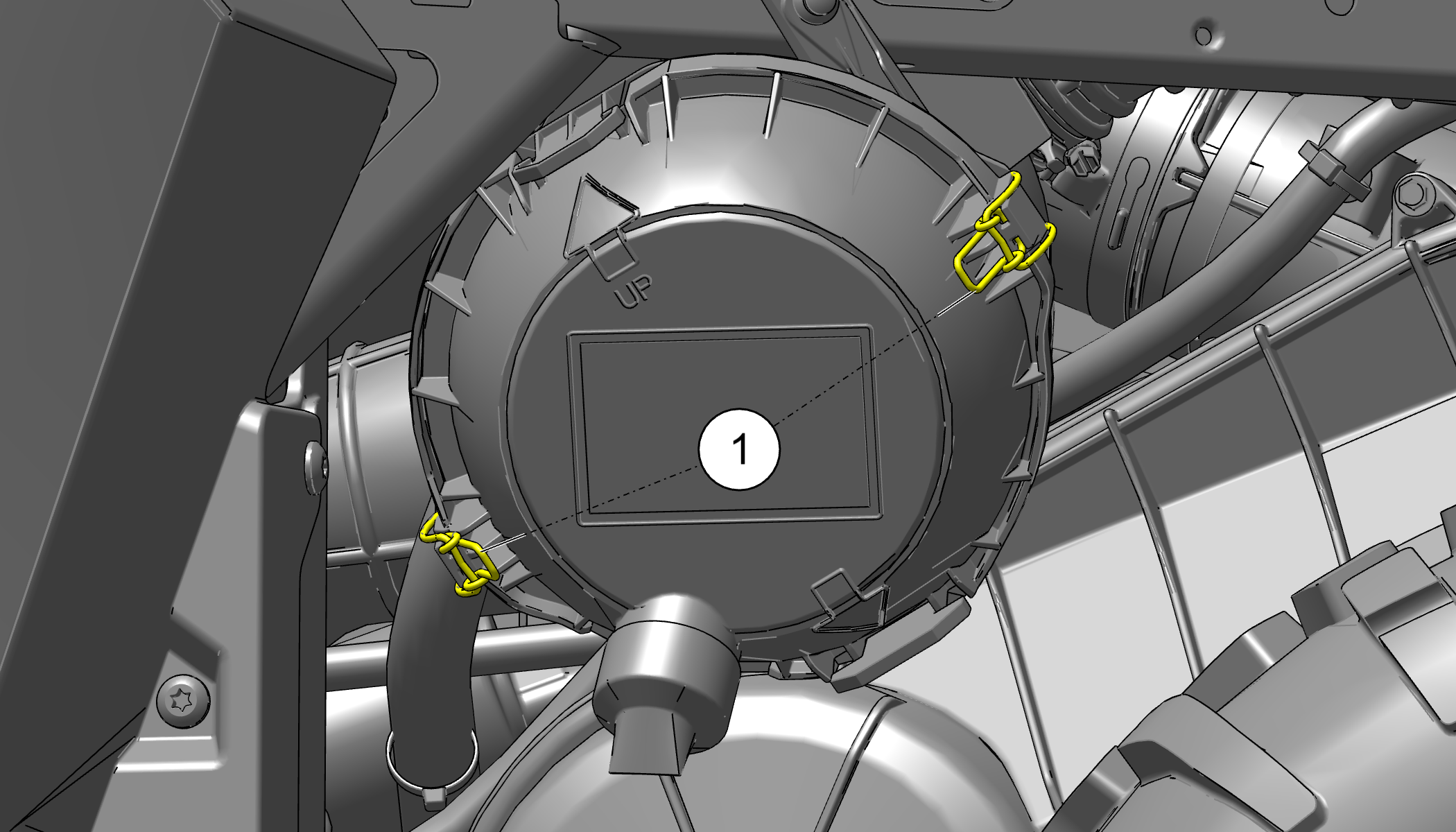

  2. Release the two airbox cover latches1 and lift the cover up and out to access the air filter element.

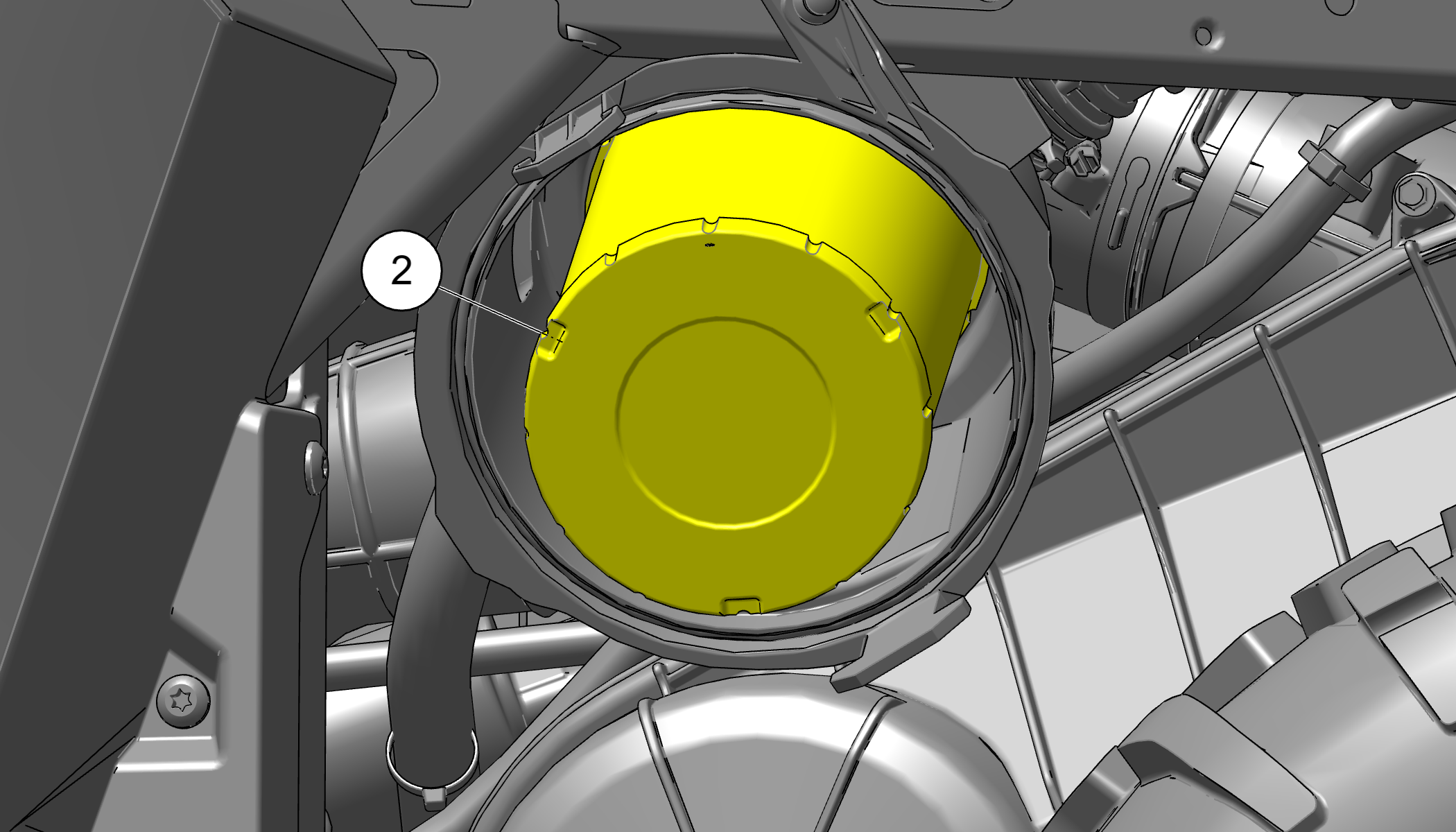

  3. Remove the air filter element 2.

  4. Inspect the airbox for oil or water deposits. Wipe away any deposits with a clean shop towel.

    NOTE

    If the filter has been soaked with fuel or oil it must be replaced.

    DO NOT attempt to clean the air filter.

  5. Place the air filter into the airbox. Reposition the lower airbox cover and install the two retaining latches.

    NOTE

    Make sure the hinge pins are properly seated and cover is properly aligned when reassembling the airbox.
