Transmission Fluid Level Check

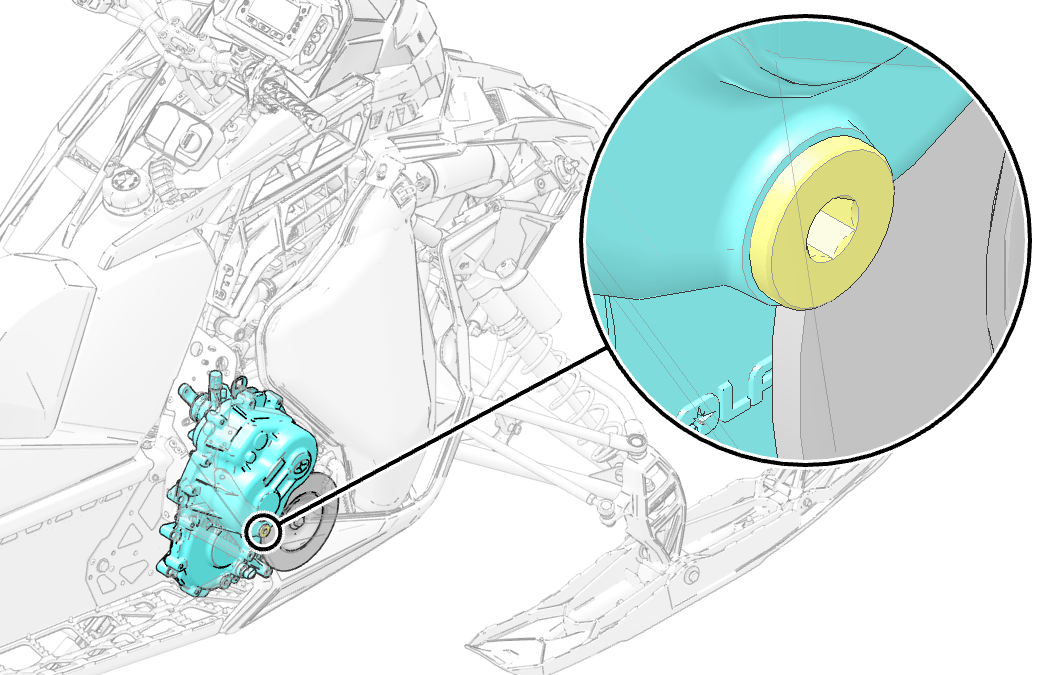

The fill plug is located on the right side of the transmission. Access the fill plug using the following procedure. Make sure fluid level is even with the bottom of the fill plug hole.

1. Position vehicle on a level surface.

2. Remove the right side panel.

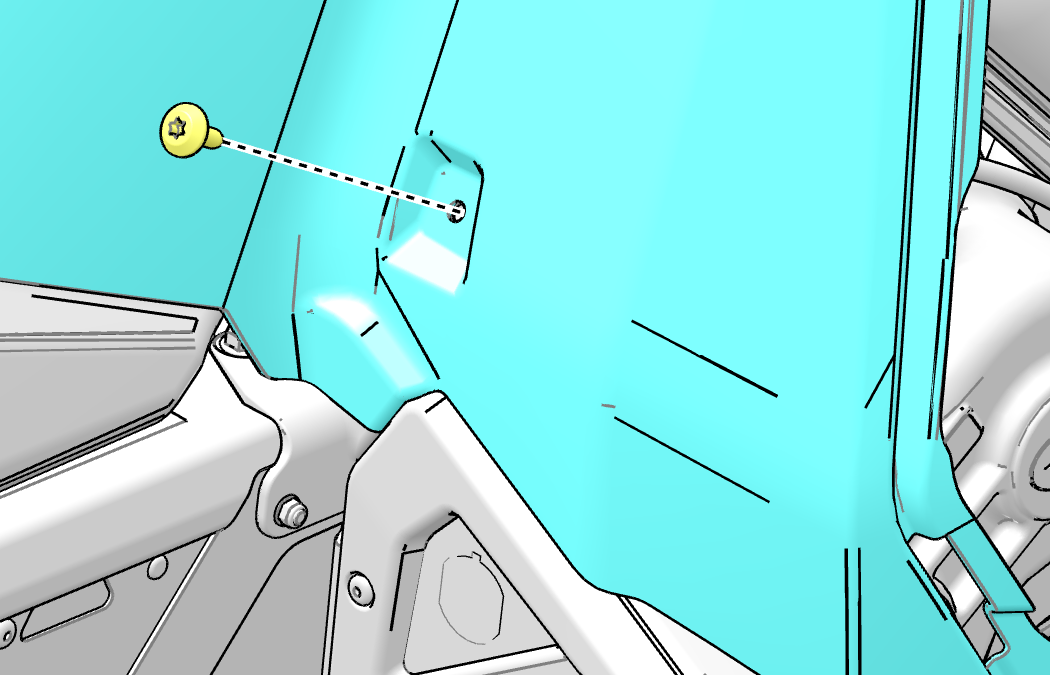

3. Remove the push rivet that secures the console to the right fender.



4. Remove the fastener that secures the console to the footrest support.

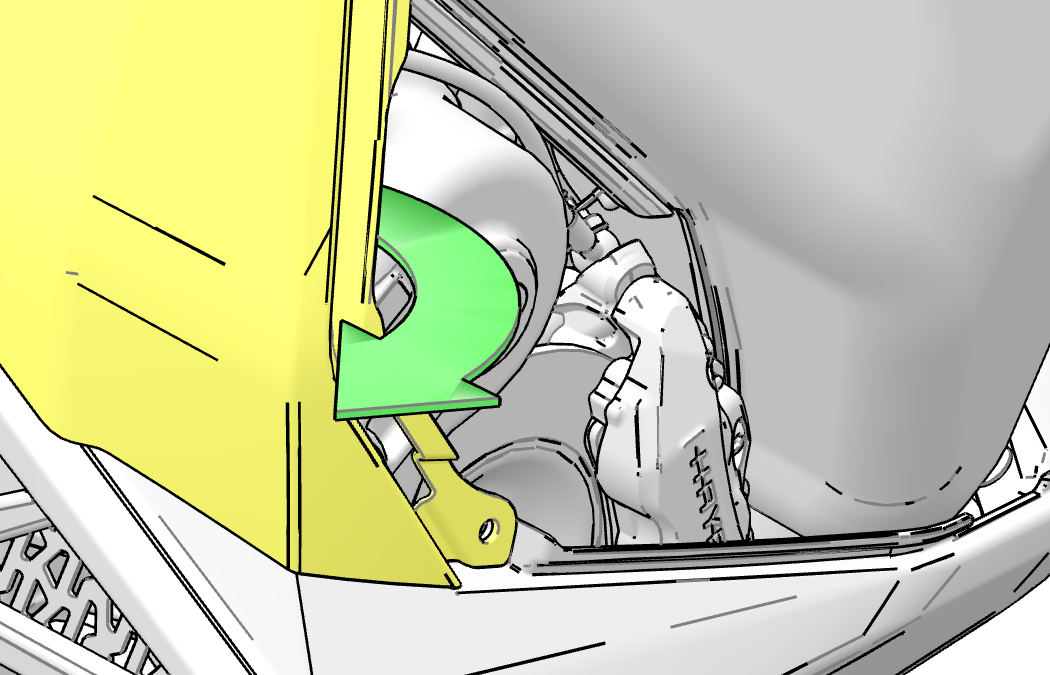

5. Carefully flex the console out to gain access to the push rivet that secures the right fender to the footrest support.

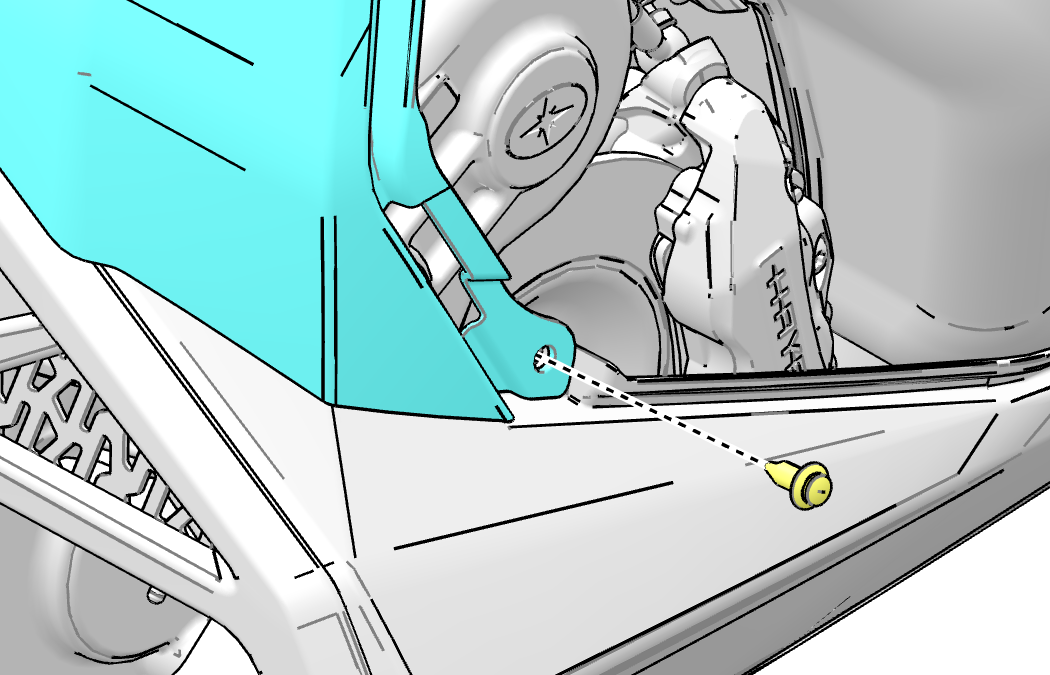

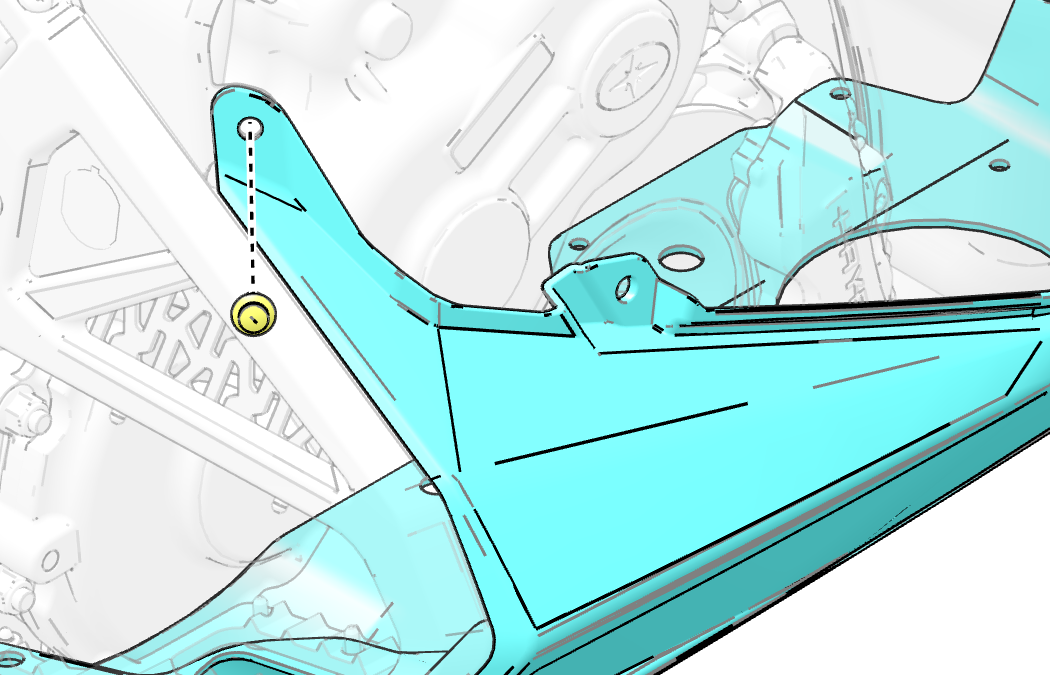

6. Remove the push rivet that secures the right fender to the footrest support.


   NOTE

   The console has been removed from the graphic for illustration clarity.

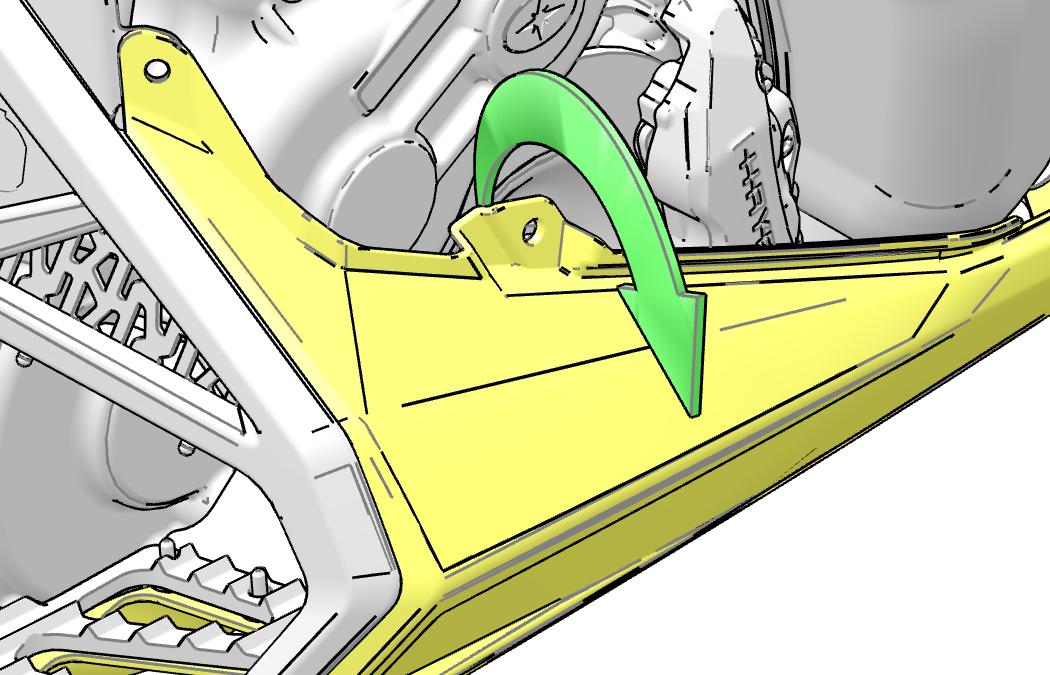

7. Carefully flex the right fender down to gain access to the transmission fill plug.



8. Remove the fill plug and check the fluid level.



9. If fluid level is not even with the bottom threads, add the recommended fluid as needed. Do not overfill.

10. Reinstall the fill plug and torque to specification.

    TORQUE

    Transmission Fill / Drain Plug:

    12 ft-lbs (16 Nm)
