Halogen Brake Light / Taillight
Replacement

To replace the left brake light / taillight:

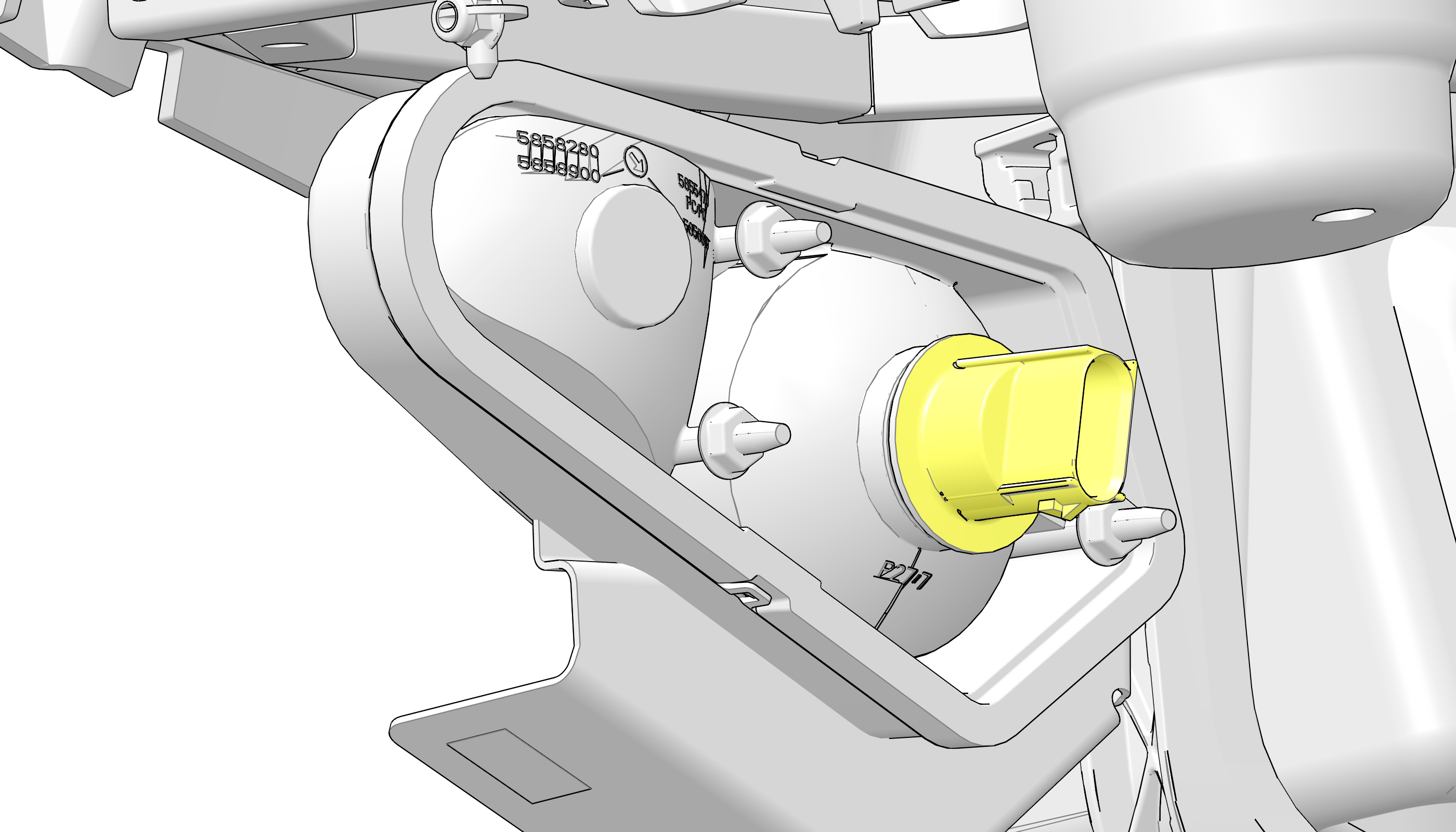

  1. Remove the harness connector from the back of the light assembly.

  2. Remove the three fasteners securing the light assembly and remove the light assembly.

  3. Install the new light assembly and tighten the three fasteners to secure the light assembly.

  4. Reinstall the harness connector. Test the light for proper operation

To replace the right brake light / taillight:

  1. Remove the heat shield covering the light assembly.

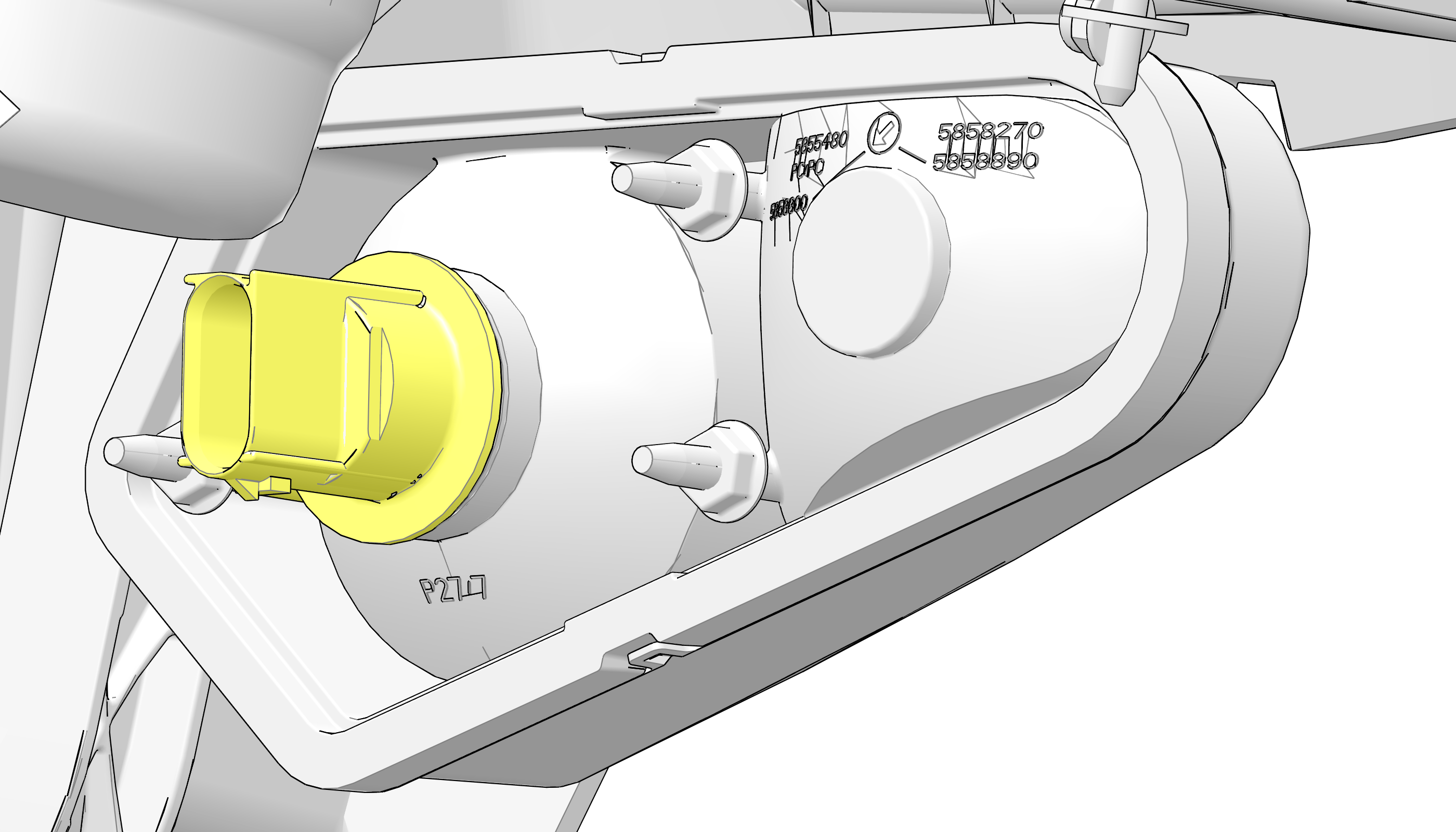

  2. Remove the harness connector from the back of the light assembly.

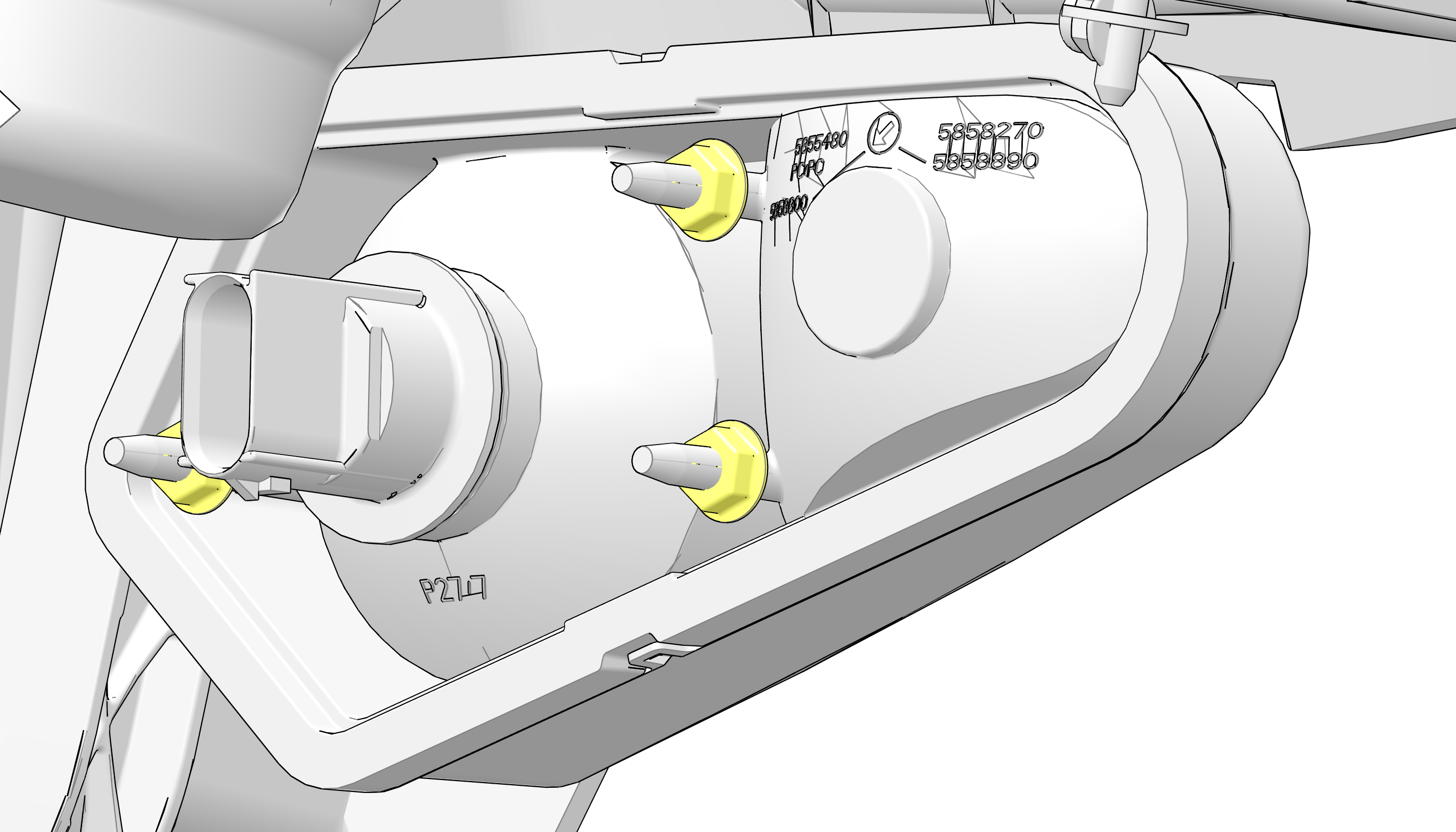

  3. Remove the three fasteners securing the light assembly, and then remove the assembly.

  4. Install the new light assembly, then re-affix and tighten the three fasteners.

  5. Reinstall the harness connector.

  6. Reinstall the heat shield.

  7. Test the light for proper operation.
