IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Options Menu

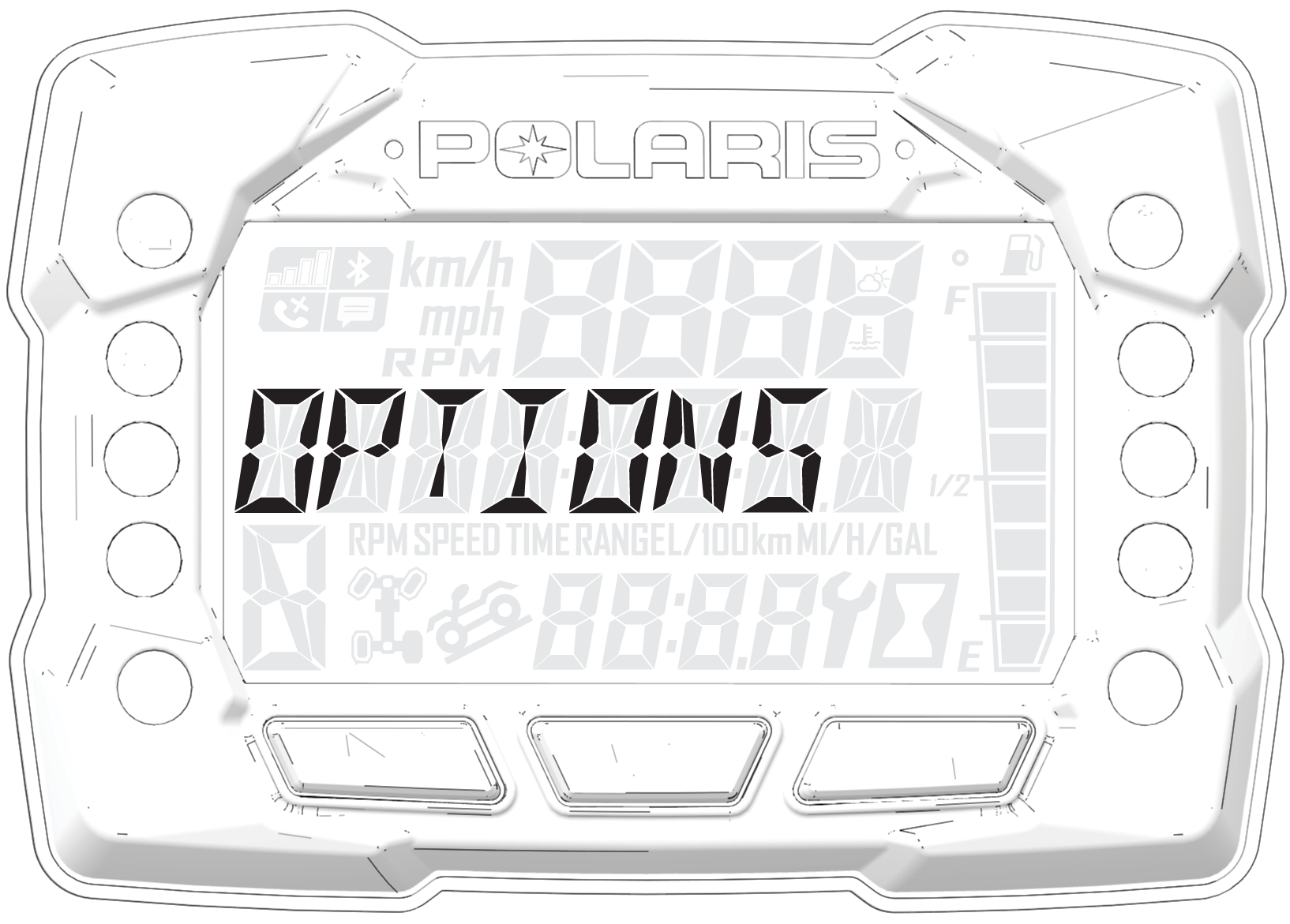

From the Options Menu, you can view diagnostic codes, view and set the service hours, set the clock, and much more. For a full list of available options, see below.

To enter the Options Menu, press and hold the MODE button.

Options Menu Notes

Diagnostic Codes

Only displays if fault codes are present or stored.

Units - Distance

Select MPH or KPH.

Units - Temp

Select between °F and °C.

Clock (if equipped)

Select between 12H or 24H and set time.

Backlight Color

Select between Blue or Red.

Backlight Level

Set backlight brightness level.

Service Hours

View / set service hours.

Exit Menu

Exit.

In this section:

  1. Diagnostic Code
  2. Unit Selection Distance
  3. Unit Selection Temperature
  4. Clock (If Equipped)
  5. Back Light Color
  6. Back Light Level
  7. Service Hours
Parent topic: Instrument Cluster
