Front Rack / Storage Compartment

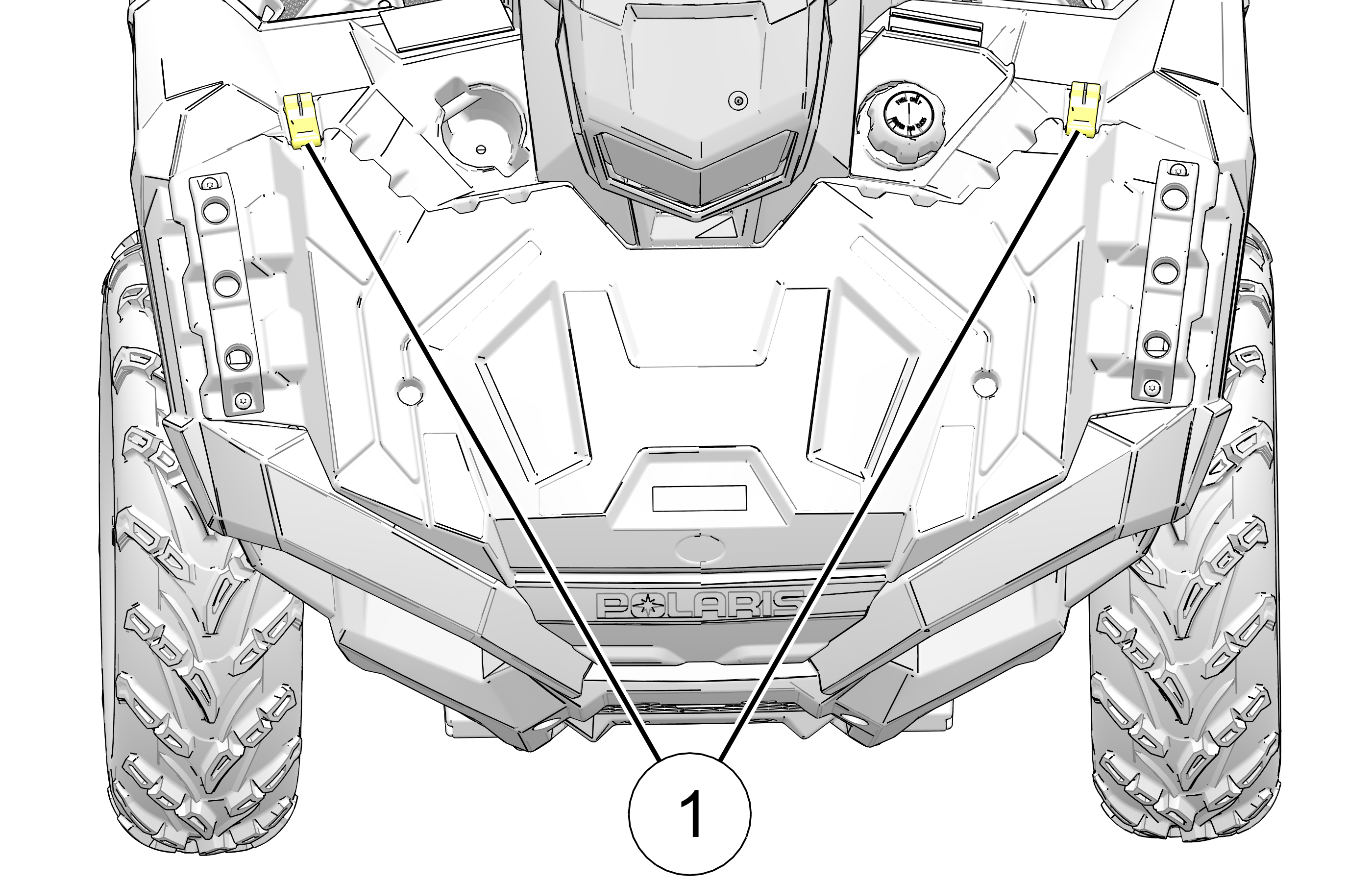

Your model is equipped with a front storage compartment. To access the components within, unlock the latches 1 on each side of the front rack and open the front rack. Rotate the two quarter-turn fasteners and lift the compartment out of the vehicle. Then remove the Tuflock fastener and two screws securing the front cover to the vehicle.

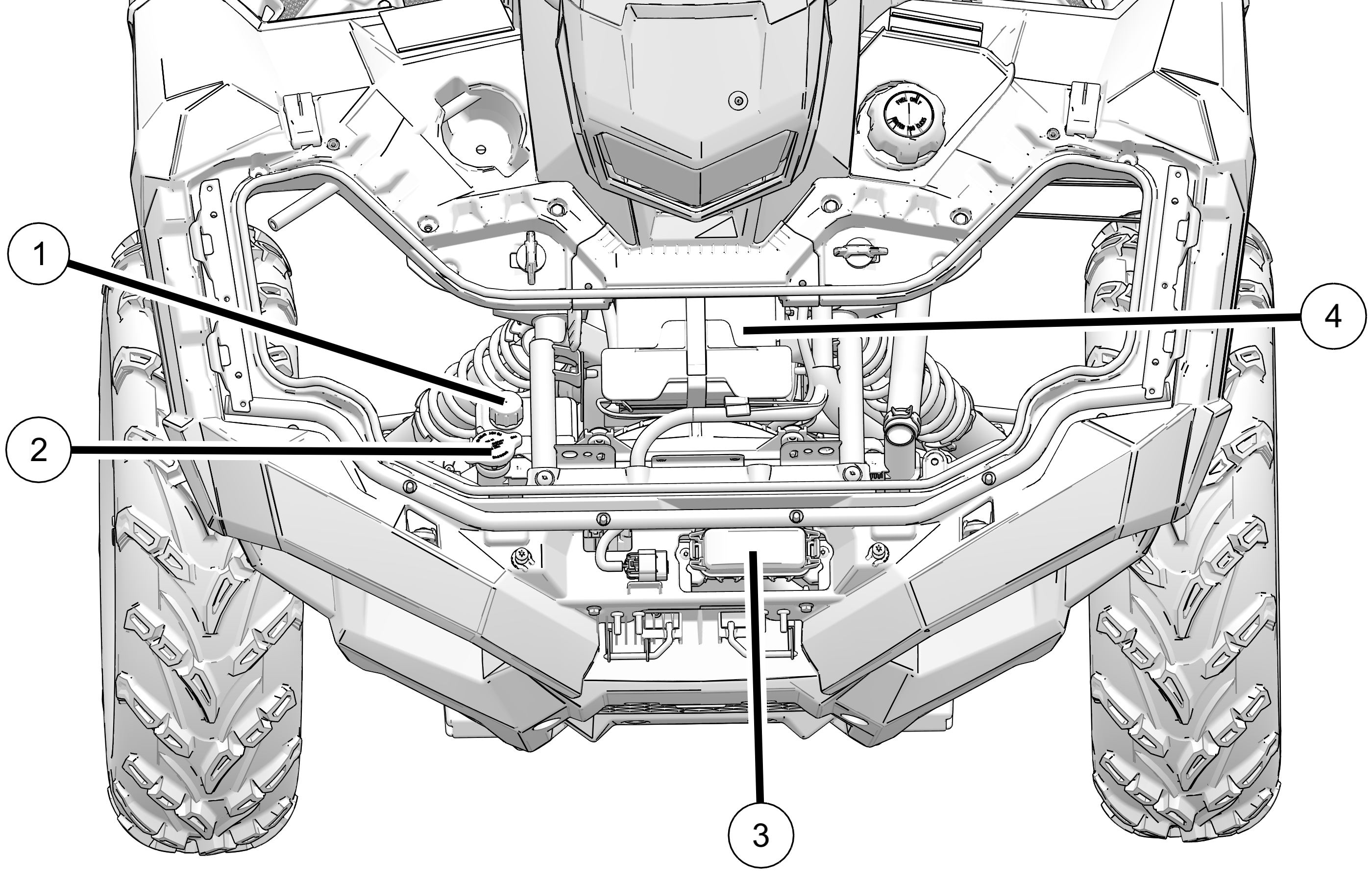

  • 1 Coolant Bottle Cap

  • 2 Radiator Cap

  • 3 Electrical / Fuse / Relay

  • 4 Battery
