Component Locations

  • 1 Brake Lever

  • 2 Exhaust

  • 3 Brake System

  • 4 Tunnel

  • 5 Ski Loop

  • 6 Spindle

  • 7 Ski

  • 8 Ski Skags

  • 9 Drive Chain

  • 10 Chain Case or QDT

  • 11 Front Track Shock

  • 12 Track

  • 13 Rear Track Shock

  • 14 Rail

  • 15 Track Tensioning Block

Chain Case Components

  • 16 Jack Shaft

  • 17 Chain Slider/Tensioning Bolt

  • 18 Chain Case Chain

  • 19 Drive Shaft

  • 20 Chain Pin

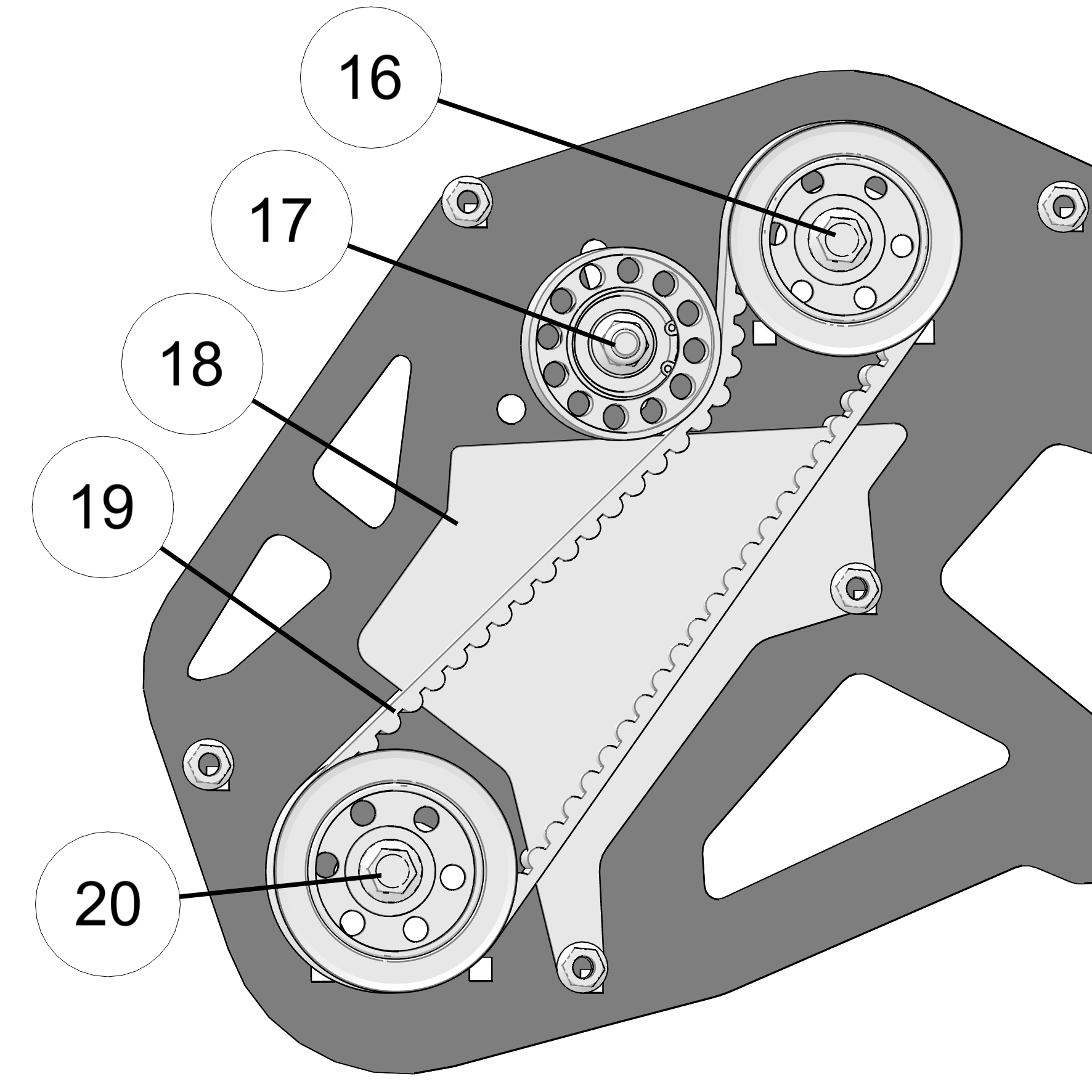

QDT Components

  • 16 22T Sprocket

  • 17 QDT Pulley Assembly

  • 18 QDT Cover Plate

  • 19 QDT Belt

  • 20 23T Sprocket
