Fuses

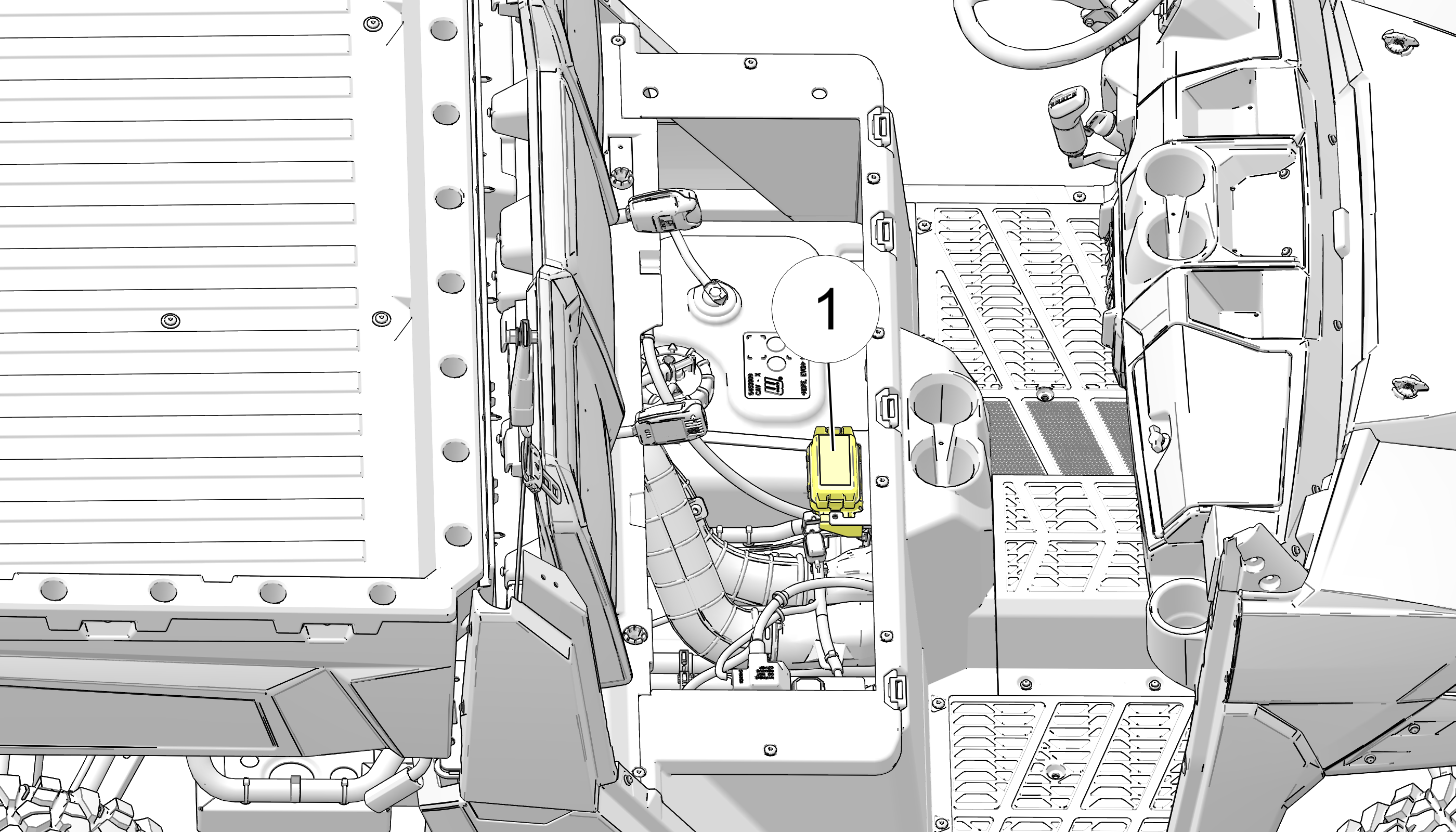

If the engine stops or will not start, or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse. The fuse box is located under the seat 1. Spare fuses are provided in the fuse box.
If you suspect that a fuse or relay may not be working properly, your dealer can assist.
| Fuse Size | Feature Supported |
|---|---|
| 70A | Glow Plug Relay |
| 40A | Glow Plugs |
| 30A | Starter Solenoid (4000 models) |
| 30A | EPS |
| 20A | Starter Solenoid (2000 models) |
| 20A | Chassis |
| 20A | Accessories |
| 15A | Lights |
| 15A | EFI (Engine Controller) |
| 10A | Charge Receptacle |
| 10A | Horn |
| 10A | Brakes |
| 10A | Fuel Pump |
| 10A | Alternator |
| 10A | Drive Mode |
