Fuel Filter / Water Separator Replacement

  1. Be sure engine is at room temperature.

  2. Remove seat.

  3. Drain fuel filter / water separator. See Fuel Filter / Water Separator.

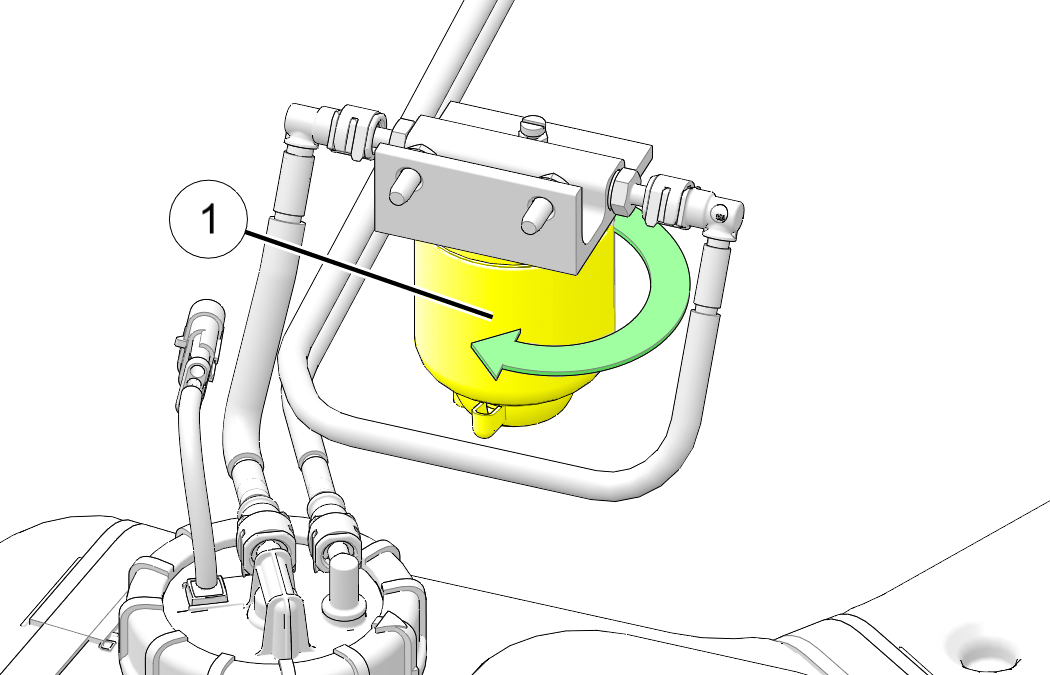

  4. Unscrew fuel filter / water separator 1 from the filter mount using a commercially available filter wrench if not able to remove by hand.

    IMPORTANT

    The filter has standard threads.

  5. Properly drain and dispose of the old fuel filter / water separator.

  6. Lightly lubricate the rubber gasket of the New fuel filter / water separator with fresh engine oil.

    TORQUE

    Fuel Filter / Water Separator:

    Thread onto the mount until the gasket lightly touches the filter housing. Tighten an additional 1/2–3/4 turn.

    IMPORTANT

    Ensure the drain valve on the bottom of the filter is snug and did not loosen up during filter installation.

  7. Clean up any excess fuel.

  8. Reconnect battery.

  9. Prime fuel system by turning ignition to “ON” position for 10–15 seconds.

  10. Start engine and verify that no fuel leaks are present.

  11. Reinstall seat.
