Brake Fluid Level

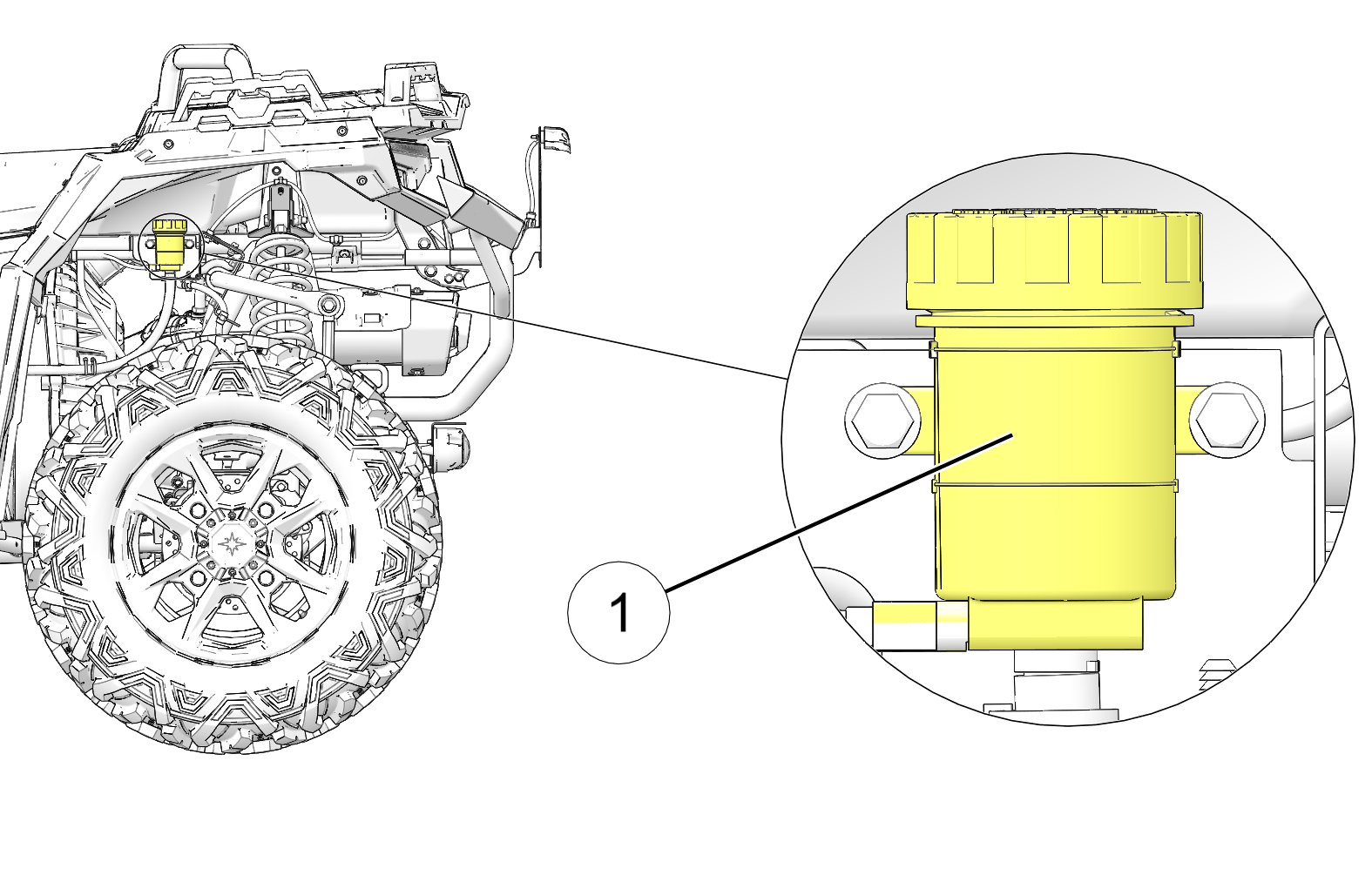

Check the brake fluid level frequently for the auxiliary brake system. The reservoir 1 is located under the left rear fender.
NOTICE
Image is for reference only. Your model might
differ slightly.
Maintain the fluid level between the minimum and maximum marks on the reservoir. If the fluid level reaches below the minimum level mark, a red Brake Warning Light will display on the gauge, suggesting that there could be a leak within the brake system. The Brake Warning Light will automatically shut off once fluid is added to the reservoir and the level is above the minimum mark. Use DOT 4 brake fluid only.
