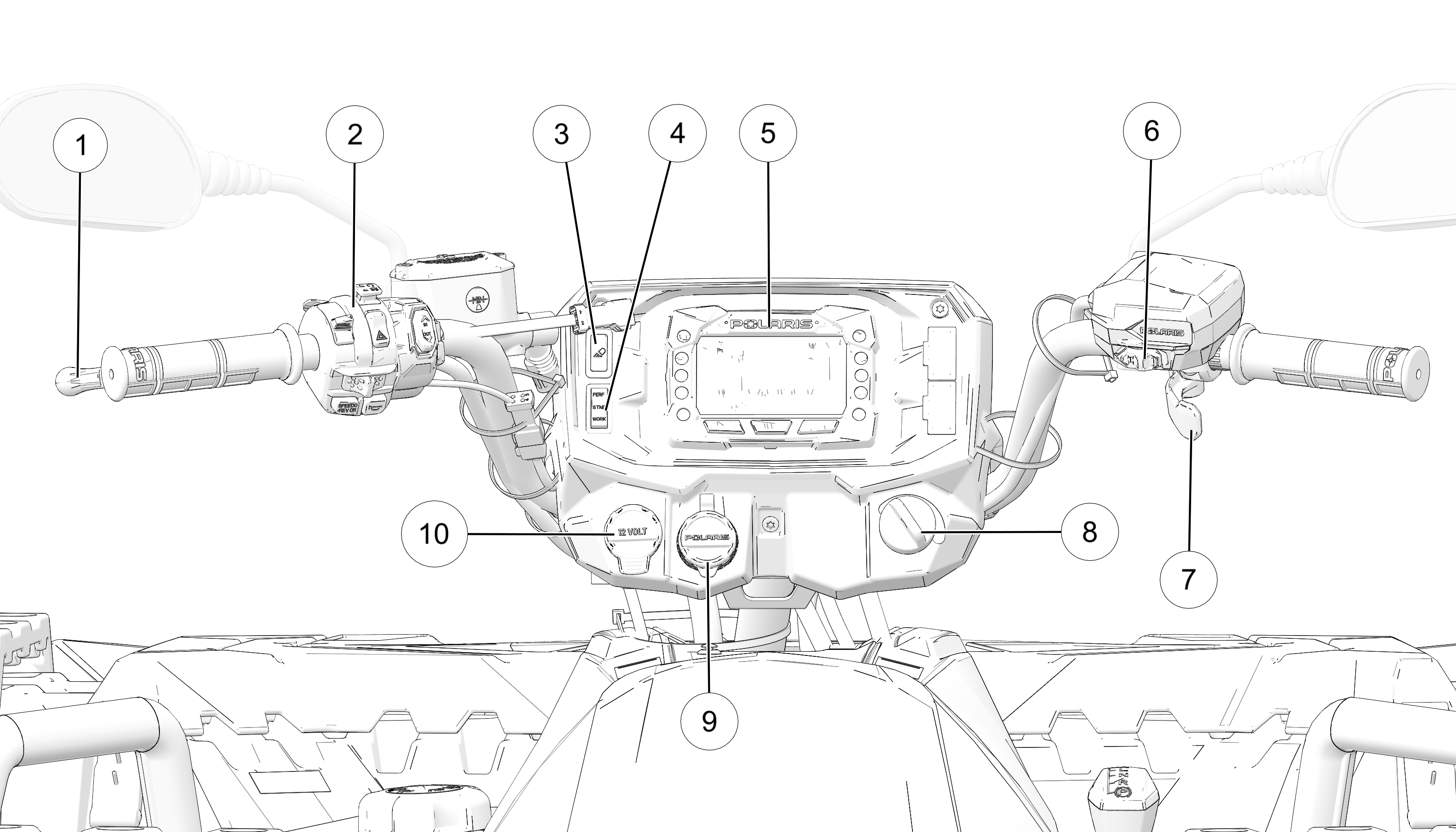

Overview

NOTICE
Image is for reference only. Your model might differ slightly.

  • 1 Brake Lever

  • 2 Left Hand Controls

  • 3 Work Light Switch (if equipped)

  • 4 Drive Mode Switch

  • 5 Digital Display

  • 6 Driveline Switch

  • 7 Throttle Lever

  • 8 Ignition Switch

  • 9 Battery Charge Port (if equipped)

  • 10 Auxiliary Outlet

In this section:

  1. Left Handlebar Switches
  2. Ignition Switch
  3. Engine Stop Switch
  4. Mode / Reverse Override Switch
  5. Headlight and Momentary High Beam Switch
  6. Turn Signal Switch
  7. Driveline Switch
  8. Winch Switch
  9. Hazard Warning Switch
  10. Horn Switch
  11. Throttle Lever
  12. Auxiliary Outlet
  13. Work Light Switch (if equipped)
  14. Sportsman XP 1000 S Models
  15. Scrambler XP 1000 S Models
