Brake Light / Taillight Replacement

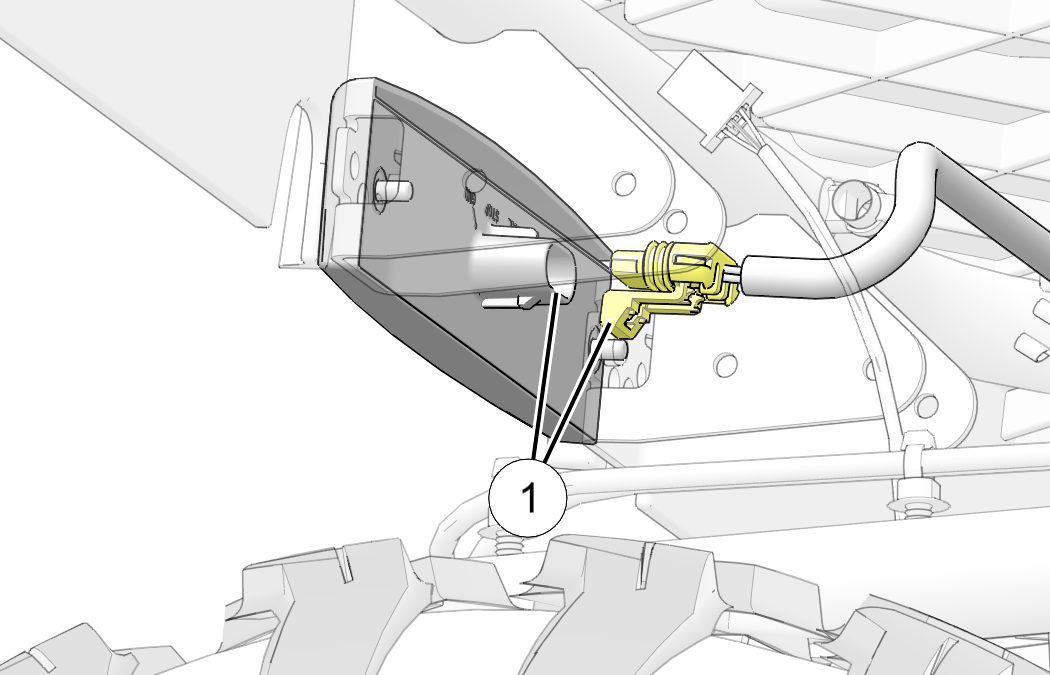

  1. Disconnect the brake light / taillight to harness connection 1.

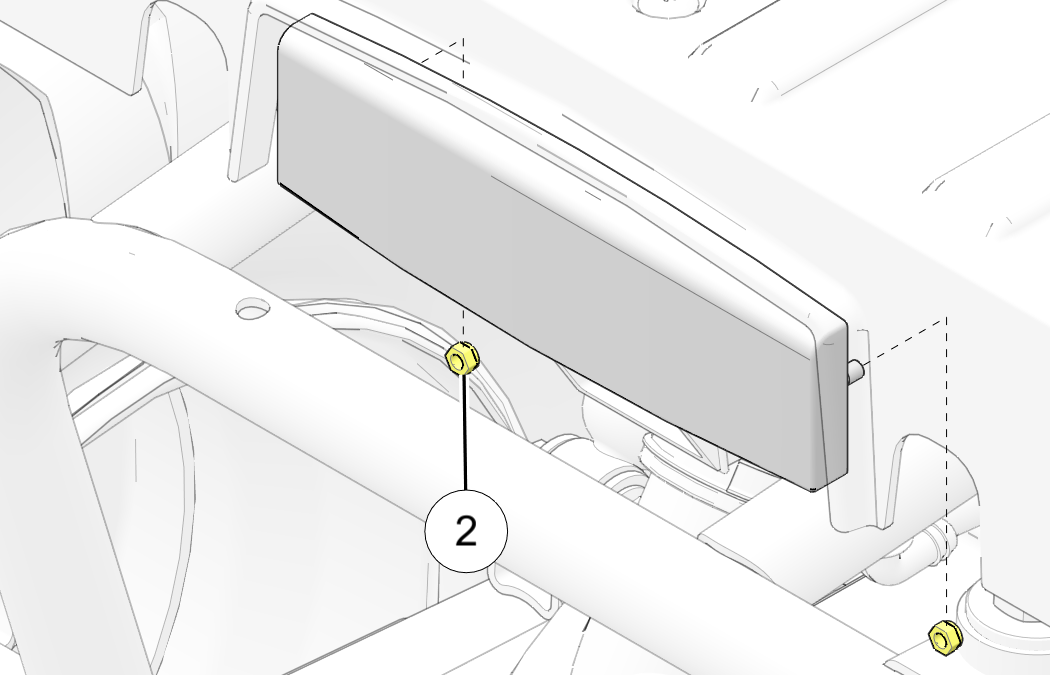

  2. Remove the two nuts 2 retaining the brake light / taillight.

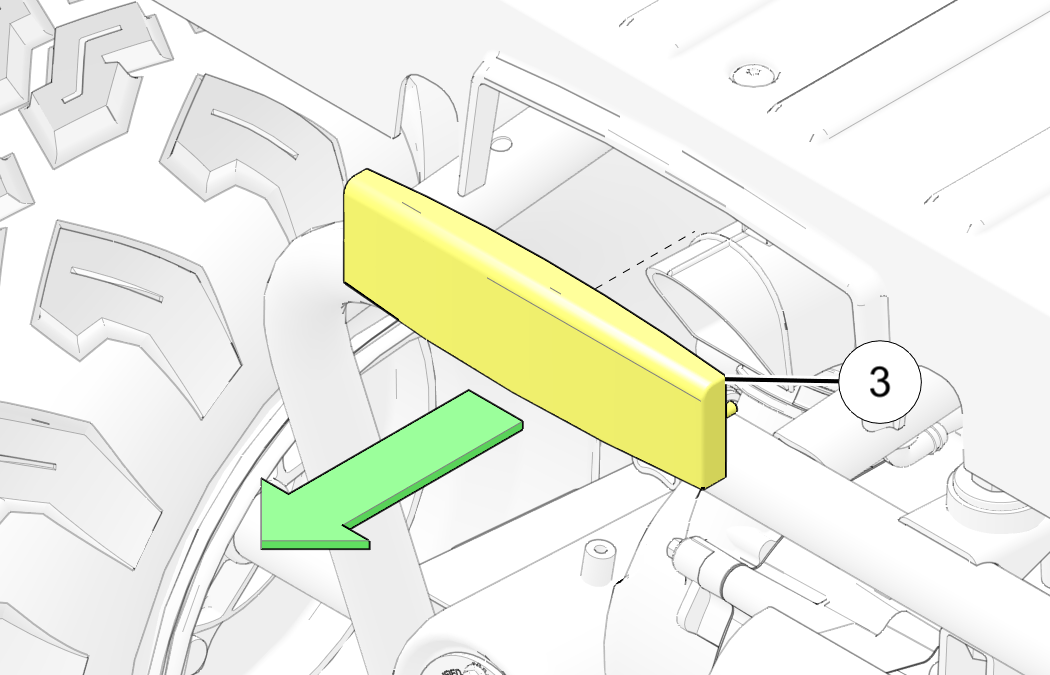

  3. Remove the brake light / taillight 3 from the rear bumper.

  4. Reverse this procedure to reinstall the brake light / taillight. Torque the nuts to specification.

    TORQUE

    Brake Light / Taillight Nuts:

    24 in-lbs (3 N·m)
