Oil Level Check

Maintain the oil level within the safe range on the dipstick. Do NOT overfill.

  1. Position the vehicle on a level surface and shut the engine off.

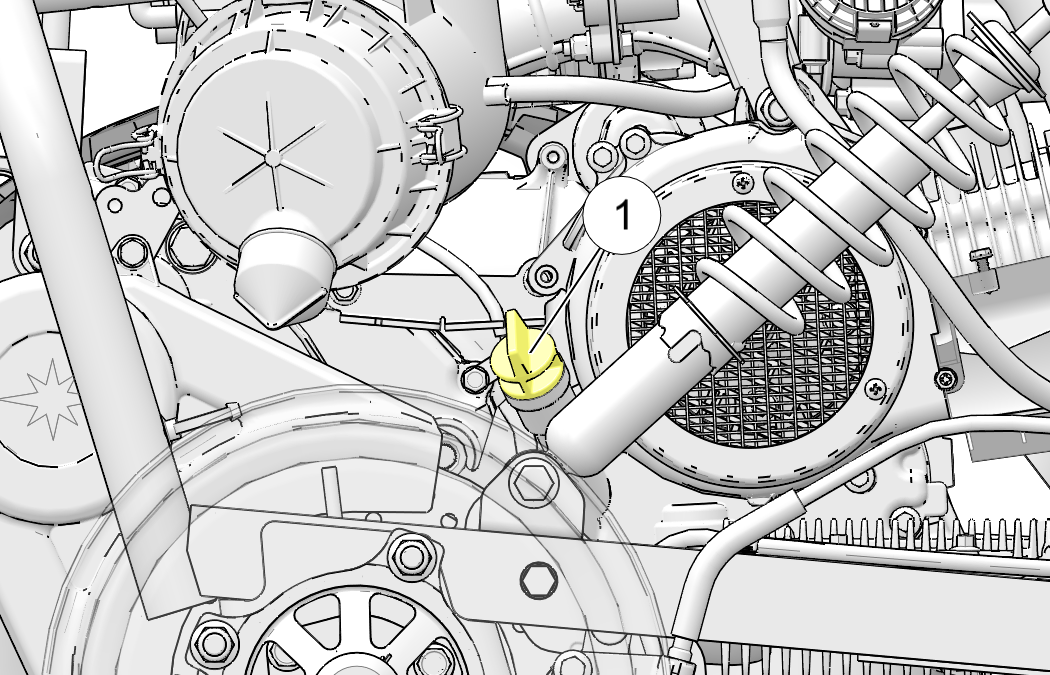

  2. Clean the area around the dipstick 1.

  3. Remove the dipstick. Wipe it dry with a clean cloth.

  4. Install the dipstick and tighten it all of the way to ensure an accurate measurement.

  5. Remove the dipstick and check the oil level.

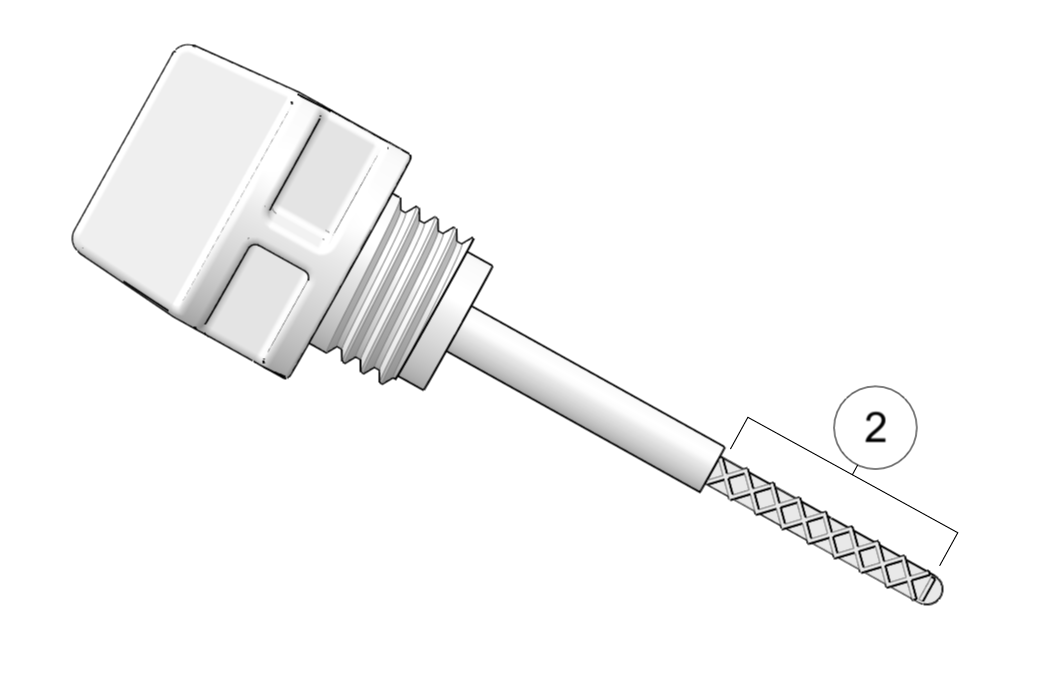

    The oil level should be within the safe range 2 on the dipstick.

  6. Add the recommended oil as needed.

  7. Reinstall the dipstick.

    TIP
    A rising oil level between checks in cool weather driving can indicate contaminants such as gas or moisture collecting in the crankcase. If the oil level is over the full / safe mark, change the oil immediately.
