Brake Light / Taillight Replacement

  1. Disconnect the main harness from the back of the brake light / taillight.

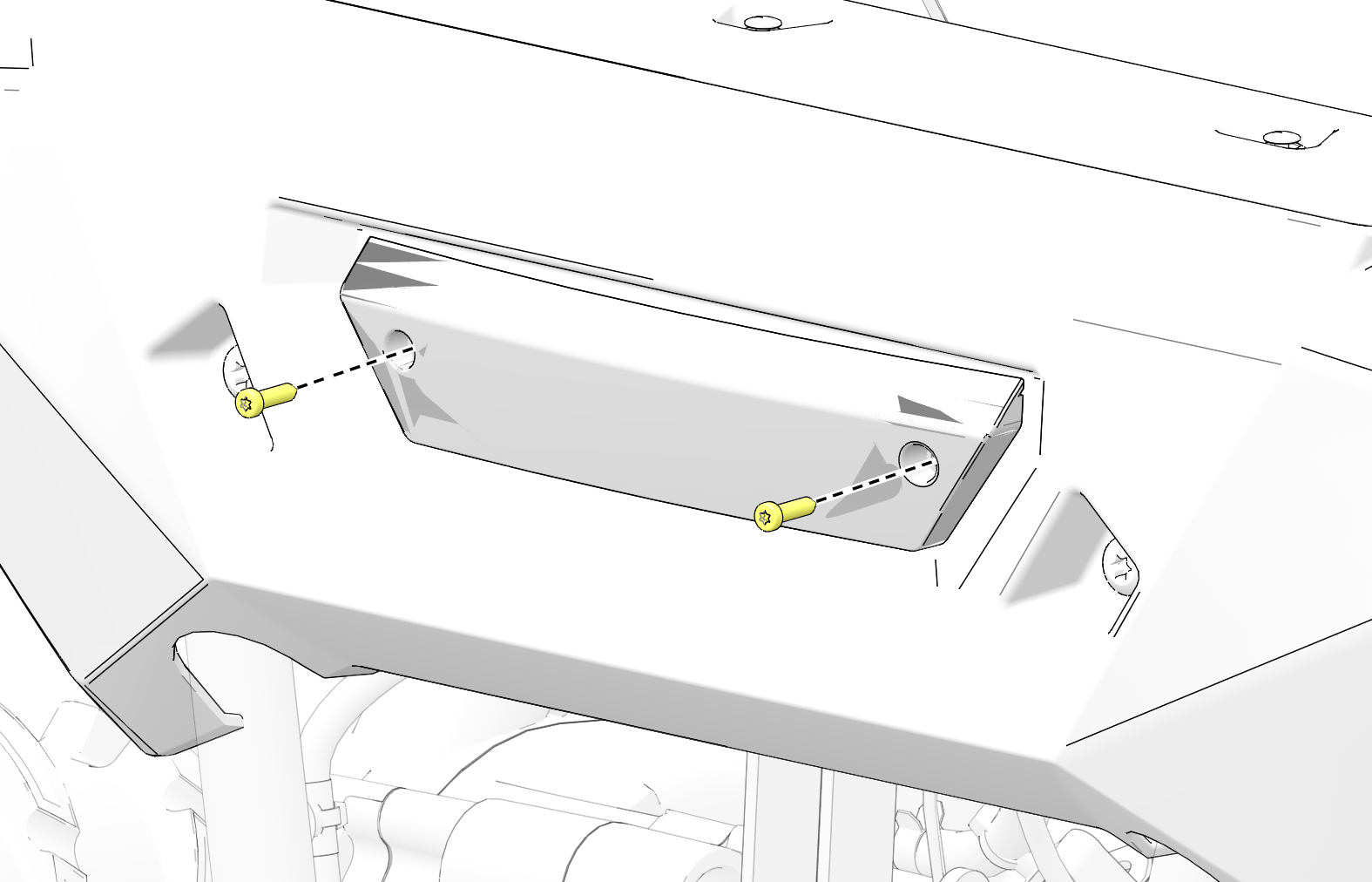

  2. Remove the two brake light / taillight fasteners.

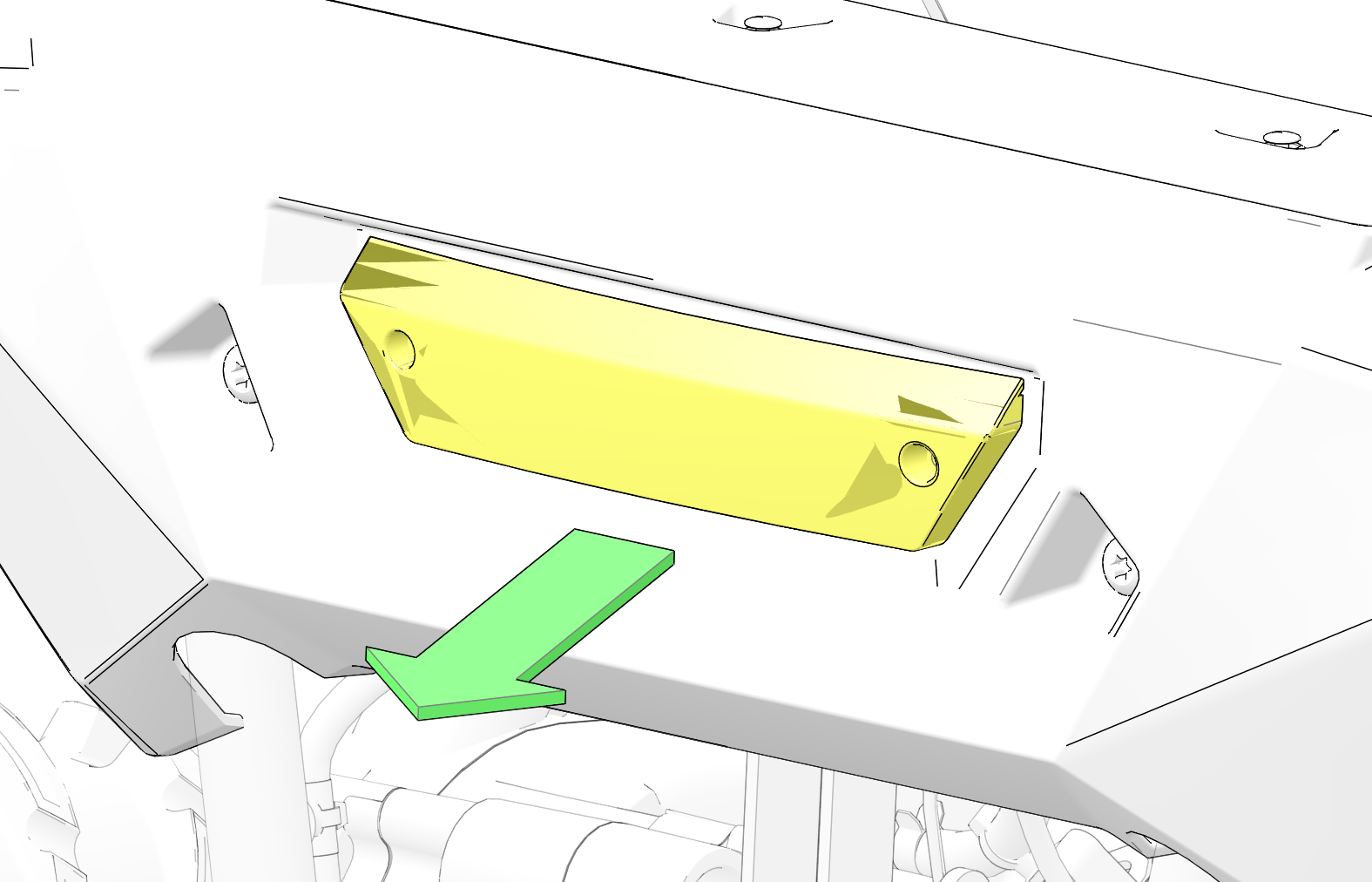

  3. Remove the brake light / taillight from the rear fascia.

  4. Reverse this procedure to reinstall the brake light / taillight. Torque the fasteners to specification.

    TORQUE

    Brake Light / Taillight Fasteners:

    18 in-lbs (2 N·m)
