Spark Plug

Spark Plug Removal and Replacement

WARNING
A hot exhaust system and engine can cause burns. Wear protective gloves when removing a spark plug for inspection.

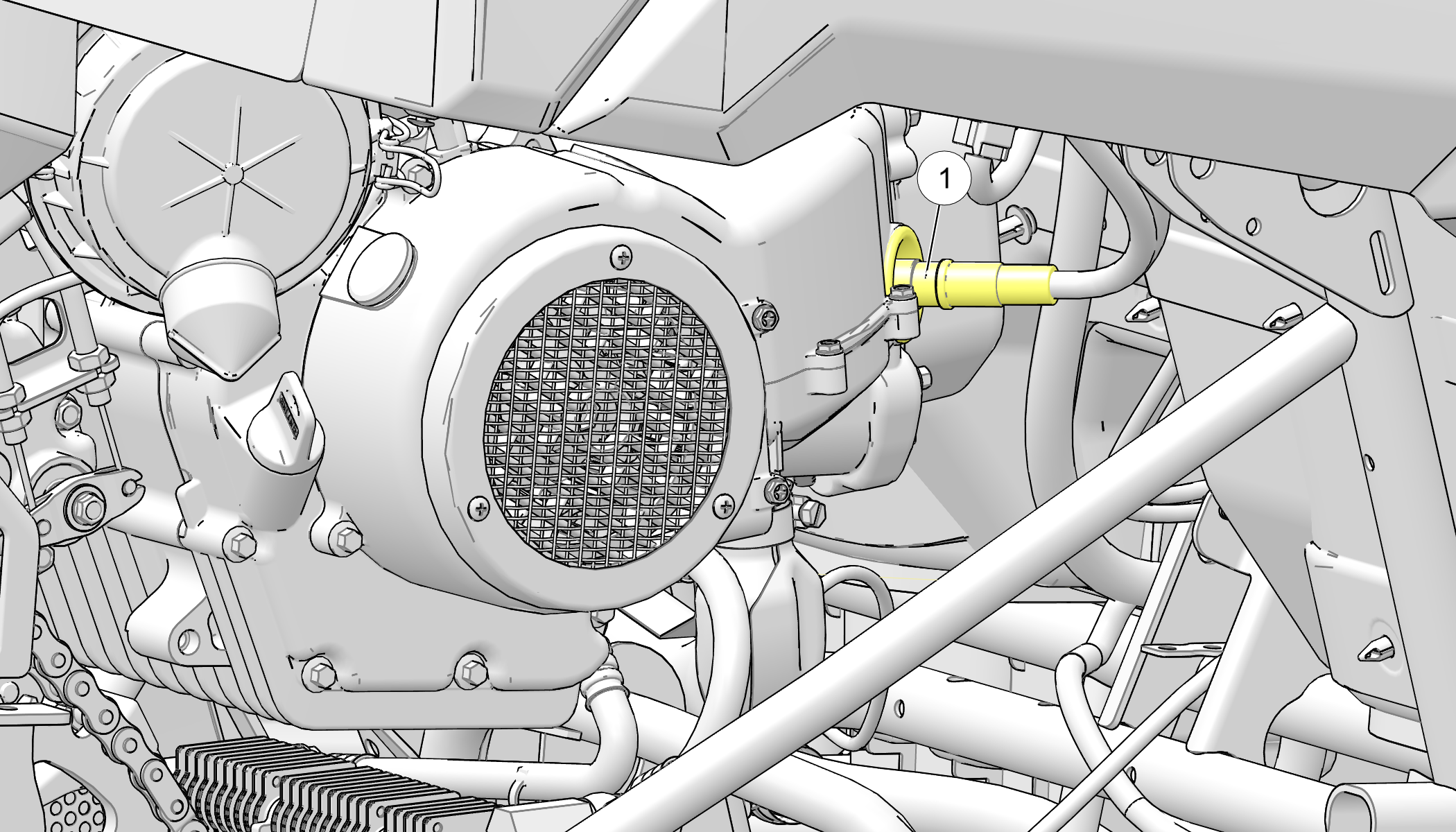

  1. Remove the spark plug cap 1.

  2. Using the spark plug wrench provided in the tool kit, remove the plug by rotating it counter-clockwise.

  3. Reverse this procedure to reinstall the spark plug. Torque to specification.

Spark Plug Gap / Torque

Electrode Gap New Plug Torque Used Plug Torque

.024–.028 in (0.6-0.7 mm)

11 ft-lbs (15 N·m)

18 ft-lbs (24 N·m)
NOTICE
Spark plug condition is indicative of engine operation. The spark plug firing end condition should be read after the engine is warmed up and the vehicle is driven at higher speeds. Immediately check the spark plug for correct color.

Spark Plug Condition

Normal Plug
The normal insulator tip is gray, tan or light brown. There will be few combustion deposits. The electrodes are not burned or eroded. This indicates the proper type and heat range for the engine and the service.

TIP
The tip should not be white. A white insulator tip indicates overheating, caused by use of an improper spark plug or incorrect throttle body adjustments.

Wet Fouled Plug
The wet fouled insulator tip is black. A damp oil film covers the firing end. There may be a carbon layer over the entire nose. Generally, the electrodes are not worn. General causes of fouling are excessive oil, use of non-recommended injection oil or incorrect throttle body adjustments.
