Front Gearcase (Angle Drive) Fluid

Always check and change the front gearcase fluid at the intervals outlined in the Polaris Maintenance Schedule.

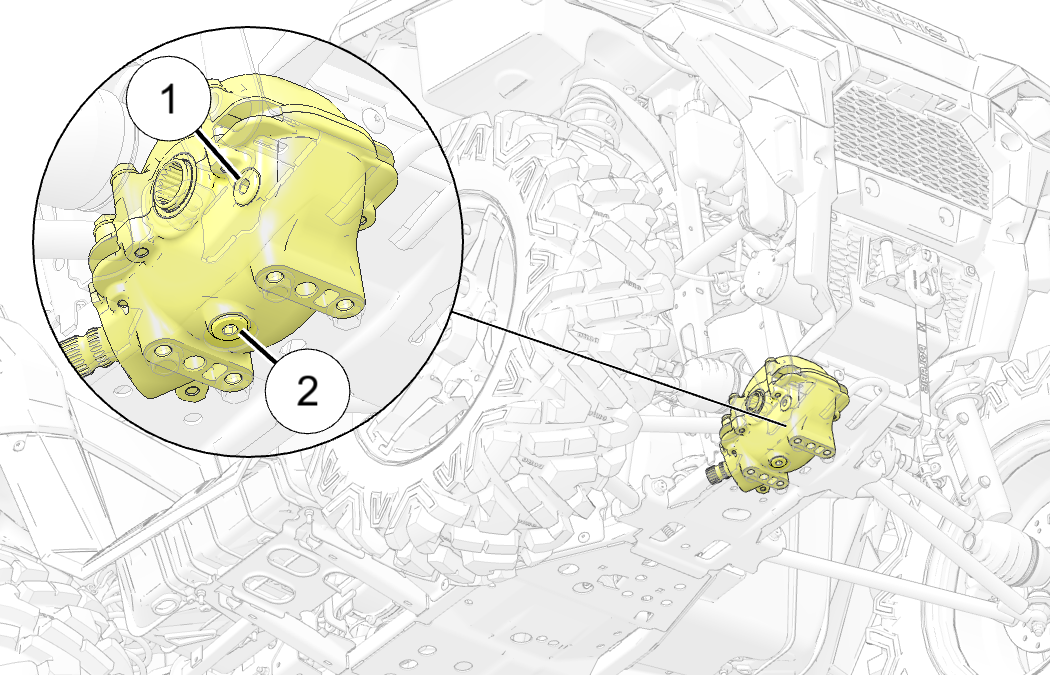

Use the recommended fluid. Use of other fluids may result in improper operation of components. Maintain the fluid level at the bottom of the fill hole threads. The fill plug is located on the right side of the front gearcase. The drain plug is located on the bottom right side of the unit.

FLUID CHECK

  1. Position the vehicle on a level surface. Put the transmission in PARK (P) and lock the temporary brake lock.

  2. Remove the fill plug 1. Check the fluid level, verifying the level reaches the bottom of the fill hole threads.

  3. Slowly add the recommended fluid as needed to bring the level to the bottom of the fill hole threads.

    CAPACITY

    Recommended Lubricant:

    Angle Drive Fluid

    Capacity:

    6.8 oz (200 ml)

  4. Reinstall the fill plug. Torque to specification.

    TORQUE

    Fill Plug:

    18 ft-lbs (25 N·m)

FLUID CHANGE

  1. Position the vehicle on a level surface. Put the transmission in PARK (P) and lock the temporary brake lock.

  2. Remove the fill plug.

  3. Place a drain pan under the demand drive unit. Remove the drain plug 2. Allow the fluid to drain completely.

  4. Clean and reinstall the drain plug. Torque to specification.

  5. Add the proper amount of the recommended fluid. Ensure the fluid reaches the bottom of the fill hole threads.

  6. Reinstall the fill plug. Torque to specification.

  7. Check for leaks.

  8. Dispose of used fluid properly.

    TORQUE

    Drain Plug:

    18 ft-lbs (25 N·m)
