Drive Belt Installation

  1. Clean the inside of the PVT covers thoroughly. Inspect the PVT inlet and outlet ducts and remove all debris.

    WARNING
    Failure to remove all debris when replacing the belt could result in vehicle damage, loss of control, and severe injury or death.
    IMPORTANT

    Orient the belt as it was removed or orient the new belt so that you can read the text.

  2. Loop the belt over the drive clutch and begin to walk it over the driven clutch sheave.

    NOTICE

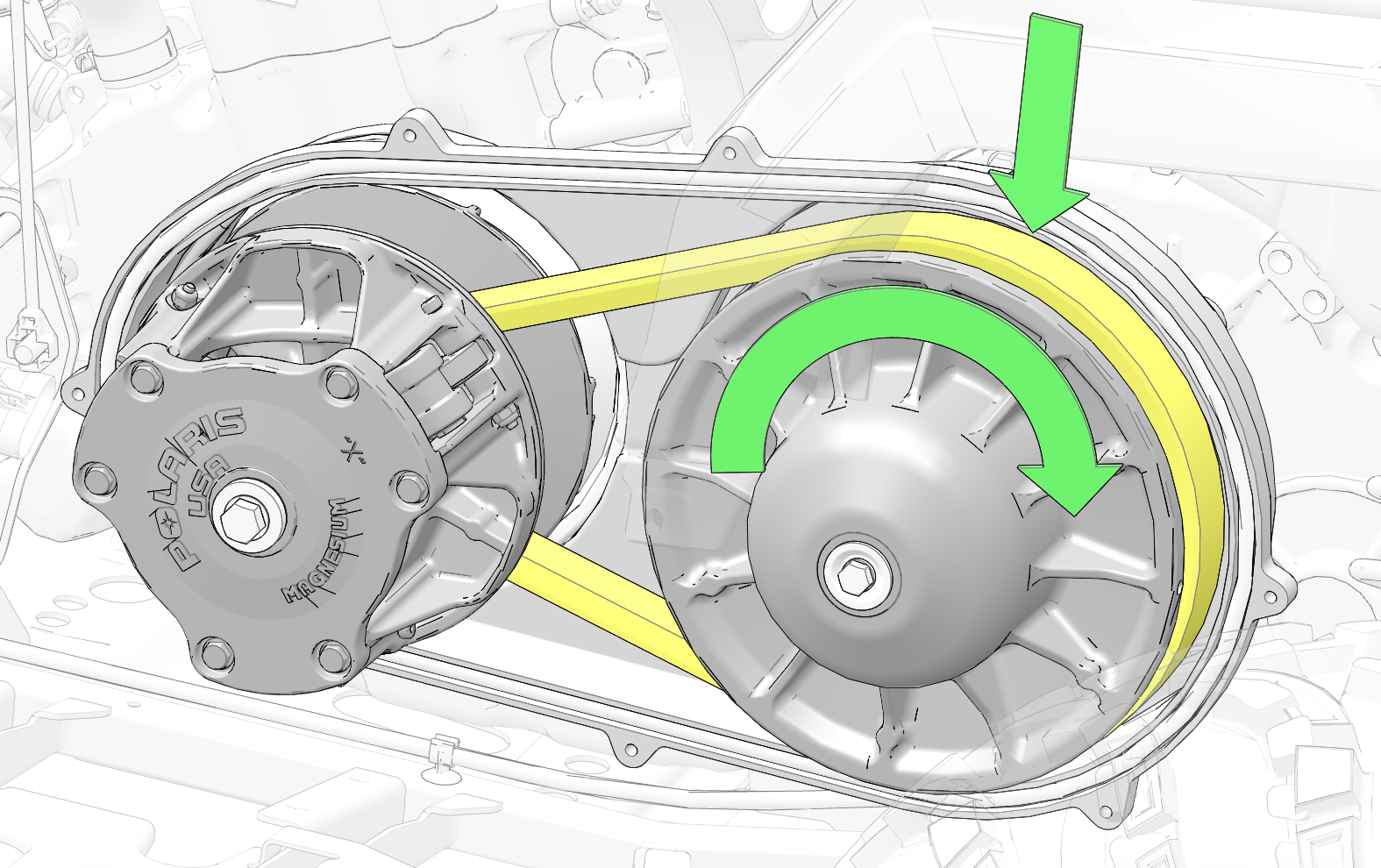

    The belt might curl up around the bottom of the driven clutch sheave. If this occurs, push the bottom of the belt down when needed to aid installation.

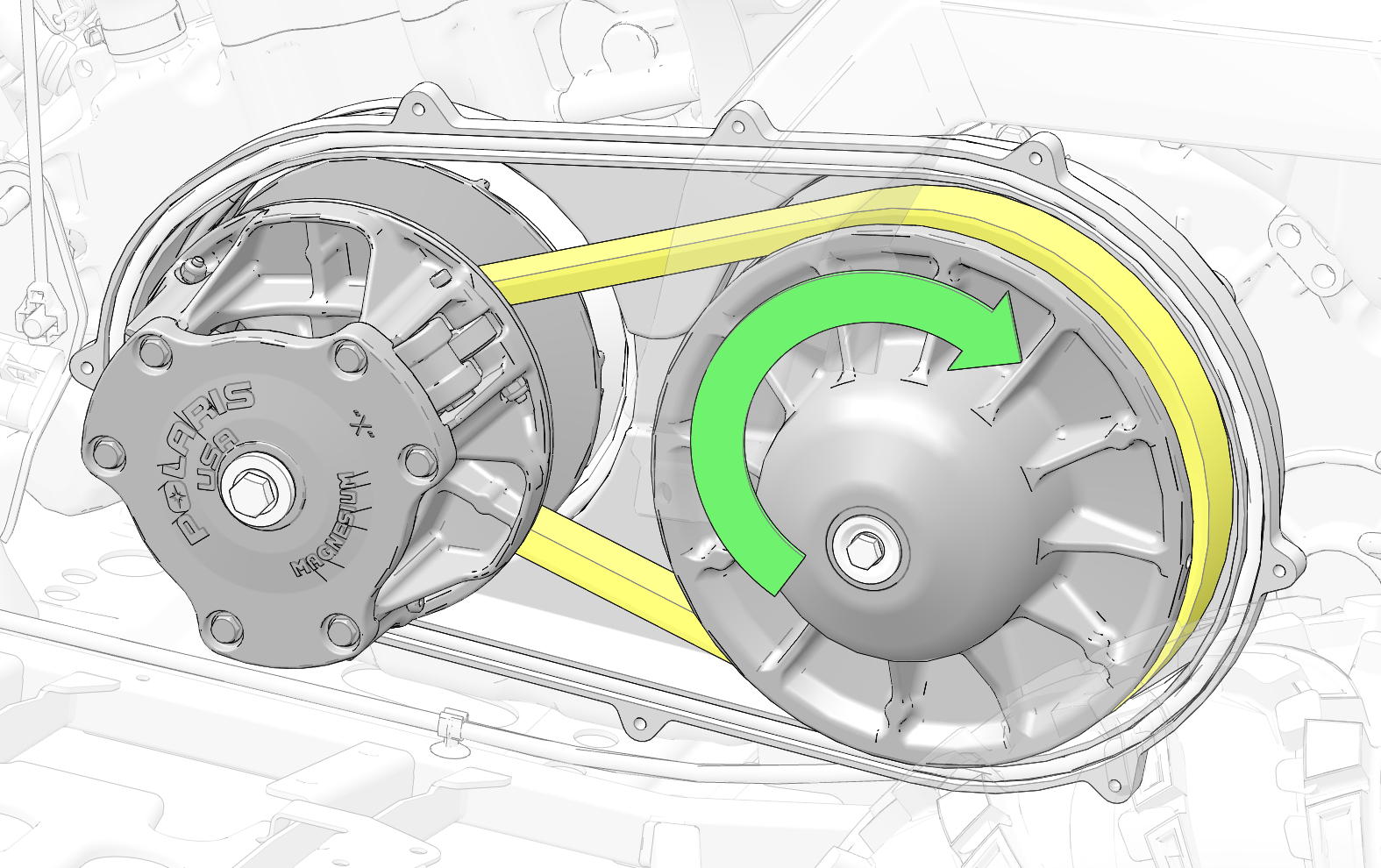

  3. Rotate / spin the driven clutch and belt approximately 5-7 times clockwise to properly seat the belt into the driven clutch.

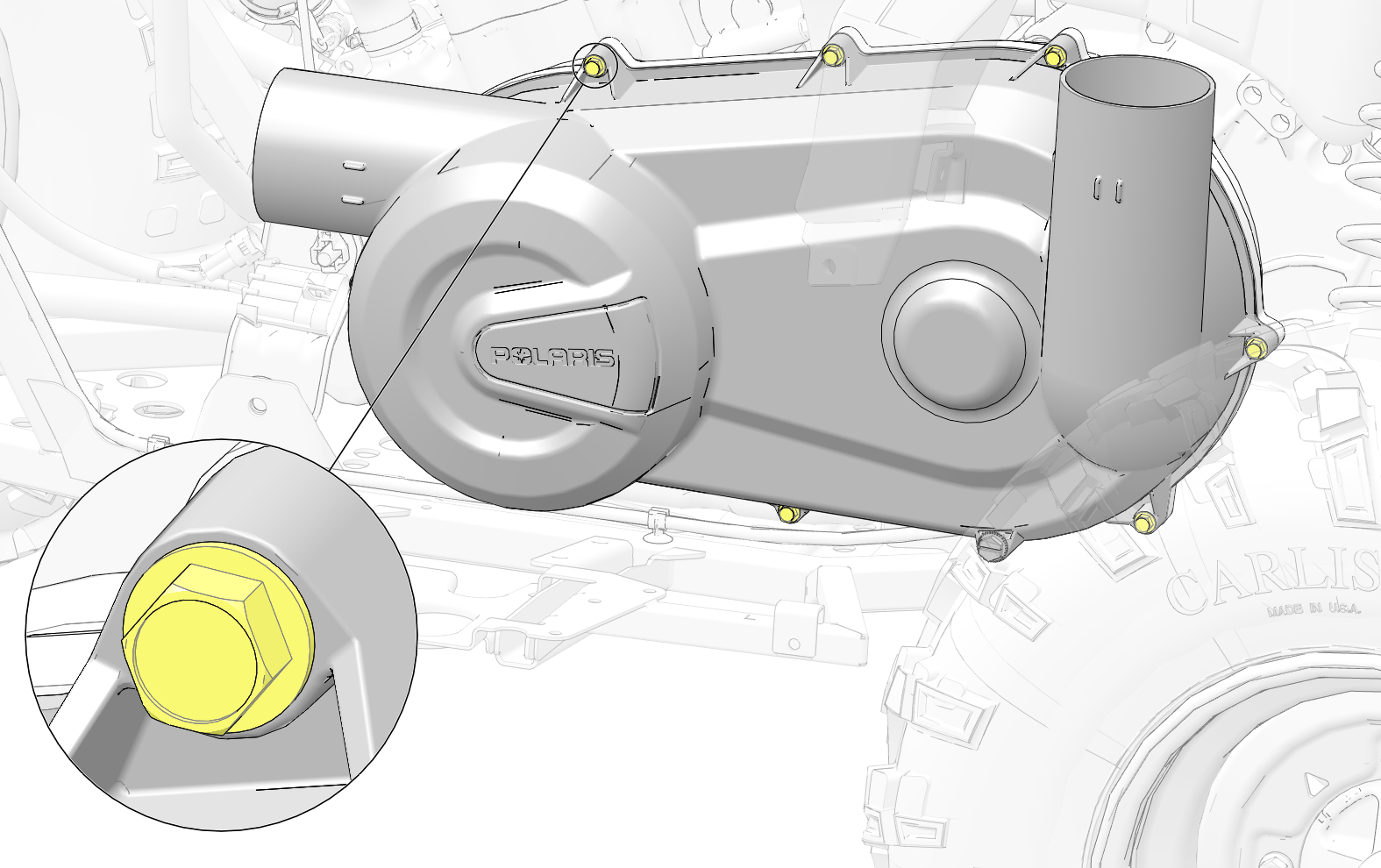

  4. Install the outer PVT cover and 8 fasteners. Torque fasteners to specification.

    TORQUE

    Outer PVT Cover Fasteners:

    44 in-lbs (5 N·m)

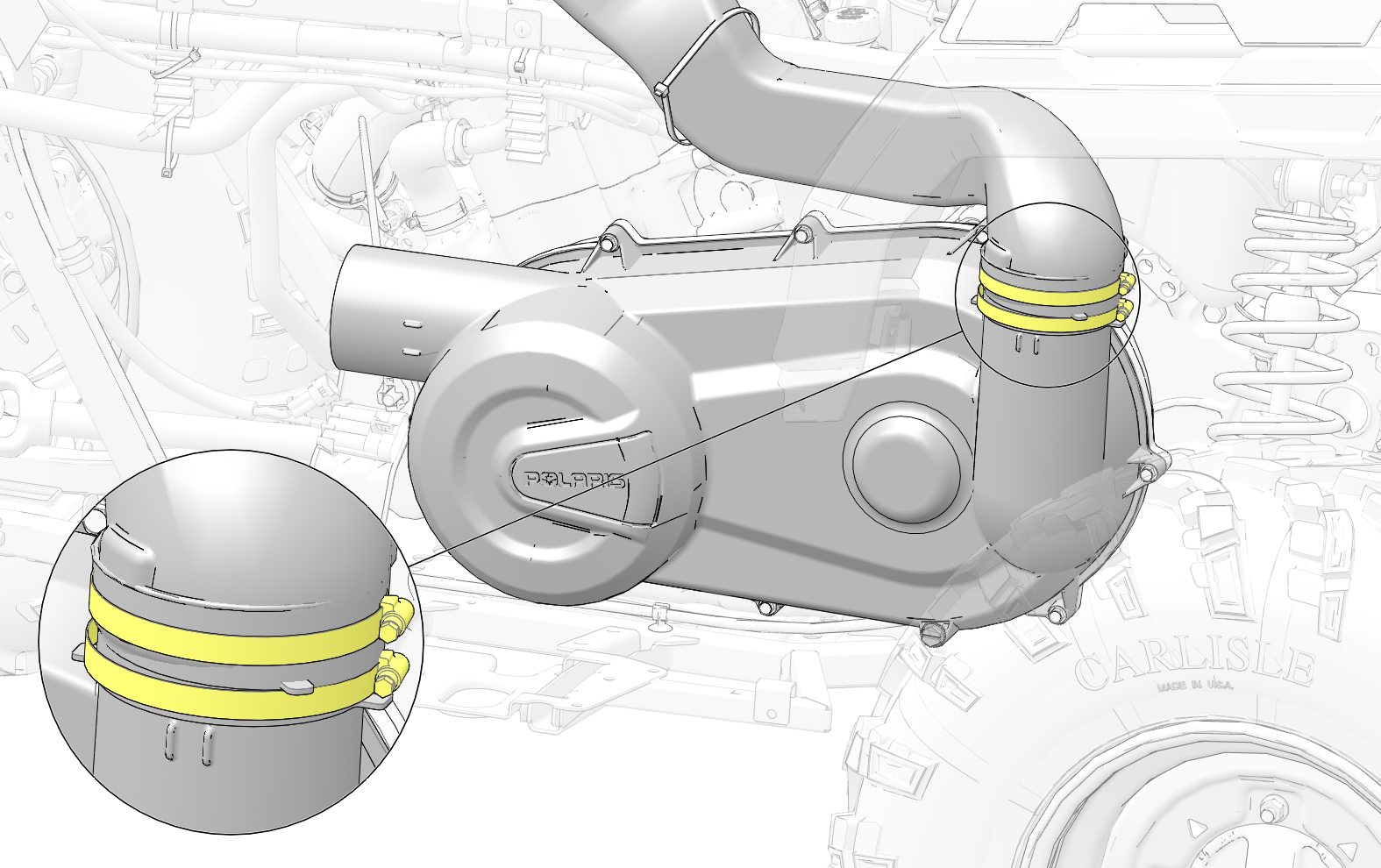

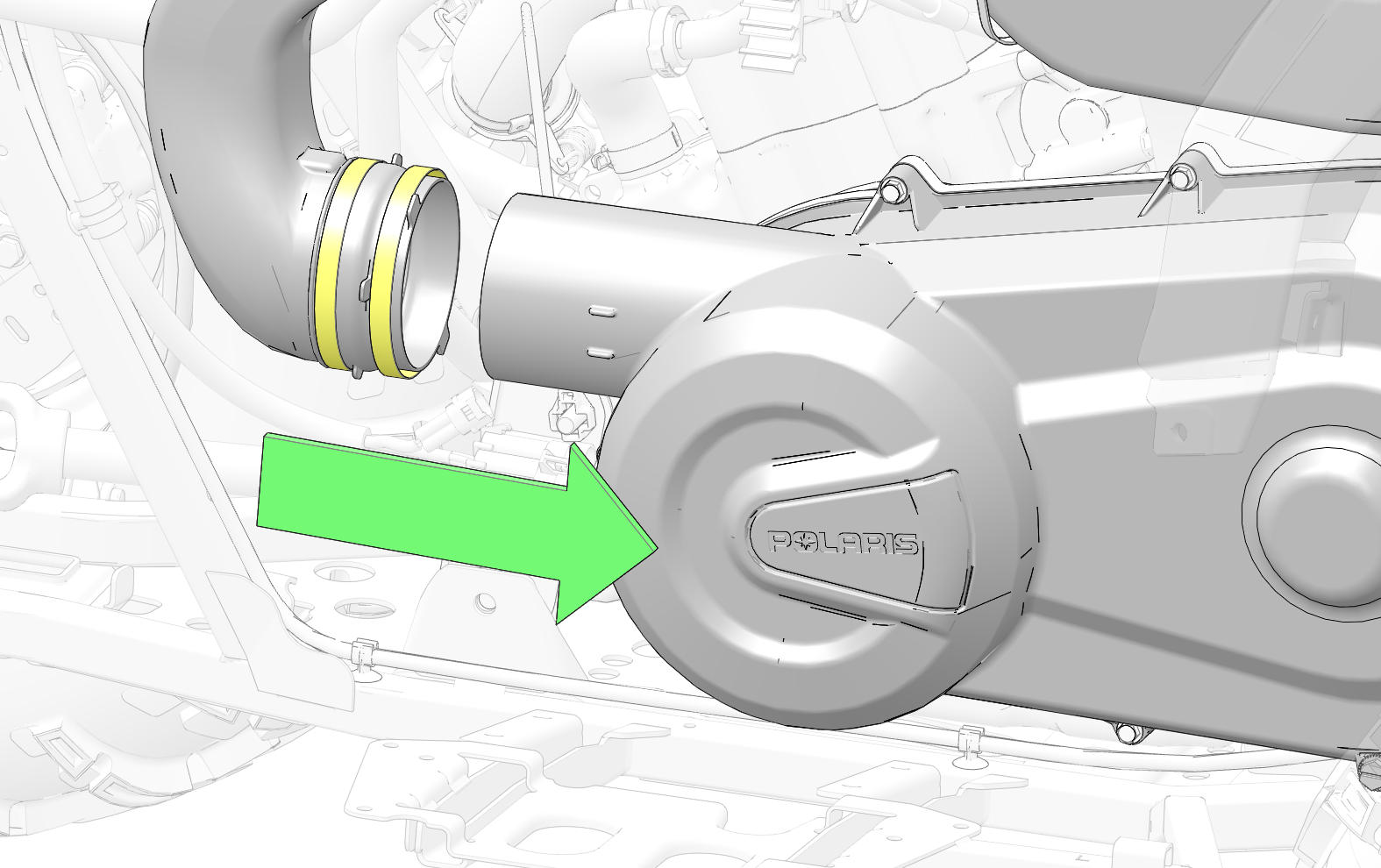

  5. Install the PVT outlet duct and clamps.

  6. Install the PVT inlet duct and clamps.

  7. Torque the PVT inlet and outlet duct clamps to specification.

    TORQUE

    Inlet / Outlet Duct Clamps:

    20 in-lbs (2 N·m)

  8. Install the left side panel / footwell. See Side Panel / Footwell Installation.

  9. Install the seat.

Parent topic: PVT System
