Preload Settings
Adjusting preload settings can alter vehicle handling.
IMPORTANT
Never exceed the MAX allowable preload when
adjusting the suspension. Damage to the suspension system may occur
if the MAX allowable preload is exceeded.
| RZR Pro S | Factory Default Preload Settings | MAX allowable preload | |||
|---|---|---|---|---|---|
| Measurement* | Fox® DYNAMIX | Walker Evans Racing | Fox® DYNAMIX | Walker Evans Racing | |
| Front Shocks | 1 | 3.16 in (8.02 cm) | 0.563 in (1.4 cm) | 4.16 in (10.56 cm) | 1.563 in (4.0 cm) |
| 2 | 2.5 in (6.35 cm) | 2.500 in (6.4 cm) | 2.5 in (6.35 cm) | 2.500 in (6.4 cm) | |
| Rear Shocks | 1 | 6.06 in (15.39 cm) | 1.685 in (4.3 cm) | 7.06 in (17.93 cm) | 2.685 in (6.8 cm) |
| 2 | 5.13 in (13.03 cm) | 3.750 in (9.5 cm) | 5.13 in (13.03 cm) | 3.750 in (9.5 cm) | |
|
*See the images in the Front / Rear Spring Preload Adjustment section to view corresponding preload measurement locations |
|||||
| RZR Pro S 4 | Factory Default Preload Settings | MAX allowable preload | |||
|---|---|---|---|---|---|
| Measurement* | Fox® DYNAMIX | Walker Evans Racing | Fox® DYNAMIX | Walker Evans Racing | |
| Front Shocks | 1 | 1.15 in (2.92 cm) | 1.382 in (3.5 cm) | 2.15 in (5.46 cm) | 2.382 in (6.1 cm) |
| 2 | 3.56 in (9.04 cm) | 3.000 in (7.6 cm) | 3.56 in (9.04 cm) | 3.000 in (7.6 cm) | |
| Rear Shocks | 1 | 7.20 in (18.28 cm) | 1.375 in (3.5 cm) | 8.20 in (46.43 cm) | 2.375 in (6.0 cm) |
| 2 | 3.38 in (8.58 cm) | 4.375 in (11.1 cm) | 3.38 in (8.58 cm) | 4.375 in (11.1 cm) | |
|
*See the images in the Front / Rear Spring Preload Adjustment section to view corresponding preload measurement locations |
|||||

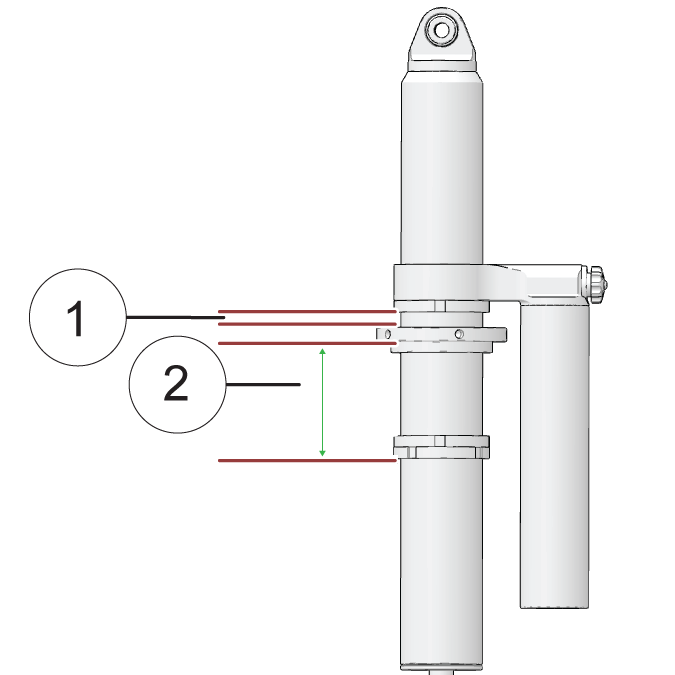

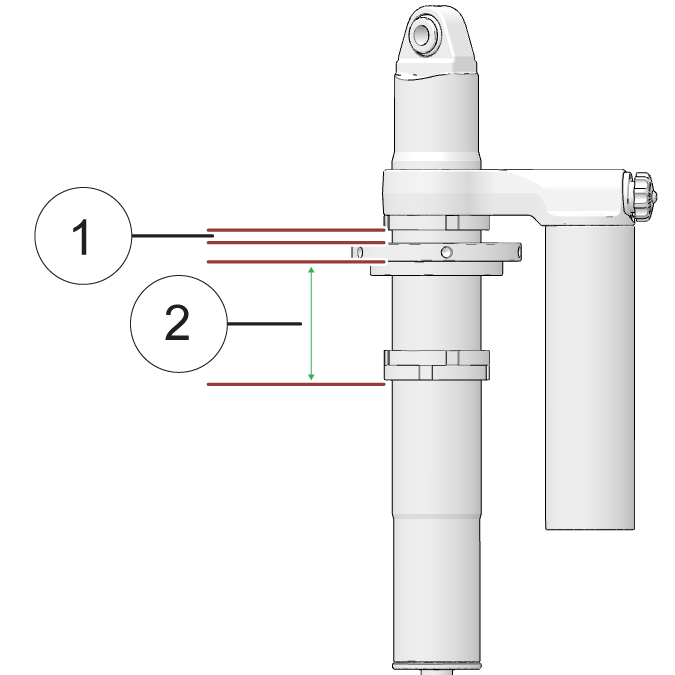

Fox® Shocks (if equipped)
| Shock Location | Measurement* |
|---|---|
| Front Shock |  |
| Rear Shock |  |

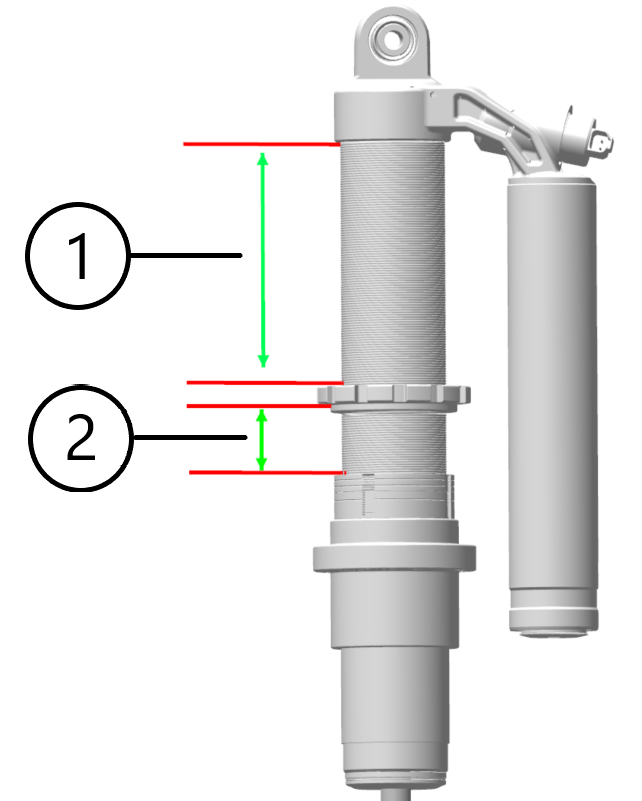

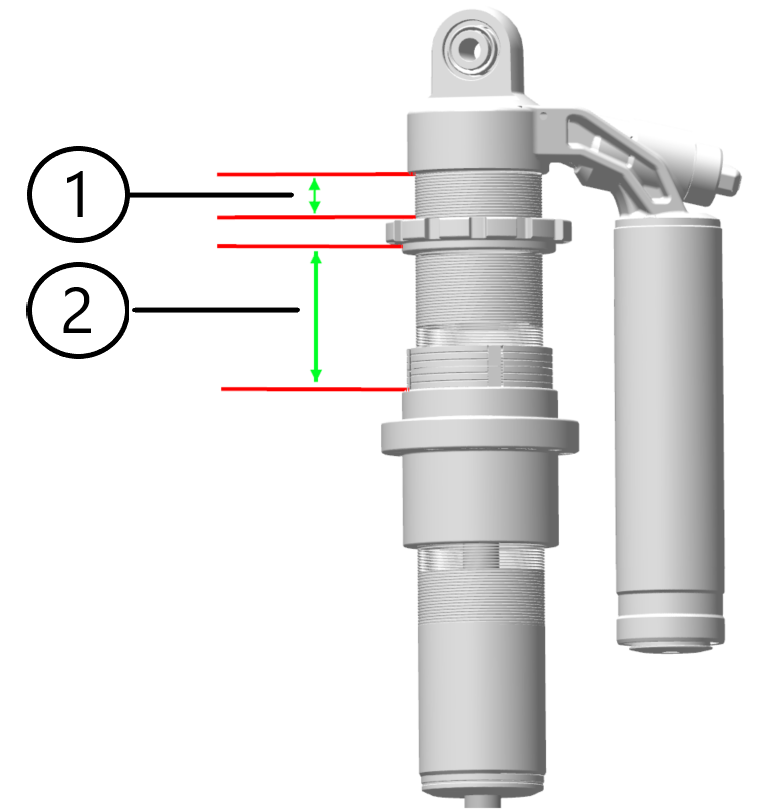

Walker Evans Racing Shocks (if equipped)
| Shock Location | Measurement* |
|---|---|
| Front Shock |  |
| Rear Shock |  |
