IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

Dynamix Ride Modes

This RZR is equipped with a suspension control mode switch that allows you to change the suspension control mode of your DYNAMIX™ Active Suspension system on-the-fly. Ride modes can be cycled through using the “up/down” button on the steering wheel. It will not cycle from top to bottom with an “up” button press.

There are 3 available drive modes to select from: Comfort, Sport, and Firm.

WARNING
The rider should use caution to select the appropriate ride mode to match the current terrain conditions and driving style. Failure to select an appropriate ride mode could lead to vehicle dynamic behaviors not matched to the terrain or driver’s skill level.
NOTICE
The system will prevent mode transitions when a current active vehicle state is present (cornering, braking, accelerating, or airborne).

ICON NAME SUSPENSION DESCRIPTION ELECTRONIC POWER STEERING DESCRIPTION

Comfort Mode

Low compression to allow the shock to move and absorb smaller suspension events.

High assist level and bump rejection for low steering effort and maximum comfort.

Sport Mode

Medium compression damping for medium bumps and aggressive handling events.

Excellent feel of the front wheels with good bump rejection.

Firm Mode

High compression damping for large bumps and aggressive handling events.

Good feel of the front wheels with excellent bump rejection.

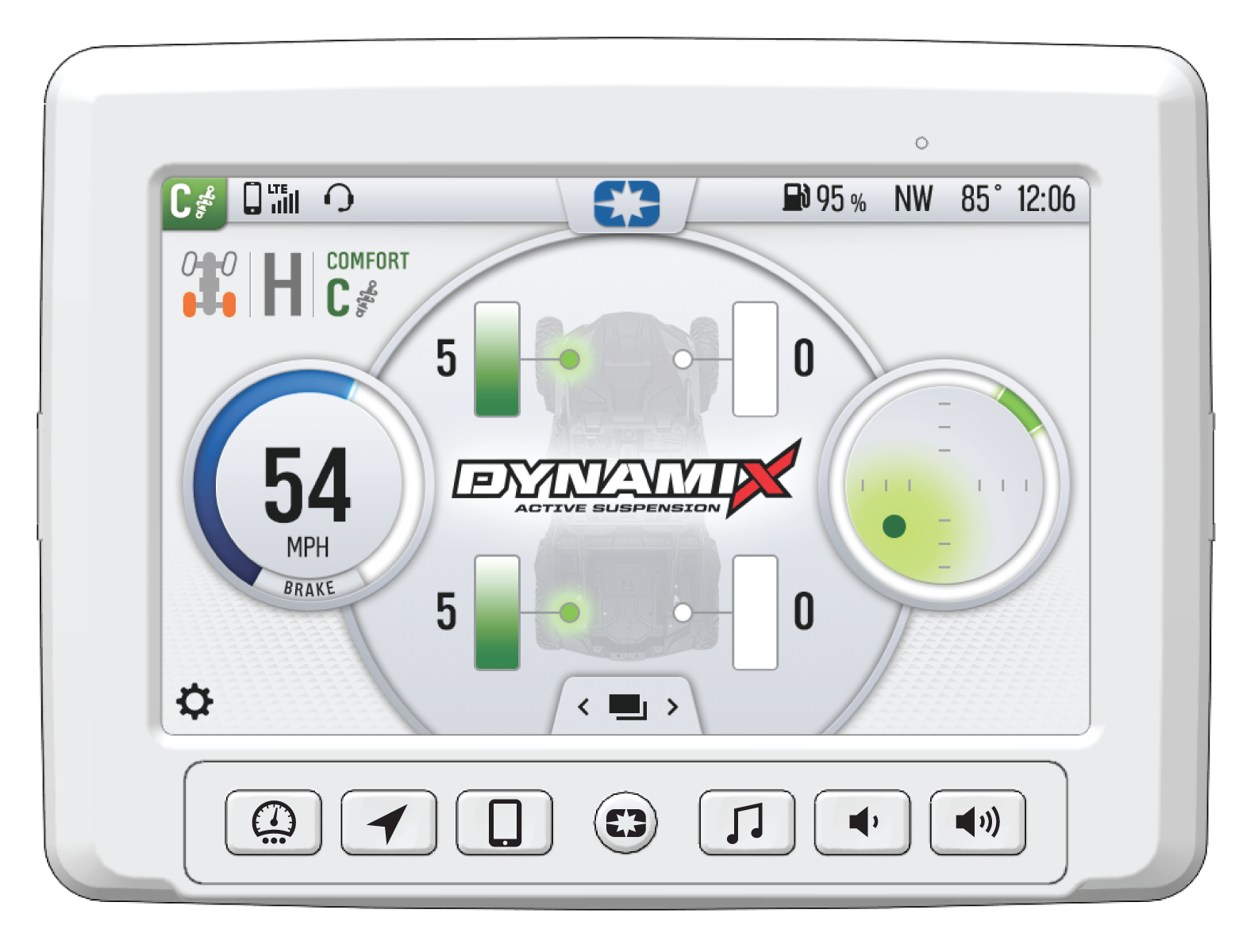

Comfort

In Comfort mode, the suspension control system is primarily optimized for rider comfort. Damping is adjusted least aggressively for each vehicle event. This mode is ideal for non-aggressive driving and rides with smaller suspension inputs, such as cruising home at the end of the day.

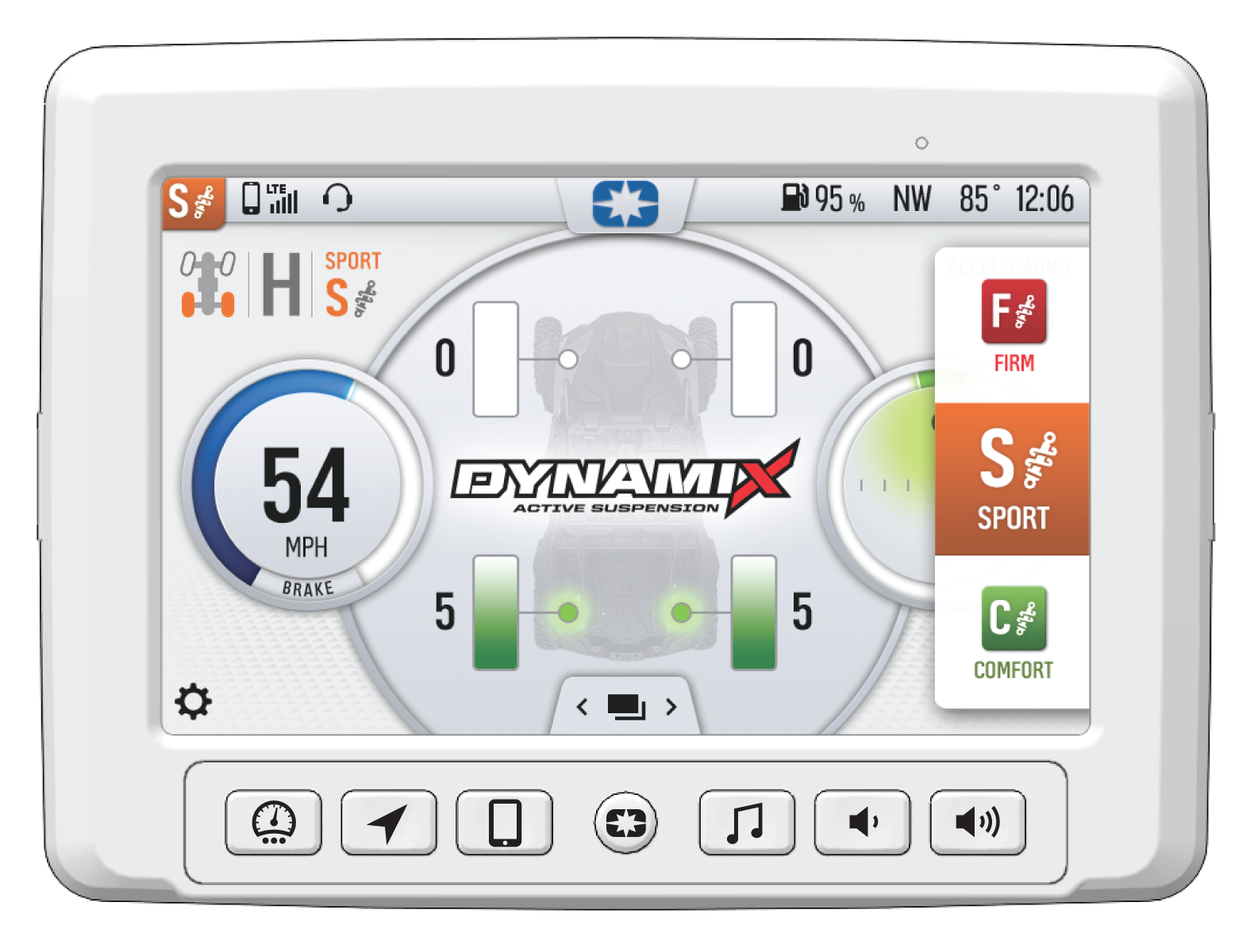

Sport

In Sport mode, some level of rider comfort is traded for higher performance levels and reduced body motion. Damping is adjusted most aggressively for each vehicle event. This mode is ideal for spirited driving where additional suspension system performance is required.

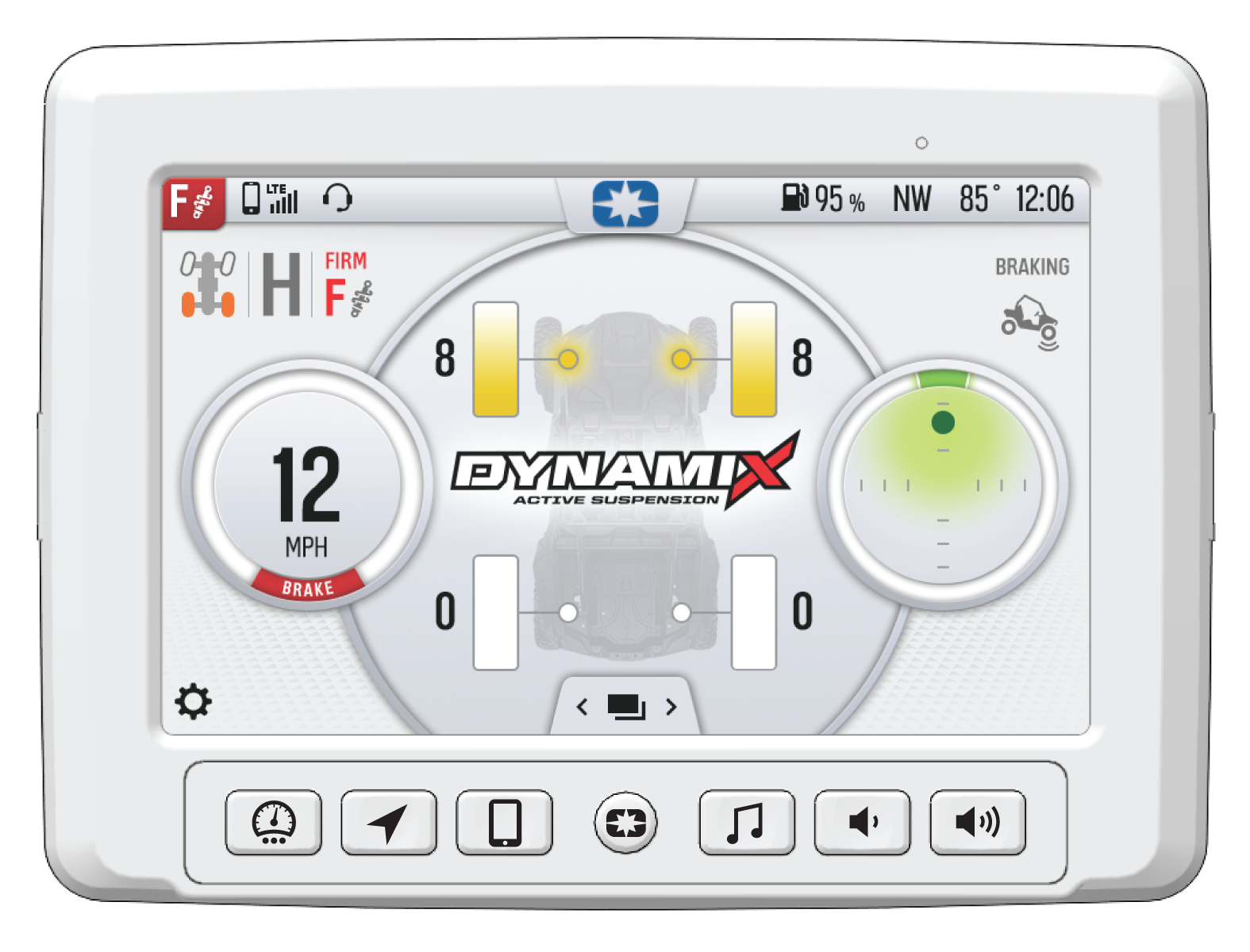

Firm

In Firm mode, the suspension control system provides the most firm compression damping. Damping is adjusted aggressively for each vehicle event. This mode is recommended for challenging terrain where large suspension travel events and complex terrain are encountered.


If your vehicle is equipped with Instantaneous Compression the suspension compression damping reverts to a firm base-damping setting with aggressive active vehicle events to respond to harsh terrain. If your vehicle is not equipped with Instantaneous Compression, all 4 shocks are set to the most firm setting.
