IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

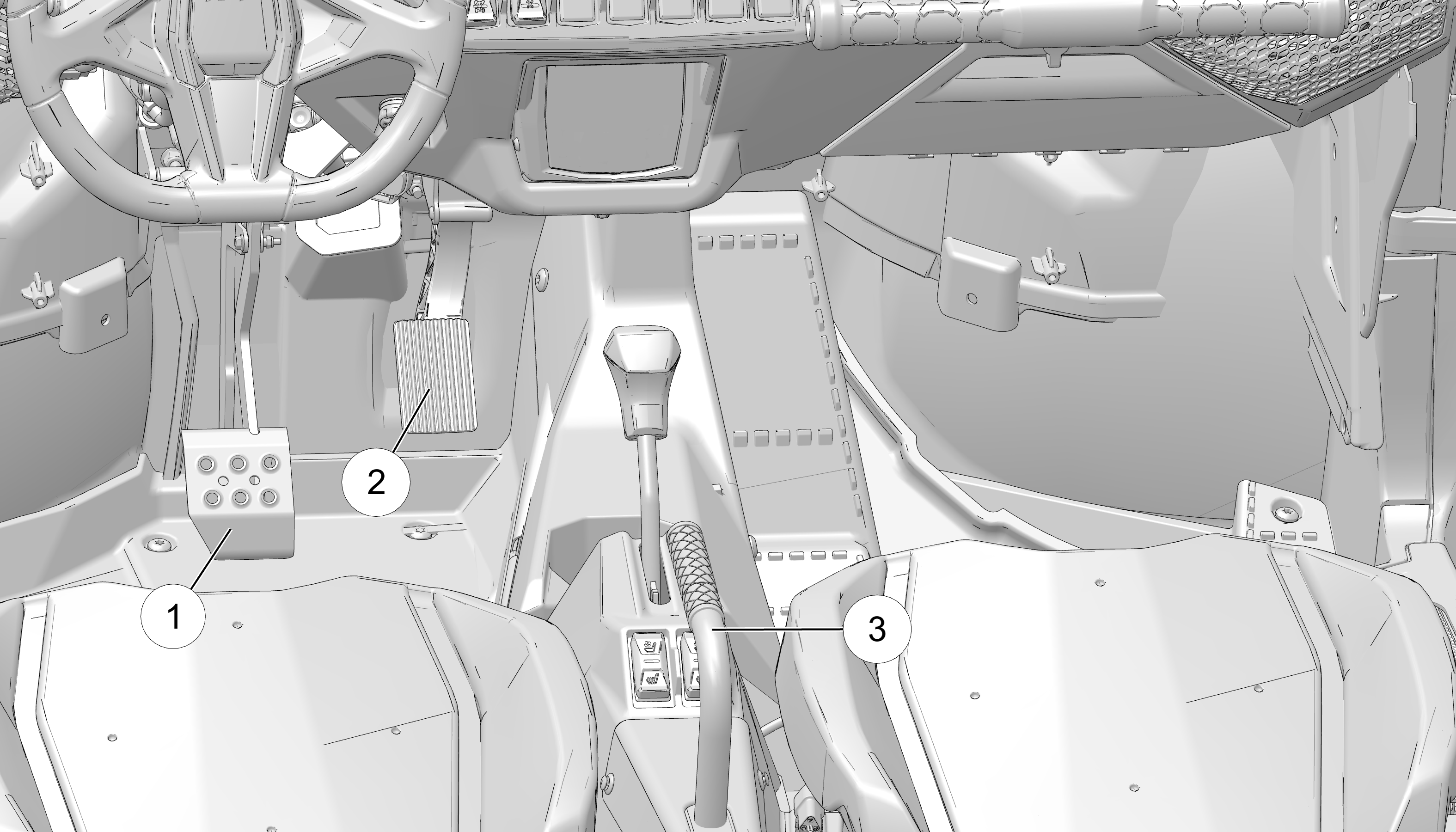

Brake and Throttle Pedals

Brake Pedal

Depress the brake pedal 1 to slow or stop the vehicle. Apply the brakes while starting the engine.

Throttle Pedal

Push the throttle pedal 2 down to increase engine speed. Spring pressure returns the pedal to the rest position when released. Always check that the throttle pedal returns normally before starting the engine.

Brake Lever (SSB Lever)

Pull the brake lever 3 to slow or stop the vehicles. By activating SSB, only rear wheels will be braking. Applicable only for TR/ZUG.

TIP
If the throttle pedal and brake pedal/lever are applied simultaneously, engine power may be limited and the Check Engine light will illuminate.
NOTICE
Using the secondary service brake is not as efficient as using the foot brake.
WARNING
SSB (Secondary Service Brake) IS NOT A PARKING BRAKE. There is no locking mechanism to hold the braking force. A braking force is applied only when the lever is pulled upward.
