Fuse / Relay Center
If the engine stops or will not start, if the power steering stops working (if equipped), or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse.

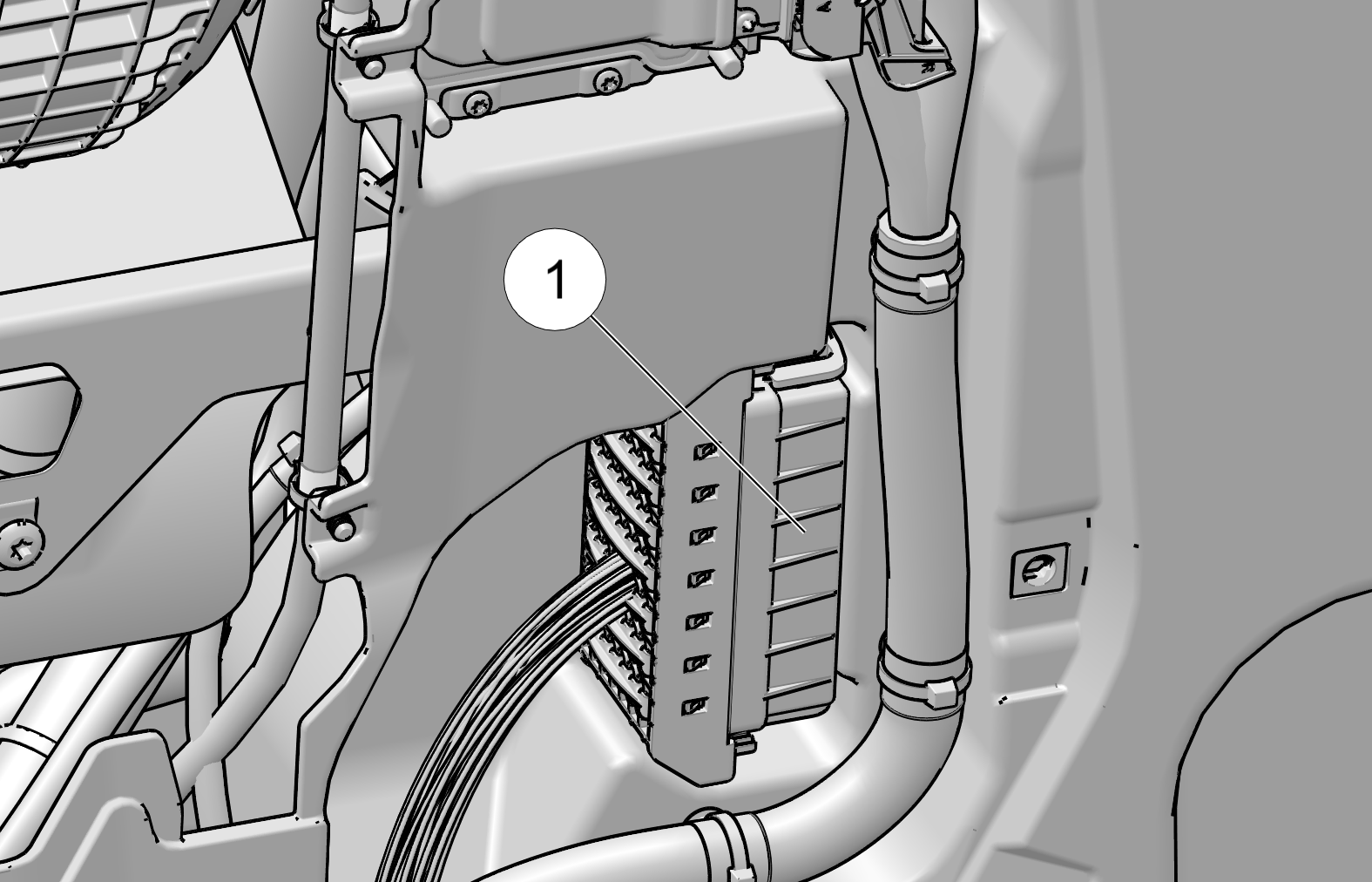

The fuse / relay center 1 is located behind the driver’s seat. It can be accessed by removing the seats and the rear engine access panel. See the Engine Access Panel and Seat Removal sections for details.
|
Label |
Value |
Function |
|---|---|---|
|
FAN |
20A Circuit Breaker |
Engine Coolant Fan |
|
FUEL |
10A Fuse |
Fuel Pump |
|
TERM |
10A Fuse |
Under Hood Terminal Block RZR XP 4 vehicles: Rear 12V Receptacle |
|
INSTR ACCY |
5A Fuse |
Interior LED, Gauge, Headlights (LED), Taillights (LED), License Plate Light RideCommand vehicles: Display |
|
PWR PT1 |
10A Fuse |
Dash 12V Receptacle |
|
EPS |
40A Fuse |
Power Steering |
|
INSTR UNSW |
7.5A Fuse |
Diagnostic Connector |
|
CHASSIS |
7.5A Fuse |
AWD Switch, Oxygen Sensor Heater, EPS Wake-Up, VSS, Seat Belt, AWD Coil, Winch EVAP vehicles: Waste Gate |
|
Label |
Value |
Function |
|---|---|---|
|
EFI |
10A Fuse |
Accessory Relay Coil, ECM Wake-Up, Pump Relay Coil, Chassis Relay Coil, Start Relay Coil, EFI Relay Coil, Mag/PTO Inject, Lights Relay Coil, Fan Relay Coil, Ignition Relay Coil, Starter Solenoid Coil, Brake Relay Coil |
|
ACCY |
15A Fuse |
Parent block to TERM and INSTR ACCY fuses |
|
COIL |
7.5A Fuse |
Ignition Coil Pack |
|
CHARGE |
10A Fuse |
Battery Charge Port |
|
SEATS |
7.5A Fuse |
Heated / Vented Seats (if equipped) |
|
TURF RELAY |
4.5A Fuse |
Engage / Disengage Turf Coil |
|
FLASHER |
7.5A Fuse |
Flasher module, Turnlights (front / rear / trailer), Hazard Lights |
|
HEADLIGHT |
10A Fuse |
Headlights (High / Low Beam), High Beam Indicator (Gauge) |
|
TRAILER |
7.5A Fuse |
Trailer taillights, Trailer Brake Light |
|
TRACTOR |
10A Fuse |
Turn switch (Left, Right), Horn |
