Tools

The following tools are provided with the snowmobile.

  • Tool Kit Bag

    • Torx Wrench, T-30

    • 13/16 in Spark Plug Wrench, T40 Torx

  • Driven Clutch L-Wrench

  • Spare Belt Holder

  • Spark Plug Socket Wrench 5/8 in (16 mm)

Tool Kit

The tool kit bag is shipped with the owner's manual. The bag can be stored in the glove compartment.

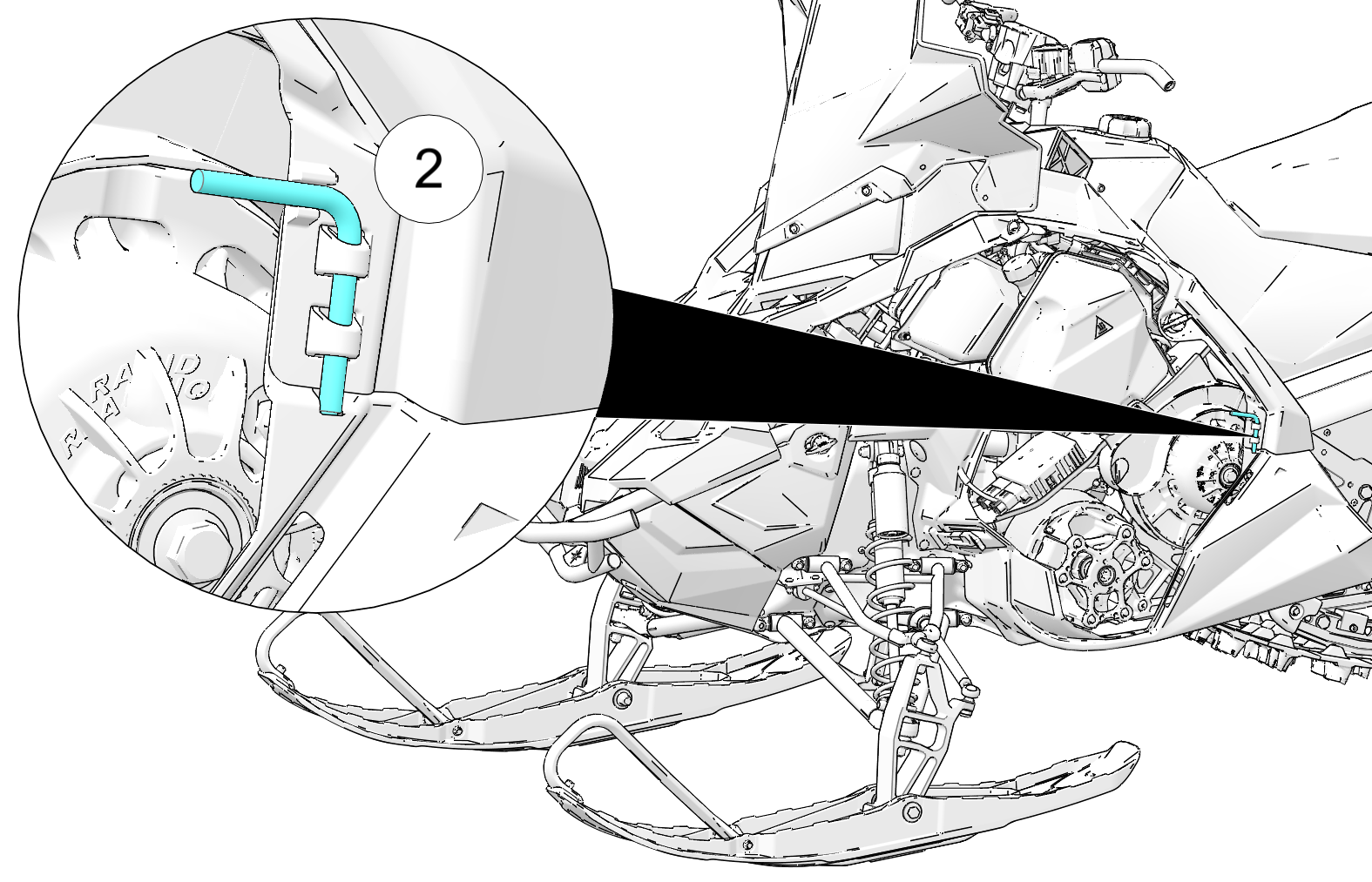

L-Wrench

The L-wrench 2 is used to open and close the driven clutch when working with the drive belt. To retrieve the L-wrench, rotate it counterclockwise and slide it upward from the bracket. When not in use, slide the L-wrench down into the bracket and rotate clockwise until it snaps securely into the housing.
