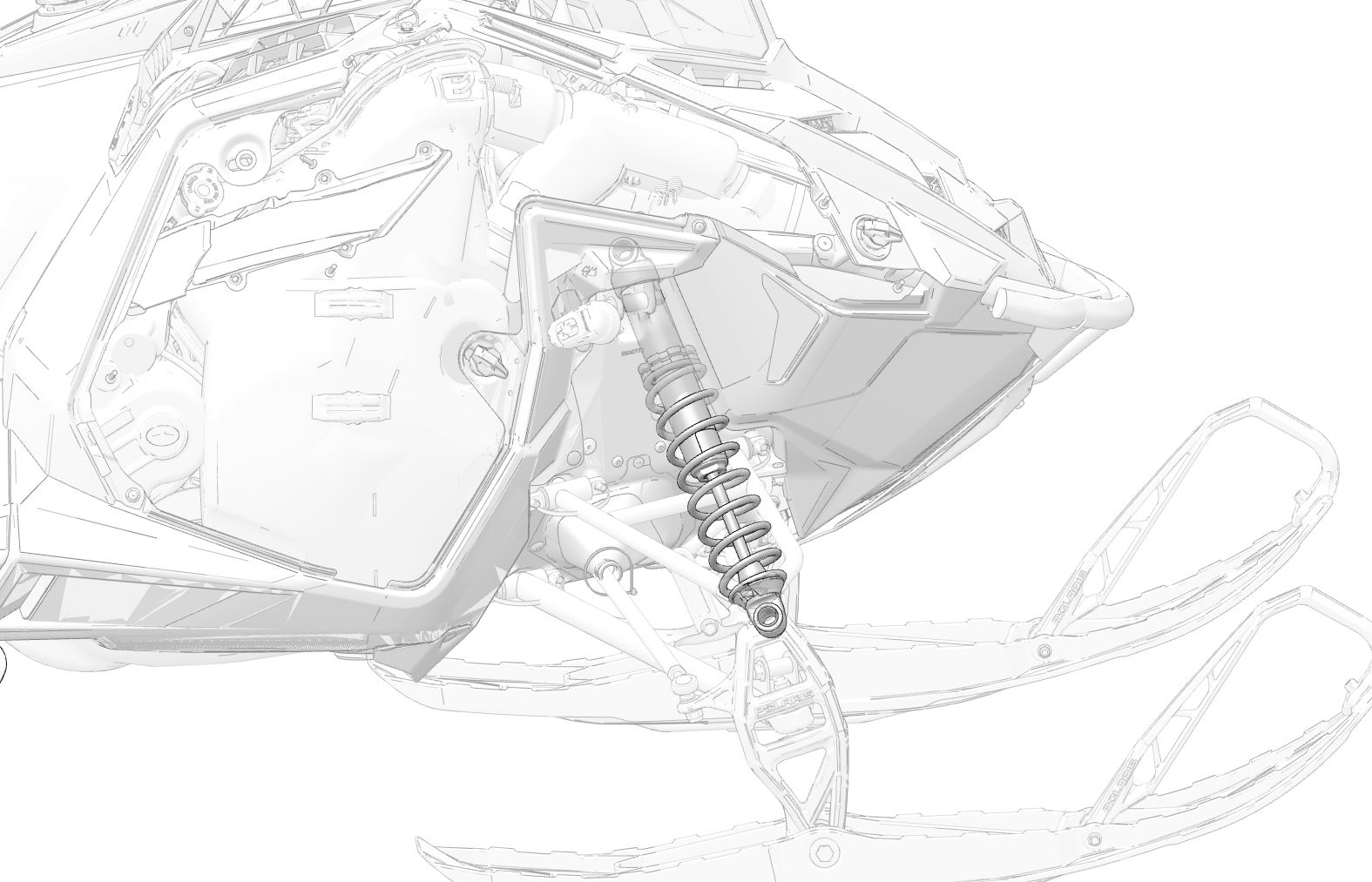

Front Suspension (IFS) Shock Settings
Always perform shock spring preload adjustments with the weight of the vehicle removed from the shock and with the shock at full extension.
Polaris IFP
|
MODEL |
INDY SP 137 |
Voyageur SP 146 |
|

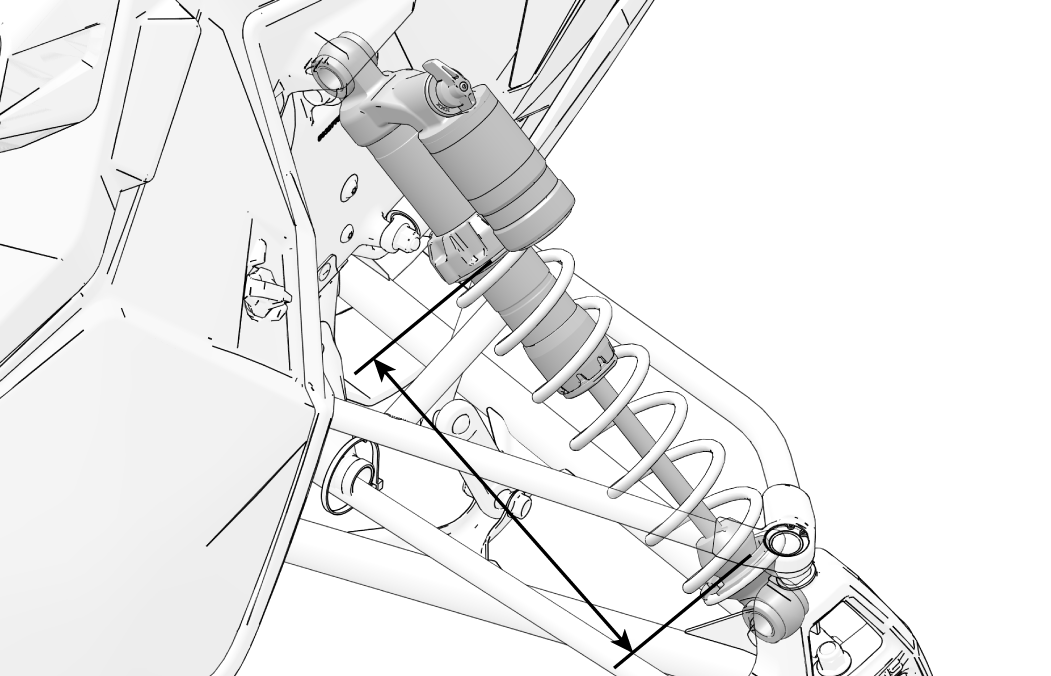

FACTORY INSTALLED LENGTH |
10.25 in (26.035 cm) |
10.92 in (27.74 cm) |
|
MINIMUM INSTALLED LENGTH |
9.3 in (23.6 cm) |
9.48 in (24.08 cm) |
|
MAXIMUM INSTALLED LENGTH |
10.375 in (26.35 cm) |
11.295 in (28.69 cm) |
|
* From Full Stiff |
||
Polaris TS
|
MODEL |
INDY Adventure and INDY XC 137 |
|
FACTORY INSTALLED LENGTH |
10.05 in (25.53 cm) |
|
MINIMUM INSTALLED LENGTH |
9.6 in (24.38 cm) |
|
MAXIMUM INSTALLED LENGTH |
10.375 in (26.35 cm) |
|

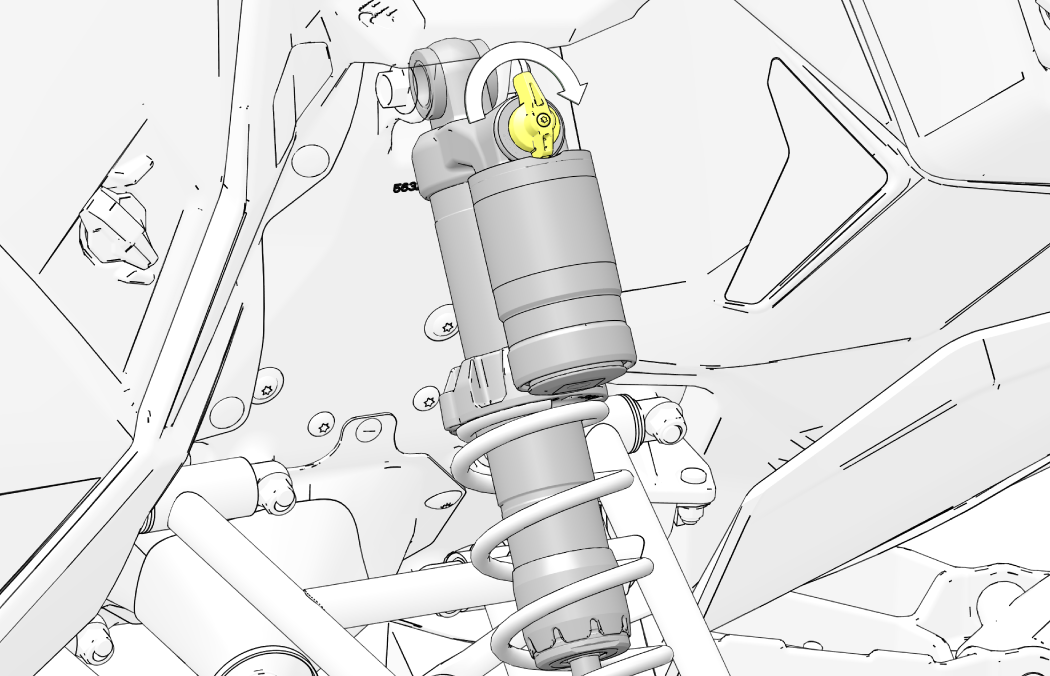

FACTORY CLICKER SETTING* |
Medium |
|
* From Full Stiff |
|
