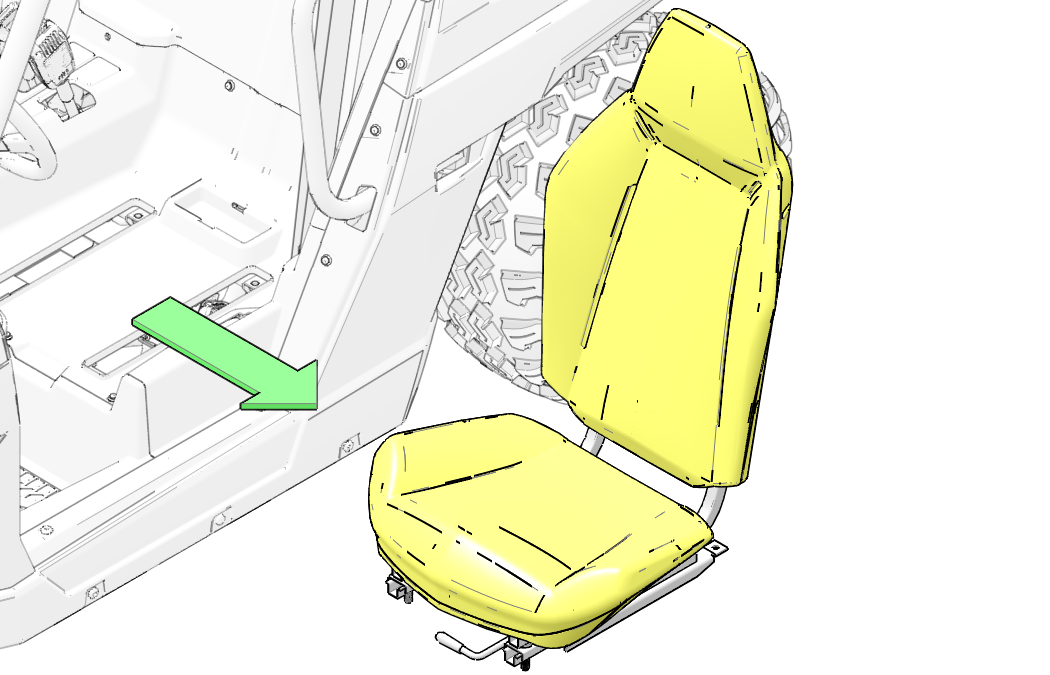

Seat Removal / Installation

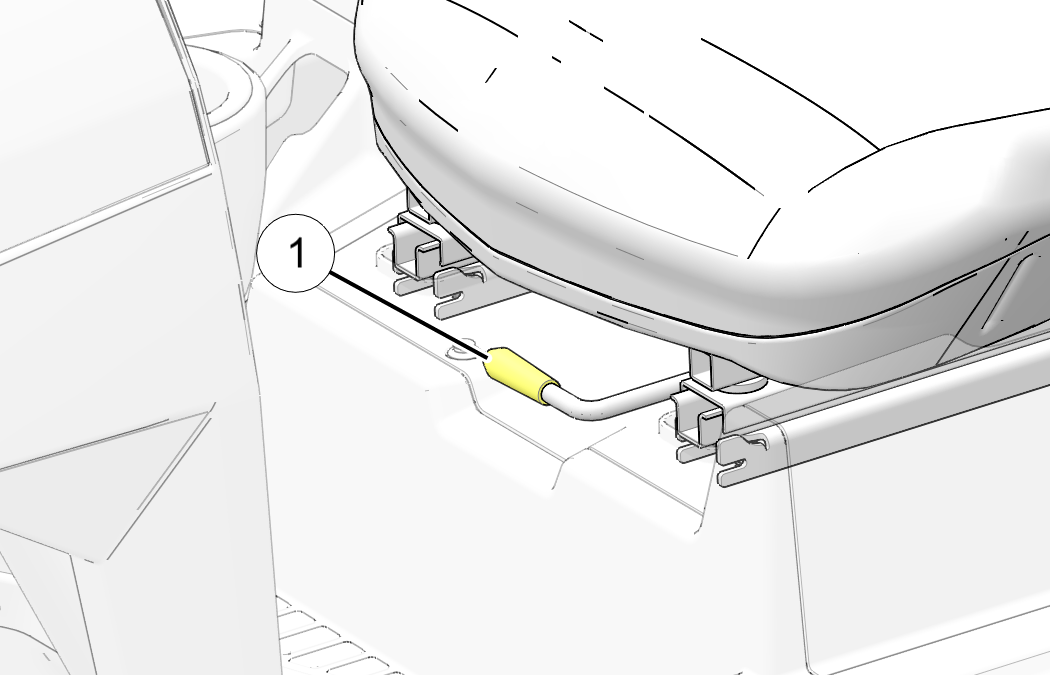

  1. Lift up the seat latch lever 1 located under the right front edge of the seat(s).

  2. While holding the lever upward, slide the seat completely forward.

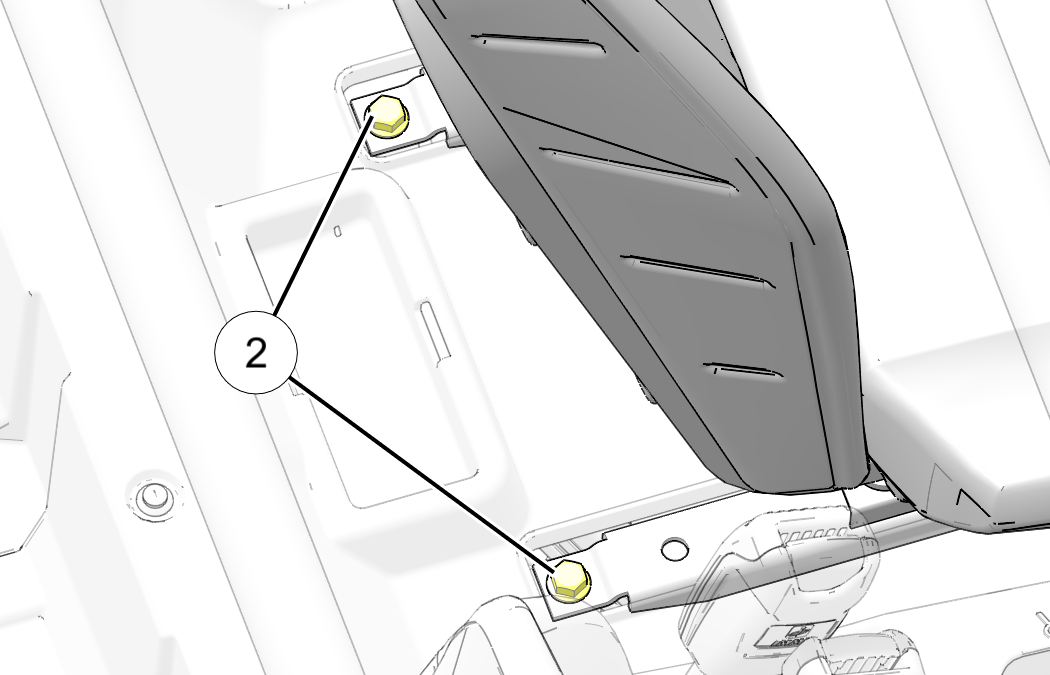

  3. Remove the two fasteners 2 securing the seat slides to the frame.

  4. Remove the seat(s) from the vehicle.

  5. Reverse this procedure to reinstall the seat(s).

    NOTICE

    Make sure the front tabs of the seat mount are engaged before installing the mounting hardware.

    TORQUE

    Seat Fasteners:

    30 ft-lbs (41 Nm)

Parent topic: Seats
