Drive Belt Removal

  1. Remove the left rear wheel from the vehicle. See Wheel Removal.

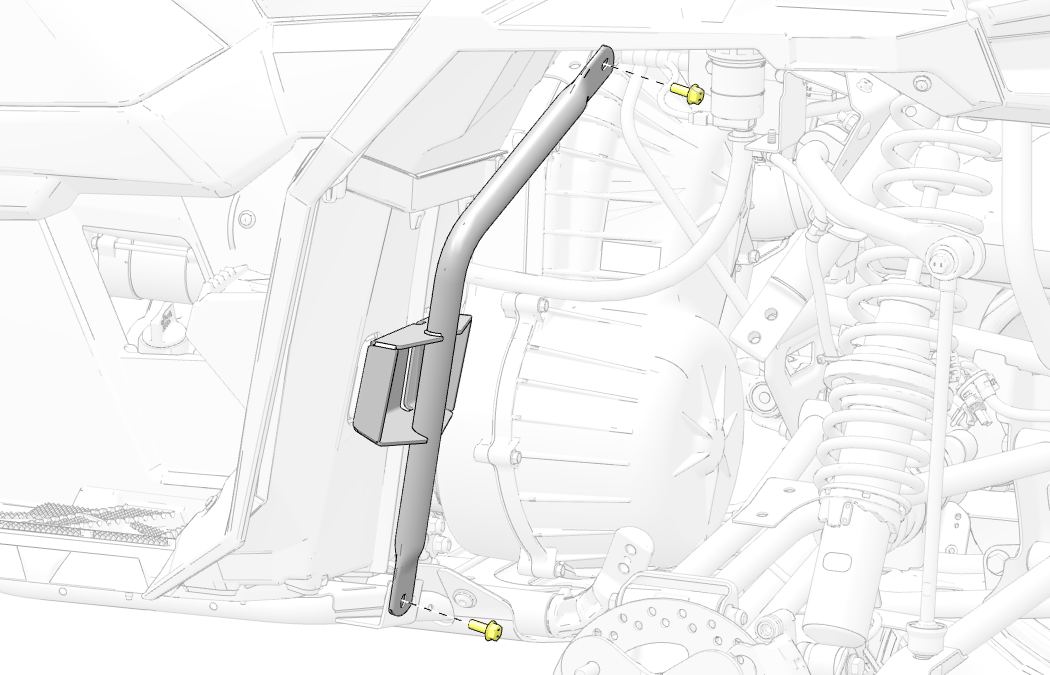

  2. Remove the four fasteners securing the left frame weld to the vehicle.

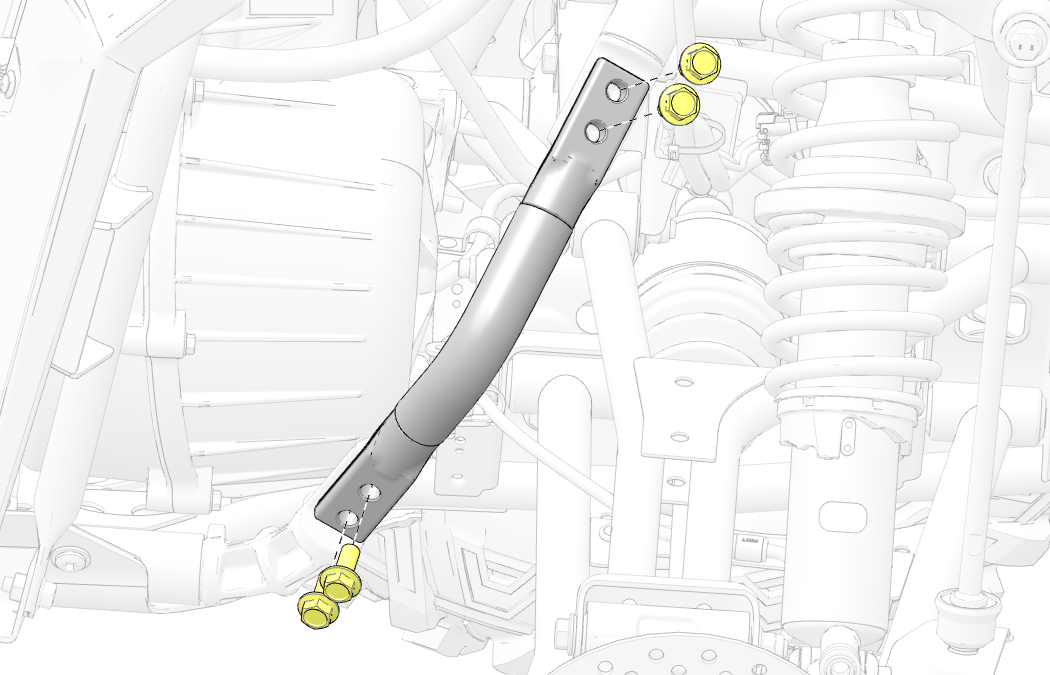

  3. Remove the two fasteners from the top and bottom of the passenger footrest bracket tube.

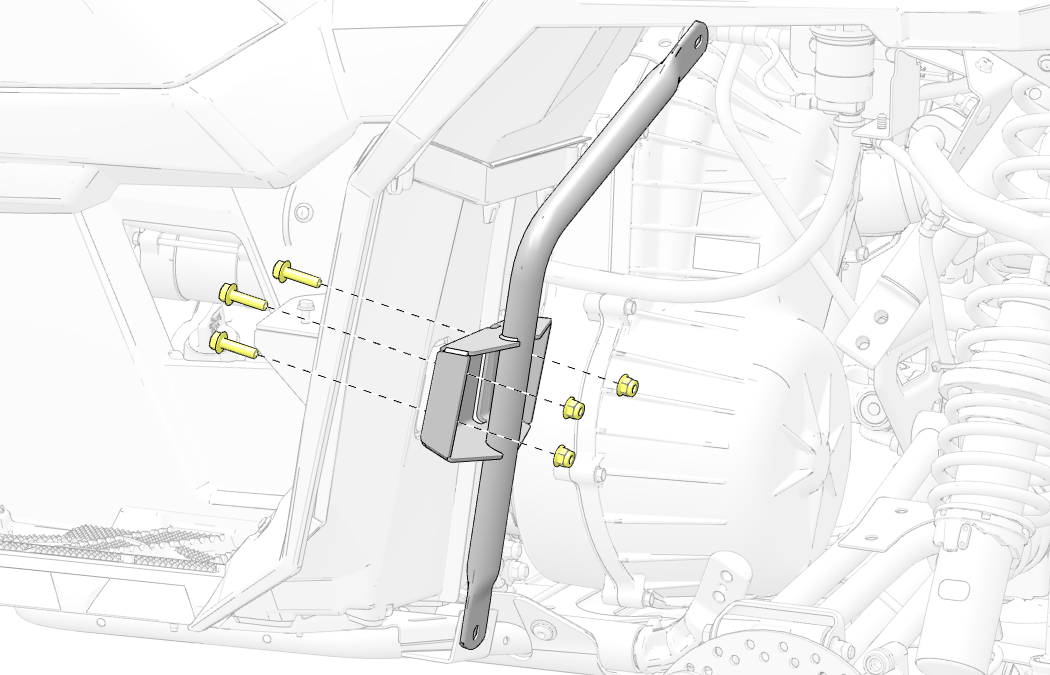

  4. Remove the three fasteners and three nuts from the passenger footrest bracket and remove the passenger footwell weld from the vehicle.

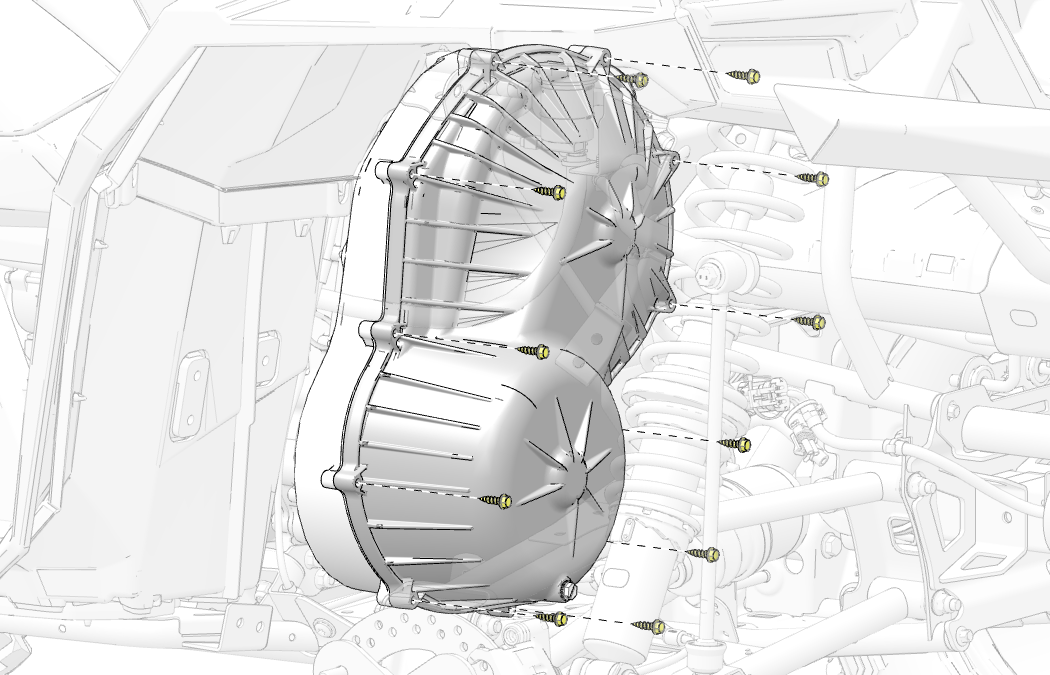

  5. Remove the 11 fasteners securing the outer PVT cover to the inner PVT cover.

  6. Using care, pull the outer PVT cover out the left rear wheel well.

    NOTICE

    Flexing the PVT outlet duct aids PVT cover removal.

  7. Note the orientation of the drive belt so that it can be installed in the same direction.

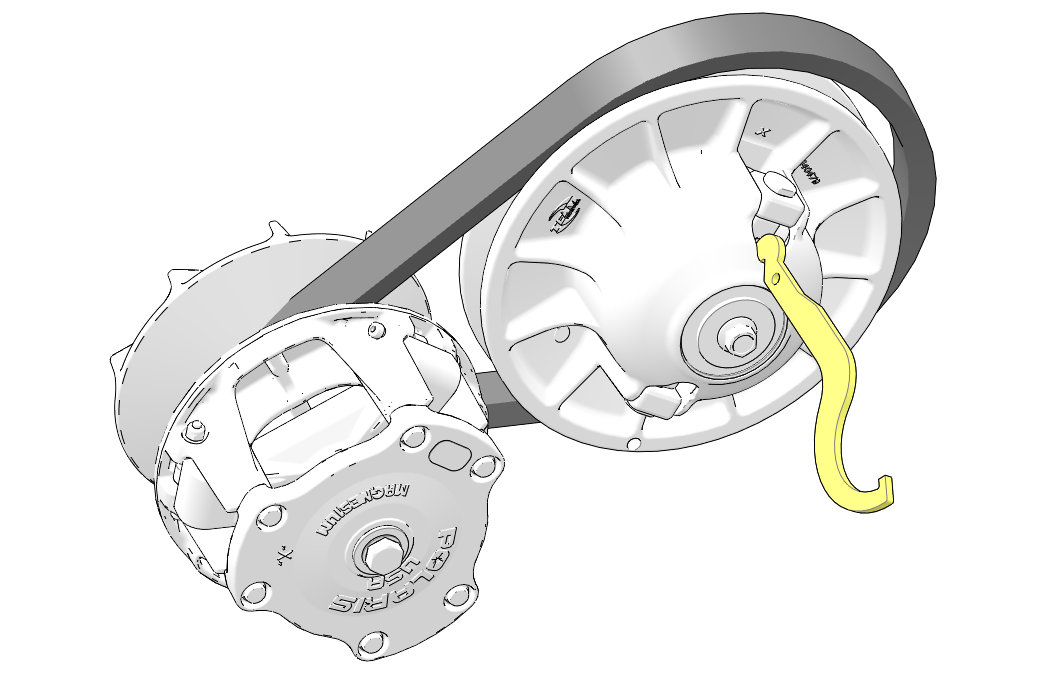

  8. Insert the provided clutch tool between the slides and rotate the tool to spread the sheaves.

    Spanner Wrench / Spreader:

    PN 2877408

    NOTICE

    Make sure the tool is square with the moveable sheave surface of the driven clutch.

  9. Once the sheaves have been spread, walk the drive belt out of the driven clutch and drive clutch, and remove it from the vehicle.
