Fuses

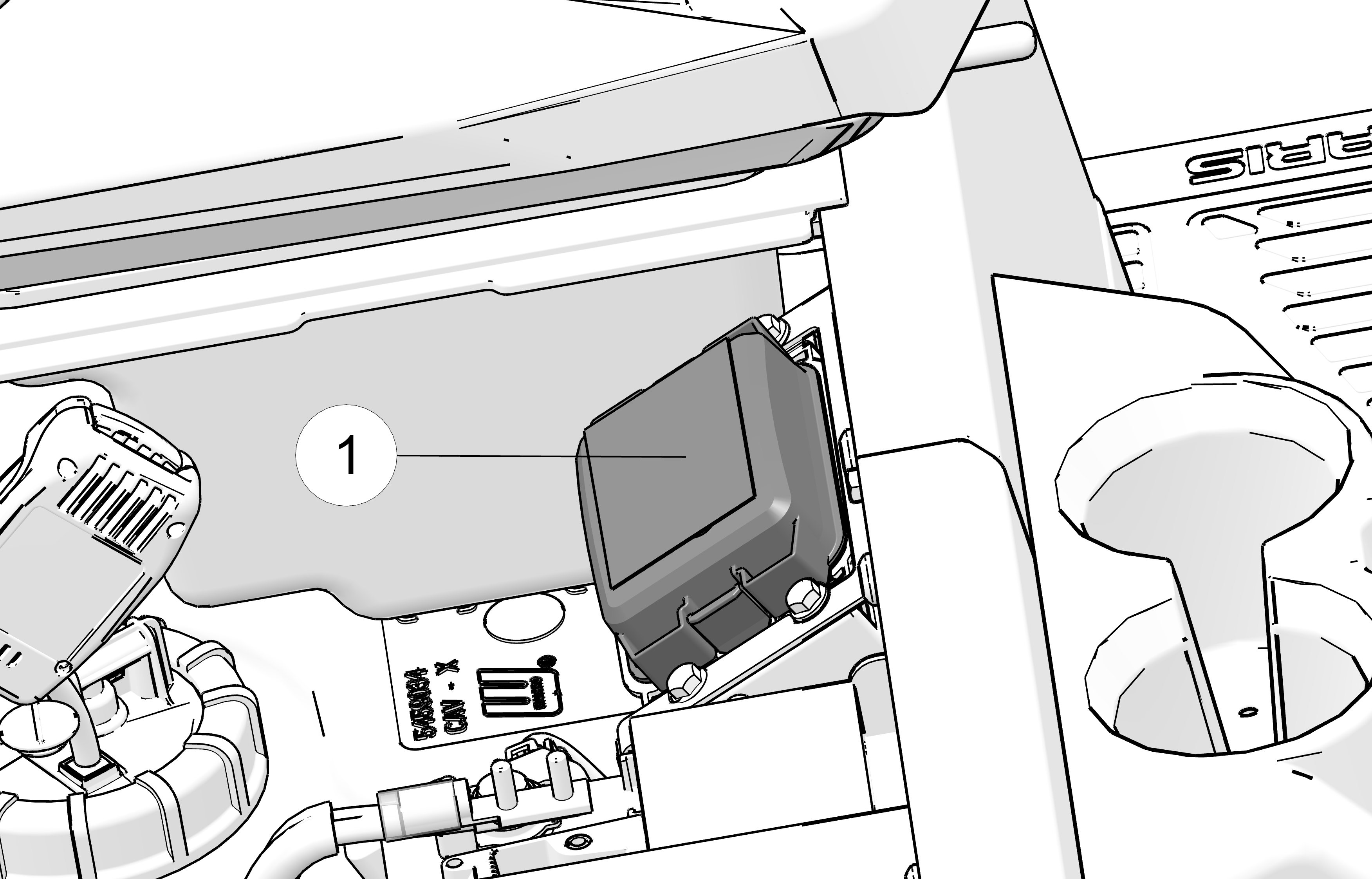

If the engine stops or will not start, or if you experience other electrical failures, a fuse may need replacement. Locate and correct any short circuits that may have caused the blown fuse, then replace the fuse. The fuse box 1 is located under the passenger seat. Spare fuses are provided in the fuse box. If you suspect that a fuse or relay may not be working properly, your dealer can assist.
| Fuse Size | Feature Supported |
|---|---|
| 10A | Key Switch |
| 10A | EFI |
| 15A | Drive |
| 30A | EPS |
| 60 Ohm | Alternator Resistor |
| 10A | Alternator |
| 20A CB | Fan |
| 20A | Accessory |
| 7.5A | Winch |
| 5A | Display |
| 15A | Headlight |
| 10A | Flasher |
| 7.5A | Tractor |
| 5A | TR Brake Light |
| 30A | Start |
| 10A | Trickle Charge |
| 5A | Trailer Position Light |
| 5A | Trailer Brake Light |
