Front Track Shock Settings

Factory settings, combined with user adjustments to the rear track shock spring (RTSS), should be all that’s necessary to provide the best riding experience for most riders. The primary adjustment for overall vehicle balance is RTSS preload. Perform this adjustment first.

Always perform shock spring preload adjustments with the weight of the vehicle removed from the shock, limiter strap(s) disconnected, and the shock at full extension.

NOTICE

Never adjust spring preload to an installed length longer than the factory length or shorter than the minimum length as shown in the following chart. Damage to the suspension could result. When decreasing preload, make sure at least two turns of preload are holding the retainer against the spring.

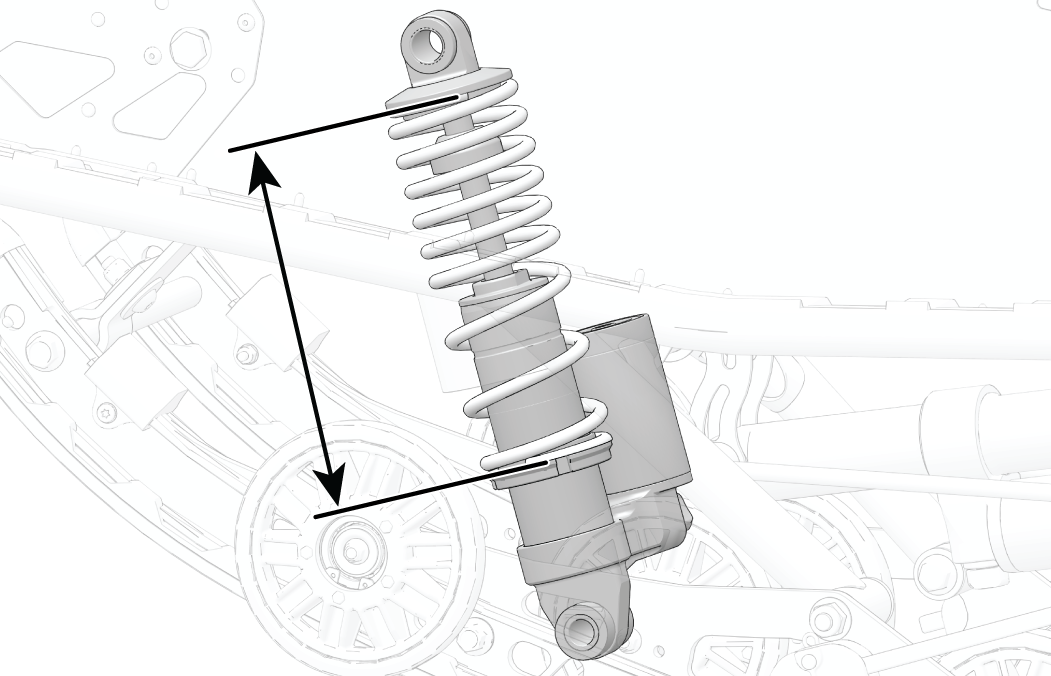

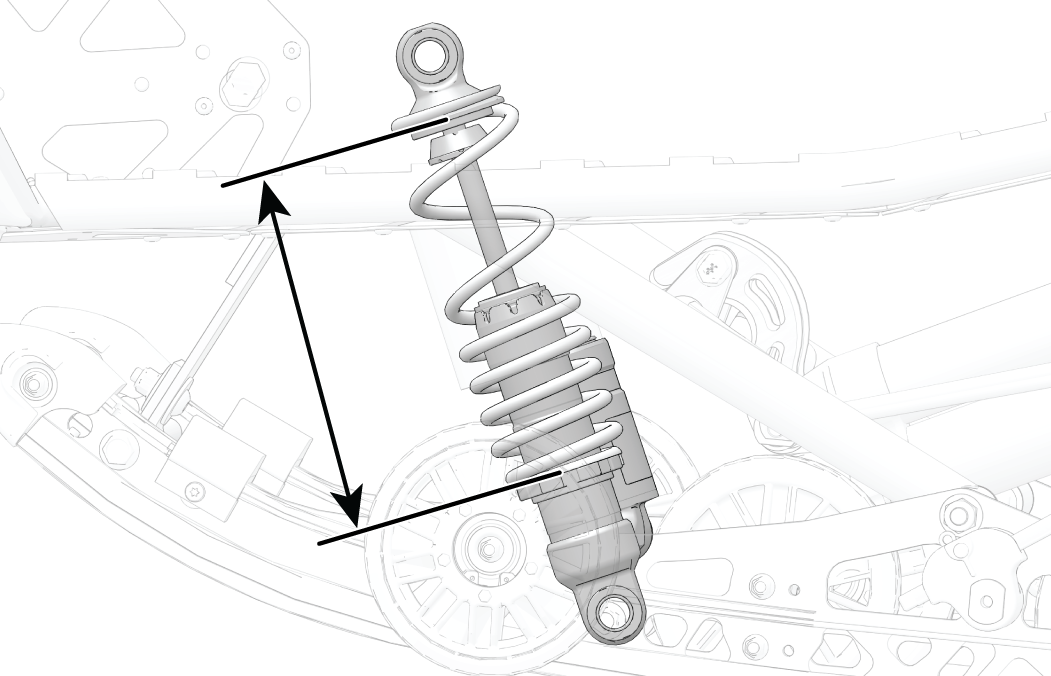

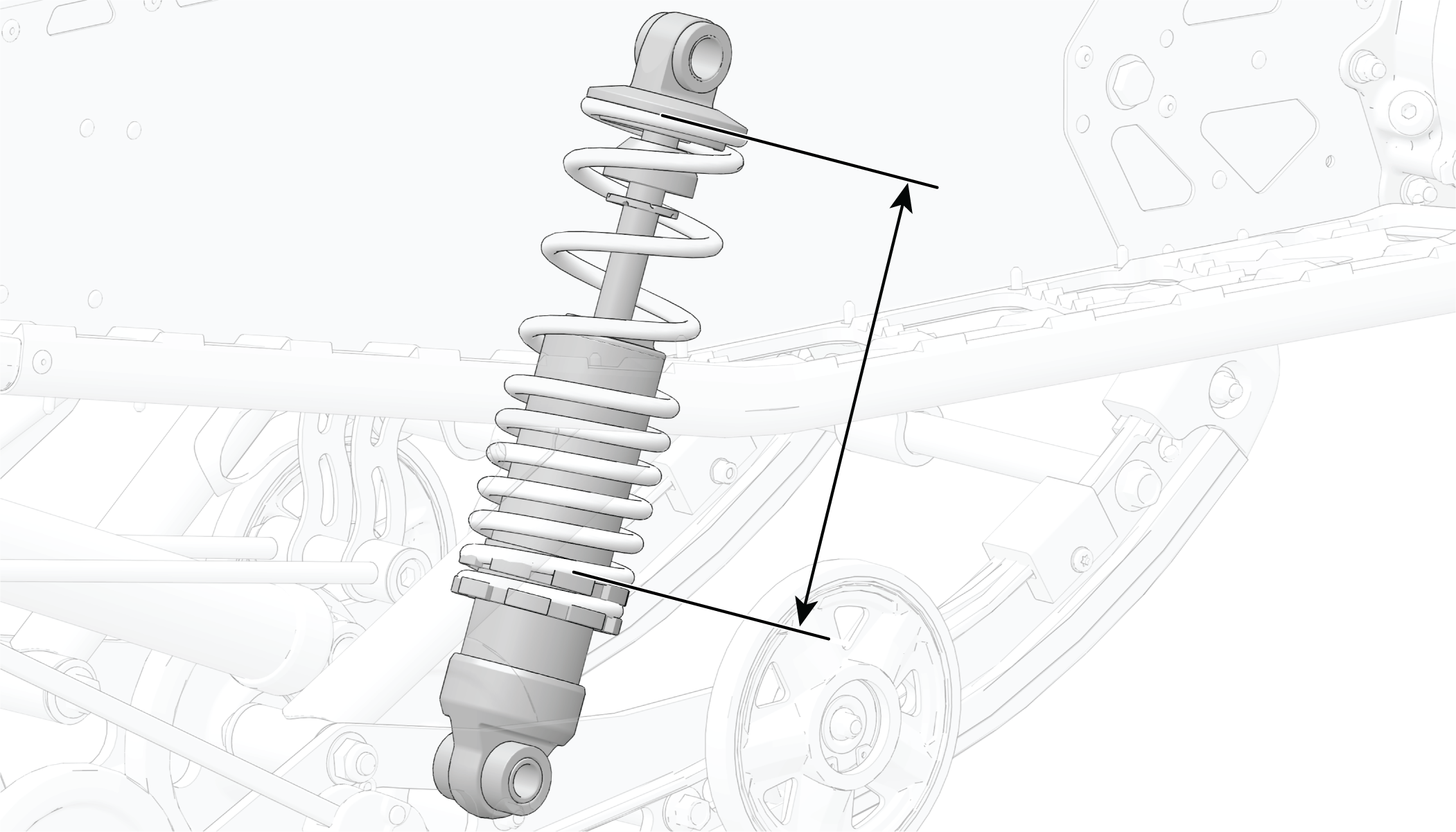

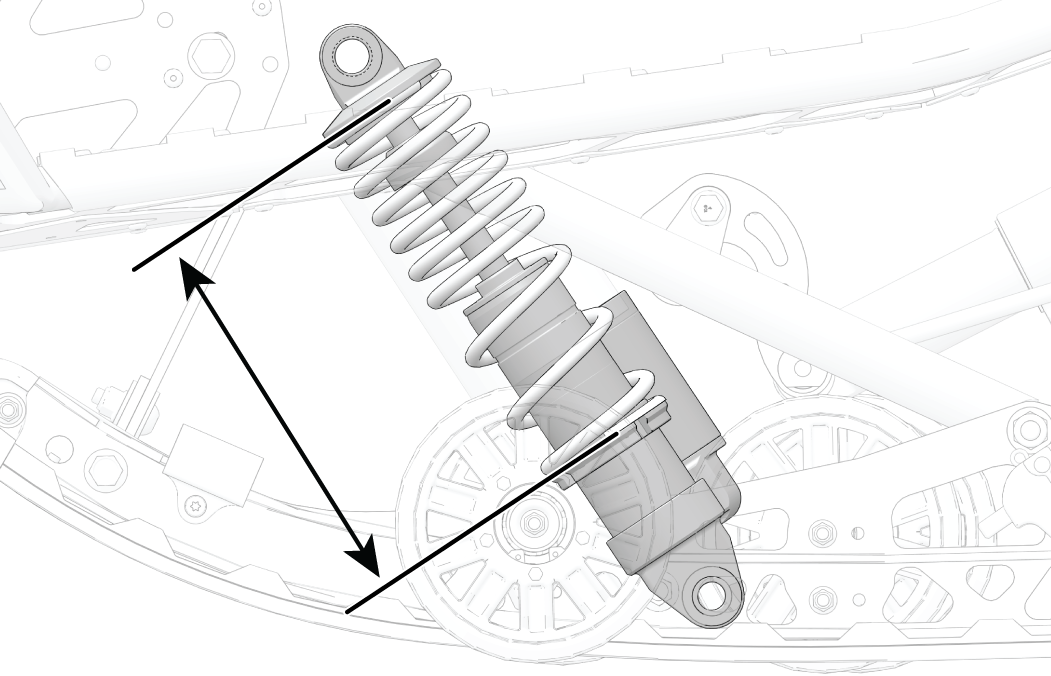

The front track shock is measured from the bottom of the spring to the top of the body cap.

ATP Monotube

MODEL	Matryx Voyageur	INDY SP	Switchback SP
FACTORY INSTALLED LENGTH	8.38 in (21.28 cm)	8.1 in (20.57 cm)	8.38 in (21.29 cm)
MINIMUM INSTALLED LENGTH	7.73 in (19.63 cm)	7.5 in (19.05 cm)	7.73 in (19.63 cm)
MAXIMUM INSTALLED LENGTH	8.625 in (21.91 cm)	8.375 in (21.27 cm)	8.625 in (21.91 cm)
FACTORY CLICKER SETTING*	No clicker	No clicker	No clicker

Walker Evans Velocity

MODEL	Matryx INDY VR1	Matryx Switchback Assault
FACTORY INSTALLED LENGTH	7.125 in (18.09 cm)	7.8 in (19.81 cm)
MINIMUM INSTALLED LENGTH	7.125 in (18.09 cm)	7.355 in (18.68 cm)
MAXIMUM INSTALLED LENGTH	8.075 in (20.51 cm)	7.975 in (20.26 cm)
FACTORY CLICKER SETTING*	5	6
* From Full Stiff

Walker Evans Velocity Hi/Lo

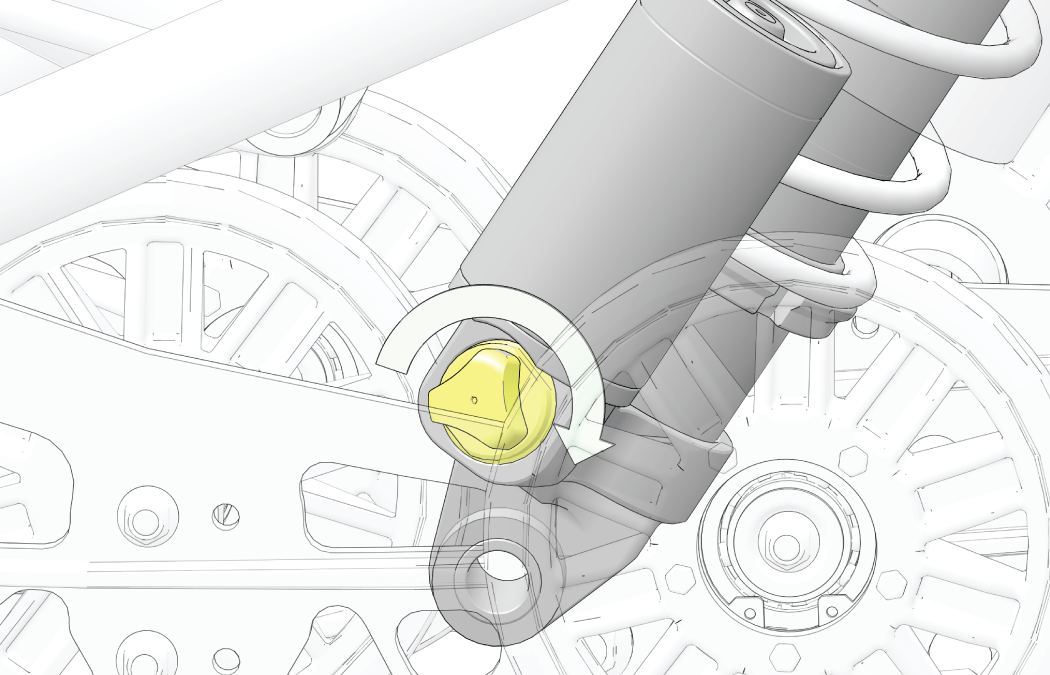

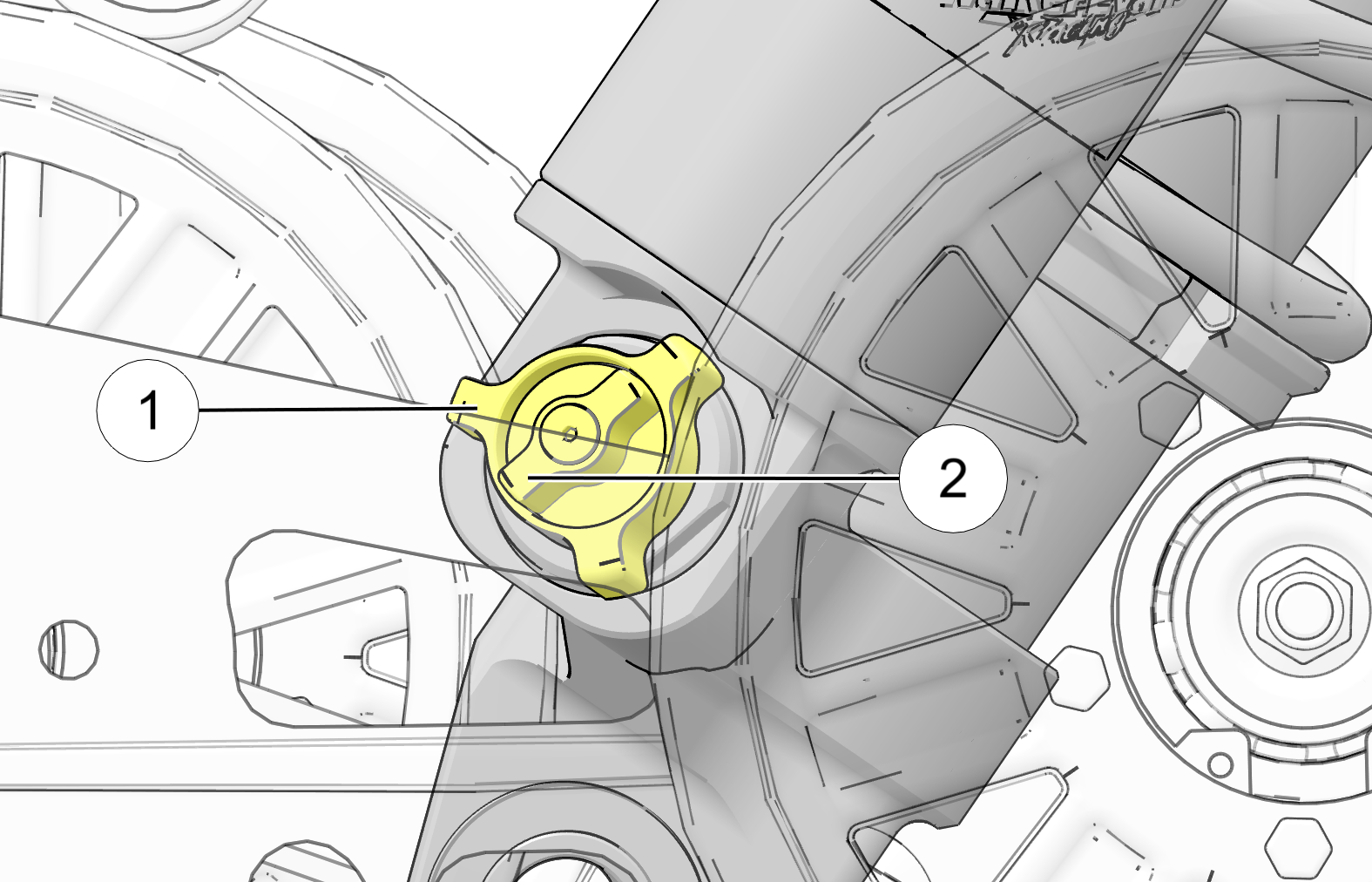

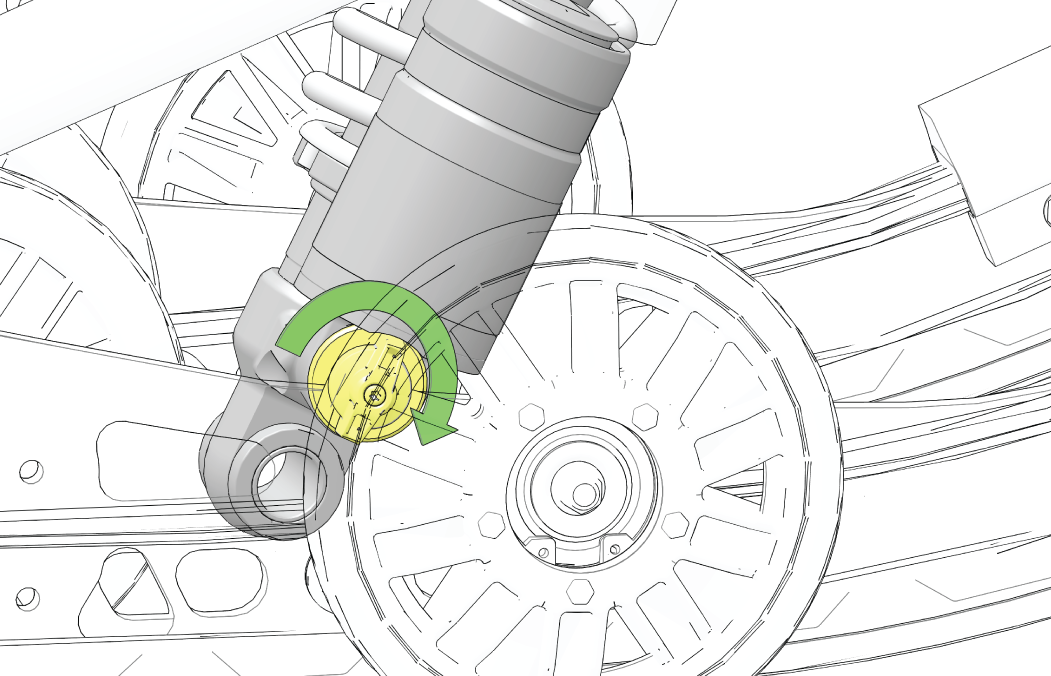

INDY XCR models are equipped with Walker Evans Velocity shocks, which utilize dual shock clickers to control bottoming and ride comfort. To reset shock clickers, rotate the clicker to full stiff, and then back off the same number of clicks for each shock.
