Front Suspension (IFS) Shock Settings
Always perform shock spring preload adjustments with the weight of the vehicle removed from the shock and with the shock at full extension.
To reset IFS clickers, rotate the clicker to full stiff, and then back off the same number of clicks for each shock.
ATP Monotube
|
MODEL |
Matryx Voyageur 146 |
Matryx Voyageur 155 |
INDY SP |
Switchback SP |
|

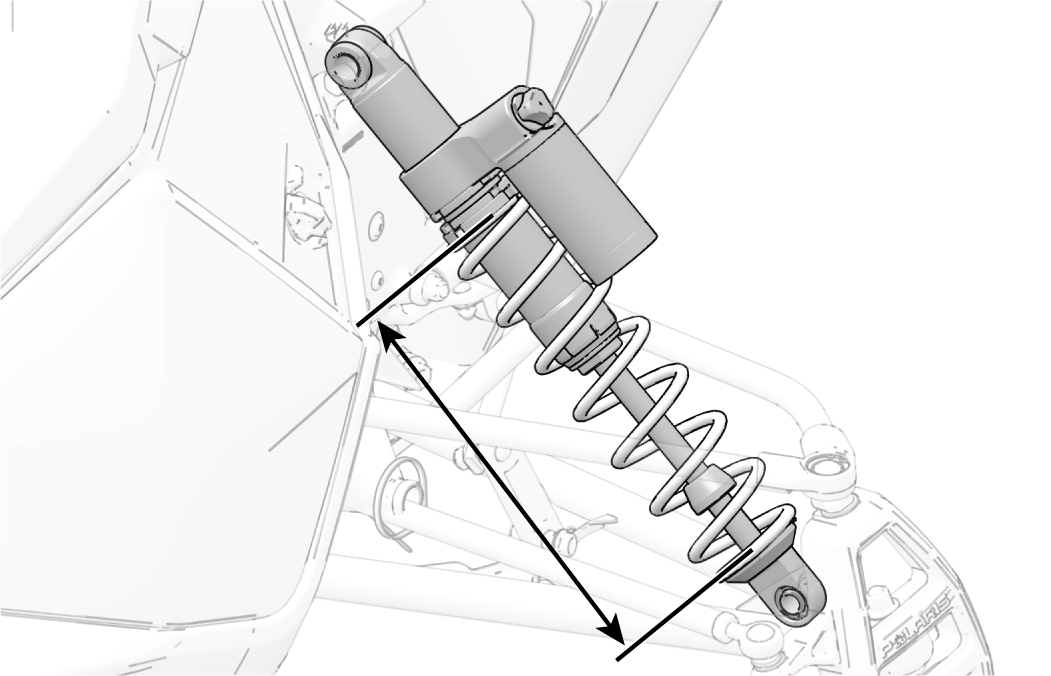

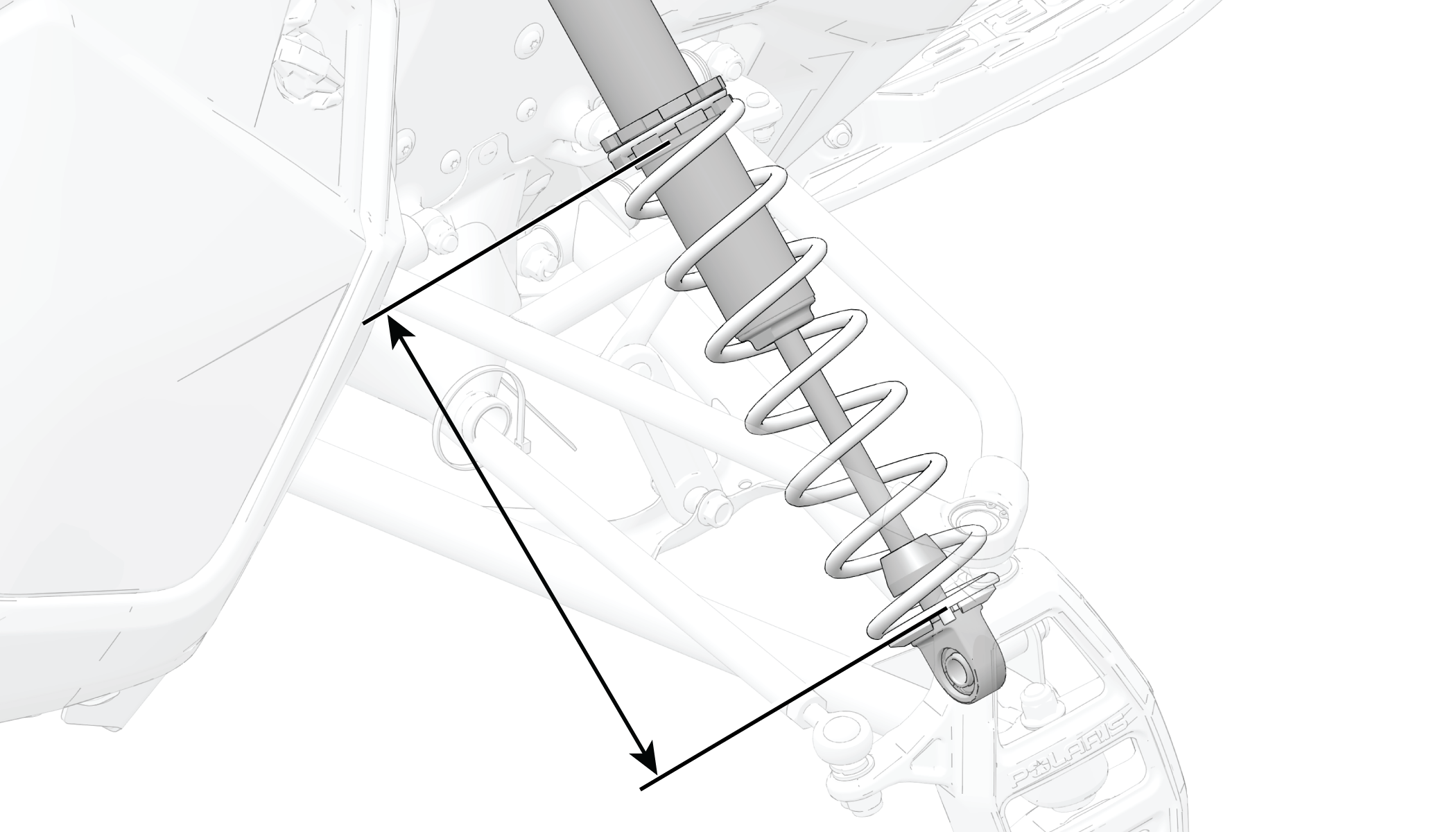

FACTORY INSTALLED LENGTH |
10.14 in (25.75 cm) |
10.125 in (25.72 cm) |
10.75 in (27.31 cm) |
10.14 in (25.76 cm) |
|
MINIMUM INSTALLED LENGTH |
9.5 in (24.13 cm) |
9.3 in (23.62 cm) |
9.94 in (25.25 cm) |
9.5 in (24.13 cm) |
|
MAXIMUM INSTALLED LENGTH |
10.375 in (26.35 cm) |
10.375 in (26.35 cm) ( cm) |
10.875 in (27.62 cm) |
10.375 in (26.35 cm) |
|
FACTORY CLICKER SETTING* |
No clicker |
No clicker |
No clicker |
No clicker |

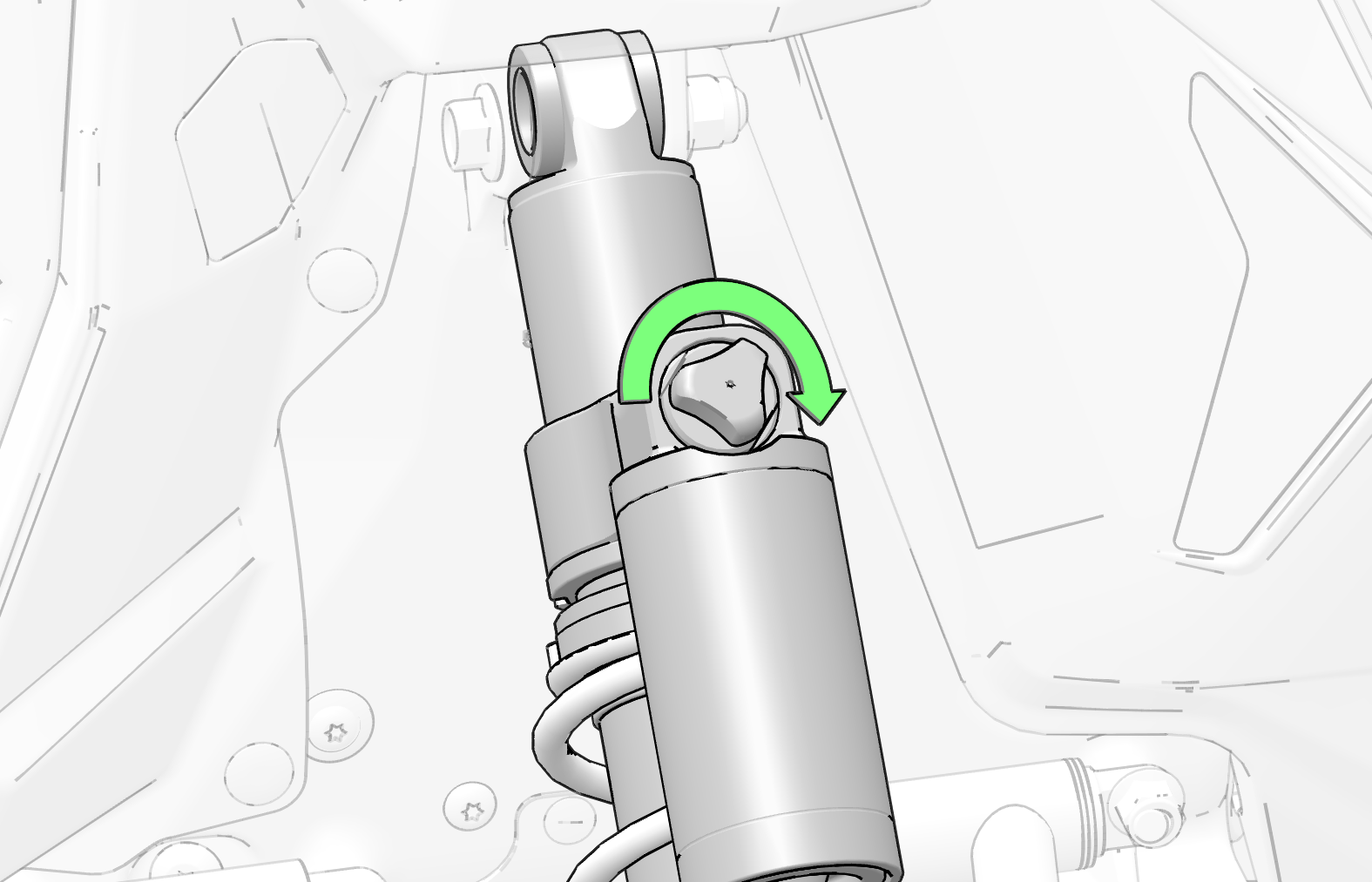

Walker Evans Velocity
|
MODEL |
Matryx INDY VR1 |
Matryx INDY VR1 Dynamix |
Matryx Switchback Assault (Race IFS) |
Matryx Switchback Assault (Escape IFS) |
|

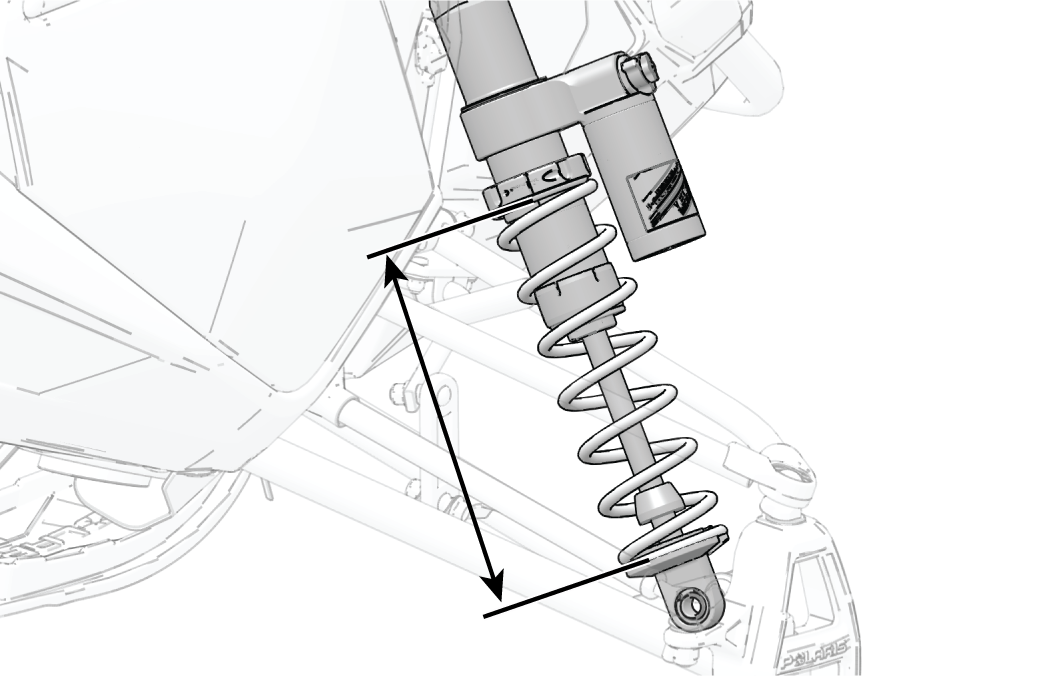

FACTORY INSTALLED LENGTH |
9.75 in (24.8 cm) |
10.75 in (27.31 cm) |
9.75 in (24.8 cm) |
10 in (25.4 cm) |
|
MINIMUM INSTALLED LENGTH |
9.25 in (23.50 cm) |
10.35 in (26.29 cm) |
8.85 in (22.48 cm) |
9.52 in (24.18 cm) |
|
MAXIMUM INSTALLED LENGTH |
9.875 in (25.08 cm) |
10.875 in (27.62 cm) |
9.875 in (25.08 cm) |
10.375 in (26.35 cm) |
|
FACTORY CLICKER SETTING* |
5 |
5 |
6 |
6 |
|
* From Full Stiff |
||||
Walker Evans Velocity Hi/Lo
INDY XCR models are equipped with Walker Evans Velocity shocks, which utilize dual shock clickers to control bottoming and ride comfort. To reset shock clickers, rotate the clicker to full stiff, and then back off the same number of clicks for each shock.
-

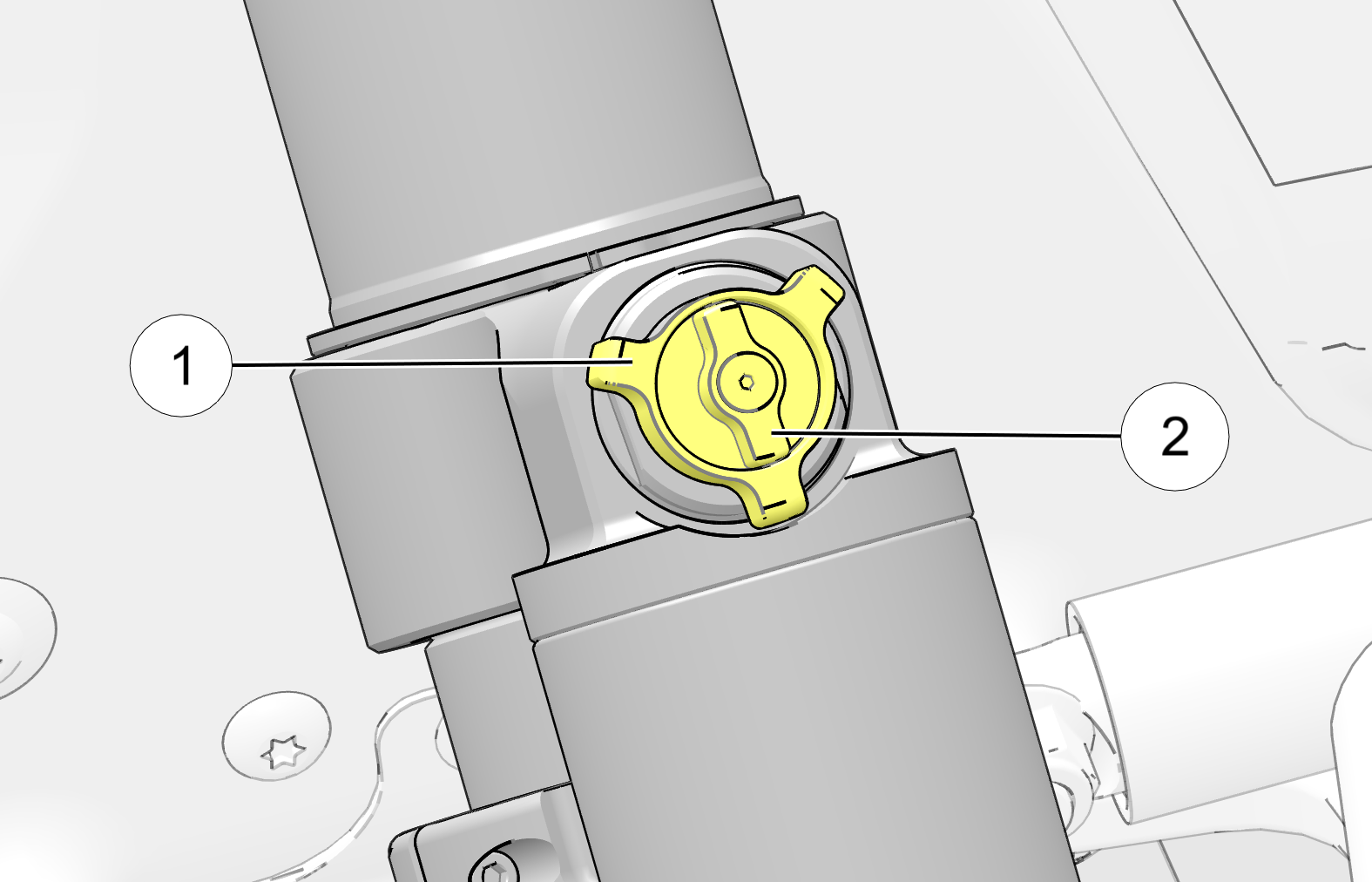

The outside clicker 1 adjusts shock compression during high speed compression events. Turn clicker clockwise to increase compression and counterclockwise to decrease compression.
-
The inside clicker 2 adjusts shock compression during low speed compression events. Turn clicker clockwise to increase compression and counterclockwise to decrease compression.
|
MODEL |
Matryx INDY XCR |
|
FACTORY INSTALLED LENGTH |
9.75 in (24.76 cm) |
|
MINIMUM INSTALLED LENGTH |
8.85 in (22.48 cm) |
|
FACTORY CLICKER SETTING* |
Outside Clicker: 5 Inside Clicker: 6 |
|
* From Full Stiff |
|
FOX QS3®
|
MODEL |
Voyageur Nordic Pro 155 |
INDY Adventure |
Switchback XC |
INDY XC |
|

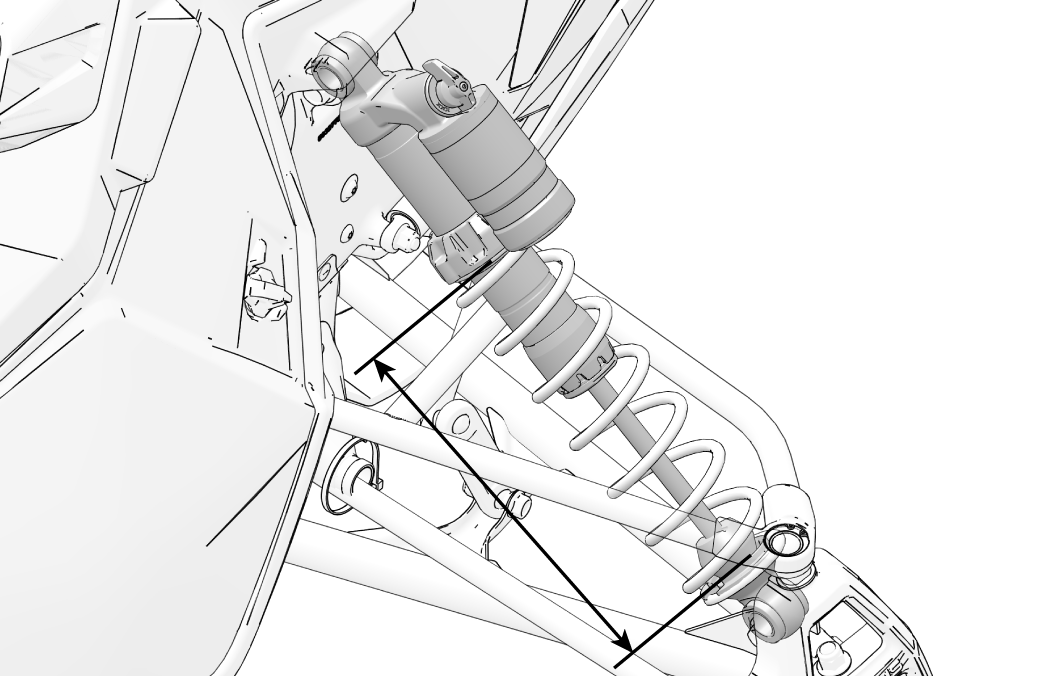

FACTORY INSTALLED LENGTH |
10.43 in (26.49 cm) |
9.75 in (24.7 cm) |
10.3 in (26.17 cm) |
9.75 in (24.77 cm) |
|
MINIMUM INSTALLED LENGTH |
8.77 in (22.28 cm) |
9.45 in (24 cm) |
9.8 in (24.87 cm) |
9.45 in (24 cm) |
|
MAXIMUM INSTALLED LENGTH |
10.675 in (27.11 cm) |
9.875 in (25.08 cm) |
10.375 in (26.35 cm) |
9.875 in (25.08 cm) |
|

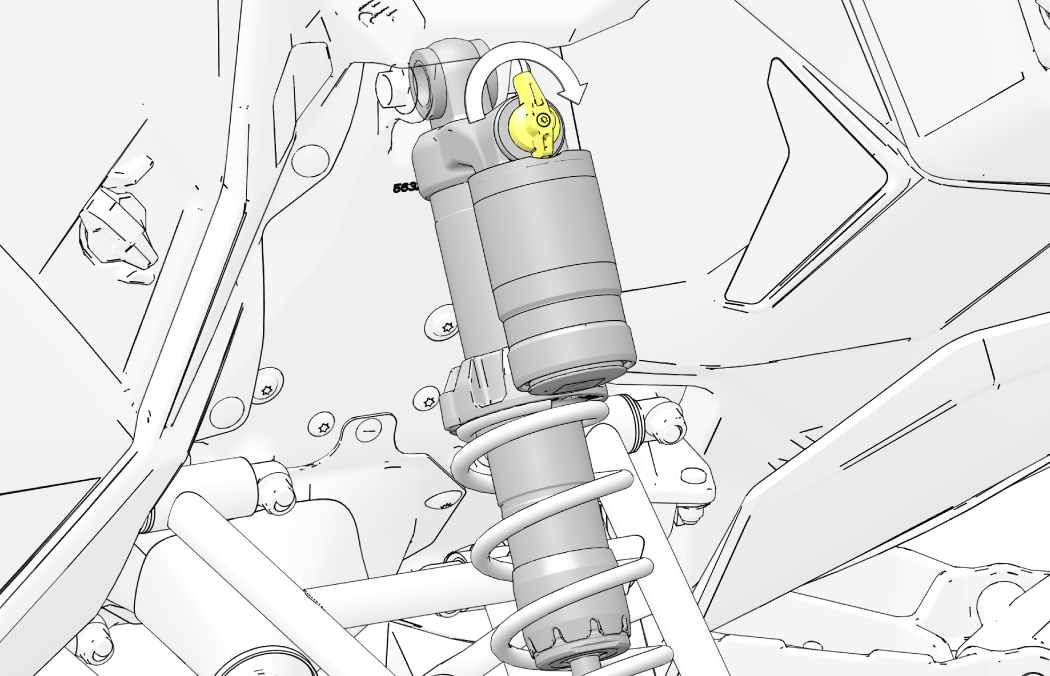

FACTORY CLICKER SETTING* |
Medium |
Medium |
Medium |
Medium |
|
* From Full Stiff |
||||
