Overview

NOTICE
Features and telltales vary by model.

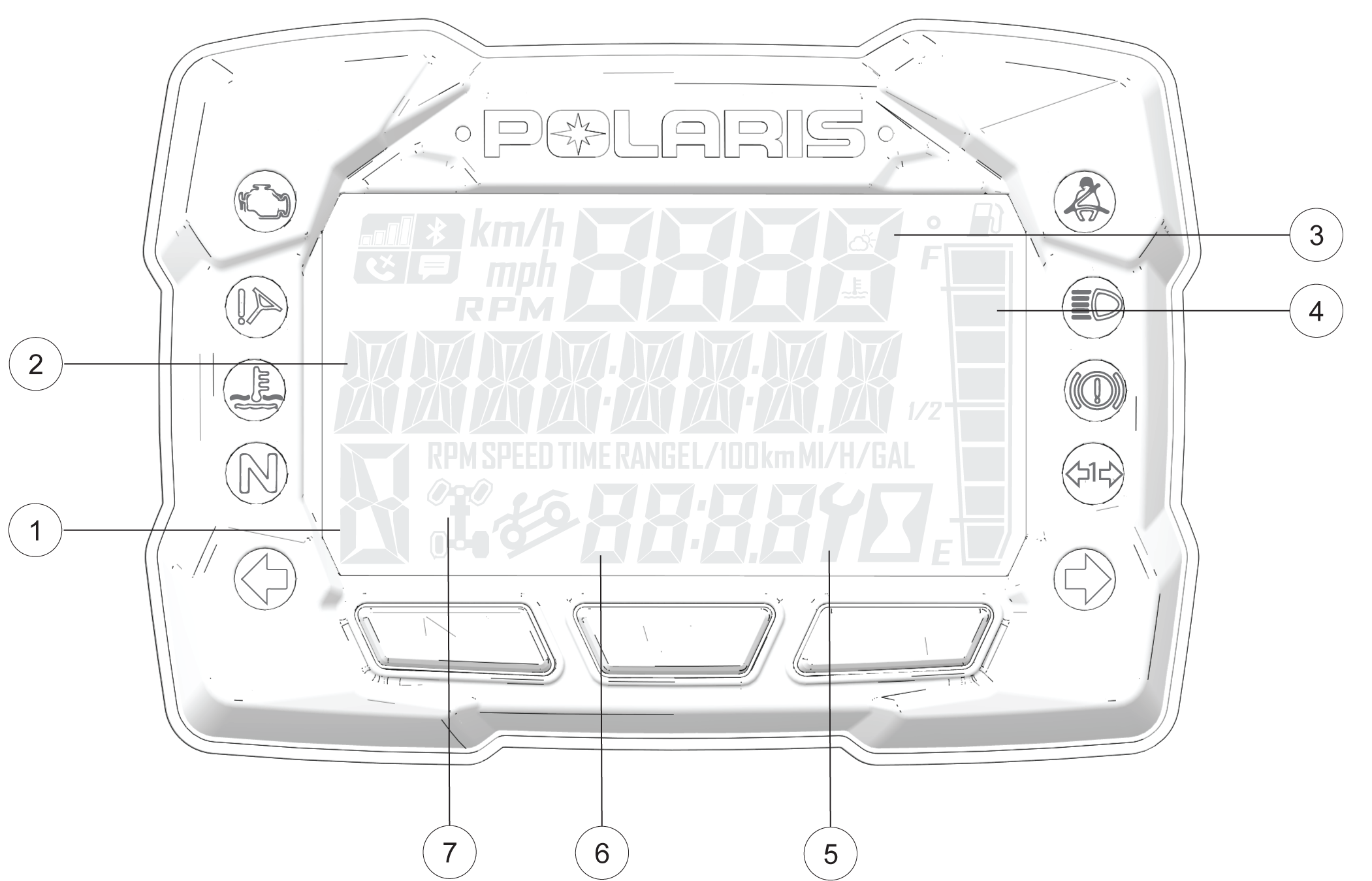

Display Area Function

1 Gear Indicator

H = High Gear

L = Low Gear

N = Neutral

R = Reverse Gear

P = Park

-- = Gear Signal Error (or shifter between gears)

2 Display Area 2

This area displays odometer, trip meter, trip meter 2, voltage, engine temperature, engine hour meter, programmable service hour interval, ground speed, or engine RPM.

3 Display Area 1

This area displays engine RPM, ground speed, or coolant temperature.

4 Fuel Gauge

The segments of the fuel gauge show the level of fuel in the fuel tank. When the last segment clears, a low fuel warning is activated. All segments including the fuel icon will flash. Refuel immediately.

5 Service Indicator

A flashing wrench symbol alerts the operator that the preset service interval has been reached. Your Polaris dealer can provide scheduled maintenance. See Service Hours for more information.

6 Clock

The clock displays time in a 12-hour or 24-hour format.

7 Driveline Mode Indicator

Segments of the indicator illuminate based on driveline mode engaged.
