IMPORTANT

The Owner's Manual for this vehicle contains warnings, instructions and other information you must read and fully understand before safely riding or performing maintenance on this vehicle. Always follow the warnings and instructions in Owner's Manual.

Click the link above for the Table Of Contents, or download a full PDF of the Owner Manual in the Owner Support area of Polaris.com.

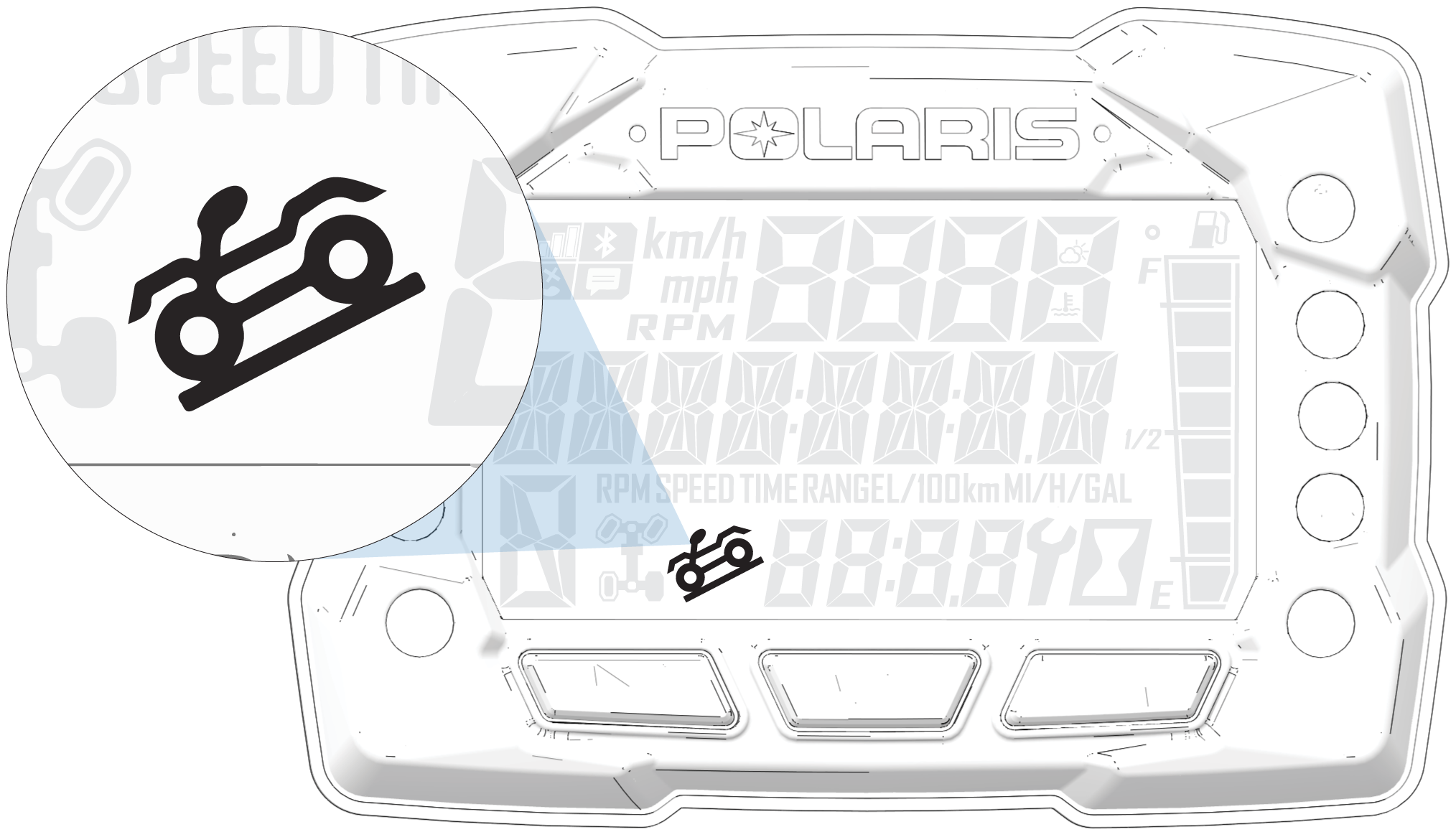

Active Descent Control (ADC) System

The ADC system allows engine braking to all four wheels when the vehicle descends a hill or incline. Always move the AWD momentary switch to ADC before ascending or descending a hill.

Engaging Active Descent Control

The ADC system will automatically engage when all four of the following conditions occur:

  • The momentary switch must be in the ADC position

  • Vehicle speed must be 6 mph (9 kph) or less

  • The throttle must be closed (throttle lever released)

  • The transmission must be in gear (high, low or reverse)

Disengaging Active Descent Control

The ADC system will automatically disengage if at least one of the following conditions occur:

  • The momentary switch is moved out of the ADC position

  • Vehicle speed exceeds 6 mph (9 kph)

  • The throttle is open (throttle is applied)

  • The transmission is shifted to neutral or park

  • Vehicle speed is 0 mph (0 kph) even when driving gear is engaged.
